Excel problem: I need to let only values between a certain range be in a column and if they are less

I need to let only values between a certain range be in a column and if they are lesser or higher than the specified range, I want it to show the particular minimum or maximum number corresponding to the range

4 Replies

  • Ps18priyanka

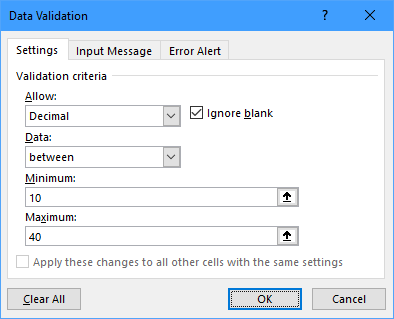

    You could use Data Validation to allow only values between a specified minimum and maximum:





    If you want to allow the user to enter values outside the range but to convert them automatically to the minimum/maximum, that would require VBA:

    • Right-click the sheet tab.
    • Select View Code from the context menu.
    • Copy the code listed below into the worksheet's code module.
    • Switch back to Excel.
    • Save the workbook as a macro-enabled workbook (*.xlsm).
    • Make sure that you allow macros when you open the workbook.
    Private Sub Worksheet_Change(ByVal Target As Range)
        ' Change these as required
        Const TheMin = 20
        Const TheMax = 40
        Dim rng As Range
        Dim cel As Range
        ' Change the range below to the range you want to restrict
        Set rng = Range("D2:D1000")
        If Not Intersect(rng, Target) Is Nothing Then
            Application.ScreenUpdating = False
            Application.EnableEvents = False
            For Each cel In Intersect(rng, Target)
                If cel.Value <> "" Then
                    If cel.Value < TheMin Then
                        cel.Value = TheMin
                    ElseIf cel.Value > TheMax Then
                        cel.Value = TheMax
                    End If
                End If
            Next cel
            Application.EnableEvents = True
            Application.ScreenUpdating = True
        End If
    End Sub
  • mathetes's avatar
    mathetes
    Silver Contributor

    Ps18priyanka



    It's hard to give specific advice without a more detailed description. Where, for example, are the values coming from?



    If you are using formulas to populate the cells in the column you're referring to, you can nest the formula in a couple of IF statements such as this. If the sum of A2 + B2 is greater than 3 and less than 20, it appears as calculated; if it exceeds either the lower or upper limit, that limit appears.

    =IF((A2+B2)<3,3,IF((A2+B2)>20,20,A2+B2))



    You could also use Data Validation to preclude entering values that exceed a specified minimum or maximum. However, other than an error message, that doesn't display the min or max allowed; just keeps somebody from typing in an invalid number.

    So it would be helpful for us in helping you if you were to give a bit more of the bigger picture which this requirement is a part of.

    • Ps18priyanka's avatar
      Ps18priyanka
      Copper Contributor
      It's actually related to well log. So upto a certain depth (1000 for example) our hydrostatic head (column h) remains as a constant value of 8.3. After that it depends on other factors so it's basically equal to some other cell value (for example g). Now.. I want my graph to be smooth. Column h has few points which are below 8.3 or 20 (max value). And if a value is 5 for example then I want the value to become 8.3 and if it's 25 I want it as 20 in my graph.
      • Ps18priyanka's avatar
        Ps18priyanka
        Copper Contributor
        Tq! Achieved the result. Grateful 🙂
