Excel macro help - cutting off first letter of some results in pivot

I need help with a macro problem I can't figure out. Some of the cells return a field that's missing the first letter of the data. What's wrong with the code where it does this? For instance, in the tab "MS_Pivot" row 44 says "icrogrids" instead of "microgrids". It only does this for a couple of cell results.

https://drive.google.com/file/d/16iF1Z_2WgJYjVAbbiXU8xhkcwnluJnyZ/view?usp=sharing

  • djclements's avatar
    djclements
    Dec 15, 2023

    matthewwwood The most likely culprit is the use of the Mid function to exclude the leading character(s) from columns 2 and 3:



        ' Split phrases in column 2 and copy corresponding data
        For i = 2 To LastRow
            phrases1 = Split(Mid(rootData.Cells(i, 2).value, 2), ",")

        ...

        ' Split phrases in column 3 and copy corresponding data
        For i = 2 To LastRow
            phrases2 = Split(Mid(rootData.Cells(i, 3).value, 3), ",")



    For column 2, the Start position is 2, but for column 3 the Start position is 3. Is this a typo? Should it be 2 for both? If not, then...



    Do all of the cells in columns 2 and 3 contain the same number of leading character(s) that you are trying to exclude? I would start by examining the source data... locate the cell that contains "microgrids" and verify that it follows the same pattern as the other cells regarding leading characters.

4 Replies

  • djclements's avatar
    djclements
    Silver Contributor

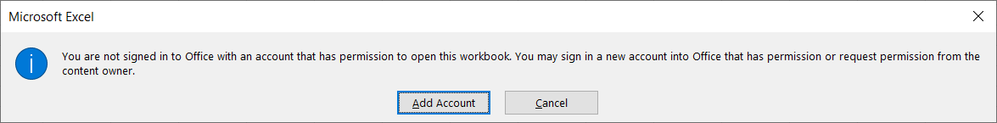

    matthewwwood The file you've shared is configured with IRM, so only authorized Office accounts can access it...



    IRM: Access Denied



    Try sharing your VBA code directly in a reply... open the full text editor, click the "Insert/Edit code sample" button </> on the toolbar, select "Visual Basic" from the Language picklist, paste your code and click OK. It will be easier to review you code if it's been shared in this manner. Thanks.

    • matthewwwood's avatar
      matthewwwood
      Copper Contributor



      Sub SplitPhrases()
          Dim rootData As Worksheet
          Dim newData1 As Worksheet
          Dim newData2 As Worksheet
          Dim LastRow As Long
          Dim i As Long, j As Long
          Dim phrases1() As String
          Dim phrases2() As String

          RemoveSheets

          ' Set the worksheets
          Set rootData = ThisWorkbook.Worksheets("Root Data")
          Set newData1 = ThisWorkbook.Worksheets.Add(After:=rootData)
          Set newData2 = ThisWorkbook.Worksheets.Add(After:=newData1)



          ' Set names for new sheets
          newData1.Name = rootData.Cells(1, 2).value
          newData2.Name = rootData.Cells(1, 3).value

          ' Find the last row in root data
          LastRow = rootData.Cells(rootData.Rows.Count, 2).End(xlUp).Row

          ' Split phrases in column 2 and copy corresponding data
          For i = 2 To LastRow
              phrases1 = Split(Mid(rootData.Cells(i, 2).value, 2), ",")

              For j = 0 To UBound(phrases1)
                  newData1.Cells(newData1.Rows.Count, 1).End(xlUp).Offset(1, 0).value = rootData.Cells(i, 1).value
                  newData1.Cells(newData1.Rows.Count, 2).End(xlUp).Offset(1, 0).value = phrases1(j)
                  newData1.Cells(newData1.Rows.Count, 3).End(xlUp).Offset(1, 0).value = rootData.Cells(i, 4).value
                  newData1.Cells(newData1.Rows.Count, 4).End(xlUp).Offset(1, 0).value = rootData.Cells(i, 5).value
              Next j

          Next i

          ' Split phrases in column 3 and copy corresponding data
          For i = 2 To LastRow
              phrases2 = Split(Mid(rootData.Cells(i, 3).value, 3), ",")
              For j = 0 To UBound(phrases2)
                  newData2.Cells(newData2.Rows.Count, 1).End(xlUp).Offset(1, 0).value = rootData.Cells(i, 1).value
                  newData2.Cells(newData2.Rows.Count, 2).End(xlUp).Offset(1, 0).value = phrases2(j)
                  newData2.Cells(newData2.Rows.Count, 3).End(xlUp).Offset(1, 0).value = rootData.Cells(i, 4).value
                  newData2.Cells(newData2.Rows.Count, 4).End(xlUp).Offset(1, 0).value = rootData.Cells(i, 5).value
              Next j
          Next i

          ' Rename headers in Sheet 2
          newData1.Cells(1, 1).value = rootData.Cells(1, 1).value
          newData1.Cells(1, 2).value = rootData.Cells(1, 2).value
          newData1.Cells(1, 3).value = rootData.Cells(1, 4).value
          newData1.Cells(1, 4).value = rootData.Cells(1, 5).value

          ' Rename headers in Sheet 3
          newData2.Cells(1, 1).value = rootData.Cells(1, 1).value
          newData2.Cells(1, 2).value = rootData.Cells(1, 3).value
          newData2.Cells(1, 3).value = rootData.Cells(1, 4).value
          newData2.Cells(1, 4).value = rootData.Cells(1, 5).value

          ' Autofit columns in new sheets
          newData1.Columns.AutoFit
          newData2.Columns.AutoFit

      RemoveQuotationMarks
      CreatePivotTableHigh
      CreatePivotTableMedium
      HideSheets

      End Sub

      Sub RemoveQuotationMarks()
          Sheets("Intent_Keywords_High_Strength").Activate
          Columns("B:B").Select
          Selection.Replace What:="""", Replacement:="", LookAt:=xlPart, _
              SearchOrder:=xlByRows, MatchCase:=False, SearchFormat:=False, _
              ReplaceFormat:=False

          Sheets("Intent_Keywords_Medium_Strength").Activate
          Columns("B:B").Select
          Selection.Replace What:="""", Replacement:="", LookAt:=xlPart, _
              SearchOrder:=xlByRows, MatchCase:=False, SearchFormat:=False, _
              ReplaceFormat:=False
      End Sub

      Sub CreatePivotTableHigh()
          Dim wsData As Worksheet
          Dim wsPivot As Worksheet
          Dim rngData As Range
          Dim pivotTable As pivotTable
          Dim pivotRange As Range
          Dim pvtRange As Range
          Dim lastColumn As Range

          ' Set references to the data sheet and pivot sheet
          Set wsData = ThisWorkbook.Sheets("Intent_Keywords_High_Strength")
          Set wsPivot = ThisWorkbook.Sheets.Add(After:=wsData)

          ' Define the range of data for the pivot table
          Set rngData = wsData.Range("A1").CurrentRegion

          ' Create the pivot table on the pivot sheet
          Set pivotRange = wsPivot.Range("A1")
          Set pivotTable = wsPivot.PivotTableWizard( _
              SourceType:=xlDatabase, _
              SourceData:=rngData, _
              TableDestination:=pivotRange, _
              TableName:="PivotTable1")

          ' Set the pivot table fields
          With pivotTable
              .PivotFields("Intent_Keywords_High_Strength").Orientation = xlRowField
              .PivotFields("Intent_Keywords_High_Strength").Orientation = xlDataField
              .PivotFields("Domain").Orientation = xlPageField
              .PivotFields("Intent_Keywords_High_Strength").AutoSort xlDescending, _
              "Count of Intent_Keywords_High_Strength", ActiveSheet.PivotTables("PivotTable1" _
              ).PivotColumnAxis.PivotLines(1), 1

                End With


          ' Format the pivot table as needed
           ActiveSheet.PivotTables("PivotTable1").TableStyle2 = "PivotStyleDark7"
          ActiveWindow.DisplayGridlines = False



          ' Refresh the pivot table
          pivotTable.RefreshTable

       ' Set names for pivot sheets
          ActiveSheet.Name = "HS_Pivot"

      End Sub


      Sub CreatePivotTableMedium()
          Dim wsData As Worksheet
          Dim wsPivot As Worksheet
          Dim rngData As Range
          Dim pivotTableM As pivotTable
          Dim pivotRange As Range
          Dim pvtRange As Range
          Dim lastColumn As Range

          ' Set references to the data sheet and pivot sheet
          Set wsData = ThisWorkbook.Sheets("Intent_Keywords_Medium_Strength")
          Set wsPivot = ThisWorkbook.Sheets.Add(After:=wsData)

          ' Define the range of data for the pivot table
          Set rngData = wsData.Range("A1").CurrentRegion

          ' Create the pivot table on the pivot sheet
          Set pivotRange = wsPivot.Range("A1")
          Set pivotTableM = wsPivot.PivotTableWizard( _
              SourceType:=xlDatabase, _
              SourceData:=rngData, _
              TableDestination:=pivotRange, _
              TableName:="PivotTable2")

          ' Set the pivot table fields
          With pivotTableM
              .PivotFields("Intent_Keywords_Medium_Strength").Orientation = xlRowField
              .PivotFields("Intent_Keywords_Medium_Strength").Orientation = xlDataField
              .PivotFields("Domain").Orientation = xlPageField


                End With


      ' Sort Table
          Range("B5").Select
          ActiveSheet.PivotTables("PivotTable2").PivotFields( _
              "Intent_Keywords_Medium_Strength").AutoSort xlDescending, _
              "Count of Intent_Keywords_Medium_Strength", ActiveSheet.PivotTables( _
              "PivotTable2").PivotColumnAxis.PivotLines(1), 1



          ' Format the pivot table as needed
           ActiveSheet.PivotTables("PivotTable2").TableStyle2 = "PivotStyleDark5"
          ActiveWindow.DisplayGridlines = False



          ' Refresh the pivot table
          pivotTableM.RefreshTable

       ' Set names for pivot sheets
          ActiveSheet.Name = "MS_Pivot"

      End Sub

      Sub RemoveSheets()
          Dim ws As Worksheet
          Dim sheetNames() As Variant
          Dim i As Long

          ' Define the sheet names to be removed
          sheetNames = Array("Intent_Keywords_Medium_Strength", "Intent_Keywords_High_Strength", "HS_Pivot", "MS_Pivot")

          Application.DisplayAlerts = False ' Disable alert messages

          ' Loop through each sheet in the workbook in reverse order
          For i = ThisWorkbook.Worksheets.Count To 1 Step -1
              Set ws = ThisWorkbook.Worksheets(i)

              ' Check if the sheet name matches any of the specified names
              If IsInArray(ws.Name, sheetNames) Then
                  Application.DisplayAlerts = False ' Disable alert messages
                  ws.Delete ' Delete the sheet
                  Application.DisplayAlerts = True ' Enable alert messages
              End If
          Next i

          Application.DisplayAlerts = True ' Enable alert messages
      End Sub
      Function IsInArray(value As Variant, arr As Variant) As Boolean
          ' Check if a value exists in an array
          Dim element As Variant

          On Error Resume Next
          element = Application.Match(value, arr, 0)
          On Error GoTo 0

          IsInArray = Not IsError(element)
      End Function


      Sub HideSheets()
          Dim ws As Worksheet

          On Error Resume Next ' Ignore errors if sheet doesn't exist

          ' Hide "Intent_Keywords_Medium_Strength" sheet
          Set ws = ThisWorkbook.Sheets("Intent_Keywords_Medium_Strength")
          If Not ws Is Nothing Then
              ws.Visible = xlSheetHidden
          End If

          ' Hide "Intent_Keywords_High_Strength" sheet
          Set ws = ThisWorkbook.Sheets("Intent_Keywords_High_Strength")
          If Not ws Is Nothing Then
              ws.Visible = xlSheetHidden
          End If

          On Error GoTo 0 ' Reset error handling
      End Sub

      djclements - thanks for the tip! Let me know if this is doable?

      • djclements's avatar
        djclements
        Silver Contributor

        matthewwwood The most likely culprit is the use of the Mid function to exclude the leading character(s) from columns 2 and 3:



            ' Split phrases in column 2 and copy corresponding data
            For i = 2 To LastRow
                phrases1 = Split(Mid(rootData.Cells(i, 2).value, 2), ",")

            ...

            ' Split phrases in column 3 and copy corresponding data
            For i = 2 To LastRow
                phrases2 = Split(Mid(rootData.Cells(i, 3).value, 3), ",")



        For column 2, the Start position is 2, but for column 3 the Start position is 3. Is this a typo? Should it be 2 for both? If not, then...



        Do all of the cells in columns 2 and 3 contain the same number of leading character(s) that you are trying to exclude? I would start by examining the source data... locate the cell that contains "microgrids" and verify that it follows the same pattern as the other cells regarding leading characters.
