Data model conversion-Power Query
Hi Victoria-9 ,

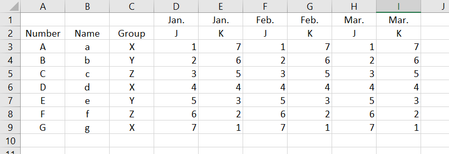

Initial idea of how to work with multi-row headers is from Gil Raviv, at least I picked-up it here. Now don't remember there are the details, in his book or blog. In brief, transformation is like
generated script is
let
Source = Excel.CurrentWorkbook(){[Name="Table2"]}[Content],
MergeFirstThreeColumns = Table.CombineColumns(Source,
{"Column1", "Column2", "Column3"},
Combiner.CombineTextByDelimiter("=", QuoteStyle.None),"Merged"),
TransposeTable = Table.Transpose(MergeFirstThreeColumns),
FirstRowAsHeader = Table.PromoteHeaders(TransposeTable, [PromoteAllScalars=true]),
UnpivoteOtherThanFirstTwoColumns = Table.UnpivotOtherColumns(FirstRowAsHeader,
{"==", "Number=Name=Group"}, "Attribute", "Value"),
PivotMonths = Table.Pivot(UnpivoteOtherThanFirstTwoColumns,
List.Distinct(UnpivoteOtherThanFirstTwoColumns[#"Number=Name=Group"]),
"Number=Name=Group", "Value"),
SplitFirstColumnsBack = Table.SplitColumn(PivotMonths, "Attribute",
Splitter.SplitTextByDelimiter("=", QuoteStyle.Csv), {"Attribute.1", "Attribute.2", "Attribute.3"}),
RenameAsBefore = Table.RenameColumns(SplitFirstColumnsBack,
{{"==", " "}, {"Attribute.1", "Number"}, {"Attribute.2", "Name"}, {"Attribute.3", "Group"}}),
ProperColumnsOrder = Table.ReorderColumns(RenameAsBefore,{"Number", "Name", "Group", "J", "K", " "})
in
ProperColumnsOrder
and file is attached.
Hope above are self-explained if repeat step by step. Didn't play with final sorting, recognised too late it's better to do one.
- Victoria-9Mar 25, 2019Copper Contributor
Hi SergeiBaklan
Thank you very much!
I followed your steps to change the information and tried it. I have succeeded! But I made a mistake in my question.
The value contained in the 'Number' column should be ‘123456’ instead of ‘a123’. After replacing the ‘number’ with ‘letter + number’ in my table , I succeeded.
Do you know how to modify the step if the number column is all numeric?
- SergeiBaklanMar 25, 2019Diamond Contributor
Victoria-9 , in addition I added months sorting by adding month number in front of each its name before pivoting; removed that index on latest steps.
- SergeiBaklanMar 25, 2019Diamond Contributor
Hi Victoria-9 ,
In Power Query editor you may convert column [Number] to type text on one of the first steps, and on one of the last one convert it back to Whole Number, please see attached. Columns combiner works with texts only.
