Creating a pair of dynamic graphs for a dashboard presentation

I need to create a pair of donut graphs that detect what week the current day/date falls under.  Simply put, we are tracking how many lots/work orders pass final inspection and how many get rejected.  This needs to be in a rather simple dashboard style presentation for our Monday Manager's Meeting (MMM) every week.

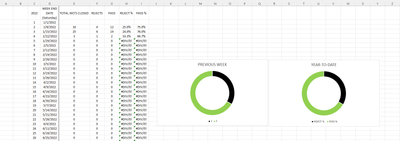

I thought I was going to be able to attach my file but I don't see a button to do that.  I'll insert a picture.  I want the "PREVIOUS WEEK" graph on the left to detect the current date when they open the file at the MMM, and automatically plot/display the pass/reject info for the previous week.  I want the "YEAR-TO-DATE" graph on the right to simply display that: the year-to-date.  Obviously, we're not very far into 2022 just yet, but there should be enough there to see what I'm getting at.  The formulas/data reference other worksheets, but this is simply a graph question, which is restricted to the sheet in the picture.







  • Hi Lorenski



    you can achieve this with a few simple formulas:

    - identify previous week of todays date: =WEEKNUM()

    - pick the values for previous week: =VLOOKUP()

    - calcualte YTD values: =SUMIF()



    In the attached file, you can find my example.



2 Replies

  • Martin_Weiss's avatar
    Martin_Weiss
    Bronze Contributor

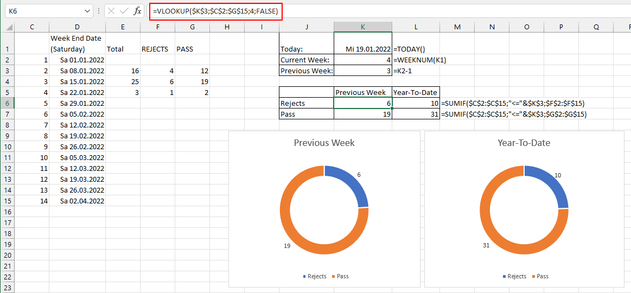

    Hi Lorenski



    you can achieve this with a few simple formulas:

    - identify previous week of todays date: =WEEKNUM()

    - pick the values for previous week: =VLOOKUP()

    - calcualte YTD values: =SUMIF()



    In the attached file, you can find my example.



    • Lorenski's avatar
      Lorenski
      Copper Contributor
      Thank you DTE! Worked the first time!
