Convex hull Lambda > would it be impossible to build?
Hello everyone,
Ever since visiting the site of Andy Pope, I saw a chart that fascinated me because it can be very useful for creating the bounding area of a set of points. It's known as Convex Hull. Here's Andy's post > https://andypope.info/charts/convexhull.htm
In the post you can download the file, and the VBA is fascinating to say the least.
I was wondering, with the LAMBDA technology and its possibility for recursiveness, is it possible with Lambda or has anyone come across a Lambda formula about it?
Thanks in advance.

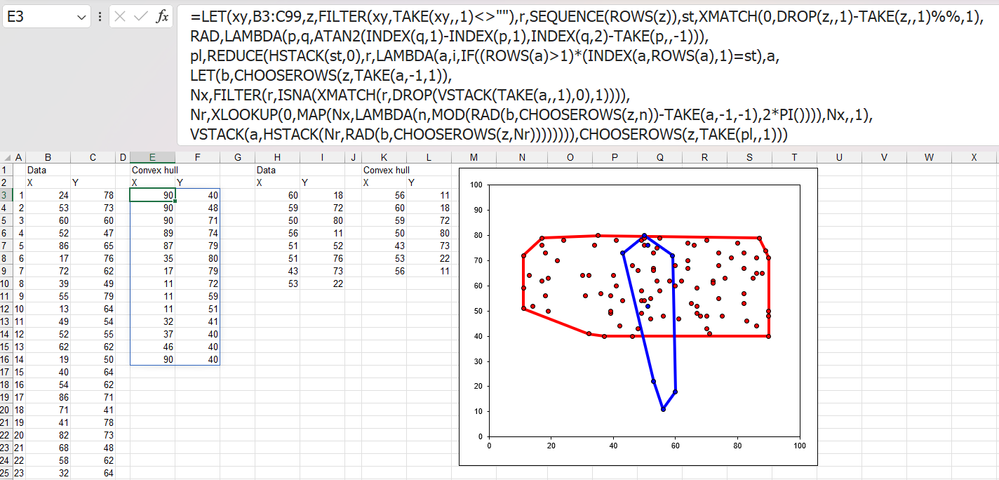

I got some progress to connect the outer point.
=LET(xy,B3:C99,z,FILTER(xy,TAKE(xy,,1)<>""),r,SEQUENCE(ROWS(z)),st,XMATCH(0,DROP(z,,1),1),
RAD,LAMBDA(p,q,ATAN2(INDEX(q,1)-INDEX(p,1),INDEX(q,2)-INDEX(p,2))),
pl,REDUCE(HSTACK(st,0),r,LAMBDA(a,i,IF((ROWS(a)>1)*(INDEX(a,ROWS(a),1)=st),a,
LET(b,CHOOSEROWS(z,TAKE(a,-1,1)),
Nx,FILTER(r,ISNA(XMATCH(r,DROP(VSTACK(TAKE(a,,1),0),1)))),
Nr,XLOOKUP(0,MAP(Nx,LAMBDA(n,MOD(RAD(b,CHOOSEROWS(z,n))-TAKE(a,-1,-1),2*PI()))),Nx,,1),
VSTACK(a,HSTACK(Nr,RAD(b,CHOOSEROWS(z,Nr)))))))),CHOOSEROWS(z,TAKE(pl,,1)))

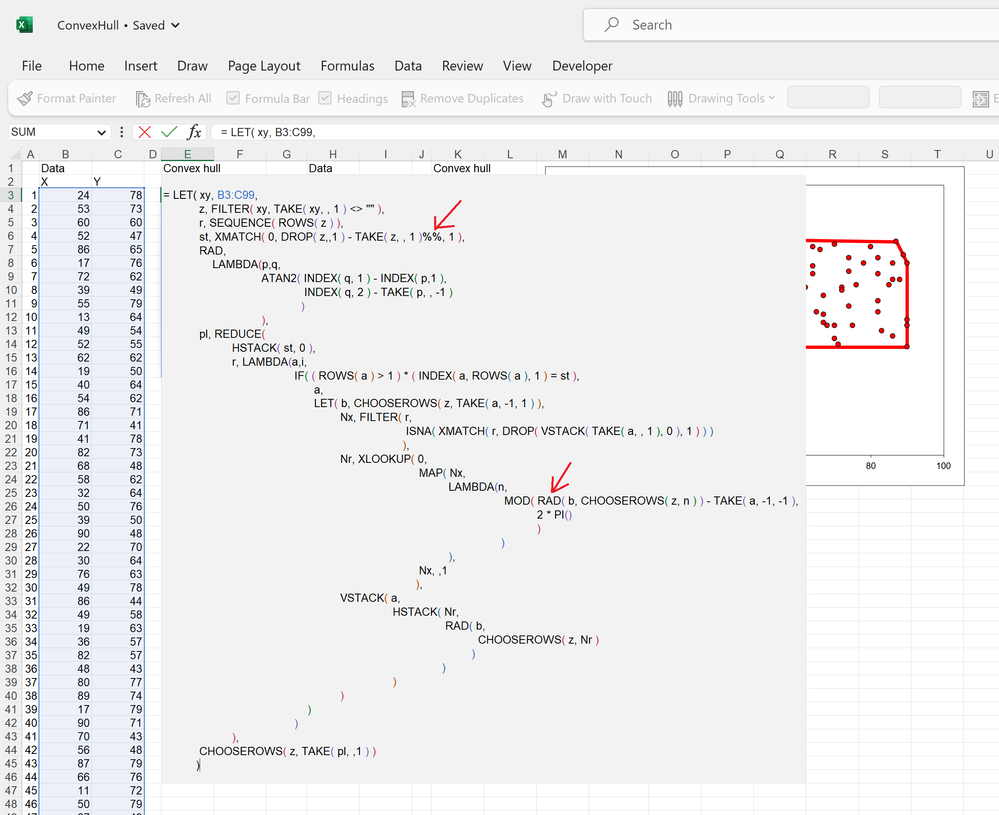

ConvexHull.xlsbI'm a hardcore ALT + ENTER + Space Bar kind of guy, so formatting formulas to be vertically is imperative for me. And in reviewing the formula, I have to ask, what´s this %% (double percentages)? And also, what's this secret function =RAD() ?
note: I'm not a LAMBDA expert like the brilliant minds that have posted here. Yet, I'm always eager to learn the -- core concepts -- of interesting and complex formulas.- z is column 1 is X , column 2 is Y
XMATCH(0,DROP(z,,1)-TAKE(z,,1)%%,1) => XMATCH(0,Y-X%%,1)
% is divided by 100
Y - X /100 /100 This is to get the lowest point on Y and max point on X
if we have
x10,y5 x10, y1 and x100 y1 this will give you the x100 y1 the bottom right point
but I realize that is not necessary. any bottom y point will work.
RAD,LAMBDA(p,q,ATAN2(INDEX(q,1)-INDEX(p,1),INDEX(q,2)-INDEX(p,2)))
This is the Lambda function to calculate the angle in radians of 2 points from P and Q.
To all,

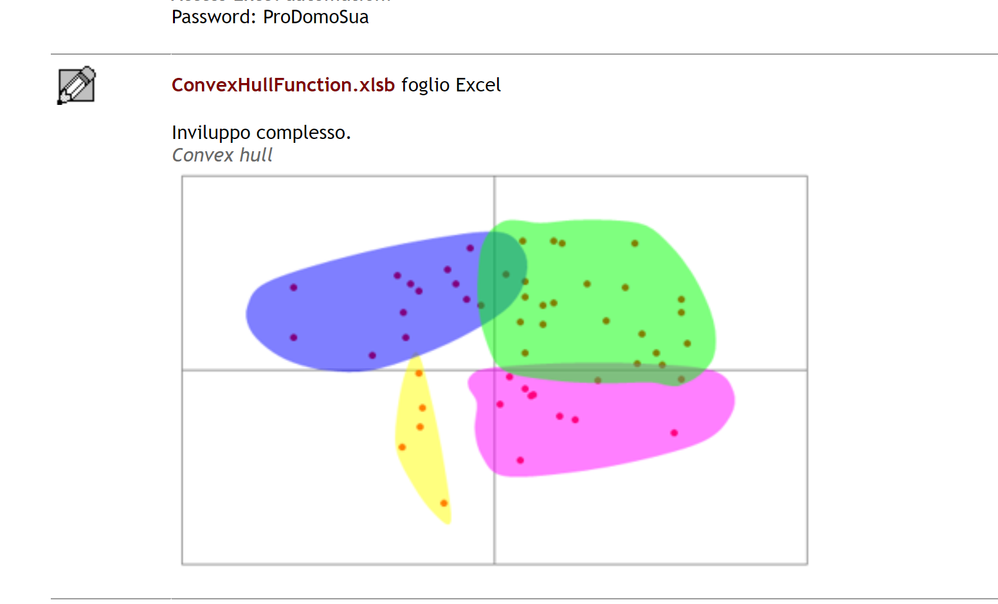

Here's another person: Fernando Cinquegrani, who developed a Convex hull UDF. Very interesting stuff. It would be nice to check out his VBA back-end but its locked.
Fernando's site: http://www.prodomosua.it/ppage02.html
On the link above, you will be able to find the workbook with the convex hull right above the section where the graph below appears.
- Intriguing indeed! Have you tried chatGPT?
JKPieterse Thanks of your comments, I have tried like dozen of Lambdas out from ChatGtP but none worked. I still need to work on grasping recursiveness. Sometimes I feel like "I get it" and then in another case I lost it. 😒 But I'm making progress. Learning -- thunking -- has been fun.
- I did. After some discussion with it, it came up with this:
=LAMBDA(points,
LET(
leftmost_point, MIN(points, 1),
x_values, INDEX(points, 0, 1),
y_values, INDEX(points, 0, 2),
n, ROWS(points),
indices, SEQUENCE(n),
indices_sorted, SORTBY(indices, x_values),
upper_hull_indices, FILTER(indices_sorted, y_values >= LINEST(y_values, x_values,,TRUE)),
lower_hull_indices, FILTER(indices_sorted, y_values < LINEST(y_values, x_values,,TRUE)),
upper_hull_points, INDEX(points, upper_hull_indices),
lower_hull_points, INDEX(points, lower_hull_indices),
upper_hull_sorted, SORTBY(upper_hull_points, y_values, -1),
lower_hull_sorted, SORTBY(lower_hull_points, y_values),
upper_hull_final, IF(COUNT(upper_hull_sorted) > 1,
TRANSPOSE({INDEX(upper_hull_sorted, 1),INDEX(upper_hull_sorted,2)}) ,
upper_hull_sorted),
lower_hull_final, IF(COUNT(lower_hull_sorted) > 1,
TRANSPOSE({INDEX(lower_hull_sorted, 1),INDEX(lower_hull_sorted,2)}) ,
lower_hull_sorted),
hull_points, SORTBY(TRANSPOSE({leftmost_point, upper_hull_final, lower_hull_final}), x_values)
,
TEXTJOIN(",",TRUE,hull_points)
))- Convincing perhaps, but Excel doesn't like the {INDEX(upper_hull_sorted, 1),INDEX(upper_hull_sorted,2)} bits in there.
