Chart updates inconsistently when dynamic array resizes
Hi
(Excel 365 v2601 b19628.20132 Current Channel / Windows 11 25H2)
Initial post edited (& cross posted here on Jan 29, 2026) after further investigations
In B6 below an array that dynamically resizes according to the 'START Year' & 'TOPN Cat' variables. The Chart is setup as follow:
- Select an empty cell > Insert 2-D Line chart
- Right-click > Select Data… > Chart data range > Select the Serie names & Values (C6:G12)
- Click Edit under Horizontal (Category) Axis Labels > Select the range with the Years (B7:B12)

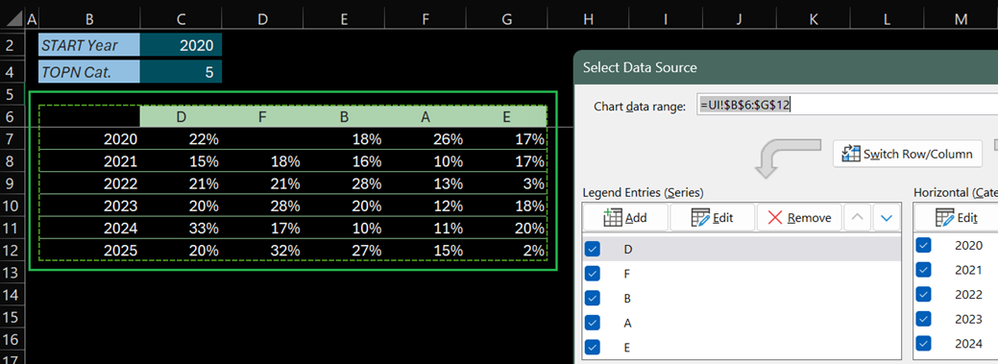

Check of the Chart data range:
Changing 'START Year' works no problem: the Chart data range & Horizonal Axis Label range are properly updated
Changing 'TOPN Cat' (the array resizes horizontally) screws up the chart:
The Chart data range is properly updated but the Series & Axis Label ranges don't update accordingly
Q: Am I doing something wrong, facing a limitation or is this something else?
Tried to attach the sample file 3 times... it's available at: Dynamic_Chart_Challenge.xlsx
Thanks & any question let me know
Lz.
8 Replies
Things have evolved with Version 2602 - Build 19725.20014 => Revised this discussion title (was: Chart from dynamic array challenge)
Attached zipped files:
- 26-02-07_SAMPLE_YearAsDate: [Year] converted as Date + <false blank> replaced with 0
- 26-02-07_SAMPLE_YearAsText: [Year] converted as Text + <false blank> replaced with 0
- 26-02-10_TESTS_ChartDynArray (tests conducted by someone else)
You made a very good point in converting the Years as real Date values - EDIT: TEXT( Years, "0000" ) also does it. Unfortunately this doesn't address the whole issue
NB: In any case <false blanks> must be replaced (not a problem)

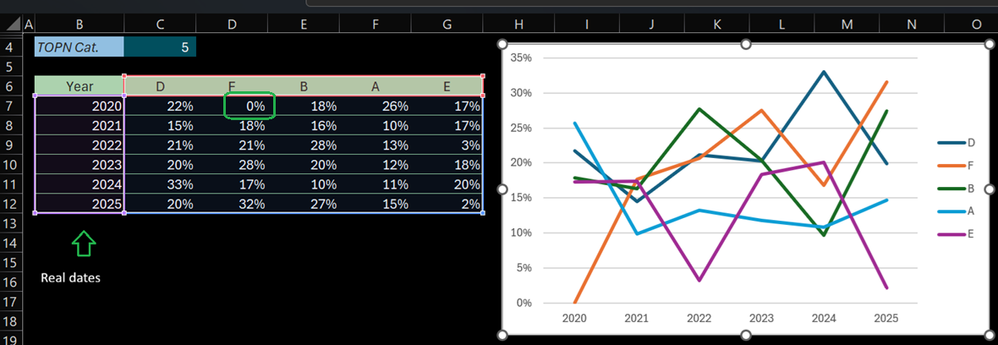

#1 Changing TOPN when the series are in columns doesn't work. Before:

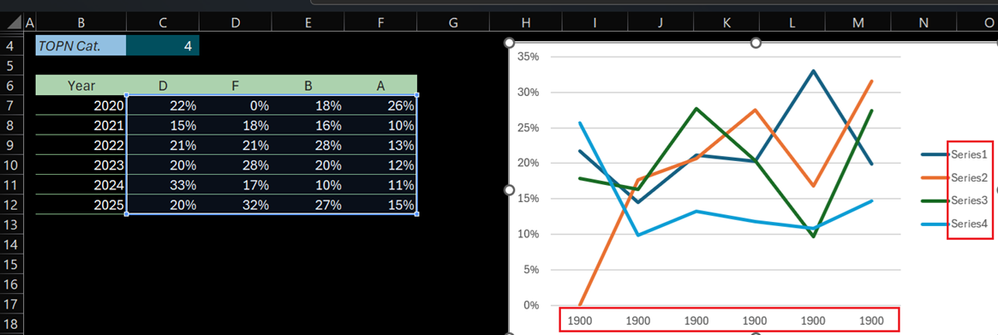

After TOPN change:
#2 With a Transposed array (series in rows) TOPN can be changed to any value, this works no problem

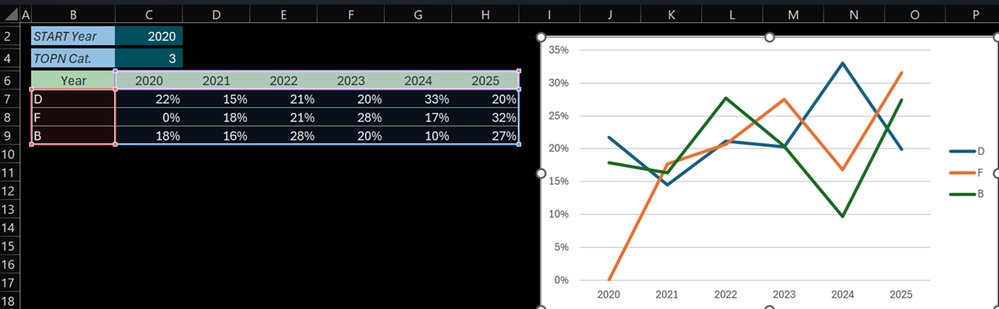

#3 With a Transposed array, not changing TOPN but START Year. Before:

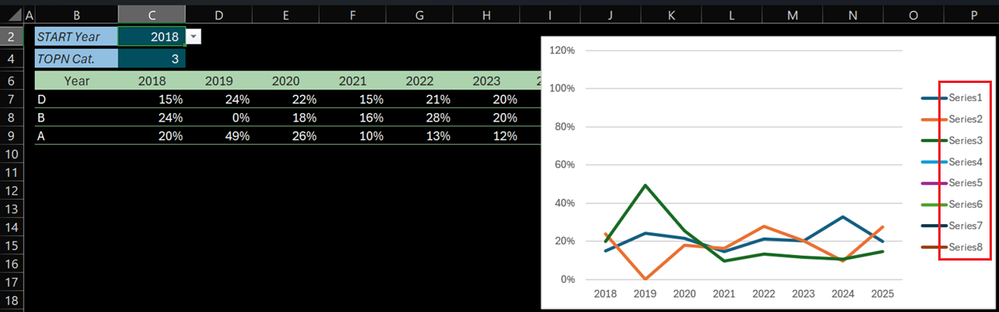

After START Year change:
Thanks much again Riny_van_Eekelen
Went to the DATA tab and saw that the pivot table was not set to "Auto Refresh". Most likely because your Excel doesn't support it
Correct, that's why I asked Insiders to check this works with the upcoming Auto Refresh functionality
It seems the UI tab is protected
Forgot to remove it before attaching the file so apologies for the inconvenience
Removed the protection and everything refreshes automatically upon changing the TOPN number in the UI tab
Perfect & Thanks much Riny
(cc: Anonymous29007)I keep coming back to this post over and over again and also saw your cross-post on Q&A with no answers.
I guess I just didn't understand what you were trying to demonstrate. Now I downloaded your "Workaround" file, and the first thing I note when I change the TOPN number in the UI tab is that nothing happens. Went to the DATA tab and saw that the pivot table was not set to "Auto Refresh". Most likely because your Excel doesn't support it.
Switched on Auto Refresh, changed the TOPN number again in the UI tab. Then this happens:
It seems the UI tab is protected. Removed the protection and everything refreshes automatically upon changing the TOPN number in the UI tab.
It seems I didn't do a decent job trying to demo. what I don't understand. So simplified the sample where we only play with the TOPN criteria and the number of Years is always 6 (2020...2025). Below are a few scenario & results
TEST #1
Set TOPN: 5
B6: =TOPN_Pivoted
Chart data range: =UI!$C$6:$G$12
Switch Row/Column if necessary
Horizontal Axis Labels (keep defaults: 1...6)- Set TOPN: 4 // Result: 5 series on Chart
Set TOPN: 4
Chart data range: =UI!$C$6:$F$12
Horizontal Axis Labels (keep defaults: 1...6)- Set TOPN: 5 then 6 // Result: 7 series on Chart
TEST #2
Set TOPN: 5
B6: =TRANSPOSE( TOPN_Pivoted )
Chart data range: =UI!$B$7:$H$11
Switch Row/Column if necessary
Horizontal Axis Labels (keep defaults: 1...6)- Set TOPN: 6 then 2
// Result: 2 series on Chart (1st is wrong). Only 5 labels on xAxis
Q: Due to false blank in C8???
- Set TOPN: 5 // Result: Back to 6 labels on xAxis
- Set TOPN: 1 then 2
// Result: 2 series on Chart (1st is wrong). Only 5 labels on xAxis
Q: Again, the false blank in C8???
- Set TOPN: 6 // Result: Back to 6 labels on xAxis
NOTE: With the exception of TOPN = 2 this seems to work better when array is transposed / series on rows (???)
TEST #3
Set TOPN: 5
B6: =FIXED_FALSE_BLANK
Chart data range: =UI!$C$6:$G$12
Switch Row/Column if necessary
Horizontal Axis Labels (keep defaults: 1...6)- - Set TOPN: 2 then 5 > 3 > 2 > 6 > 4 > 1 > 2 > 6 > 2 > 4 > 5
// Result: Works much better with 0 instead of false blank
TEST #4
Set TOPN: 5
B6: =TRANSPOSE( FIXED_FALSE_BLANK )
Chart data range: =UI!$B$7:$H$11
Switch Row/Column if necessary
Horizontal Axis Labels (keep defaults: 1...6)- - Set TOPN: 1 then > 2 > 6 > 4 > 3 > 5 > 1 > 2 > 6 > 2 > 4 > 5
// Result: Again, works much better with 0 instead of false blank
TEST #5
Set TOPN: 5
B6: =FIXED_FALSE_BLANK
Chart data range: =UI!$C$6:$G$12
Switch Row/Column if necessary
Edit Horizontal Axis Labels: =UI!$B$7:$B$12- Set TOPN: 3 // Result: 4 series (1st blank) + No Year on xAxis...
TEST #6
Set TOPN: 5
B6: =TRANSPOSE( FIXED_FALSE_BLANK )
Chart data range: =UI!$B$7:$H$11
Switch Row/Column if necessary
Edit Horizontal Axis Labels: =UI!$C$6:$H$6- Set TOPN: 4 // Result: 5 series (1st blank) + No Year on xAxis…
Same question again: Am I doing something wrong? / Am I missing something? / Is it mission impossible to get the series & the xAxis to update together dynamically when the array resizes (number of years may also vary under real-world conditions)?
I believe the problem lies in the fact that you don't include the years column in the dynamic array. With TOPN 5 it just gives you 5 series. When you then add the year numbers (non-dynamic) as the x-axis labels it breaks.
What I did is write a formula in UI, B6 that references TOPN_Pivoted and adds a proper date column to it. I'm sure you can think of a more elegant way to achieve this.
=HSTACK(VSTACK("Year",BYROW(TAKE(TOPN_Pivoted,-6,1),LAMBDA(y,DATE(y,1,1)))),DROP(TOPN_Pivoted,,1))Create a chart from that array and it will come out like this:
You can see that the Year column with proper dates is automatically picked up as a row header.
If you don't transform the year numbers into proper date values you'll get this:
It includes "Year" as just another number series. All series are stacked on top of each other and only the last one is visible.
Switch Rows/Columns and you'll get this:
The blue line at the top is the series "Year" with values 2020 to 2025, being far out of touch with the other series which all lay in the bottom of the chart.
Not sure if this helps. Kindly ignore if it doesn't.
Pivot & Chart Categories sorted as in the TOPN array:
- Don't unpivot the TOPN array
- Get its headers (Categories) instead
- Match them in the Source Table
- Filter the Source Table with the above array & the Year filter array
The PivotTable is the same (Sum of Values) + Show Values As: % of Row Total
Possible workaround, once the TOPN array has been calc.:
- Unpivot it
- Insert a PivotTable where the data source is the above array
- Insert a PivotChart based on the PivotTable
Notes
- Until the Pivot Table Auto Refresh functionality is generally available a Data > Refresh All is required to update the Chart
- On this simplified scenario - with the above variables - we can see the Categories on the Chart Legend are not ordered the same as on TOPN array. Reason:
- The %ages are calc. with PIVOTBY/PERCENTOF relative to Row Totals - as asked by the user
- Using these %ages as PivotTable data source, the only thing we can do to reflect the appropriate numbers is to Sum the Values
- The sorting of the PivotTable is then relative to Column Totals. And unfortunately, the More Sort Options > Sort By > Values in selected row option requires that the row belongs to be PivotTable
3. To get Pivot & Chart Categories sorted as in the TOPN array the PivotTable data source values must be the Source values, not the %ages - covered in next post...
Call @ Insiders
Could a couple of you already having the Pivot Table Auto Refresh functionality confirm this works w/o a Refresh All please? + Thanks
