My Azure DevOps Git configuration failed to load in Azure Data Factory
I have an Azure Data Factory that have been running for years and have been hooked up with DevOps Git configuration with no real automation, its just a place to store changes. Im using it for a monthly data transformation, so im not into it on a daily basis. Suddenly yesterday the Github repository failed to load and i cant figure out why. I have been into the app registration to see if any secrets have expired, and i have one that expires in 25 days, but that shouldnt be a problem yet. I can also open my Github project through devops and navigate to the service connections, so i still have access to the repository, i just cant get ADF to load it properly. Any ideas about what to do from here?
Copy data using ODBC fails: "Format of the initialization string [...] starting at index 0"
We ran into a frustrating issue in ADF where a Copy activity using an ODBC source (Databricks) consistently failed with the same error, despite the connection test and data preview working perfectly fine. This post describes the issue and we hope to get some help from the community :) Our Setup: - Source: Databricks (via ODBC linked service, self-hosted IR) - Sink: Azure SQL Database - ADF Component: Copy Activity - Integration Runtime: Self-hosted IR The goal is to simply copy a table from Databricks into Azure SQL. We also tried to copy only a couple rows but same error. What works: - Test Connection on the ODBC linked service → passes - Data Preview on the ODBC dataset → returns correct data - Azure SQL sink linked service connection test → passes And here is what goes wrong: Running the Copy Activity in the pipeline gives: ``` ErrorCode=InvalidParameter, 'Type=Microsoft.DataTransfer.Common.Shared.HybridDeliveryException, Message=The value of the property '' is invalid: 'Format of the initialization string does not conform to specification starting at index 0.', Source=, ''Type=System.ArgumentException, Message=Format of the initialization string does not conform to specification starting at index 0., Source=System.Data,' ``` This is the source config: ODBC Dataset: ```json { "type": "OdbcTable", "typeProperties": { "tableName": { "value": "@concat(dataset().catalog, '.', dataset().schema, '.', dataset().table)", "type": "Expression" } }, "parameters": { "catalog": { "type": "string" }, "schema": { "type": "string" }, "table": { "type": "string" } } } ``` Copy Activity Source: ```json "source": { "type": "OdbcSource", "queryTimeout": "02:00:00" } ``` ODBC Connection String (sanitized): ``` Driver={Databricks ODBC Driver}; Host=<databricks-host>; Port=443; HTTPPath=/sql/1.0/warehouses/<warehouse-id>; AuthMech=11; Auth_Flow=1; Auth_Client_ID=<client-id>; Auth_Client_Secret=<client-secret>; Auth_Scope=<scope>/.default; OIDCDiscoveryEndpoint=https://login.microsoftonline.com/<tenant>/v2.0/.well-known/openid-configuration; SSL=1; ThriftTransport=2 ``` - AuthMech=11 = Azure Active Directory authentication - Auth_Flow=1 = Service Principal / Client Credentials via OIDC - Self-hosted IR is used What we tried: 1. Hardcoding catalog parameter instead of using the global parameter --> Same error 2. With and without column mappings from Copy activity --> Same error 3. Removing double curly braces around client secret in Terraform (i.e. from Auth_Client_Secret={${pwd}} to Auth_Client_Secret=${pwd}) --> Same error 4. Using a query (top 10 rows) instead of table config in the source of copy activity --> Same error 5. Verifying all linked services and datasets work in preview --> All work fine We find the error confusing and are unsure how to continue. It suggests the issue is specific to how ADF handles the ODBC connection string during pipeline execution on the Self-hosted IR, as opposed to interactive operations (like preview data). Any help is appreciated. Thanks in advance!
Web activity failure due to Invoking endpoint failed with HttpStatusCode - 403 -- help?

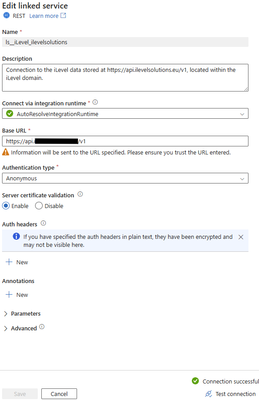

Hi, I have an Azure Data Factory (ADF) instance that I am using to create a Pipeline to ingest external (cloud based) 3rd party data into my Azure SQL Server database. I am a novice with ADF and have only used it to ingest some external SQL data into my SQL database - it did work. The external source I'm attempting to extract from uses an OAuth 2.0 API and an API is something I've not used before. Using Postman (never used this software before this attempt), I have passed the external source's base_url, client_id, and client_secret, and in return successfully received an access token. This tells me that the base_url, client_id, and client_secret values I passed are correct and accepted by the target source/application. Feeling encourage to implement the same values into ADF, I first created a Linked Service which with a successful test connection returned - see below. This Linked Service uses the same values as the Postman entry which granted an access token. I then created a Pipeline with a Web activity object within it. The General and User Properties don't have any configuration, only the Settings tab does which shown below. Again, the URL, Client ID and Client Secret configured here are the same as those used in Postman (and the Linked Service). I execute the Web object and it returns with a failure - see below. The error states the endpoint refused the request (for an access token). Is this accurate as I was able to receive an access token via Postman when using the same credentials? I don't understand why via Postman I can received an access token but via ADF it errors. I'm wondering if I've completed the ADF parts incorrectly, or if there is more needed just to received an access token, or if it's something else? Are you able to advise what's taking place here? Thanks.
Unable to INSERT rec into Table.
I am using the ADF . Execute Pipeline activity. My PL is parametrized. My stage table have the below rec: network_org_name partner_name parent_partner_name CorPart_number pipeline_run_id activity_run_id Se Network Producing UB SA S Reine Company Ltd 1226133 ebf961f9-3afc-4abc-9ee0-111330c9f1eb 858c1b5c-a699-4e73-84d8-3a42cab115d2 WITH CodeSourceTableCTE AS ( SELECT DISTINCT p.[partner_number] ,n.[network_org_number] FROM [utl].[stg_partner_network_org] stg LEFT JOIN [utl].[partner] p1 ON stg.[parent_partner_name] = p1.[partner_name] INNER JOIN [utl].[partner] p ON stg.[partner_name] = p.[partner_name] AND ISNULL(p.[delete_ind], '') <> 'Y' AND ISNULL(p.[parent_partner_number], '') = ISNULL(p1.[partner_number], '') AND ISNULL(p1.[delete_ind], '') <> 'Y' AND ISNULL(stg.[corpart_number], '') = ISNULL(p.[external_id], '') INNER JOIN [utl].[network_org] n ON stg.[network_org_name] = n.[network_org_name] WHERE stg.[partner_name] IS NOT NULL ) MERGE [utl].[partner_network_org] T USING CodeSourceTableCTE S ON T.[partner_number] = S.[partner_number] AND T.[network_org_number] = S.[network_org_number] WHEN MATCHED AND (ISNULL(T.[delete_ind], '') <> 'N') THEN UPDATE SET T.[delete_ind] = 'N', T.[last_modified_date] = GETUTCDATE(), T.[last_modified_by] = '@{pipeline().parameters.Source_File_Name}' WHEN NOT MATCHED BY TARGET THEN INSERT ([partner_number], [network_org_number], [created_date], [created_by], [last_modified_date], [last_modified_by], [delete_ind]) VALUES (S.[partner_number], S.[network_org_number], GETUTCDATE(), '@{pipeline().parameters.Source_File_Name}', GETUTCDATE(), '@{pipeline().parameters.Source_File_Name}', 'N'); SELECT COUNT(*) FROM [utl].[partner_network_org] WHERE [created_by] = '@{pipeline().parameters.Source_File_Name}' But when I am trying to check using below select * from utl.partner_network_org where partner_number in (select partner_number from utl.partner where last_modified_by like '%corpart%') I don't see records any help is appreciatedAzure Data Factory - help needed to ingest data, that uses an API, into a SQL Server instance
Hi, I need to ingest 3rd-party data, that uses an API, into my Azure SQL Server instance (ASSi) using Azure Data Factory (ADF). I'm a report developer so this area is unfamiliar to me, although I have previously integrated external, on-premise SQL Server data into our ASSi using ADF so I do have some exposure to the tool (just not API connections). The 3rd-party data belongs to a company named 'iLevel' (in case this is relevant). iLevel have provided some API documentation which is targeted for an experienced data engineer that understands API connections. This documentation has just a few sections before the connection focused details end. I'll list them below: 1) It mentions to download 'Postman Collection' and mentions no more than this. I've never heard of Postman Collection and I don't know why it's needed. Through limited exposure online, I don't understand its purpose, certainly not in my scenario. 2) It has the title 'Access to the API' and then lists four URLs which are the endpoints (I don't know which to use and will need to ask iLevel of this but, I guess, any will do for testing purposes). 3) Authentication and Authorization a) Generate a 'client id' and 'client secret' by logging into iLevel and generating these values with some clicks of a button. I've successfully generated both these values. b) Obtain an Access Token - it'll be easier to screenshot the instructions for this (I've blanked part of the URL for confidentiality). These are all the instructions on connection to the 3rd-party data. Unfortuntely for me, my lack of experience in this area means these instrcutions don't help me. I don't believe I'm any closer to connecting to the 3rd-party source data. Taking into consideration the above instructions but choosing to try and error in ADF, a tool I'm a little bit more familiar with, I've performed the following steps: 1) Created a Linked Service. I understand the iLevel solution is in the cloud and therefore the 'AutoResolveIntegrationRuntime' option has been selected as the 'Connect via integration runtime' value. For the 'Base URL' I've entered one of the four URL endpoints that were listed in the documentation (again, I will need to confirm which endpoint to use). The 'Test Connection' returns a successful result but I think it means nothing because if I were to placed 'xxx' at the end of the Base URL and test the connection, it stills returns successful when I know the URL with the 'xxx' post-fix isn't legit. 2) Create an ADF Pipeline containing 'Web activity' and 'Set variable' objects. The only configuration under the Web activity is the 'Settings' pane which has: The 'Body' property has (the client id and client secret taken from the iLevel solution are included in the body but blanked out): If the Web activity is successful then the Pipeline's next object (the Set variable) should assign the access token to a variable - as I understand this is what the Web activity is doing: The 'Value' property has: This is as far as I've got into my efforts of this integration task because the Web activity object fails when executed. The error message does state it is to do with an invalid 'client id' or 'client secret' - see below: You may direct to focus on the incorrect client id or client secret, however I don't have any confidence that I understand how to configure ADF to obtain an access token, and I'm maybe missing something if I see no need for Postman Collection use. What is Postman Collection and do I need it for what I'm trying to achieve? If yes, can anyone provide training material that suits my need? Have I configured ADF correctly and it is indeed an issue with the client id or client server, or is the error message received just a by-product of an incorrect ADF configuration? Your help will be most appreciated. Many thanks.
ADF unable to ingest partitioned Delta data from Azure Synapse Link (Dataverse/FnO)
We are ingesting Dynamics 365 Finance & Operations (FnO) data into ADLS Gen2 using Azure Synapse Link for Dataverse, and then attempting to load that data into Azure SQL Database using Azure Data Factory (ADF). This is part of a migration effort as Export to Data Lake is being deprecated. Source Details Source: ADLS Gen2 Data generated by: Azure Synapse Link for Dataverse (FnO) Format on lake: Delta / Parquet Partitioned folder structure (e.g. PartitionId=xxxx) Destination: Azure SQL Database Issue Observed in ADF When configuring ADF pipelines: Using ADLS Gen2 dataset with: Delta / Parquet Recursive folder traversal Wildcard paths We encounter: No data returned in Data Preview Or runtime error such as: “No partitions information found in metadata file” Despite this: The data is present in ADLS The same data can be successfully queried using Synapse serverless SQL Key Question for ADF / Synapse Engineers What is the recommended and supported ADF ingestion pattern for: Partitioned Delta/Parquet data produced by Azure Synapse Link for Dataverse Specifically: Should ADF: Read Delta tables directly, or Use Synapse serverless SQL external tables/views as an intermediate layer? Is there a reference architecture for: Synapse Link → ADLS → ADF → Azure SQL Are there ADF limitations when consuming Synapse Link–generated Delta tables? Many customers are now forced to migrate due to Export to Data Lake deprecation, but current ADF documentation does not clearly explain how to replace existing ingestion pipelines when using Synapse Link for FnO. Any guidance, patterns, or official documentation would be greatly appreciated.
Copy Data Activity Failed with Unreasonable Cause
It is a simple set up but it has baffled me a lot. I'd like to copy data to a data lake via API. Here are the steps I've taken: Created a HTTP linked service as below: Created a dataset with a HTTP Binary data format as below: Created a pipeline with a Copy Data activity only as shown below: Made sure linked service and dataset all working fine as below: Created a Sink dataset with 3 parameters as shown below: Passed parameters from pipeline to Sink dataset as below: That's all. Simple, right? But the pipeline failed with a clear message "usually this is caused by invalid credentials." as below: Summary: No need to worry about the Sink side of parameters etc. which I have used same thing for years on other pipelines and all succeeded. This time the API failed to reach a data lake from source side as said "invalid credentials". In Step 4 above one could see the linked service and dataset connections were succeeded, ie. credentials have been checked and passed already. How come it failed in data copy activity complaining an invalid credentials? Pretty weird. Any advice and suggestions will be welcomed.User Properties of Activities in ADF: How to add dynamic content in it?
On ADF, I am using a for each loop in which I am using an Execute Pipeline Activity which is getting executed for different iterations as per the values of the items provided to the For-Each Loop. I am stuck on a scenario which requires me to add the Dynamic Content Expression in the User Properties of individual activities of ADF. Specific to my case, I want to add the Dynamic Content Expression in the User Properties of Execute Pipeline Activity so that I get to individual runs of these activities on Azure Monitor with a specific label attached to it through its User Properties. The necessity to add the Dynamic Content Expression in the User Properties is due to the reason that each execution in respective iterations of these activities corresponds to a particular Step from a set of Steps configured for the Data Load Job as a whole, which has been orchestrated through ADF. To identify the association with the respective Job-Step, I require to add Dynamic Content Expression in its User Properties. Any sort of response regarding this is highly appreciated. Thank You!
