Now in Public Preview: System events for data-plane in API Management gateway

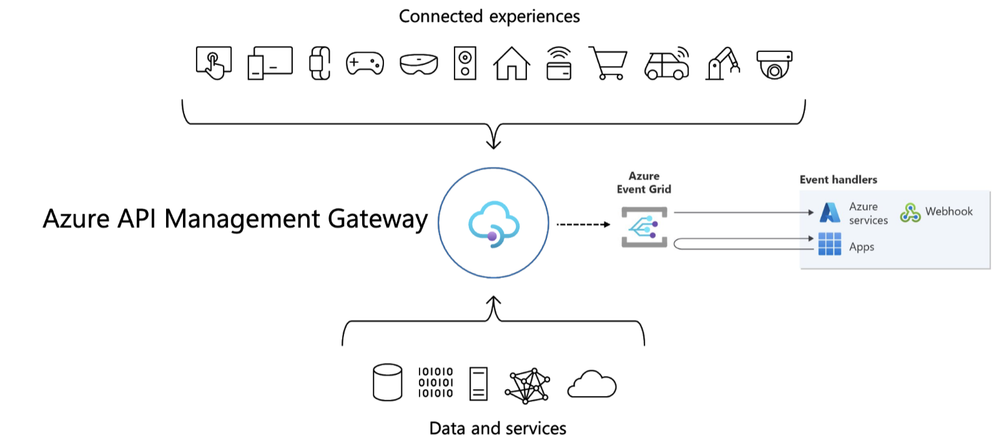

We’re excited to announce the public preview of new data-plane system events in Azure Event Grid for the Azure API Management managed gateway (starting with classic tiers). This new capability provides near-real-time visibility into critical operations within your data-plane, helping you extend your API traffic with monitoring, automate responses, and prevent disruptions. These data-plane events complement the existing control-plane events available in Azure Event Grid system topics, marking the beginning of expanded event-driven capabilities in Azure API Management.

What’s New?

1. Circuit Breaker Events: Our managed gateway now publishes circuit breaker status changes to Event Grid, so you can act before issues escalate.

• Microsoft.ApiManagement.Gateway.CircuitBreakerOpened
  Triggered when the failure threshold is reached, and traffic to a backend is temporarily blocked.

• Microsoft.ApiManagement.Gateway.CircuitBreakerClosed
  Indicates recovery and that traffic has resumed to the previously blocked backend.

2. Self-Hosted Gateway Token Events: Stay informed about authentication token status to ensure deployed gateways do not become disconnected.

• Microsoft.ApiManagement.Gateway.TokenNearExpiry
  Published 7 days before a token’s expiration to prompt proactive key rotation.

• Microsoft.ApiManagement.Gateway.TokenExpired
  Indicates a failed authentication attempt due to an expired token—preventing synchronization with the cloud instance. (note: API traffic is not disrupted).

And this is just the beginning! We're continuously expanding event-driven capabilities in Azure API Management. Stay tuned for more system events coming soon!

Why This Matters?

With system events for data-plane, managed gateway now offer near-real-time extensibility via Event Grid. This allows customers to:

• Detect and respond to failures instantly.
• Automate alerts and workflows for proactive issue resolution.
• Ensure smooth operations with timely token management.

Public Preview Limitations

• Single-Instance Scope: Events are scoped to the individual gateway instance where they occur. No cross-instance aggregation yet.
• Available in classic tiers only: This feature is currently supported only on the classic Developer, Basic, Standard, and Premium tiers of API Management.

Get Started Today

Start monitoring your APIs in real-time with event-driven architecture today.

• Follow the event schema and samples to build subscribers and handlers.

• Review integration guidance with Event Grid to wire up your automation pipelines.

For a full list of supported Azure API Management system events and integration guidance, visit the Azure Event Grid integration docs.
