2849 TopicsUpdated Failover Clustering API Documentation
Does anyone know when the Failover Cluster API documentation will be updated? Currently, in learn it only shows Server 2008 and 2012. https://learn.microsoft.com/en-us/previous-versions/windows/desktop/mscs/failover-cluster-apis-portal The same goes for storage spaces. Is there any updated documentation?15Views1like0CommentsAnnouncing Native NVMe in Windows Server 2025: Ushering in a New Era of Storage Performance

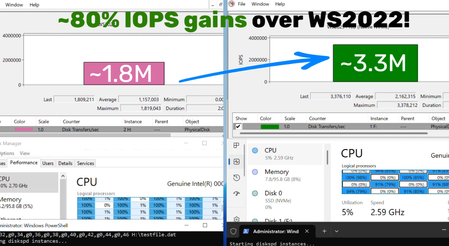

We’re thrilled to announce the arrival of Native NVMe support in Windows Server 2025—a leap forward in storage innovation that will redefine what’s possible for your most demanding workloads. Modern NVMe (Non-Volatile Memory Express) SSDs now operate more efficiently with Windows Server. This improvement comes from a redesigned Windows storage stack that no longer treats all storage devices as SCSI (Small Computer System Interface) devices—a method traditionally used for older, slower drives. By eliminating the need to convert NVMe commands into SCSI commands, Windows Server reduces processing overhead and latency. Additionally, the whole I/O processing workflow is redesigned for extreme performance. This release is the result of close collaboration between our engineering teams and hardware partners, and it serves as a cornerstone in modernizing our storage stack. Native NVMe is now generally available (GA) with an opt-in model (disabled by default as of October’s latest cumulative update for WS2025). Switch onto Native NVMe as soon as possible or you are leaving performance gains on the table! Stay tuned for more updates from our team as we transition to a dramatically faster, more efficient storage future. Why Native NVMe and why now? Modern NVMe devices—like PCIe Gen5 enterprise SSDs capable of 3.3 million IOPS, or HBAs delivering over 10 million IOPS on a single disk—are pushing the boundaries of what storage can do. SCSI-based I/O processing can’t keep up because it uses a single-queue model, originally designed for rotational disks, where protocols like SATA support just one queue with up to 32 commands. In contrast, NVMe was designed from the ground up for flash storage and supports up to 64,000 queues, with each queue capable of handling up to 64,000 commands simultaneously. With Native NVMe in Windows Server 2025, the storage stack is purpose-built for modern hardware—eliminating translation layers and legacy constraints. Here’s what that means for you: Massive IOPS Gains: Direct, multi-queue access to NVMe devices means you can finally reach the true limits of your hardware. Lower Latency: Traditional SCSI-based stacks rely on shared locks and synchronization mechanisms in the kernel I/O path to manage resources. Native NVMe enables streamlined, lock-free I/O paths that slash round-trip times for every operation. CPU Efficiency: A leaner, optimized stack frees up compute for your workloads instead of storage overhead. Future-Ready Features: Native support for advanced NVMe capabilities like multi-queue and direct submission ensures you’re ready for next-gen storage innovation. Performance Data Using DiskSpd.exe, basic performance testing shows that with Native NVMe enabled, WS2025 systems can deliver up to ~80% more IOPS and a ~45% savings in CPU cycles per I/O on 4K random read workloads on NTFS volumes when compared to WS2022. This test ran on a host with Intel Dual Socket CPU (208 logical processors, 128GB RAM) and a Solidigm SB5PH27X038T 3.5TB NVMe device. The test can be recreated by running "diskspd.exe -b4k -r -Su -t8 -L -o32 -W10 -d30 testfile1.dat > output.dat" and modifying the parameters as desired. Results may vary. Top Use Cases: Where You’ll See the Difference Try Native NVMe on servers running your enterprise applications. These gains are not just for synthetic benchmarks—they translate directly to faster database transactions, quicker VM operations, and more responsive file and analytics workloads. SQL Server and OLTP: Shorter transaction times, higher IOPS, and lower tail latency under mixed read/write workloads. Hyper‑V and virtualization: Faster VM boot, checkpoint operations, and live migration with reduced storage contention. High‑performance file servers: Faster large‑file reads/writes and quicker metadata operations (copy, backup, restore). AI/ML and analytics: Low‑latency access to large datasets and faster ETL, shuffle, and cache/scratch I/O. How to Get Started Check your hardware: Ensure you have NVMe-capable devices that are currently using the Windows NVMe driver (StorNVMe.sys). Note that some NVMe device vendors provide their own drivers, so unless using the in-box Windows NVMe driver, you will not notice any differences. Enable Native NVMe: After applying the 2510-B Latest Cumulative Update (or most recent), add the registry key with the following PowerShell command: reg add HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Policies\Microsoft\FeatureManagement\Overrides /v 1176759950 /t REG_DWORD /d 1 /f Alternatively, use this Group Policy MSI to add the policy that controls the feature then run the local Group Policy Editor to enable the policy (found under Local Computer Policy > Computer Configuration > Administrative Templates > KB5066835 251014_21251 Feature Preview > Windows 11, version 24H2, 25H2). Once Native NVMe is enabled, open Device Manager and ensure that all attached NVMe devices are displayed under the “Storage disks” section. Monitor and Validate: Use Performance Monitor and Windows Admin Center to see the gains for yourself. Or try DiskSpd.exe yourself to measure microbenchmarks in your own environment! A quick way to measure IOPS in Performance Monitor is to set up a histogram chart and add a counter for Physical Disk>Disk Transfers/sec (where the selected instance is a drive that corresponds to one of your attached NVMe devices) then run a synthetic workload with DiskSpd. Compare the numbers before and after enabling Native NVMe to see the realized difference in your real environment! Join the Storage Revolution This is more than just a feature—it’s a new foundation for Windows Server storage, built for the future. We can’t wait for you to experience the difference. Share your feedback, ask questions, and join the conversation. Let’s build the future of high-performance Windows Server storage together. Send us your feedback or questions at nativenvme@microsoft.com! — Yash Shekar (and the Windows Server team)How to add a new domain controller to an existing Active Directory domain?
The specific situation is as follows: The company has one forest and domain, and two Active Directory (AD) servers. These two servers communicate and synchronize data. One server is deployed in the local data center, and the other is deployed on Azure Cloud. The forest and domain functional levels are both Windows Server 2008 R2. Both servers are running Windows Server 2016 Standard. Because there are computers running Windows XP and Windows 7 in the domain, upgrading the forest and domain functional levels is not possible. Windows Server 2008 R2 must be retained. The company now needs to add a new AD server on Huawei Cloud and join it to the company's forest and domain. The main questions are: How do I determine which operating system the new server should run? Excluding Windows Server 2016. How should I choose between Windows Server 2019, 2022, and 2025? How do I determine how to allocate CPU, memory, disk, and network resources during system deployment? How to determine which operating system is best suited for running a domain controller without conflicts or incompatibility? What preparations should be made before deploying a new server?34Views0likes1CommentBeyond RC4 for Windows authentication - Question regarding KB5073381
In KB5021131 MS recommends setting the value for DefaultDomainSupportedEncTypes to 0x38, in the new KB 5073381 it's 0x18. This removes the setting that forces "AES Session Keys" which should be fine if Kerberos Tickets can only use AES Encryption. But what about accounts that have RC4 enabled in their msds-supportedEncryptionTypes attribute? They could still use RC4 for Kerberos ticket encryption and would then also fallback to RC4 session ticket encryption. As far as I believe the DefaultDomainSupportedEncTypes was explicitly introduced to avoid this scenario. Or is there now some hard-coded mechanism that always ensures that Session Keys are AES encrypted?763Views1like2CommentsIntroducing the Windows NVMe-oF Initiator Preview in Windows Server Insiders Builds
What Is NVMe-over-Fabrics? NVMe-over-Fabrics (NVMe-oF) extends the NVMe protocol—originally designed for local PCIe-attached SSDs—across a network fabric. Instead of using legacy SCSI-based protocols such as iSCSI or Fibre Channel, NVMe-oF allows a host to communicate directly with remote NVMe controllers using the same NVMe command set used for local devices. In this Insider build, Windows Server supports: NVMe-oF over TCP (NVMe/TCP), allowing NVMe-oF to run over standard Ethernet networks without specialized hardware. NVMe-oF over RDMA (NVMe/RDMA), enabling low-latency, high-throughput NVMe access over RDMA-capable networks (for example, RoCE or iWARP) using supported RDMA NICs. Why NVMe-oF on Windows Server? For Windows Server deployments, NVMe-oF builds on the same principles as Native NVMe support: helping you reduce protocol overhead, improve scalability, and better align your storage stack with modern hardware. For Windows Server customers, NVMe-oF offers: Lower overhead networked storage access — NVMe-oF has less protocol overhead than iSCSI, helping extract the performance of modern NVMe devices while preserving the parallelism and efficiency of NVMe. Flexible infrastructure choices — NVMe-oF supports both TCP and RDMA transports, allowing customers to choose between standard Ethernet-based deployments or low-latency RDMA-capable networks based on their infrastructure and performance goals. A forward-looking storage foundation — NVMe-oF is designed to scale across multiple controllers, namespaces, and queues, making it a strong foundation for future disaggregated and software-defined storage architectures. This Insider release represents the first step in bringing NVMe-oF capabilities natively to Windows Server. What’s Included in This Insider Release In this Windows Server Insider build, you can evaluate the following NVMe-oF capabilities: An inbox NVMe-oF initiator with NVMe/TCP and NVMe/RDMA support A new command-line utility, nvmeofutil.exe, for configuration and management Manual configuration of discovery and I/O connections Automatic exposure of NVMe namespaces as Windows disks once connected Note: PowerShell cmdlets are not available yet. All configuration is performed using nvmeofutil.exe. Getting Started with nvmeofutil.exe To start evaluating NVMe-oF in this build, you’ll use nvmeofutil.exe, the command-line utility included with supported Windows Server Insider builds. 1. Install the Latest Windows Server Insiders Build Ensure you are running a Windows Server Insiders build that includes: The inbox NVMe-oF initiator with NVMe/TCP and NVMe/RDMA support The nvmeofutil.exe utility 2. Open an Elevated Command Prompt All NVMe-oF commands must be run from an administrator command prompt. 3. List Available NVMe-oF Initiator Adapters nvmeofutil.exe list -t ia This command displays the available NVMe-oF initiator adapters on the system. 4. Enumerate Host Gateways nvmeofutil.exe list -t hg -ia <AdapterNumber> Host gateways represent transport-specific endpoints, such as NVMe/TCP over IPv4. 5. Configure an I/O Subsystem Port Tip: You’ll need three values from your target configuration: the Subsystem NQN, the target IP/DNS, and the TCP port. If you haven’t set up a target yet, see the Target Setup section below for a quick Linux-based configuration and where to find these values. nvmeofutil.exe add -t sp -ia <Adapter> -hg <HostGateway> -dy true -pi <PortNumber> -nq <SubsystemNQN> -ta <TargetAddress> -ts <ServiceId> This defines the connection parameters to the remote NVMe-oF target. 6. Connect and Use the Namespace nvmeofutil.exe connect -ia <Adapter> -sp <SubsystemPort> Once connected, the NVMe namespace appears as a disk in Windows and can be partitioned and formatted using standard Windows tools. Target Setup (Recommendations for Early Evaluation) If you plan to evaluate NVMe-oF with an existing storage array, check with your SAN vendor to confirm support and get configuration guidance. Where possible, we also encourage you to validate interoperability using your production storage platform. For early evaluation and lab testing, the simplest and most interoperable option is to use a Linux-based NVMe-oF target, as described below. To evaluate the inbox Windows NVMe-oF initiator in this Insider release, you’ll need an NVMe-oF target that can export a block device as an NVMe namespace over TCP. Recommended: Linux kernel NVMe-oF target (nvmet) over TCP For early testing, the simplest and most interoperable option is the Linux kernel NVMe target (“nvmet”). It’s straightforward to stand up in a lab and is widely used for basic NVMe-oF interoperability validation. Lab note: The example below uses “allow any host” to reduce friction during evaluation. In production environments, you should restrict access to specific host NQNs instead. What You’ll Need A Linux system (physical or VM) A block device to export (an NVMe SSD, SATA SSD, a virtual disk, etc.) IP connectivity to your Windows Server Insider machine A TCP port opened between initiator and target (you’ll choose a port below) VMs are fine for functional evaluation. For performance testing, you’ll want to move to physical hosts and realistic networking later. Option A — Configure nvmet Directly via configfs (Minimal, Copy/Paste Friendly) On the Linux target, run the following as root (or with sudo). This configures one NVMe-oF subsystem exporting one namespace over NVMe/TCP. 1) Load kernel modules and mount configfs sudo modprobe nvmet sudo modprobe nvmet-tcp # Required for nvmet configuration sudo mount -t configfs none /sys/kernel/config 2) Create a subsystem (choose an NQN) and allow host access Pick a subsystem name/NQN. Use a proper NQN format to avoid collisions on shared networks (example shown). SUBSYS="nqn.2026-02.com.contoso:win-nvmeof-test" sudo mkdir -p /sys/kernel/config/nvmet/subsystems/$SUBSYS # Lab-only: allow any host to connect echo 1 | sudo tee /sys/kernel/config/nvmet/subsystems/$SUBSYS/attr_allow_any_host > /dev/null 3) Add a namespace (export a local block device) Choose a block device on the target (example: /dev/nvme0n1). Be careful: you are exporting the raw block device. DEV="/dev/nvme0n1" # <-- replace with your device (e.g., /dev/sdb) sudo mkdir -p /sys/kernel/config/nvmet/subsystems/$SUBSYS/namespaces/1 echo -n $DEV | sudo tee /sys/kernel/config/nvmet/subsystems/$SUBSYS/namespaces/1/device_path > /dev/null echo 1 | sudo tee /sys/kernel/config/nvmet/subsystems/$SUBSYS/namespaces/1/enable > /dev/null 4) Create a TCP port (listener) and bind the subsystem Choose: TRADDR = the Linux target’s IP address on the test network TRSVCID = the TCP port (commonly 4420, but you can use any free TCP port) PORTID=1 TRADDR="192.168.1.92" # <-- replace with target IP TRSVCID="4420" # <-- TCP port sudo mkdir -p /sys/kernel/config/nvmet/ports/$PORTID echo -n $TRADDR | sudo tee /sys/kernel/config/nvmet/ports/$PORTID/addr_traddr > /dev/null echo -n tcp | sudo tee /sys/kernel/config/nvmet/ports/$PORTID/addr_trtype > /dev/null echo -n $TRSVCID | sudo tee /sys/kernel/config/nvmet/ports/$PORTID/addr_trsvcid > /dev/null echo -n ipv4 | sudo tee /sys/kernel/config/nvmet/ports/$PORTID/addr_adrfam > /dev/null # Bind subsystem to port sudo ln -s /sys/kernel/config/nvmet/subsystems/$SUBSYS \ /sys/kernel/config/nvmet/ports/$PORTID/subsystems/$SUBSYS 5) Quick validation (optional, from any Linux host with nvme-cli) If you have a Linux host handy, nvme discover will confirm the target is advertising the subsystem and will show the subnqn value you’ll use from Windows. sudo nvme discover -t tcp -a 192.168.1.92 -s 4420 Mapping the Target Values to Your Windows nvmeofutil.exe Steps In your Windows steps, you already define the key connection parameters in the Subsystem Port add/connect flow. Use these mappings: SubsystemNQN (-nq) → the subsystem name/NQN you created (example: nqn.2026-02.com.contoso:win-nvmeof-test) TargetAddress (-ta) → the Linux target IP address (example: 192.168.1.92) ServiceId (-ts) → the TCP port you used (example: 4420) Option B — If You Prefer a Tool-Based Setup: nvmetcli If you’d rather not manipulate configfs directly, nvmetcli provides an interactive shell and can save/restore configurations from JSON (useful for repeating the setup across reboots in a lab). At a high level, nvmetcli can: Create subsystems and namespaces Configure ports (including TCP) Manage allowed hosts (or allow any host in controlled environments) Save/restore configs (for example, /etc/nvmet/config.json) Optional (Advanced): SPDK NVMe-oF Target If you already use SPDK or want to explore higher-performance user-space targets, SPDK’s NVMe-oF target supports TCP and RDMA and is configured via JSON-RPC. For early evaluation, the Linux kernel target above is usually the quickest path. Known Limitations As you evaluate this early Insider release, keep the following limitations in mind: Configuration is CLI-only (no GUI or PowerShell cmdlets yet) No multipathing Limited recovery behavior in some network failure scenarios These areas are under active development. Try It and Share Feedback We encourage you to try NVMe-oF in your lab or test environment and share your experience on Windows Server Insiders Discussions so the engineering team can review public feedback in one place. For private feedback or questions that can’t be shared publicly, you can also reach us at nvmeofpreview@microsoft.com. We look forward to your feedback as we take the next steps in modernizing remote storage on Windows Server. — Yash Shekar (and the Windows Server team)GPU Partitioning in Windows Server 2025 Hyper-V
GPU Partitioning (GPU-P) is a feature in Windows Server 2025 Hyper-V that allows multiple virtual machines to share a single physical GPU by dividing it into isolated fractions. Each VM is allocated a dedicated portion of the GPU’s resources (memory, compute, encoders, etc.) instead of using the entire GPU. This is achieved via Single-Root I/O Virtualization (SR-IOV), which provides a hardware-enforced isolation between GPU partitions, ensuring each VM can access only its assigned GPU fraction with predictable performance and security. In contrast, GPU Passthrough (also known as Discrete Device Assignment, DDA) assigns a whole physical GPU exclusively to one VM. With DDA, the VM gets full control of the GPU, but no other VMs can use that GPU simultaneously. GPU-P’s ability to time-slice or partition the GPU allows higher utilization and VM density for graphics or compute workloads, whereas DDA offers maximum performance for a single VM at the cost of flexibility. GPU-P is ideal when you want to share a GPU among multiple VMs, such as for VDI desktops or AI inference tasks that only need a portion of a GPU’s power. DDA (passthrough) is preferred when a workload needs the full GPU (e.g. large model training) or when the GPU doesn’t support partitioning. Another major difference is mobility: GPU-P supports live VM mobility and failover clustering, meaning a VM using a GPU partition can move or restart on another host with minimal downtime. DDA-backed VMs cannot live-migrate. If you need to move a DDA VM, it must be powered off and then started on a target host (in clustering, a DDA VM will be restarted on a node with an available GPU upon failover, since live migration isn’t supported). Additionally, you cannot mix modes on the same device. A physical GPU can be either partitioned for GPU-P or passed through via DDA, but not both simultaneously. Supported GPU Hardware and Driver Requirements GPU Partitioning in Windows Server 2025 is supported on select GPU hardware that provides SR-IOV or similar virtualization capabilities, along with appropriate drivers. Only specific GPUs support GPU-P and you won’t be able to configure it on a consumer gaming GPU like your RTX 5090. In addition to the GPU itself, certain platform features are required: Modern CPU with IOMMU: The host processors must support Intel VT-d or AMD-Vi with DMA remapping (IOMMU). This is crucial for mapping device memory securely between host and VMs. Older processors lacking these enhancements may not fully support live migration of GPU partitions. BIOS Settings: Ensure that in each host’s UEFI/BIOS, Intel VT-d/AMD-Vi and SR-IOV are enabled. These options may be under virtualization or PCIe settings. Without SR-IOV enabled at the firmware level, the OS will not recognize the GPU as partitionable (in Windows Admin Center it might show status “Paravirtualization” indicating the driver is capable but the platform isn’t). Host GPU Drivers: Use vendor-provided drivers that support GPU virtualization. For NVIDIA, this means installing the NVIDIA virtual GPU (vGPU) driver on the Windows Server 2025 host (the driver package that supports GPU-P). Check the GPU vendor’s documentation for installation for specifics. After installing, you can verify the GPU’s status via PowerShell or WAC. Guest VM Drivers: The guest VMs also need appropriate GPU drivers installed (within the VM’s OS) to make use of the virtual GPU. For instance, if using Windows 11 or Windows Server 2025 as a guest, install the GPU driver inside the VM (often the same data-center driver or a guest-compatible subset from the vGPU package) so that the GPU is usable for DirectX/OpenGL or CUDA in that VM. Linux guests (Ubuntu 18.04/20.04/22.04 are supported) likewise need the Linux driver installed. Guest OS support for GPU-P in WS2025 covers Windows 10/11, Windows Server 2019+, and certain Ubuntu LTS versions. After hardware setup and driver installation, it’s important to verify that the host recognizes the GPU as “partitionable.” You can use Windows Admin Center or PowerShell for this: in WAC’s GPU tab, check the “Assigned status” of the GPU it should show “Partitioned” if everything is configured correctly (if it shows “Ready for DDA assignment” then the partitioning driver isn’t active, and if “Not assignable” then the GPU/driver doesn’t support either method). In PowerShell, you can run: Get-VMHostPartitionableGpu | FL Name, ValidPartitionCounts, PartitionCount This will list each GPU device’s identifier and what partition counts it supports. For example, an NVIDIA A40 might return ValidPartitionCounts : {16, 8, 4, 2 …} indicating the GPU can be split into 2, 4, 8, or 16 partitions, and also show the current PartitionCount setting (by default it may equal the max or current configured value). If no GPUs are listed, or the list is empty, the GPU is not recognized as partitionable (check drivers/BIOS). If the GPU is listed but ValidPartitionCounts is blank or shows only “1,” then it may not support SR-IOV and can only be used via DDA. Enabling and Configuring GPU Partitioning Once the hardware and drivers are ready, enabling GPU Partitioning involves configuring how the GPU will be divided and ensuring all Hyper-V hosts (especially in a cluster) have a consistent setup. Each physical GPU must be configured with a partition count (how many partitions to create on that GPU). You cannot define an arbitrary number – it must be one of the supported counts reported by the hardware/driver. The default might be the maximum supported (e.g., 16). To set a specific partition count, use PowerShell on each host: Decide on a partition count that suits your workloads. Fewer partitions means each VM gets more GPU resources (more VRAM and compute per partition), whereas more partitions means you can assign the GPU to more VMs concurrently (each getting a smaller slice). For AI/ML, you might choose a moderate number – e.g. split a 24 GB GPU into 4 partitions of ~6 GB each for inference tasks. Run the Set-VMHostPartitionableGpu cmdlet. Provide the GPU’s device ID (from the Name field of the earlier Get-VMHostPartitionableGpu output) and the desired -PartitionCount. For example: Set-VMHostPartitionableGpu -Name "<GPU-device-ID>" -PartitionCount 4 This would configure the GPU to be divided into 4 partitions. Repeat this for each GPU device if the host has multiple GPUs (or specify -Name accordingly for each). Verify the setting by running: Get-VMHostPartitionableGpu | FL Name,PartitionCount It should now show the PartitionCount set to your chosen value (e.g., PartitionCount : 4 for each listed GPU). If you are in a clustered environment, apply the same partition count on every host in the cluster for all identical GPUs. Consistency is critical: a VM using a “quarter GPU” partition can only fail over to another host that also has its GPU split into quarters. Windows Admin Center will actually enforce this by warning you if you try to set mismatched counts on different nodes. You can also configure the partition count via the WAC GUI. In WAC’s GPU partitions tool, select the GPU (or a set of homogeneous GPUs across hosts) and choose Configure partition count. WAC will present a dropdown of valid partition counts (as reported by the GPU). Selecting a number will show a tooltip of how much VRAM each partition would have (e.g., selecting 8 partitions on a 16 GB card might show ~2 GB per partition). WAC helps ensure you apply the change to all similar GPUs in the cluster together. After applying, it will update the partition count on each host automatically. After this step, the physical GPUs on the host (or cluster) are partitioned into the configured number of virtual GPUs. They are now ready to be assigned to VMs. The host’s perspective will show each partition as a shareable resource. (Note: You cannot assign more partitions to VMs than the number configured) Assigning GPU Partitions to Virtual Machines With the GPU partitioned at the host level, the next step is to attach a GPU partition to a VM. This is analogous to plugging a virtual GPU device into the VM. Each VM can have at most one GPU partition device attached, so choose the VM that needs GPU acceleration and assign one partition to it. There are two main ways to do this: using PowerShell commands or using the Windows Admin Center UI. Below are the instructions for each method. To add the GPU Partition to the VM use the Add-VMGpuPartitionAdapter cmdlet to attach a partitioned GPU to the VM. For example: Add-VMGpuPartitionAdapter -VMName "<VMName>" This will allocate one of the available GPU partitions on the host to the specified VM. (There is no parameter to specify which partition or GPU & Hyper-V will auto-select an available partition from a compatible GPU. If no partition is free or the host GPUs aren’t partitioned, this cmdlet will return an error) You can check that the VM has a GPU partition attached by running: Get-VMGpuPartitionAdapter -VMName "<VMName>" | FL InstancePath,PartitionId This will show details like the GPU device instance path and a PartitionId for the VM’s GPU device. If you see an entry with an instance path (matching the GPU’s PCI ID) and a PartitionId, the partition is successfully attached. Power on the VM. On boot, the VM’s OS will detect a new display adapter. In Windows guests, you should see a GPU in Device Manager (it may appear as a GPU with a specific model, or a virtual GPU device name). Install the appropriate GPU driver inside the VM if not already installed, so that the VM can fully utilize the GPU (for example, install NVIDIA drivers in the guest to get CUDA, DirectX, etc. working). Once the driver is active in the guest, the VM will be able to leverage the GPU partition for AI/ML computations or graphics rendering. Using Windows Admin Center: Open Windows Admin Center and navigate to your Hyper-V cluster or host, then go to the GPUs extension. Ensure you have added the GPUs extension v2.8.0 or later to WAC. In the GPU Partitions tab, you’ll see a list of the physical GPUs and any existing partitions. Click on “+ Assign partition”. This opens an assignment wizard. Select the VM: First choose the host server where the target VM currently resides (WAC will list all servers in the cluster). Then select the VM from that host to assign a partition to. (If a VM is greyed out in the list, it likely already has a GPU partition assigned or is incompatible.) Select Partition Size (VRAM): Choose the partition size from the dropdown. WAC will list options that correspond to the partition counts you configured. For example, if the GPU is split into 4, you might see an option like “25% of GPU (≈4 GB)” or similar. Ensure this matches the partition count you set. You cannot assign more memory than a partition contains. Offline Action (HA option): If the VM is clustered and you want it to be highly available, check the option for “Configure offline action to force shutdown” (if presented in the UI). Proceed to assign. WAC will automatically: shut down the VM (if it was running), attach a GPU partition to it, and then power the VM back on. After a brief moment, the VM should come online with the GPU partition attached. In the WAC GPU partitions list, you will now see an entry showing the VM name under the GPU partition it’s using. At this point, the VM is running with a virtual GPU. You can repeat the process for other VMs, up to the number of partitions available. Each physical GPU can only support a fixed number of active partitions equal to the PartitionCount set. If you attempt to assign more VMs than partitions, the additional VMs will not get a GPU (or the Add command will fail). Also note that a given VM can only occupy one partition on one GPU – you cannot span a single VM across multiple GPU partitions or across multiple GPUs with GPU-P. GPU Partitioning in Clustered Environments (Failover Clustering) One of the major benefits introduced with Windows Server 2025 is that GPU partitions can be used in Failover Clustering scenarios for high availability. This means you can have a Hyper-V cluster where VMs with virtual GPUs are clustered roles, capable of moving between hosts either through live migration (planned) or failover (unplanned). To utilize GPU-P in a cluster, you must pay special attention to configuration consistency and understand the current limitations: Use Windows Server 2025 Datacenter: As mentioned, clustering features (like failover) for GPU partitions are supported only on Datacenter edition. Homogeneous GPU Configuration: All hosts in the cluster should have identical GPU hardware and partitioning setup. Failover/Live Migration with GPU-P does not support mixing GPU models or partition sizes in a GPU-P cluster. Each host should have the same GPU model. The partition count configured (e.g., 4 or 8 etc.) must be the same on every host. This uniformity ensures that a VM expecting a certain size partition will find an equivalent on any other node. Windows Server 2025 introduces support for live migrating VMs that have a GPU partition attached. However, there are important caveats: Hardware support: Live migration with GPU-P requires that the hosts’ CPUs and chipsets fully support isolating DMA and device state. In practice, as noted, you need Intel VT-d or AMD-Vi enabled, and the CPUs ideally supporting “DMA bit tracking.” If this is in place, Hyper-V will attempt to live migrate the VM normally. During such a migration, the GPU’s state is not seamlessly copied like regular memory; instead, Windows will fallback to a slower migration process to preserve integrity. Specifically, when migrating a VM using GPU-P, Hyper-V automatically uses TCP/IP with compression (even if you have faster methods like RDMA configured). This is because device state transfer is more complex. The migration will still succeed, but you may notice higher CPU usage on the host and a longer migration time than usual. Cross-node compatibility: Ensure that the GPU driver versions on all hosts are the same, and that each host has an available partition for the VM. If a VM is running and you trigger a live migrate, Hyper-V will find a target where the VM can get an identical partition. If none are free, the migration will not proceed (or the VM may have to be restarted elsewhere as a failover). Failover (Unplanned Moves): If a host crashes or goes down, a clustered VM with a GPU partition will be automatically restarted on another node, much like any HA VM. The key difference is that the VM cannot save its state, so it will be a cold start on the new node, attaching to a new GPU partition there. When the VM comes up on the new node, it will request a GPU partition. Hyper-V will allocate one if available. If NodeB had no free partition (say all were assigned to other VMs), the VM might start but not get a GPU (and likely Windows would log an error that the virtual GPU could not start). Administrators should monitor and possibly leverage anti-affinity rules to avoid packing too many GPU VMs on one host if full automatic failover is required. To learn more about GPU-P on Windows Server 2025, consult the documentation on Learn: https://learn.microsoft.com/en-us/windows-server/virtualization/hyper-v/gpu-partitioning4.3KViews1like3CommentsCSV Auto-Pause on Windows Server 2025 Hyper-V Cluster
Hi everyone, i'm facing a very strange behavior with a newly created HyperV Clsuter running on Windows Server 2025. One of the two nodes keep calling for autopause on the CSV during the I/O peak. Does anyone have experienced this ? Here are the details : Environment Cluster: 2-node Failover Cluster Nodes: HV1 & HV2 (HPE ProLiant DL360 Gen11) OS: Windows Server 2025 Datacenter, Build 26100.32370 (KB5075899 installed Feb 21, 2026) Storage: HPE MSA 2070 full SSD, iSCSI point-to-point (4×25 Gbps per node, 4 MPIO paths) CSV: Single volume "Clsuter Disk 2" (~14 TB, NTFS, CSVFS_NTFS) Quorum: Disk Witness (Node and Disk Majority) Networking: 4×10 Gbps NIC Teaming for management/cluster/VMs traffic, dedicated iSCSI NICs Problem Description The cluster experiences CSV auto-pause events daily during a peak I/O period (~10:00-11:30), caused by database VMs generating ~600-800 MB/s (not that much). The auto-pause is triggered by HV2's CsvFs driver, even though HV2 hosts no VMs. All VMs run on HV1, which is the CSV coordinator/owner. Comparative Testing (Feb 23-26, 2026) Date HV2 Status Event 5120 SMB Slowdowns (1054) Auto-pause Cycles VM Impact Feb 23 Active 1 44 1 cycle (237ms recovery) None Feb 24 Active 0 8 0 None Feb 25 Drained (still in cluster) 4 ~60 (86,400,000ms max!) 3 cascade cycles Severe - all VMs affected Feb 26 Powered off 0 0 0 None Key finding: Draining HV2 does NOT prevent the issue. Only fully powering off HV2 eliminates all auto-pause events and SMB slowdowns during the I/O peak. Root Cause Analysis 1. CsvFs Driver on HV2 Maintains Persistent SMB Sessions to CSV SMB Client Connectivity log (Event 30833) on HV2 shows ~130 new SMB connections per hour to the CSV share, continuously, constant since boot: Share: \\xxxx::xxx:xxx:xxx:xxx\xxxxxxxx-...-xxxxxxx$ (HV1 cluster virtual adapter) All connections from PID 4 (System/kernel) — CsvFs driver 5,649 connections in 43.6 hours = ~130/hour Each connection has a different Session ID (not persistent) This behavior continues even when HV2 is drained 2. HV2 Opens Handles on ALL VM Files During the I/O peak on Feb 25, SMB Server Operational log (Event 1054) on HV1 showed HV2 blocking on files from every VM directory, including powered-off VMs and templates: .vmgs, .VMRS, .vmcx, .xml — VM configuration and state files .rct, .mrt — RCT/CBT tracking files Affected VMs: almost all Also affected: powered-off VMs And templates: winsrv2025-template 3. Catastrophic Block Durations On Feb 25 (HV2 drained but still in cluster): Operations blocked for 86,400,000 ms (exactly 24 hours) — handles accumulated since previous day These all expired simultaneously at 10:13:52, triggering cascade auto-pause Post-autopause: big VM freeze/lag for additional 2,324 seconds (39 minutes) On Feb 24 (HV2 active): Operations blocked for 1,150,968 ms (19 minutes) on one of the VM files Despite this extreme duration, no auto-pause was triggered that day 4. Auto-pause Trigger Mechanism HV2 Diagnostic log at auto-pause time: CsvFs Listener: CsvFsVolumeStateChangeFromIO->CsvFsVolumeStateDraining, status 0xc0000001 OnVolumeEventFromCsvFs: reported VolumeEventAutopause to node 1 Error status 0xc0000001 (STATUS_UNSUCCESSFUL) on I/O operation from HV2 CsvFsVolumeStateChangeFromIO = I/O failure triggered the auto-pause HV2 has no VMs running — this is purely CsvFs metadata/redirected access 5. SMB Connection Loss During Auto-pause SMB Client Connectivity on HV2 at auto-pause time: Event 30807: Share connection lost - "Le nom réseau a été supprimé" Event 30808: Share connection re-established What Has Been Done KB5075899 installed (Feb 21) — Maybe improved recovery from multi-cycle loop to single cycle a little, but did not prevent the auto-pause Disabled ms_server binding on iSCSI NICs (both nodes) Tuned MPIO: PathVerification Enabled, PDORemovePeriod 120, RetryCount 6, DiskTimeout 100 Drained HV2 — no effect Powered off HV2 — Completely eliminated the problem I'm currently running mad with this problem, i've deployed a lot of HyperV clusters and it's the first time i'm experiencing such a strange behavior, the only workaround i found is to take the second nodes off to be sure he is not putting locks on CSV files. The cluster is only running well with one node turned on. Why does the CsvFs driver on a non-coordinator node (HV2) maintain ~130 new SMB connections per hour to the CSV, even when it hosts no VMs and is drained?Why do these connections block for up to 24 hours during I/O peaks on the coordinator node? Why does draining the node not prevent CsvFs from accessing the CSV? Is this a known issue with the CsvFs driver in Windows Server 2025 Build 26100.32370? Are there any registry parameters to limit or disable CsvFs metadata scanning on non-coordinator nodes ? If someone sees somthing that i am missing i would be so grateful ! Have a great day.178Views0likes1CommentBookmark the Secure Boot playbook for Windows Server
Secure Boot is a long‑standing security capability that works in conjunction with the Unified Extensible Firmware Interface (UEFI) to confirm that firmware and boot components are trusted before they are allowed to run. Microsoft is updating the Secure Boot certificates originally issued in 2011 to ensure Windows devices continue to verify trusted boot software. These older certificates begin expiring in June 2026. While Windows Server 2025 certified server platforms already include the 2023 certificates in firmware. For servers that do not, you will need to manually update the certificates. Unlike Windows PCs, which may receive the 2023 Secure Boot certificates through Controlled Feature Rollout (CFR) as part of the monthly update process, Windows Server requires manual action. Luckily, there is a step=by-step guide to help! With the Secure Boot Playbook for Windows Server, you'll find information on the tools and options available to help you update Secure Boot certificates on Windows Server. Check it out today!66Views0likes0CommentsMigrating from VMware to Hyper-v
Hi, I've recently deployed a new 3x node Hyper-v cluster running Windows Server 2025. I have an existing VMware cluster running exsi 7.x. What tools or approach have you guys used to migrate from VMware to Hyper-v? I can see there are many 3rd party tools available, and now the Windows Admin Center appears to also support this. Having never done this before (vmware to hyper-v) I'm not sure what the best method is, does anyone here have any experience and recommendations pls?276Views0likes5CommentsAnnouncing ReFS Boot for Windows Server Insiders
We’re excited to announce that Resilient File System (ReFS) boot support is now available for Windows Server Insiders in Insider Preview builds. For the first time, you can install and boot Windows Server on an ReFS-formatted boot volume directly through the setup UI. With ReFS boot, you can finally bring modern resilience, scalability, and performance to your server’s most critical volume — the OS boot volume. Why ReFS Boot? Modern workloads demand more from the boot volume than NTFS can provide. ReFS was designed from the ground up to protect data integrity at scale. By enabling ReFS for the OS boot volume we ensure that even the most critical system data benefits from advanced resilience, future-proof scalability, and improved performance. In short, ReFS boot means a more robust server right from startup with several benefits: Resilient OS disk: ReFS improves boot‑volume reliability by detecting corruption early and handling many file‑system issues online without requiring chkdsk. Its integrity‑first, copy‑on‑write design reduces the risk of crash‑induced corruption to help keep your system running smoothly. Massive scalability: ReFS supports volumes up to 35 petabytes (35,000 TB) — vastly beyond NTFS’s typical limit of 256 TB. That means your boot volume can grow with future hardware, eliminating capacity ceilings. Performance optimizations: ReFS uses block cloning and sparse provisioning to accelerate I/O‑heavy scenarios — enabling dramatically faster creation or expansion of large fixed‑size VHD(X) files and speeding up large file copy operations by copying data via metadata references rather than full data movement. Maximum Boot Volume Size: NTFS vs. ReFS Resiliency Enhancements with ReFS Boot Feature ReFS Boot Volume NTFS Boot Volume Metadata checksums ✅ Yes ❌ No Integrity streams (optional) ✅ Yes ❌ No Proactive error detection (scrubber) ✅ Yes ❌ No Online integrity (no chkdsk) ✅ Yes ❌ No Check out Microsoft Learn for more information on ReFS resiliency enhancements. Performance Enhancements with ReFS Boot Operation ReFS Boot Volume NTFS Boot Volume Fixed-size VHD creation Seconds Minutes Large file copy operations Milliseconds-seconds (independent of file size) Seconds-minutes (linear with file size) Sparse provisioning ✅ ❌ Check out Microsoft Learn for more information on ReFS performance enhancements. Getting Started with ReFS Boot Ready to try it out? Here’s how to get started with ReFS boot on Windows Server Insider Preview: 1. Update to the latest Insider build: Ensure you’re running the most recent Windows Server vNext Insider Preview (Join Windows Server Insiders if you haven’t already). Builds from 2/11/26 or later (minimum build number 29531.1000.260206-1841) include ReFS boot in setup. 2. Choose ReFS during setup: When installing Windows Server, format the system (C:) partition as ReFS in the installation UI. Note: ReFS boot requires UEFI firmware and does not support legacy BIOS boot; as a result, ReFS boot is not supported on Generation 1 VMs. 3. Complete installation & verify: Finish the Windows Server installation as usual. Once it boots, confirm that your C: drive is using ReFS (for example, by running fsutil fsinfo volumeInfo C: or checking the drive properties). That’s it – your server is now running with an ReFS boot volume. A step-by-step demo video showing how to install Windows Server on an ReFS-formatted boot volume, including UEFI setup, disk formatting, and post-install verification. If the player doesn’t load, open the video in a new window: Open video. Call to Action In summary, ReFS boot brings future-proof resiliency, scalability, and performance improvements to the Windows Server boot volume — reducing downtime, removing scalability limits, and accelerating large storage operations from day one. We encourage you to try ReFS boot on your servers and experience the difference for yourself. As always, we value your feedback. Please share your feedback and questions on the Windows Server Insiders Forum. — Christina Curlette (and the Windows Server team)
