Forum Discussion
AyeshaKulsumSJ
Sep 10, 2022Brass Contributor

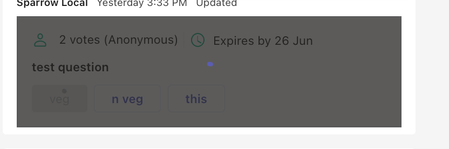

Card is blurred on click of buttons
{ "$schema": "http://adaptivecards.io/schemas/adaptive-card.json", "type": "AdaptiveCard", "version": "1.5", "body": [ { "type": "Container", "horizontalAlignment": "Center", "$data...
AyeshaKulsumSJ
Sep 12, 2022Brass Contributor
Meghana-MSFT Updated exact JSON
Here we are using action execute so that on click we will perform only backend operations
{
"$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
"type": "AdaptiveCard",
"version": "1.5",
"body": [
{
"type": "Container",
"horizontalAlignment": "Center",
"$data": "${$root.name}",
"spacing": "Medium",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "Image",
"url": "",
"width": "20px",
"spacing": "None",
"id": "icon1"
}
]
},
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "TextBlock",
"text": "0 votes (Anonymous)",
"wrap": true,
"id": "text1",
"spacing": "Small",
"horizontalAlignment": "Left"
}
]
},
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "Image",
"url": "",
"width": "20px",
"spacing": "None",
"id": "icon2",
"separator": true,
"horizontalAlignment": "Right"
}
],
"separator": true,
"horizontalAlignment": "Right"
},
{
"type": "Column",
"width": "stretch",
"horizontalAlignment": "Center",
"verticalContentAlignment": "Center",
"items": [
{
"type": "TextBlock",
"text": "Expires by 26 Jun",
"wrap": true,
"horizontalAlignment": "Left"
}
],
"spacing": "Small"
}
]
}
]
},
{
"type": "TextBlock",
"text": " test question",
"size": "Medium",
"weight": "Bolder",
"wrap": true
},
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "ActionSet",
"actions": [
{
"type": "Action.Execute",
"title": "veg",
"data": {
"data": {
"type": "type1"
},
"msteams": {
"type": "task/fetch"
}
},
"url": "https://url.com"
},
{
"type": "Action.Execute",
"title": "n veg",
"data": {
"data": {
"type": "answerPoll"
},
"msteams": {
"type": "task/fetch"
}
},
"url": "https://url.com"
},
{
"type": "Action.Execute",
"title": "this",
"data": {
"data": {
"type": "answerPoll"
},
"msteams": {
"type": "task/fetch"
}
},
"url": "https://url.com"
}
]
}
]
}
]
}
]
}
Meghana-MSFT
Sep 13, 2022Former Employee
We tried this card at our end, and the card is not rendering at all. Could you please let us know usage of "$data": "${$root.name}"? From where it is being referred and used?
- AyeshaKulsumSJSep 14, 2022Brass Contributor
I am able to send card to the Channel but card is still blurred on click
const turnContext = new TurnContext(adapter, properties); const teamsChannelId = await teamsGetChannelId(turnContext.activity); const activity = MessageFactory.text('This will be the first message in a new thread'); BotConnector.MicrosoftAppCredentials.trustServiceUrl(properties.serviceUrl); const [reference] = await TeamsInfo.sendMessageToTeamsChannel(turnContext, activity, teamsChannelId); const card = MessageFactory.attachment(CardFactory.adaptiveCard( { '$schema': 'http://adaptivecards.io/schemas/adaptive-card.json', 'type': 'AdaptiveCard', 'version': '1.5', 'body': [ { 'type': 'Container', 'horizontalAlignment': 'Center', 'spacing': 'Medium', 'items': [ { 'type': 'ColumnSet', 'columns': [ { 'type': 'Column', 'width': 'auto', 'items': [ { 'type': 'Image', 'url': 'https://cdn-icons-png.flaticon.com/512/456/456212.png', 'width': '20px', 'spacing': 'None', 'id': 'icon1' } ] }, { 'type': 'Column', 'width': 'auto', 'items': [ { 'type': 'TextBlock', 'text': '0 votes (Anonymous)', 'wrap': true, 'id': 'text1', 'spacing': 'Small', 'horizontalAlignment': 'Left' } ] }, { 'type': 'Column', 'width': 'auto', 'items': [ { 'type': 'Image', 'url': 'https://cdn-icons-png.flaticon.com/512/456/456212.png', 'width': '20px', 'spacing': 'None', 'id': 'icon2', 'separator': true, 'horizontalAlignment': 'Right' } ], 'separator': true, 'horizontalAlignment': 'Right' }, { 'type': 'Column', 'width': 'stretch', 'horizontalAlignment': 'Center', 'verticalContentAlignment': 'Center', 'items': [ { 'type': 'TextBlock', 'text': 'Expires by 26 Jun', 'wrap': true, 'horizontalAlignment': 'Left' } ], 'spacing': 'Small' } ] } ] }, { 'type': 'TextBlock', 'text': ' test question', 'size': 'Medium', 'weight': 'Bolder', 'wrap': true }, { 'type': 'ColumnSet', 'columns': [ { 'type': 'Column', 'width': 'stretch', 'items': [ { 'type': 'ActionSet', 'actions': [ { 'type': 'Action.Execute', 'title': 'veg', 'data': { 'data': { } }, 'msteams': { 'type': 'task/fetch' }, 'url': '' }, { 'type': 'Action.Execute', 'title': 'n veg', 'data': { 'data': { } }, 'msteams': { 'type': 'task/fetch' }, 'url': '' }, { 'type': 'Action.Execute', 'title': 'this', 'data': { 'data': { } }, 'msteams': { 'type': 'task/fetch' }, 'url': '' } ] } ] } ] } ] })); await turnContext.adapter.continueConversation(reference, async t2 => { BotConnector.MicrosoftAppCredentials.trustServiceUrl(reference.serviceUrl); const res = await t2.sendActivity(card); message1 = res; });- Meghana-MSFTSep 22, 2022Former Employee
AyeshaKulsumSJ - We tried this at our end. Can you please try by changing the adaptive card version to 1.4. According to Schema for Universal Actions for Adaptive Cards, the
versionproperty of your Adaptive Card must be set to 1.4 for Universal Actions for Adaptive Cards.
