Forum Discussion

Iron Contributor

Jan 08, 2024

Solved

Share desktop with Miracast (Win + K) on Surface Hub 3 with new Teams Rooms on Windows Platform

We just installed a new Surface Hub 3. Everything is fine and looks great, however Win + K seems not to be working. The Surface Hub does not appear in the list of devices where I can share to. I can ...

Kiril
Jan 08, 2024
Answer from Microsoft Support:

I have consulted a higher-level engineer regarding the issue, and received the Information that Miracast is not a functionality on Surface Hub 3 devices anymore.

Max_K2020

Copper Contributor

Jan 09, 2024

Kiril

I found a way to do it:

1. Tap on "... more"

2. Tap on "Settings"

3. Enter admin password (default is "sfb")

4. Tap on "Windows-Settings"

5. Log an as administrator; default password is "sfb"

6. Open Windows 11 Settings

7. While in "System" scroll down to "Projecting to this PC" and tap on it

8. Configure it to allow projection; you may define the settings you would like to use

9. Tap on "Launch the Connect app to project to this PC"

10. Now Casting to Surface Hub 3 is possible. The drawback however is, that you need to open the Connect app everytime you want to cast ... not very user friendly.

Another option is to cast via Teams:

1. On the Hub tap on "Share"

2. On the laptop in the teams client tap on the three dots "..." and then on "Cast"

Kiril

Iron Contributor

Jan 09, 2024

Just tried it and it only works while the admin is logged in. As soon as I log out, and switch to the "Skype" user which displays MTR Windows, the cast function does not work.

Max_K2020
Copper Contributor
Jan 09, 2024
That is what I meant with "you need to open the Connect app everytime you want to cast" (as an admin) ... I don't like MS-decision to remove the standard Miracast functionality from the default MTR Windows. But it's obviously a software topic, not an hardware issue - that's the good news. So there's room for Microsoft to bring back the standard Miracast functionality with a software update.

However, as long as you want to cast from a windows client with teams on it, the casting via Teams variant should be a valid option for now.
- Staggy
  Copper Contributor
  Aug 15, 2024
  Totally agree Max, our corporation has invested in The Surface Hub upgrade package, including two 85 inch Surface Hubs. This is a ticket that keep getting raised and I have to explain every time that it isn't supported.
  MS, please get this working and make our lives easier.
  - gmarnold25
    Copper Contributor
    Dec 13, 2024

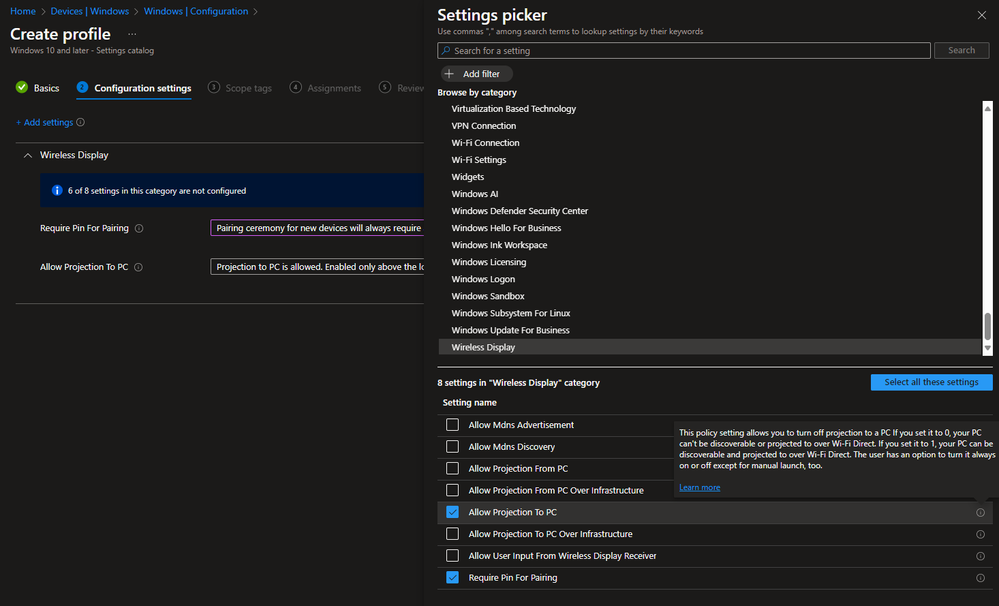

    Do you manage these with Intune? Have you tried to enable the https://learn.microsoft.com/en-us/windows/client-management/mdm/policy-csp-wirelessdisplay#allowprojectiontopc?
    The setting is available in Settings Catalog.
