Header sharepoint forms

Question

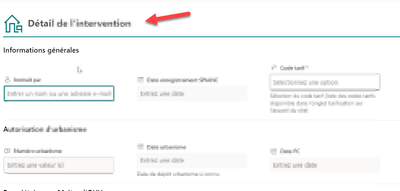

Hello, I would like to show the reference ('REF' column) in the header of my form sharepoint but I can't do it. This is a column of text.
Could you take a look and help me?

Below is the code used

{
"elmType": "div",
"attributes": {
"class": "ms-borderColor-themePrimary"
},
"style": {
"width": "99%",
"border-top-width": "0px",
"border-bottom-width": "2px",
"border-left-width": "0px",
"border-right-width": "0px",
"border-style": "solid",
"margin-bottom": "16px"
},
"children": [
{
"elmType": "div",
"style": {
"display": "flex",
"box-sizing": "border-box",
"align-items": "center"
},
"children": [
{
"elmType": "div",
"attributes": {
"iconName": "RealEstate",
"class": "ms-fontSize-su ms-fontWeight-regular ms-fontColor-themePrimary"
},
"style": {
"flex": "none",
"padding": "0px",
"padding-left": "0px",
"height": "36px"
}
}
]
},
{
"elmType": "div",
"attributes": {
"class": "ms-fontColor-neutralSecondary ms-fontWeight-bold ms-fontSize-xl"
},
"style": {
"box-sizing": "border-box",
"width": "100%",
"text-align": "left",
"padding": "21px 12px",
"overflow": "hidden"
},
"children": [
{
"elmType": "div",
"txtContent": {
"operator": "+",
"operands": [
"Détail XXXXXXX ",
"[$REF]"
]

},
"style": {
"height": "24px"
}
}
]
}
]
}

rob_elliott · Answer

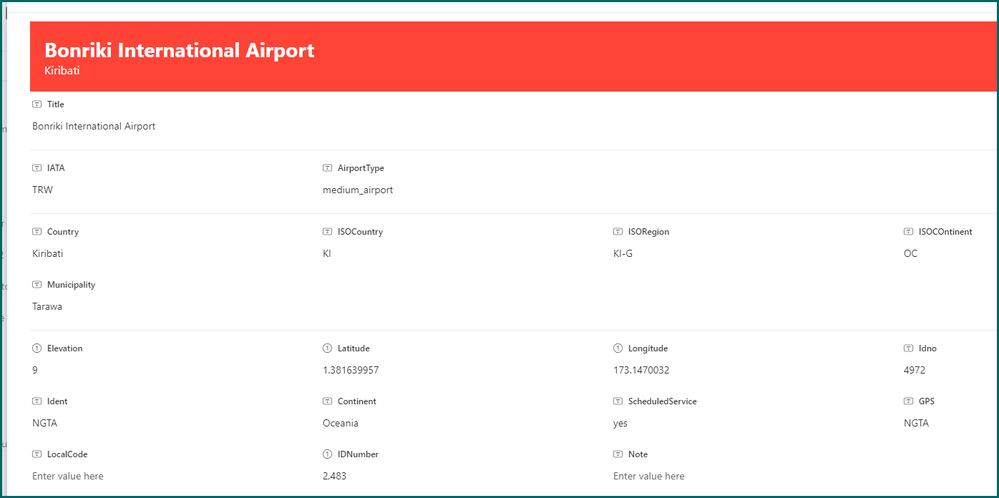

EiC4733&nbsp;in my example below I've added a column, field_10, from my list showing the country of the selected airport as a subtitle using the following:&nbsp;{
    "elmType": "div",
    "attributes": {
        "class": "ms-bgColor-themePrimary ms-fontColor-white"
    },
    "children": [
        {
            "elmType": "div",
            "style": {
                "margin": "10px",
                "width": "100%",
                "border": "none",
                "padding": "10px",
                "display": "=if([$Title] == '' , 'none' , 'flex')",
                "flex-direction": "column"
            },
            "children": [
                {
                    "elmType": "div",
                    "txtContent": "[$Title]",
                    "style": {
                        "text-align": "left"
                    },
                    "attributes": {
                        "class": "ms-fontSize-28 ms-fontWeight-bold"
                    }
                },
                {
                    "elmType": "div",
                    "txtContent": "[$field_10]",
                    "style": {
                        "text-align": "left",
                        "display": "=if([$field_10] == '' , 'none' , '')"
                    },
                    "attributes": {
                        "class": "ms-fontSize-16"
                    }
                }
            ]
        }
    ]
}&nbsp;&nbsp;&nbsp;&nbsp;RobLos GallardosMicrosoft Power Automate Community Super User.Principal Consultant, SharePoint and Power Platform WSP Global (and classic 1967 Morris Traveller driver)&nbsp;

eic4733 · Answer

Rob_Elliott&nbsp;&nbsp;Thank you very much for your quick feedback,I copied and pasted it and I just replaced your Filed_10 column with mine since I also have the existing Title column but I still can't display it&nbsp;I also tried with another column without success.I can get the subtitle but not the title&nbsp;
