Using Power Automate and Syntex to create document with multiple tables HELP?

I work for a performing arts organization, and we manually create documents ("one sheets") related to performance information in tables like casts, crews, chorus details, etc.  See the example pictur...
content assembly
process automation
Syntex
Schneika's avatar
Schneika
Iron Contributor
Sep 13, 2023

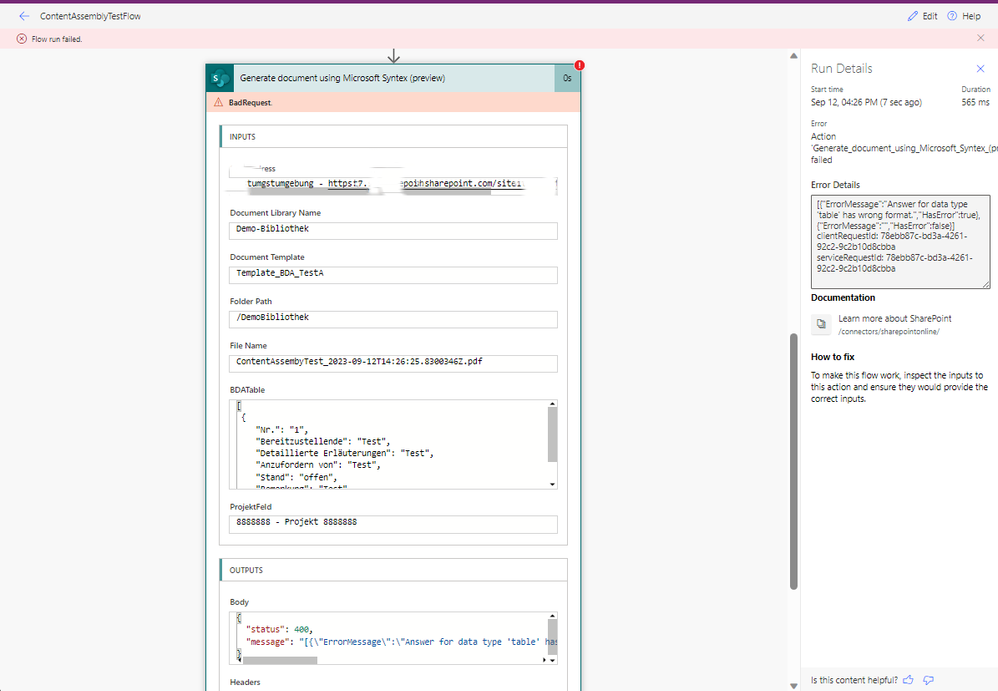

spucelik thanks for your hints. But i can not get it to work. I fail to send the JSON-Objekt for the Table (from a get items select filter) to the TableField in the Syntex action. I always get



[{"ErrorMessage":"Answer for data type 'table' has wrong format.","HasError":true},{"ErrorMessage":"","HasError":false}]
clientRequestId: b65638ae-5dfb-4100-a224-0327f8c859dc
serviceRequestId: b65638ae-5dfb-4100-a224-0327f8c859dc



i also get this error when i try to update the Syntex-Template-TableField with a simple JSON-Object (single Item) like this one:



[
{
"Nr.": "1",
"Bereitzustellende": "Test",
"Detaillierte Erläuterungen": "Test",
"Anzufordern von": "Test",
"Stand": "offen",
"Bemerkung": "Test"
}
]



Do you have a working example for a suitable JSON?

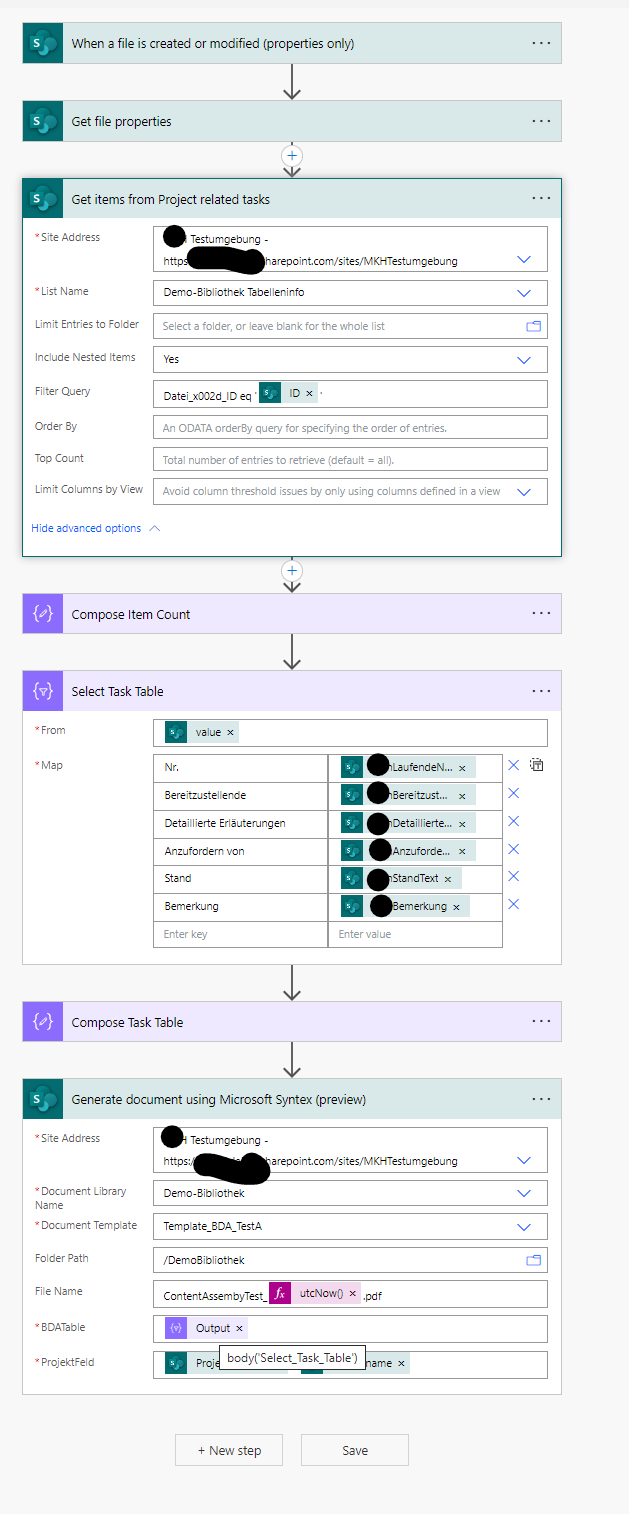

I tried this without success





Steve Pucelik's avatar
Steve Pucelik
Copper Contributor
Sep 15, 2023

Schneika Here are some screen shots of it working in my environment.  There is also updated https://learn.microsoft.com/en-us/microsoft-365/syntex/automate-document-generation to reference.

Here is the result of my Data Operation -> Select activity going against a library.





When binding the information to the template, here is the input values.



If you continue to have issues, I would open a support ticket and we can look at it in depth.



  • Mario_Fulan's avatar
    Mario_Fulan
    Iron Contributor
    Sep 18, 2023

    Steve Pucelik - I see one big difference between your working sample and my failed attempt. In your sample your json is in this format {"Correspondence Name":"Value1", "Date Sent":"Value2"} but the output from the data select action for my sample has the value first and the field name second like this by comparison {"Value1":Correspondence Name", "Value2":"Date Sent"}. Seems the data select is backwards in my case. I'll try this and respond back.

    • Mario_Fulan's avatar
      Mario_Fulan
      Iron Contributor
      Sep 18, 2023
      Success. It now works for me. What an idiot I am. I know the JSON format but for some reason had dyslexic response. This is now working for me. Thanks everyone.
      • Wayne_Addison's avatar
        Wayne_Addison
        Copper Contributor
        Oct 04, 2023
        Success for me too! My problem... I didn't put labels in the header row of the table, that was my 'Microsoft Word, Sorry, we ran into a problem' error AND when I did put labels I didnt make the JSON field names exactly match the labels. I think I'm the winner Mario.
        Thanks to all on the thread.
  • Schneika's avatar
    Schneika
    Iron Contributor
    Sep 18, 2023

    I dont see the updated reference yet
    https://learn.microsoft.com/en-us/microsoft-365/syntex/automate-document-generation
    published date is the older one from 03/15/2023.

    But i have already raised a Power Platform Service Support Ticket for this issue, dear Steve Pucelik

    • Mario_Fulan's avatar
      Mario_Fulan
      Iron Contributor
      Sep 18, 2023

      Schneika and Steve Pucelik I am still having the same error that Karl is having. I see the inputs to the create document are proper JSON format but I get the error


      Error
      Action 'Generate_document_using_Microsoft_Syntex_(preview)_2' failed
      Error Details
      [{"ErrorMessage":"Answer for data type 'table' has wrong format.","HasError":true}]
      clientRequestId: 3f4cb665-5663-4fa9-b185-b6c5b053f1b4
      serviceRequestId: 3f4cb665-5663-4fa9-b185-b6c5b053f1b4

      Here are the raw inputs to the create document with Syntex request - I've verified the heading match the headings in the Word document template (removed spaces to make sure that was not the issue):
      {
          "host": {
              "connectionReferenceName": "shared_sharepointonline",
              "operationId": "CreateContentAssemblyDocument"
          },
          "parameters": {
              "dataset": "https://xxxxxxx.sharepoint.com/sites/OperationalContentCenter",
              "table": "fc943c8d-db45-41a6-965a-ef63ff17f60d",
              "template": "0x0101005F1508AB448AD04A82198A206228038C006AC7F8A786B4374AB41FB6D8D957510A",
              "fileName": "MAP1.pdf",
              "item/msca602030TableSelection": [
                  {
                      "Ameren Illinois": "OrgName",
                      "Larry Magelitz": "PrimaryContactName",
                      "Manager-Illinois Crisis Management": "PrimaryContactTitle",
                      "email address removed for privacy reasons": "PrimaryContactEmail"
                  },
                  {
                      "Ameren Missouri": "OrgName",
                      "Pam Harrison": "PrimaryContactName",
                      "Director, Missouri Gas Operations": "PrimaryContactTitle",
                      "email address removed for privacy reasons": "PrimaryContactEmail"
                  }
              ]
          }
      }

      Have you found out anything through your support request inquiry?
