Forum Discussion

Trutz_Stephani's avatar
Trutz_Stephani
Iron Contributor
Jul 23, 2018

Project workflows: How the "Send an HTTP request to SharePoint" connector can help you

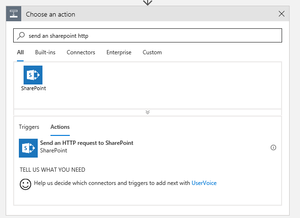

Azure Logic Apps and Flow feature a "Send an HTTP request to SharePoint" connector.   This helps a lot as it does the authentication against SharePoint for you and allows you to use the full RE...
Trutz_Stephani's avatar
Trutz_Stephani
Iron Contributor
Apr 26, 2019

To update a project custom field you can use a similar REST endpoint:

Update custom field



Dont forget to check out you project before and check it in later on:Checkout ProjectPublish project

  • Doc0014's avatar
    Doc0014
    Copper Contributor
    Nov 03, 2020

    Hi Trutz_Stephani ,

    I'm trying to do something so simple, and it is driving me crazy that I can't figure it out. All I want to do is use an HTTP Request to SharePoint to get the value of a Custom Field on a specific project in Project Online. Using your example, I'm able to GET all the regular information on a specific project (using the GUID), but how do you get to the custom fields? Any pointers you can share would be greatly appreciated!

    Thanks kindly,

    Leland

    • Trutz_Stephani's avatar
      Trutz_Stephani
      Iron Contributor
      Nov 04, 2020

      Hi Doc0014

      It's probably easier to retrieve custom field values using the OData endpoint <PWA-URL>/_api/ProjectData, e.g. <PWA-URL>/_api/ProjectData/Projects for project custom fields. This will provide the published values except for multiline text fields, the HTML formatting will be stripped.



      Using the REST-Endpoint you should use the following URL: <PWA URL>/_api/ProjectServer/Projects(‘<Project GUID>‘)/IncludeCustomFields

      This will bring the custom fields labelled by their internal id and for multiline text fields including the HTML-Formatting.

      • Doc0014's avatar
        Doc0014
        Copper Contributor
        Nov 04, 2020

        First, thanks Trutz_Stephani for the first posting and for replying. Your initial post was HUGELY helpful.

        While waiting for your response, I ran across some other articles that were no where near as well written as yours, but had elements of the same answer you gave. I ended up finding that if you call .../_api/projectdata/Projects(guid'projectID') - that will return all the fields with the names you can use.



        Interesting enough - if I tried to get that name via _api/projectserver route, it came back with an internal name like "Custom_xxxxxx....", which didn't work; an Id that was a Guid, which didn't work; and the friendly name (in this case "Landing Lead"), which of course didn't work.

        But when I went via _api/projectdata it showed the name as "LandingLead" which worked perfectly.



        Thought I would post this here in case others encounter the same thing. Hopefully, it makes there search easier and faster. 🙂
