Error getting MSIX Packaging Tool Driver

Question

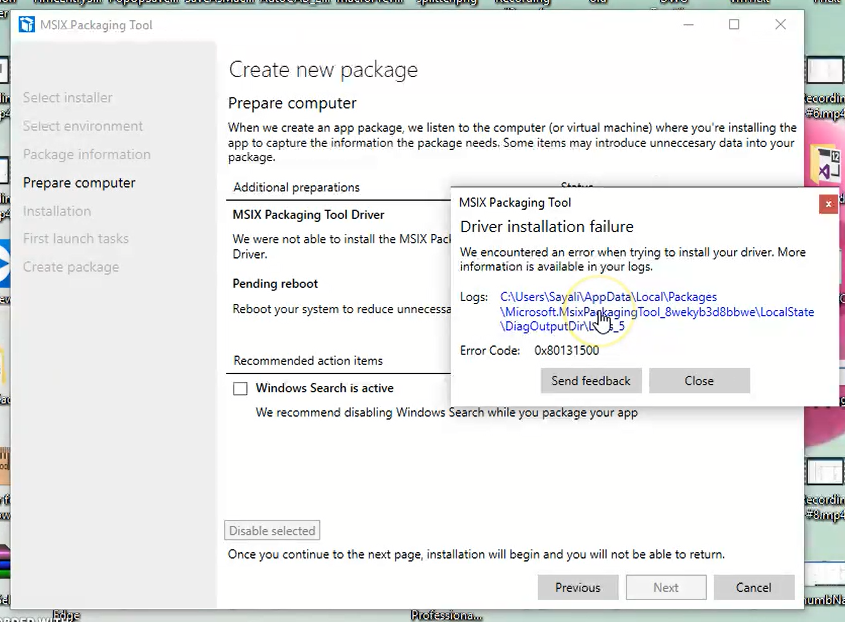

Hi&nbsp;&nbsp;I am not able to create MSIX package .&nbsp;&nbsp;Getting following log ,[2018-12-21 18:48:03] [Info] ************************************************************[2018-12-21 18:48:03] [Info]&nbsp; MSIX Packaging Tool Launch[2018-12-21 18:48:03] [Info] ************************************************************[2018-12-21 18:48:03] [Info] Tool Version: 1.2018.1005.0[2018-12-21 18:48:03] [Info] Attempting to read settings file: C:\Users\Sayali\AppData\Local\Packages\Microsoft.MsixPackagingTool_8wekyb3d8bbwe\LocalState\settings.xml&nbsp;[2018-12-21 18:48:04] [Info] Opening MSIX Packaging Tool welcome screen.[2018-12-21 18:48:04] [Info] ************************************************************[2018-12-21 18:48:04] [Info] ApplicationPackage Workflow[2018-12-21 18:48:04] [Info] ************************************************************[2018-12-21 18:48:04] [Info] ----------------Select Installer View----------------[2018-12-21 18:48:15] [Info] Selected installer : My Sample Project.msi[2018-12-21 18:48:15] [Info] Installer argument:&nbsp;[2018-12-21 18:48:15] [Info] ----------------Select Environment View----------------[2018-12-21 18:48:19] [Info] ----------------Select Installer View----------------[2018-12-21 18:49:24] [Info] Selected installer : My Sample Project.msi[2018-12-21 18:49:24] [Info] Installer argument:&nbsp;[2018-12-21 18:49:24] [Info] ----------------Select Environment View----------------[2018-12-21 18:49:27] [Info] Selected execution environment: Local machine[2018-12-21 18:49:27] [Info] ----------------Package Information View----------------[2018-12-21 18:49:51] [Info] Package name: MySampleProject[2018-12-21 18:49:51] [Info] Package display name: My Sample Project[2018-12-21 18:49:51] [Info] Publisher name: CN=My Company[2018-12-21 18:49:51] [Info] Publisher display name: My Company[2018-12-21 18:49:51] [Info] Version: 1.0.0.0[2018-12-21 18:49:51] [Info] Activating PrepareComputerLocalOrRemoteSession locally[2018-12-21 18:49:52] [Info] ----------------Prepare Computer View----------------[2018-12-21 18:49:52] [Info] Required prepare computer task: MSIX Packaging Tool Driver[2018-12-21 18:49:52] [Info] Recommended prepare computer task: Windows Search is active[2018-12-21 18:49:52] [Info] Recommended prepare computer task: Pending reboot[2018-12-21 18:49:52] [Info] Checking if MSIX Packaging Tool Driver is installed...[2018-12-21 18:49:52] [Debug] About to start process[2018-12-21 18:49:52] [Debug]&nbsp; &nbsp; &nbsp;- File name:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;dism.exe[2018-12-21 18:49:52] [Debug]&nbsp; &nbsp; &nbsp;- Arguments:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;/online /add-capability /capabilityname:Msix.PackagingTool.Driver~~~~0.0.1.0[2018-12-21 18:50:19] [Info] Deployment Image Servicing and Management tool[2018-12-21 18:50:19] [Info] Version: 10.0.17763.1[2018-12-21 18:50:19] [Info] Image Version: 10.0.17763.194[2018-12-21 18:50:19] [Info] [=&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 3.0%&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;]&nbsp;[2018-12-21 18:50:19] [Info] [===&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 5.9%&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;]&nbsp;[2018-12-21 18:50:19] [Info] [===&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 5.9%&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;]&nbsp;[2018-12-21 18:50:19] [Info] [==========================100.0%==========================]&nbsp;[2018-12-21 18:50:19] [Info] Error: 0x800f0954[2018-12-21 18:50:19] [Info] DISM failed. No operation was performed.&nbsp;[2018-12-21 18:50:19] [Info] For more information, review the log file.[2018-12-21 18:50:19] [Info] The DISM log file can be found at C:\WINDOWS\Logs\DISM\dism.log[2018-12-21 18:50:19] [Error] dism.exe failed, exit code = -2146498220[2018-12-21 18:50:19] [Error] Failed to install MSIX Packaging Tool Driver.[2018-12-21 18:50:19] [Error] Error Occurred: Microsoft.Packaging.SDKUtils.ProcessRunner.ProcessRunnerException: Process dism.exe failed with exit code -2146498220.&nbsp; &nbsp;at Microsoft.Packaging.SDKUtils.ProcessRunner.ProcessRunnerBase.ValidateExitCode()&nbsp; &nbsp;at MsixGenerator.LocalOrRemoteExecution.PrepareComputerLocalOrRemoteSession.&lt;&gt;c.&lt;FODInstallationAsync&gt;b__3_0()&nbsp; &nbsp;at System.Threading.Tasks.Task.Execute()--- End of stack trace from previous location where exception was thrown ---&nbsp; &nbsp;at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()&nbsp; &nbsp;at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)&nbsp; &nbsp;at MsixGenerator.LocalOrRemoteExecution.PrepareComputerLocalOrRemoteSession.&lt;FODInstallationAsync&gt;d__3.MoveNext()--- End of stack trace from previous location where exception was thrown ---&nbsp; &nbsp;at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()&nbsp; &nbsp;at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)&nbsp; &nbsp;at MsixPackagingTool.Model.ApplicationPackageWorkflow.PrepareComputerModel.&lt;FixRequiredPrepareComputerTasks&gt;d__4.MoveNext()--- End of stack trace from previous location where exception was thrown ---&nbsp; &nbsp;at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()&nbsp; &nbsp;at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)&nbsp; &nbsp;at MsixPackagingTool.ViewModel.ApplicationPackageWorkflow.PrepareComputerViewModel.&lt;RequiredPrepareComputerTasksMethod&gt;d__30.MoveNext()[2018-12-21 18:50:32] [Info] Spawning background worker thread.[2018-12-21 18:50:32] [Info] Cleaning up the virtual machine[2018-12-21 18:50:38] [Info] ************************************************************[2018-12-21 18:50:38] [Info]&nbsp; Closing MSIX Packaging Tool[2018-12-21 18:50:38] [Info] ***&nbsp;&nbsp;Thanks&nbsp;&nbsp; &nbsp;&nbsp;

james pike · Answer

Hello,
&nbsp;
Failure to install the packaging driver is often caused by issues with your Windows Insider settings.
&nbsp;
You can find more information about common configuration issues here:
https://docs.microsoft.com/en-us/windows/msix/packaging-tool/mpt-known-issues
&nbsp;
Thanks!
James

tim mangan · Answer

I have found that the driver will fail to install in this way if the VM does not have access to the internet.&nbsp; I'm not sure why that is the case; being connected to a local network is not enough.
&nbsp;
If you need to package in an offline VM, you should connect it to the internet, start packaging to the point that the driver gets installed and then cancel.&nbsp; You can then take your snapshot and be disconnected from then on.

james pike · Answer

Feature on demand packages, such as the packaging tool driver, are fetched on demand from Windows update servers. See&nbsp;https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/features-on-demand-v2--capabilities for more details. Thus the need for an internet connection as Tim identified.
&nbsp;
If you are working with offline VMs, you can also review the "Installing MSIX Packaging Tool driver FoD in WSUS" section of the workarounds page to get information on pre-downloading a copy of the FoD package.&nbsp; You can then preinstall the driver on your VM to avoid any need to attach the VM to the internet!
&nbsp;
Thanks!James
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;

jvintzel · Answer

We actually have the individual FOD cab published to download.&nbsp; All the details and a few different approaches to offline install are available here: https://docs.microsoft.com/en-us/windows/msix/packaging-tool/mpt-known-issues#msix-packaging-tool-driver-considerations

deleted · Answer

James PikeThanks for pointing to this direction! I finally got it working by signing in into the Feedback Hub. Although it's not mentioned as a requirement, it seems to be necessary in order to install the driver. In my case, with error&nbsp;0x80131500, this was a reproducible cause.
