Forum Discussion
Windows Autopilot Error Code 0x800705b4 Preparing device for mobile management
martin_macf This has been happening to us and I've basically narrowed it down to our task sequence which installs the sccm client during the "existing autopilot devices" flow. When I disable "Setup windows and config manager" step, provisioning doesn't get hung up at "preparing your device for mobile management". When "setup windows and configmgr" is enabled in the task sequence, autopilot invariably gets stuck, even though I have implemented steps later to remove the client. In terms of the removal, I've tried both ccmsetup.exe /uninstall as well as the task sequence step "prepare configmgr client for capture" - neither seems to work. The "ccmsetup.exe /uninstall" was working just fine for us before, and it all of a sudden stopped working, so I can only imagine it's a code-change on the Intune side.
derekuoft I am also experiencing this. I use the SCCM (MECM) "Deploy autopilot to existing devices" template and it seems to be broken (I'm deploying a 20H2 version of the image). Same results here. When I disable the steps related to Setup windows and config manager, prepare Config Mgr client and prepare windows for Capture it seems to be fine (because the wim never boots into the OS phase and just remains in the WINPE applying wim stage of OSD).
But if you want to keep all the steps from that template, it seems those steps create something on the image that Intune doesn't agree with and then generates thei_ARQ Yes this is 100% what I'm seeing. I had a ticket open with Microsoft and they said they would reflect this to the technical team. I tried to make it as clear as possible to my support technician and summarized the problem in one sentence. "Prepare Windows and Configmgr" step in the SCCM task sequence breaks autopilot provisioning, no matter what method is used to remove the client.
I've had to move our autopilot for existing devices task sequence to the "faster" V2 method which doesn't install the SCCM client or sysprep the machine, and this involved basically rejigging the entire onboarding infrastructure, which we haven't touched in about two years. Having to cast my mind back and re-implement critical infrastructure from years ago was extremely annoying. I really hope Microsoft will acknowledge that this issue exists and provide some form of response. As it stands, their official docs for existing device flow for autopilot is broken.
I also run the "faster" v2 method but it doesn't really allow me to customize things on the image because it bypasses installing the ccm client and I can't install other apps I want on the base.
But I think I may have found the registry key that might be causing the issue.
When it was at the autopilot "Preparing device for mobile management autopilot" step.. it tends to sit there untill the timeout reaches the limit and it gives that error. I opened a command prompt with Shift +F10 to view the registry and check for keys left by the ccm client.
I deleted some keys and forced a restart during autopilot.. and when it rebooted it finally got passed that step without any errors.
I now added a step in my sccm image to delete the keys at the end of the deployment. Hopefully that resolves the issue when it boots into autopilot.
keep you posted.
- derekuoft we do not use SCCM for this setup. Does anyone really understand why it times out? This area of Autopilot does seem to be a bit hit and miss, which, when you are using this solution to rollout laptops to our user community, is not really what I expect. When the laptops have been sent out to the users, it is very difficult to break into the process as an administrator and clear the TPM that Rudy_Ooms_MVP suggests. The only outcome seems to be keeping trying - wipe and start again and repeat until it completes it process.
Hi,

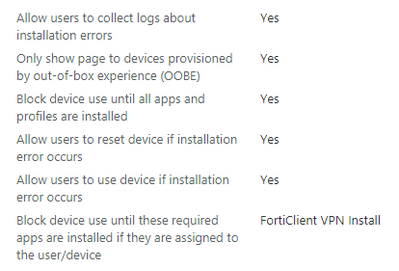

You could try to increase the time limit on the enrollment status page...What did you configured as time limit? Did you configured many apps as required?
Rudy_Ooms_MVP Hi, We have a 2 hour timeout.
Also we have 1 app to install during the process. All others apps installed afterwards.
So really there is no reason for timing out at all. It should be a quick and simple process.
