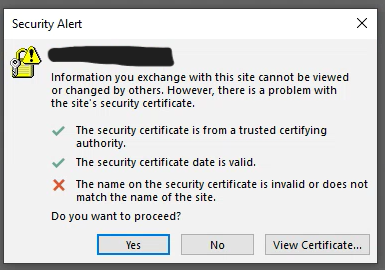

"The name on the security certificate is invalid..." After changing to trusted CA and updating VDs

Hello,   This is with Exchange 2019. after changing the virtual directories to mail.domain.com (from mail.domain.local) and applying the appropriate certificate, when starting Outlook, the followi...
Exchange Server
outlook
Lussy150's avatar
Lussy150
Copper Contributor
Jan 19, 2023
Yes, I did update the SCP record to try to fix it. However after updating it, Autodiscovery still worked but Outlook started prompting for credentials over and over and over...
Dan_Snape's avatar
Dan_Snape
Bronze Contributor
Jan 22, 2023
I'd look to go through each virtual directory on all servers and make sure the internal and external URI are using the name in the certificate. Make sure that internal and external DNS and your network configuration are pointing that namespace at the correct Exchange server. Also check that the authentication settings are correct for each virtual directory. Once that's completed, do a reboot of the Exchange servers.
  • Lussy150's avatar
    Lussy150
    Copper Contributor
    Feb 08, 2023

    Ok so after updating all the virtual directories to the new fqdn mail.domain.com, I found that a reference to the old fqdn domain.local entry still exists in the following places (mostly the MetabasePath). The one's I'm assuming can stay, are in green and the ones I'm assuming need to be updated to the new mail.domain.com manually, are in red:


    Get-ClientAccessService:
    Fqdn: old.domain.local < manually change this to mail.domain.com?
    AutodiscoverServiceInternalUri: https://domain.local/autodiscover/autodiscover.xml



    Get-OutlookAnywhere:
    InternalHostname: domain.local < manually change this to mail.domain.com?

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/Rpc  < this can stay?



    Get-OwaVirtualDirectory:

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/owa < this can stay?



    Get-ActiveSyncVirtualDirectory:

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/Microsoft-Server-ActiveSync < this can stay?



    Get-AutodiscoverVirtualDirectory:

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/Autodiscover < this can stay?



    Get-EcpVirtualDirectory:

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/Ecp  < this can stay?



    Get-OabVirtualDirectory:

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/OAB < this can stay?



    Get-PowerhShellVirtualDirectory:

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/PowerShell < this can stay?



    Get-WebServicesVirtualDirectory:

    MetabasePath: IIS://domain.local/W3SVC/1/ROOT/EWS < this can stay?



    In addition to the above, all of the receive connectors still have the domain.local configured as the FQDN (HELO or EHLO response).

    • Dan_Snape's avatar
      Dan_Snape
      Bronze Contributor
      Feb 09, 2023

      The metabasepath values can stay as is. The OutlookAnywhere internal hostname can be changed....but this value is not the one that would be causing the issue. It's the URL's (both internal and external) that the clients use to connect to, so they are the values that need to be correct and present on the certificate. Have you got any load balancers in place? Could they be causing the issues?

      • Lussy150's avatar
        Lussy150
        Copper Contributor
        Feb 25, 2023

        Dan_Snape



        So I have found some traces of the domain.local. It is still set as the FQDN for POP, IMAP and Autodiscover:



        I'm not sure if I can just change the POP and IMAP FQDN to mail.domain.com without breaking it. As long as split DNS is working (which it is) this should be fine, correct?



        Also, after changing the Autodiscover FQDN from domain.local to the new domain.com, Outlook went into a credential prompt loop. Any ideas why? I ended up changing it back to domain.local, because it is impacting all Outlook clients.



        I'm hopeful that one of the above, or all for that matter, are the cause for this.

        Thanks!
