Exchange health set unhealthy

Question

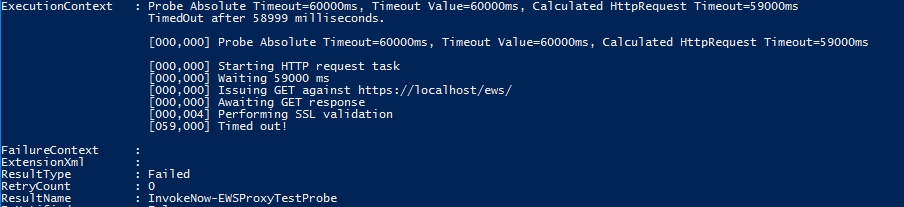

Hello everyone!&nbsp;Some healthprobes on our Exchange 2016 Server have been reporting an unhealty state since the middle of February. OAB.Proxy, EWS.Proxy, Outlook.proxy and OutlookMapiHttp.Proxy.&nbsp;We have no mailboxes on the server, so its not critical, but I would still like to figure out what is going on.&nbsp;They all fail with "The remote server returned an error: (401) Unauthorized" and if I try to invoke the probe i see this in the response:&nbsp;It looks like the SSL validation is not happening.&nbsp;Is it normal for the probe to use localhost for this?&nbsp;When I run "Get-WebServicesVirtualDirectory" both internal and external virtual directry is set to our external url.&nbsp;&nbsp;Any insight is greatly appreciated!&nbsp;

lainrobertson · Answer

Hi Gly,&nbsp;Yes, the localhost reference is fine.&nbsp;I'm may be digging too many years into the past, but I have a hunch you hit this timeout issue when the CRL URL can't be reached.&nbsp;Here's a quick-but-lengthy PowerShell one-liner you can run on your Exchange Server host to check if the CRL is accessible from the host itself. Note, I'm on Exchange Server 2019 but I would anticipate this should still work on Exchange Server 2016 given how basic the command is.&nbsp;Out of sympathy for anyone reading this post, I've also included a formatted version of the same one-liner.&nbsp;# One-liner.
Get-ExchangeCertificate | Where-Object { $_.Services -match "IIS" } | ForEach-Object { $null = certutil -v -store my $_.Thumbprint | Where-Object { $_ -match "$http.+\.crl$" }; if (0 -lt $Matches.Count) { $crl = $Matches[0] -replace "[]", ""; [PSCustomObject] @{ Thumbprint = $_.Thumbprint; NotAfter = $_.NotAfter; Subject = $_.Subject; CRL = $crl; CRLOkay = 400 -gt (Invoke-WebRequest -UseBasicParsing -Method Get -Uri $crl).StatusCode }; } }

# The same one-liner from above formatted for easier reading. You can readily copy-and-paste this version into the PowerShell console window if you like.
Get-ExchangeCertificate | Where-Object { $_.Services -match "IIS" } | ForEach-Object {
    $null = certutil -v -store my $_.Thumbprint | Where-Object {
        $_ -match "$http.+\.crl$" };
        if (0 -lt $Matches.Count) {
            $crl = $Matches[0] -replace "[]", "";
            [PSCustomObject] @{
                Thumbprint = $_.Thumbprint;
                NotAfter = $_.NotAfter;
                Subject = $_.Subject;
                CRL = $crl;
                CRLOkay = 400 -gt (Invoke-WebRequest -UseBasicParsing -Method Get -Uri $crl).StatusCode;
            }
        }

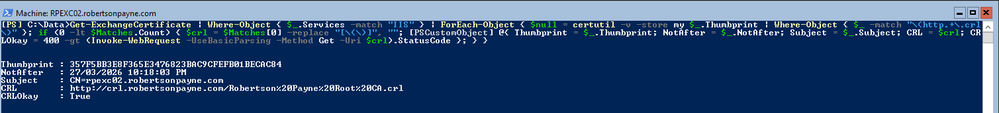

    }&nbsp;Output&nbsp;If you find that CRLOkay is True then my recollection is wrong and I'd have to go away and try to reproduce your timeout before I could attempt to give myself a refresher.&nbsp;Cheers,Lain

gly · Answer

Hello LainRobertson,&nbsp;The healthprobes started working again without me doing anything a few days after I made the original post. I ran your one-liner (had to make a change to the regex: "http.+\.crl") and it resulted in CRLOkay = True, but then again the error is no longer present. I will try this again if the error somehow reappears later.&nbsp;Thank you very much for taking the time to respond!&nbsp;

towel · Answer

Open IIS and check the "Default web site" and check if binding and the certificate are there and properly configured.

gly · Answer

Sorry for the late reply.&nbsp;The certificate binding was correct, and works for other services, but I figured I could try to remove it and add it again to see if anything changed. However before I got that far i noticed the healthprobes had started working again. This was five days ago, and they have been working since. So I am thouroghly confused. 😅&nbsp;I'll keep monitoring the situation.&nbsp;Thanks for your suggestion Towel&nbsp;
