Exchange Server OWA does not display lnline Images after EEMS M2.1.0 mitigation.
Exchange Server can automatically apply applicable mitigations by using the Exchange Emergency Mitigation Service (EEMS) to retrieve mitigation information from Microsoft's Office Config Service (OCS). EEMS can apply several types of mitigations: 1. IIS URL Rewrite Rule Mitigation: Blocks specific malicious HTTP request patterns that could put an Exchange Server at risk. 2. Exchange Service Mitigation: Disables a vulnerable Exchange service. 3. Application Pool Mitigation: Disables a vulnerable application pool on the Exchange Server. In this case, inline images were displayed correctly in Outlook, but the same images were not displayed in OWA. The issue was identified as being related to the IIS URL Rewrite rule deployed by the M2.1.0 mitigation for CVE-2026-42897. Verification Run the following commands in the Exchange Management Shell. 1. Check the installed Exchange Security Update version (Get-Command ExSetup.exe).FileVersionInfo.ProductVersion 2. Check whether the Emergency Mitigation Service is enabled Get-OrganizationConfig | fl MitigationsEnabled 3. Check applied and blocked mitigations Get-ExchangeServer | fl Name,MitigationsApplied,MitigationsBlocked For example, a server affected by this issue may show: MitigationsApplied : {PING1, M2.1.0} MitigationsBlocked : {M2.1.0} 4. Check the IIS URL Rewrite rule Import-Module WebAdministration Get-WebConfigurationProperty -PSPath "IIS:\Sites\Default Web Site\owa" -Filter "system.webServer/rewrite/outboundRules/rule" -Name "." | Select-Object name The following rule may be present: EEMS M2.1 OWA CSP - outbound Microsoft provides Security Updates (SUs) to address security vulnerabilities in Exchange Server. Exchange Server SE is currently supported, while Exchange Server 2016 and Exchange Server 2019 can continue to receive applicable security updates through the Extended Security Updates (ESU) program. Note: Exchange Server 2016 and Exchange Server 2019 reached end of support in October 2025. ESU must be purchased separately to continue receiving applicable security updates. Resolution 1. Install the July 2026 SU or later Install the July 2026 SU or a later Security Update (preferably the latest available SU), and then restart the server. Installing the update does not automatically remove the previously applied CVE-2026-42897 mitigation. 2. Block M2.1.0 from being reapplied If M2.1.0 is not already listed under MitigationsBlocked, add it: Set-ExchangeServer -Identity EXSE-01 -MitigationsBlocked @{Add="M2.1.0"} Note: Adding M2.1.0 to MitigationsBlocked does not remove the IIS rules that have already been applied. It prevents EEMS from reapplying the M2.1.0 mitigation. 3. Back up the OWA web.config file Copy-Item ` -Path "$env:ExchangeInstallPath\FrontEnd\HttpProxy\owa\web.config" ` -Destination "$env:ExchangeInstallPath\FrontEnd\HttpProxy\owa\web.config.$((Get-Date).ToString('yyyyMMdd-HHmmss')).bak" 4. Remove the M2.1.0 IIS URL Rewrite rule and precondition Remove-WebConfigurationProperty ` -PSPath "IIS:\Sites\Default Web Site\owa" ` -Filter "system.webServer/rewrite/outboundRules" ` -Name "." ` -AtElement @{name="EEMS M2.1 OWA CSP - outbound"} Then remove the associated precondition: Remove-WebConfigurationProperty ` -PSPath "IIS:\Sites\Default Web Site\owa" ` -Filter "system.webServer/rewrite/outboundRules/preConditions" ` -Name "." ` -AtElement @{name="EEMS M2.1 OWA SPA HTML shell - precondition"} Verification After Rollback Without restarting the Exchange Server or running IISReset, reopen the same OWA message that previously failed to display the inline image and verify that the image is now displayed correctly. Test Results I reproduced the issue in an Exchange Server SE June 2026 SU test environment. After EEMS automatically applied the M2.1.0 mitigation, an inline PNG image that was displayed correctly in Outlook was no longer displayed in OWA. After blocking M2.1.0 and removing the M2.1.0 IIS rules according to Microsoft's rollback guidance, the inline image in the same message was displayed correctly again in OWA. No Exchange Server restart or IISReset was required after removing the IIS rules.
FIX - Outlook 2013,2016,2019 fails open mailbox Exchange 2019 on-prem in offline LAN
Exchange 2019 on-prem + Outlook 2013/2016/2019 in offline LAN Symptoms: - OWA works - ECP works - Autodiscover works - Test-MAPIConnectivity is successful - Outlook profile can be created - Outlook fails to open the mailbox / “Cannot start Microsoft Outlook” / “The set of folders cannot be opened” / “The attempt to log on to Microsoft Exchange has failed” - Environment has no internet connection Root cause: The Windows client had a default gateway configured, but the gateway IP did not respond to ping. In our case the client received 192.168.1.1 as default gateway, but this IP was unreachable in the offline network. Fix: Set the client default gateway to an existing reachable IP address, for example the Exchange/DC server IP 192.168.1.5. Internet access is not required, but the default gateway must be reachable/responding. After changing: Default gateway: 192.168.1.5 DNS: 192.168.1.5 mail/autodiscover DNS or hosts pointing to Exchange 2019 Result: Outlook 2013, Outlook 2016 and Outlook 2019 connected to Exchange 2019 successfully.
Exchange 2016 Decommission
Hi all, I am trying to decom my 2016 environment and cannot disable (Disable-Mailbox) the final 16 mailboxes (out of thousands). Am getting the error Active directory response: 00002098: SecErr: DSID-03150A45, problem 4003 (INSUFF_ACCESS_RIGHTS), data 0. I have been troubleshooting this for HOURS now. It's not enabling inheritance on the user perms (every article suggests that). The perm exchange trusted subsystem isn't there. The users do not have any admin groups. It's nothing that I can find in the first 6 pages of googling. Sadly, of course, there is no support anymore so can't even raise a ticket. Can't uninstall Exchange with mailboxes left :( Any idea's are more than welcome, please. Thank you.Preserving permissions during EXO migration
Hi, Can you help me understand the outcome of preserving the permissions in our scenario. Exchange Server 2016 (soon Exchange SE) in a hybrid with Exchange Online. We are moving 75% of the mailboxes to Exchange Online. What ways will preserve or break the full-access or sendas permissions? I guess best way would be to migrate both the user and the shared mailbox at the same time in the same batch to keep the permission? If we migrate the user in batch 1 and shared mailbox in batch 2 will that preserve/break the full access/send as? If we migrate the shared mailbox in batch 1 and usermailbox in batch 2 will that preserve/break the full access/send as? If the permission is linked directly on the shared mailbox or via a security group is there a difference? Thanks!Exchange database dismounted due to NTFS file extent limit reached – unexpected outage
Hi everyone, We experienced a serious outage on our Exchange 2016 server recently, and I wanted to share what we found during the root cause analysis – in case it helps someone else avoid the same scenario. Summary: After digging deep, we discovered that the issue was caused by the NTFS file system hitting its internal file extent limit on the .edb file. Once this threshold was reached, the database could no longer grow, and the system dismounted the database unexpectedly. No prior warning, just service interruption. Details: The .edb was around 1.2 TB in size. This isn’t a limit on database size itself — it’s about how fragmented the file is on disk. Once NTFS couldn’t track any more extents, the database stopped working. Microsoft doesn’t publish a clear fix for this; only scattered references to similar behavior in past cases. What we did: Created a fresh, clean database. Manually moved user mailboxes into the new DB. The old database couldn't be mounted anymore, so we brought the system live without historical mail – just to maintain continuity. We're now working on extracting data from the unmounted .edb using third-party tools. Looking for thoughts: Has anyone else hit the NTFS extent wall with Exchange? How do you monitor extent growth proactively? Did switching to ReFS solve this for you long-term? Open to any input or similar experiences – appreciate it in advance. Thanks!Linking cloud only shared mailbox with onpremise object
Hi all, We currently have a cloud only shared mailbox in exchange online that we need to exist in onprem exchange for a smtp relay that is setup in a hybrid config. Is it possible to create onprem and match these objects onprem/cloud - or will the mailbox need to be recreated onprem and then it will sync to cloud
Hybrid Configuration Wizard fails to run – manifest download error on all machines
Hello, I am unable to run the Exchange Hybrid Configuration Wizard (HCW) for our Exchange 2016 environment. The issue occurs on multiple machines and networks, so it does not appear to be a local configuration problem. Environment: Exchange Server: 2016 CU23 Windows versions tested: Windows Server 2016, Windows 10 (all fully updated) .NET Framework: 4.8 (Release 528040 / 4.8.03761) TLS: TLS 1.2 enabled, SSL 3.0/TLS 1.0/1.1 disabled Network: No proxy, firewall, or other network restrictions; internet access available Problem: When attempting to run HCW via https://aka.ms/HybridWizard, the wizard fails to start. I have also tried to run HCW offline by downloading Microsoft.Online.CSE.Hybrid.Client.application, but it immediately fails. The error log shows the following repeated messages: Downloading file:///C:/Users/.../Application Files/Microsoft.Online.CSE.Hybrid.Client_17_1_3902_0/Microsoft.Online.CSE.Hybrid.Client.exe.manifest did not succeed. Could not find a part of the path 'C:\Users\...\Application Files\Microsoft.Online.CSE.Hybrid.Client_17_1_3902_0\Microsoft.Online.CSE.Hybrid.Client.exe.manifest' This occurs on all tested machines (three PCs across three different networks). ClickOnce cache has been cleared, root certificates are up-to-date, .NET is 4.8, and TLS 1.2 is active. Attempts to resolve: Ensured TLS 1.2 is enabled and default in .NET and OS Verified .NET 4.8 installation Cleared ClickOnce cache (rundll32 dfshim CleanOnlineAppCache) Updated root certificates Tried multiple machines and networks Tried to run offline using .application file and local copy of Application Files Result: HCW fails immediately with DeploymentDownloadException / DirectoryNotFoundException for the manifest. The issue is reproducible on all tested machines. Request: Please advise if there is an official offline installation method for HCW or a way to obtain a working manifest. If this is a temporary issue with the hosted distribution, please confirm expected resolution or workaround. Thank you for your assistance.
Exchange 2016 Mail Flow is Not Working

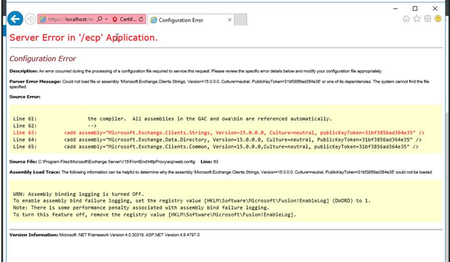

We had issues with updating to a latest Cumulative Update and messed up our EMS and some Web Config. It seems our Exchange Server is totally bricked. So, we decided to boot our Exchange Server from backup. The backup was dated September 2025. Unfortunately, after booting up the September 2025 backup, we noticed that the internal and external mail flow is not working (our Exchange 2016 is Exchange hybrid configured). The outgoing emails are stuck in Draft folder. The following troubleshooting steps have been done to no avail: -Checked if the port 25 is open -> This port is opened -Check the network settings if the Preferred DNS Address points to the correct DNS Server --> It points to the correct DNS Server -Modified the DNS lookup under Exchange Admin Center > Servers > DNS Lookups > Internal DNS Lookups --> Added the IP Address of the DNS Server -Modified the hosts file under System32 > drivers > etc --> Pointed the IP Address of the Exchange Server to the FQDN of the Exchange Server Currently, are not sure of the next steps to do in order to fix the issue. Any advice?
Update Dynamic Distribution List
we are a hybrid environment, running exchange 2019 and have a few DDLs which have been around from previous exchange versions. One of the DDLs i need to modify is the below. Its hard to read and i am trying to work out where i add the extra fields i want to include. I am looking to add another custom attribute and possibly include members of a security group. Is there anyway to make this easier to read so i know where to add things? Any other tips? ((((((((((((((((((((((((((Company -eq 'Contoso') -and (CustomAttribute4 -eq 'City'))) -and (((((CustomAttribute7 -eq 'Group') -or (CustomAttribute7 -eq 'Contractor'))) -or (CustomAttribute7 -eq 'Permanent'))))) -and (((RecipientType -eq 'UserMailbox') -or (((RecipientType -eq 'MailUser') -and (CustomAttribute12 -ne 'Excluded'))))))) -and (-not(Name -like 'SystemMailbox{*')))) -and (-not(Name -like 'CAS_{*')))) -and (-not(RecipientTypeDetailsValue -eq 'MailboxPlan')))) -and (-not(RecipientTypeDetailsValue -eq 'DiscoveryMailbox')))) -and (-not(RecipientTypeDetailsValue -eq 'PublicFolderMailbox')))) -and (-not(RecipientTypeDetailsValue -eq 'ArbitrationMailbox')))) -and (-not(RecipientTypeDetailsValue -eq 'AuditLogMailbox')))) -and (-not(RecipientTypeDetailsValue -eq 'AuxAuditLogMailbox')))) -and (-not(RecipientTypeDetailsValue -eq 'SupervisoryReviewPolicyMailbox')))) -and (-not(Name -like 'SystemMailbox{*')) -and (-not(Name -like 'CAS_{*')) -and (-not(RecipientTypeDetailsValue -eq 'MailboxPlan')) -and (-not(RecipientTypeDetailsValue -eq 'DiscoveryMailbox')) -and (-not(RecipientTypeDetailsValue -eq 'PublicFolderMailbox')) -and (-not(RecipientTypeDetailsValue -eq 'ArbitrationMailbox')) -and (-not(RecipientTypeDetailsValue -eq 'AuditLogMailbox')) -and (-not(RecipientTypeDetailsValue -eq 'AuxAuditLogMailbox')) -and (-not(RecipientTypeDetailsValue -eq 'SupervisoryReviewPolicyMailbox')))
