How to Return Column Data Based on All Populated Cells in Row Range and Match to Other Worksheet

Hi Everyone,

I need help with an issue I can't seem to find an exact answer for. Basically, I need to return the column data for all populated cells with the letter "X" in the row. Then return the column header to different cells in the row.

Example:

User ID	Job 1	Job 2	Job 3	Job 4	Output 1	Output 2
Jonh.Smith	X			X	Job 1	Job 4
Bob.Lang	X	X			Job 1	Job 2

The formula will be applied to about 500 rows of data with about 30 columns. I would like all headers to be returned if it has an x in the column for each row. I would also like all the data to be next to each other in regards to the columns (e.g. no blank cells between output data). I assume this can be taken care of with one or two formulas that can be copied to the other cells.

In addition, I have another issue. After I get this data, I want to do something a bit more complex. There's another sheet in which I have all of the classes that each user should be taking based on what their job is. Each user will be taking multiple classes. The next thing I need help with is matching the user's job to the classes they should be taking. The above data will be match to the below data.

	Class 1	Class 2	Class 3	Class 4
Job 1		X		X
Job 2	X		X
Job 3		X	X
Job 4	X	X	X

The other sheet contains data that shows which class a user should be taking denoted by the letter "X" in each row.

The final output should be something like this:

User ID	Job 1	Job 2	Job 3	Job 4	Output 1	Output 2	Output 3	Output 4	Output 5
Jonh.Smith	X			X	Job 1	Job 4	Class 2	Class 4	Class 3
Bob.Lang	X	X			Job 1	Job 2	Class 1	Class 2	Class 3

Another output format could be:

User ID	Output 1	Output 3	Output 4	Output 5
Jonh.Smith	Job 1	Class 2	Class 4	Class 3
	Job 4	Class 1	Class 2
Bob.Lang	Job 1	Class 2	Class 4
	Job 2	Class 1	Class 4

Note: In this case, duplicate values are fine.

I am not an advanced user of Excel so any help is greatly appreciated.

Hi Anthony,

That could be done by Power Query. Here is the simple mockup to illustrate idea based on your initial pictures, for the real data queries will be bit more complex.

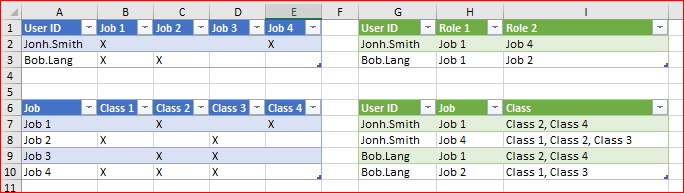

Here on the left are source tables and resulting one are on the right

First query generates list of roles for users, here it dynamically split on columns

let

    Source = Excel.CurrentWorkbook(){[Name="User"]}[Content],
    UnpivotJobs = Table.UnpivotOtherColumns(Source, {"User ID"}, "Attribute", "Value"),
    RemoveValues = Table.RemoveColumns(UnpivotJobs,{"Value"}),
    GroupRows = Table.Group(RemoveValues, {"User ID"}, {{"Role", each [Attribute]}}),
    MaxInList = Table.AddColumn(GroupRows, "ListMax", each List.Count([Role])),
    ElementNumber = List.Max(MaxInList[ListMax]),
    ListColumns = List.Transform({1..ElementNumber}, each "Role " & Number.ToText(_)),
    ExtractElements = Table.TransformColumns(GroupRows,
        {"Role", each Text.Combine(List.Transform(_, Text.From), ","), type text}),
    SplitElements = Table.SplitColumn(ExtractElements, "Role",
        Splitter.SplitTextByDelimiter(",", QuoteStyle.Csv), ListColumns)

in
    SplitElements

For the second table we first create connection query which maps roles on lists of classes

let
    Source = Excel.CurrentWorkbook(){[Name="Job"]}[Content],
    UnpivotClasses = Table.UnpivotOtherColumns(Source, {"Job"}, "Attribute", "Value"),
    RemoveValue = Table.RemoveColumns(UnpivotClasses,{"Value"}),
    GroupRows = Table.Group(RemoveValue, {"Job"}, {{"Class", each [Attribute]}})
in
    GroupRows

and here we take users with roles and merge with that query

let

    Source = Excel.CurrentWorkbook(){[Name="User"]}[Content],
    UnpivotJobs = Table.UnpivotOtherColumns(Source, {"User ID"}, "Job", "Value"),
    RemoveValues = Table.RemoveColumns(UnpivotJobs,{"Value"}),
    MergeWithClasses = Table.NestedJoin(RemoveValues,{"Job"},ClassesForRoles,
	{"Job"},"Classes",JoinKind.LeftOuter),
    ExpandClasses = Table.ExpandTableColumn(MergeWithClasses, "Classes", {"Class"}, {"Class"}),
    ExtractClasses = Table.TransformColumns(ExpandClasses, {"Class",
	each Text.Combine(List.Transform(_, Text.From), ", "), type text}),
    SortUsers = Table.Sort(ExtractClasses,{{"User ID", Order.Descending},
	{"Job", Order.Ascending}})
in
    SortUsers

Here classes are as lists, could be split dynamically same way as roles in first query. Sample file is attached.

JobsClassesPQmockup.xlsx24 KB

16 Replies

Matt Mickle
Bronze Contributor
Jun 29, 2018
In your example I can see that there are two jobs for each participant as well. It appears that each job is only associated with two classes. Is this realistic? Or do you have a more precise data set that can display a better representation of your data.

For example:

1. How far does your data go column wise for jobs?

2. How far does your data go column wise for classes?

3. What is the max number of jobs?

4. What is the max number of classes for an individual job?

I've spent a fair amount of time on issues like this in the past only to find that the representation of data provided by the end user was not accurate which caused further questions. In order to potentially avoid this issue would it be possible for you to confirm that this is the case or provide a more data. There may be a formula that can give you what you need but it's more likely that the only way to have a simple solution would be to implement some kind of more complex logic using VBA code. I believe it may save some headaches for yourself as well as other people replying to your inquiry if you could please provide a little more information.
- Anthony Smith
  Brass Contributor
  Jun 29, 2018
  http://www.fiscal.ca.gov/training-academy/documents/SummaryRolesCourseMatrix20171220.xlsx

  This is the document from which I'll be pulling courses depending on a user's roles. However, I will not be using all of these roles and courses. Not all of the user's have all of the jobs listed.
- Anthony Smith
  Brass Contributor
  Jun 29, 2018
  I don't have the spreadsheet in front of me at the moment, but a good estimate would be about 60 jobs and 45 classes. I saw a similar situation to mine before and the gentleman who answered it used helping columns to solve for the first part (adding the jobs, column headers, to the row in consecutive cells). He used a complex index function to search if a cell contained a value and then added the column header data to the cell where the function was written. He did this for each value in the row. Unfortunately, my data is a bit different than that of the person he was helping. I don't know how to go about accomplishing the second part. In the first sheet, it has a user's data and the letter "X" to denote which job that person has. There are probably 60 or so columns for jobs. In the second sheet, the jobs are the row headers and the classes are the column headers. There are probably about 45 classes. Each job has about 5 classes or less.
  - SergeiBaklan
    Diamond Contributor
    Jun 29, 2018
    Hi Anthony,

    That could be done by Power Query. Here is the simple mockup to illustrate idea based on your initial pictures, for the real data queries will be bit more complex.

    Here on the left are source tables and resulting one are on the right

    First query generates list of roles for users, here it dynamically split on columns

    let Source = Excel.CurrentWorkbook(){[Name="User"]}[Content], UnpivotJobs = Table.UnpivotOtherColumns(Source, {"User ID"}, "Attribute", "Value"), RemoveValues = Table.RemoveColumns(UnpivotJobs,{"Value"}), GroupRows = Table.Group(RemoveValues, {"User ID"}, {{"Role", each [Attribute]}}), MaxInList = Table.AddColumn(GroupRows, "ListMax", each List.Count([Role])), ElementNumber = List.Max(MaxInList[ListMax]), ListColumns = List.Transform({1..ElementNumber}, each "Role " & Number.ToText(_)), ExtractElements = Table.TransformColumns(GroupRows, {"Role", each Text.Combine(List.Transform(_, Text.From), ","), type text}), SplitElements = Table.SplitColumn(ExtractElements, "Role", Splitter.SplitTextByDelimiter(",", QuoteStyle.Csv), ListColumns) in SplitElements

    For the second table we first create connection query which maps roles on lists of classes

    let Source = Excel.CurrentWorkbook(){[Name="Job"]}[Content], UnpivotClasses = Table.UnpivotOtherColumns(Source, {"Job"}, "Attribute", "Value"), RemoveValue = Table.RemoveColumns(UnpivotClasses,{"Value"}), GroupRows = Table.Group(RemoveValue, {"Job"}, {{"Class", each [Attribute]}}) in GroupRows

    and here we take users with roles and merge with that query

    let Source = Excel.CurrentWorkbook(){[Name="User"]}[Content], UnpivotJobs = Table.UnpivotOtherColumns(Source, {"User ID"}, "Job", "Value"), RemoveValues = Table.RemoveColumns(UnpivotJobs,{"Value"}), MergeWithClasses = Table.NestedJoin(RemoveValues,{"Job"},ClassesForRoles,
    {"Job"},"Classes",JoinKind.LeftOuter), ExpandClasses = Table.ExpandTableColumn(MergeWithClasses, "Classes", {"Class"}, {"Class"}), ExtractClasses = Table.TransformColumns(ExpandClasses, {"Class",
    each Text.Combine(List.Transform(_, Text.From), ", "), type text}), SortUsers = Table.Sort(ExtractClasses,{{"User ID", Order.Descending},
    {"Job", Order.Ascending}}) in SortUsers

    Here classes are as lists, could be split dynamically same way as roles in first query. Sample file is attached.
    JobsClassesPQmockup.xlsx24 KB
