Forum Discussion

Seeker336's avatar
Seeker336
Copper Contributor
Jul 14, 2022
Solved

How do I change color of data plot line

I need some help modifying the plot line on a line chart. I am in Excel 2016 as a part of an Office 365 subscription.



I have a spreadsheet I use to record daily body weight measurements. Column A is the date, plotted on the horizontal axis of a line chart. Column B is the daily body weight in pounds, plotted on the vertical axis of the line chart.



The plot line on the chart is currently depicted in RED. I want to continue with the plot line, but have the color of the line change to BLUE as of a certain date, say 1 July, which represents the beginning of a weight loss program.



I have tried to edit the Series, cutting it off as of 30 June, then creating a new Series that begins 1July and continues to the end of the year, but test data entered for dates after 1 July do not plot on the chart. Perhaps I don't understand how to edit/create a Data Series.



My objective is to have a continuous line plot that simply refects a color change as of a certain date. Seems rather simple and straightforward, but I have thus far only come away confused and unsuccessful.



Can anyone help with this charting issue?



Thanks.

Charting
  • Riny_van_Eekelen's avatar
    Riny_van_Eekelen
    Feb 29, 2024

    shanam1580 Perhaps someone else here can come up with a mathematical approach. I couldn't so I went for a good old manual one. With some logic, I worked out a consistent schedule for 39 children allocated to your 6 nurses. That list of 39 can be repeated over-and-over again.



    See attached in the yellow shaded area. Just fill in the real names in the green area. Would that work?

5 Replies

Sort By
  • PeterBartholomew1's avatar
    PeterBartholomew1
    Silver Contributor
    Jul 14, 2022

    Seeker336

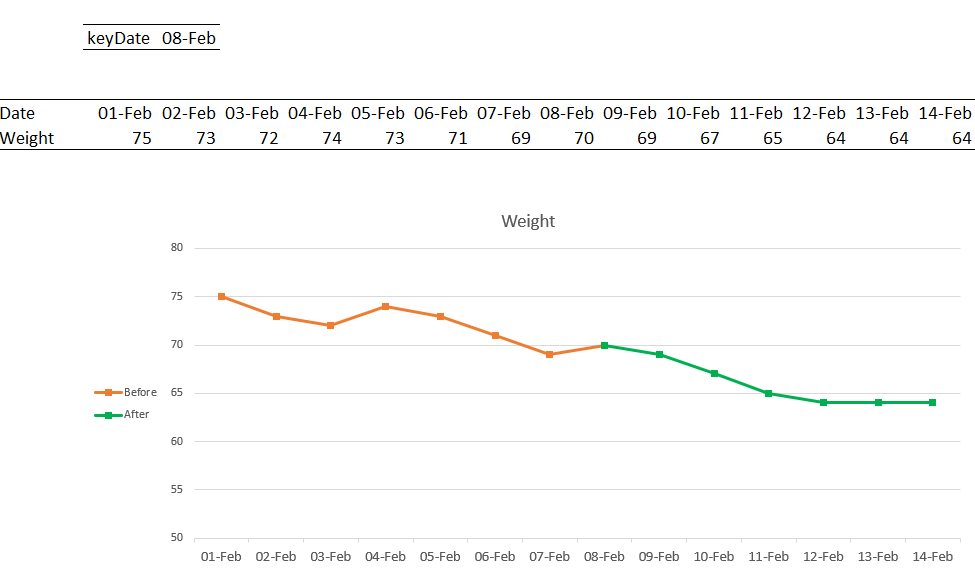

    I think I would use two series built within Name Manager from the original series





    Sheet1!Before
= IF(date<=keyDate,weight,NA())

Sheet1!After
= IF(date>=keyDate,weight,NA())

=SERIES("Before",Sheet1!$D$5:$Q$5,Sheet1!Before,1)
=SERIES("After",Sheet1!$D$5:$Q$5,Sheet1!After,1)





    • Seeker336's avatar
      Seeker336
      Copper Contributor
      Jul 14, 2022

      Riny_van_Eekelen Thansk for your response. Seems so simple, but I tried to create an additional column to record data after 1 July, entered string of test values, and cannot get any of them to post.



      When I try to go to Select Data and create a new Series, the dialog box gives me an error saying I appear to be creating a formula that Excel cannot execute. I guess I don't understand enough about how to create a series -- apparently missing something in the syntax, although I have been trying to duplicate the existing series and simply replace references to the new series of cells.



      Totally confused.

    • mtarler's avatar
      mtarler
      Silver Contributor
      Jul 14, 2022

      So a) yes it is possible to selectively color segments of a line different colors. You can use VBA or manually you can click on the line (entire series is selected) then click on a it again and the nearest data point is selected. Right click and select 'Format data point'. Then click the paint bucket and under the 'Line' section change the color. You can then repeat for every data point/line segment you want to change. You can also use CTRL-arrow key to move point to point on the line.
      That said, that is a lot of work and @Rine_van_Eekelen method is much easier. 1 tip to make it easier is that you can keep you existing columns and just copy the data UP TO 06-30 into a new column. Then add that new column as a new line on the graph and it can sit 'on top' of the existing line. In this way you can maintain the full column of data you have.

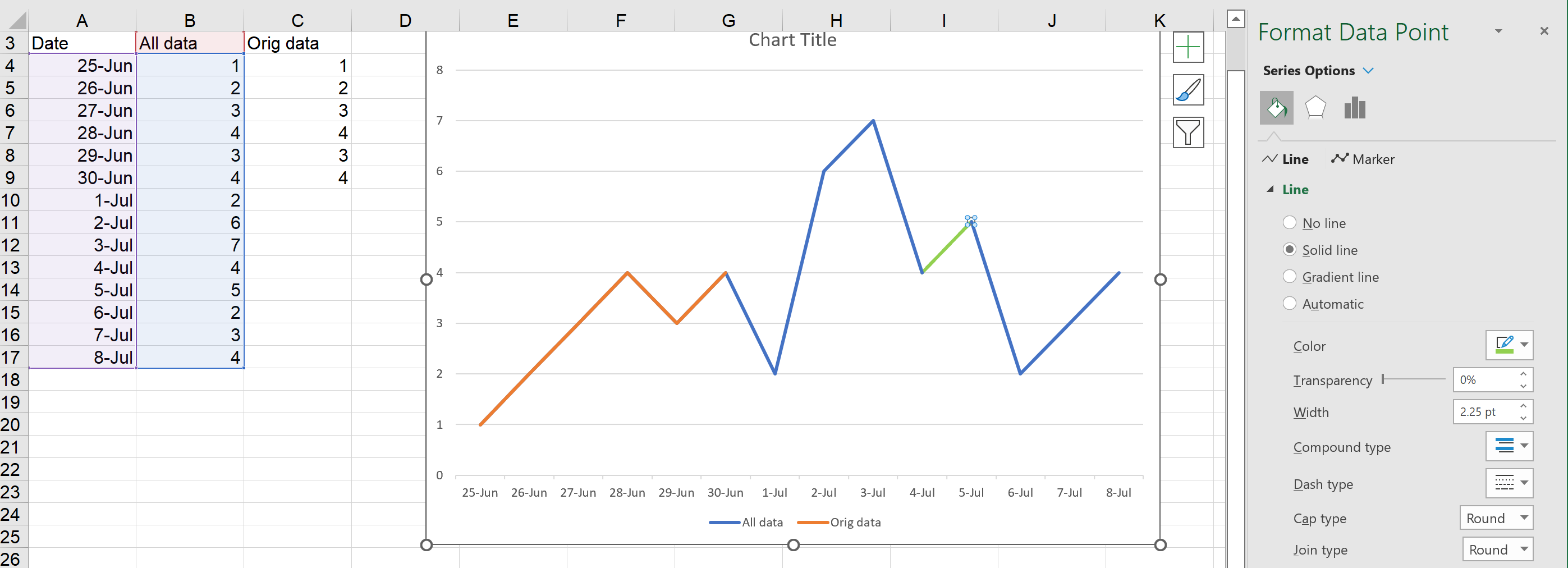

      here is the previous example updated this way:

      So the second column "Orig data" just needs to be copied once since it won't change.

      I also show how I could change an individual segment inside the blue line to green.

      • Seeker336's avatar
        Seeker336
        Copper Contributor
        Jul 14, 2022
        Thanks. I am certainly a novice and even had trouble with the "original column" approach, but finally got it to work. Some miracle elf must have taken pity on me and swooped inside my computer -- took me about four tries to get the original line to superimpose in another color. Thanks for your help.
