How can I change the series bar chart as I would like to be?
- Jul 12, 2020
I recommend you reshape the data to allow more easy analysis of all questions on the same axis.
When working with survey data, it helps to include a respondent ID in your analysis. So, first add a column with a unique ID for each respondent. Call it RespondentID or something like that.
Select any cell in your data and use Data>Get & Transform Data>From Table/Range to create a query on your raw data.
In the Power Query Editor, hold down Ctrl and select both RespondentID and "Informazioni cronologiche" by clicking on their column headers.

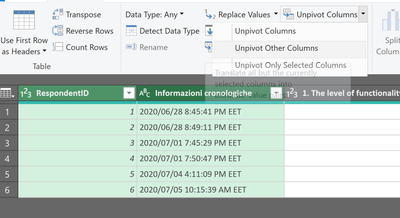

Next, use Transform>Any Column>Unpivot columns>Unpivot other columns:
You'll see that you now have one row per respondent/question/answer. You have two columns: Attribute and Value. To make it easier to understand, right-click each and rename them to Question and Response:
Now use Home>Close&Load to put the data back into the workbook.

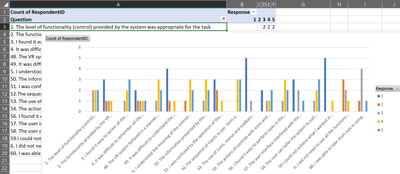

Now you can use Insert>Pivot Chart, then put Question in the Axis (Categories) area, Response in the Legend (Series) area and Count of RespondentID in the Values area.
I filtered out questions 7, 55 and 61 since they didn't follow the same data domain as the others (1-5).

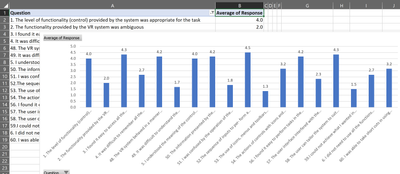

With the data in this format, it is also trivial to calculate the average score by question:
or even create groups of questions and calculate statistics on those.
The original data is of course still useful for cross-tab analysis.
