FORMULAS IN EXCEL
If you name the lookup table to be 'dataTable' then you can generate indices from the measurement in inches
= INDEX(dataTable, 1 + MOD(inches-1,24), 2 + 3*QUOTIENT(inches-1,24) )If you are fortunate enough to be using Excel 365, it can be tidied up a bit to read
= LET( row, 1 + MOD(inches-1, 24), block, 1 + QUOTIENT(inches-1, 24), INDEX(dataTable, row, 3*block-1) )
The most likely problem may be defining and referencing named ranges. In my preferred solution it would also help to be familiar with the LET function.
- You are my hero! Thank you so much!
- that's awesome!
I was hoping to be able to enter the tank readings (in whole numbers) and have the gallons auto populate using a formula of some sort...
Sorry I jump in, just logic is not clear.
If we have 30.25 inches shall we return value proportionally in between 2836 and 2967 gallons, or round inches as in the sample?
If round, when how, e.g. in the sample for 33.5 inches gallons are taken for 33 inches (default rounding gives 34 inches for 33.5).
Other words, bit more business logic.
I had also noticed that and thought of inserting INT. In the event, I simply allowed INDEX to truncate the number of inches.

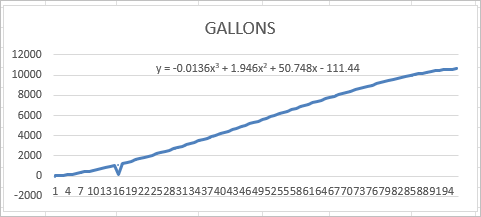

I like the curve fit. Now I could differentiate to determine the surface area and square-root for the radius. Then draw the tank.
