Excel - need progress bar in excel during processing and some enhancement

Hi TheTallman

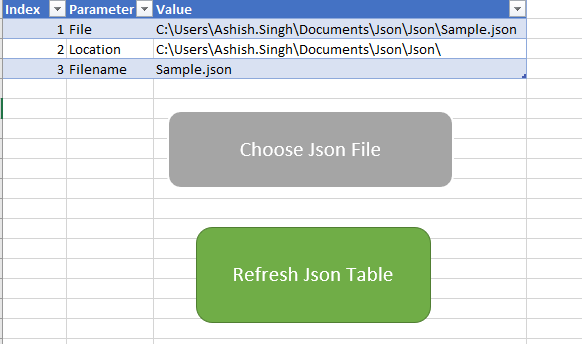

UserName in table 'Parameters'

For C5 in your table you can use : Application.UserName (https://docs.microsoft.com/en-us/office/vba/api/excel.application.username)

As a note only: this is not a parameter but an information. Nowhere in your queries you use something else than the 1st row of table 'Parameters'

Progress bar with % completion on screen

No way to get that information. This would require an ETA - something PQ doesn't provide. And assuming it could compute an ETA for queries where the Source is "under its control" i.e. an Excel table in the current workbook, this would require the server to provide an ETA for queries that fold to i.e. OData, SQL Server and the like

As an alternative you could do the following that will display, on the left side of the status bar, +/- where you are in the process of refreshing your 3 queries:

Sub RefreshJsonQueries()
    With Application
        .ScreenUpdating = False

        Worksheets("Tables").Activate
        .StatusBar = "Refreshing query JsonTable..."
        With ActiveSheet.ListObjects("JsonTableConnection").QueryTable
            .Refresh BackgroundQuery:=False
        End With

        Worksheets("Attributes").Activate
        .StatusBar = "Refreshing query JsonAttributesConnection..."
        With ActiveSheet.ListObjects("JsonAttributesConnection").QueryTable
            .Refresh BackgroundQuery:=False
        End With

        Worksheets("SetTypes").Activate
        .StatusBar = "Refreshing query JsonSetTypesConnection..."
        With ActiveSheet.ListObjects("JsonSetTypesConnection").QueryTable
            .Refresh BackgroundQuery:=False
        End With

        Worksheets("Main").Activate
        .StatusBar = ""
        .ScreenUpdating = True
    End With
End Sub

Or create a UserForm to display the 3 "messages" in the middle of the screen
