Forum Discussion

Chandrakanth K's avatar
Chandrakanth K
Copper Contributor
Feb 05, 2020

Download attachments from SAP FB03

Hello Group,




I have created a code to extract attachments from SAP FB03 T-code. I am facing issue when I click on display attachment the excel attachment doesn't open until there is manual click on Excel VBA workbook. Below is my code. Looking forward for your inputs and guidance.




My code identifies the count of attachments per document and loops through all attachments ( Email,Excel etC)




Public Function ExtractDocuments()

Dim Arr() As Variant

Dim DocNum As String

Dim Company As String

Dim FY As String

Dim AttCnt As Integer

Dim i As Long

Dim j As Long

Dim HWnd2 As Long

Dim lCurHwnd As Long

Dim sText As String * 255




' When session is Nothing then we need to create a new session

' else assume we can re-use the session

If session Is Nothing Then

Set session = StartSAPSession

End If




' Load the table as an Array, this will be faster

Arr = Range("Table1").ListObject.DataBodyRange




' Cycle through each row of the table (Arr)

For i = 1 To UBound(Arr, 1)

' Start by loading the row you will enter

DocNum = Arr(i, 1)

Company = Arr(i, 2)

FY = Arr(i, 3)




With session

.findById("wnd[0]").maximize

.StartTransaction "FB03" ' Load the transaction you are after

.findById("wnd[0]/usr/txtRF05L-BELNR").Text = DocNum

.findById("wnd[0]/usr/ctxtRF05L-BUKRS").Text = Company

.findById("wnd[0]/usr/txtRF05L-GJAHR").Text = FY

.findById("wnd[0]").sendVKey 0 ' Execute transaction




' The query runs and you select context menu and attachments

.findById("wnd[0]/titl/shellcont/shell").pressContextButton "%GOS_TOOLBOX"

.findById("wnd[0]/titl/shellcont/shell").selectContextMenuItem "%GOS_VIEW_ATTA"




' How many attachments are there? If 1 or more then save each.

AttCnt = .findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").RowCount

If AttCnt > 0 Then

For j = 0 To AttCnt - 1







.findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").selectedRows = j

.findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").currentCellColumn = "BITM_DESCR"

.findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").selectedRows = "0"

.findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").doubleClickCurrentCell -




The issue arises at this stage as the excel attachment dosent open until we click on VBA file







.findById("wnd[1]/tbar[0]/btn[0]").press

.findById("wnd[0]/shellcont").Close

.findById("wnd[0]").sendVKey 12

Application.SendKeys "~"

Next j

End If

End With

Next i

End Function

3 Replies

  • PascalKTeam's avatar
    PascalKTeam
    Iron Contributor

    Hi Chandrakanth K

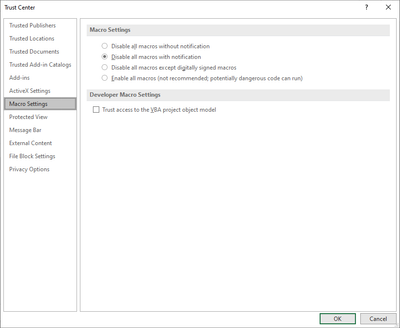

    Do you mean that you have to activate the macros first? If yes, this has to do with your macro security settings. You could try to set it to "enable all macros" WHICH I DON'T RECOMMEND.







    • Chandrakanth K's avatar
      Chandrakanth K
      Copper Contributor

      PascalKTeam  No...its not asking to enable macros. The attachment in SAP is excel. It dosent open until I manually click on VBA file.



      Regards,

      Chandrakanth.K

      • Masa2020's avatar
        Masa2020
        Copper Contributor
        Hello
        I have experience of preparing similar macro. You use "doubleclick " to open and get the attachment.
        How about "export" without opening the attachment? You can record the code to export in SAP function and use it in your macro as you may know.
