Conditional format based on formula results - Marlett font

Good Morning



I am using the following formula and would like to format the results based on the results of the formula.

=IF(C2<'2-1'!B2,"u",IF(C2>'2-1'!B2,"t","v"))



When shown in Marlett font, the "u", "t", and "v" show in arrows and I need to format based on the result of the arrow.  The goal is for the arrow cell to show a certain color.

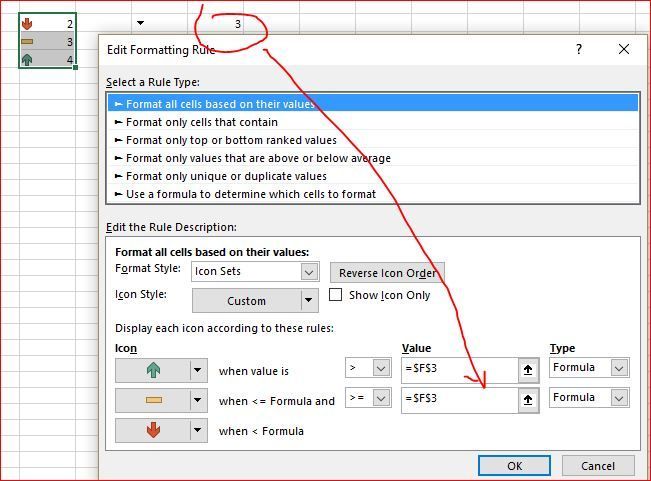

  • Alternatively you may use built-in into conditional formatting arrows icons set using formula for rules (and show icons only if desired)



      • SergeiBaklan's avatar
        SergeiBaklan
        MVP

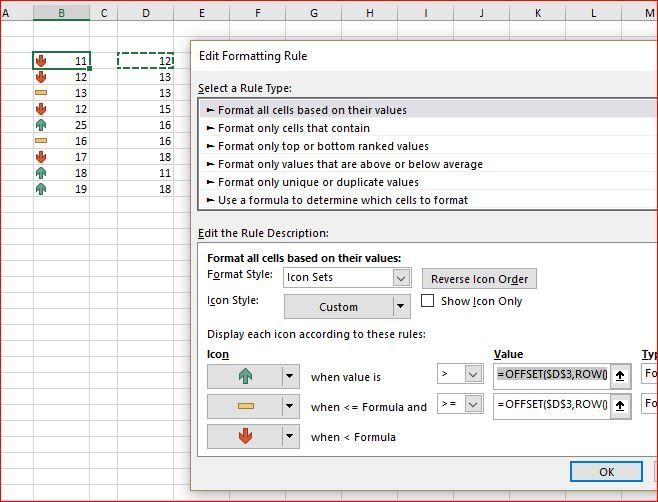

        It works but with some tricks if you'd like to compare column-to-column. Icons sets works directly only with absolute reference, the workaround is to use OFFSET like

        =OFFSET($D$3,ROW()-ROW($D$3),0)

        for that data

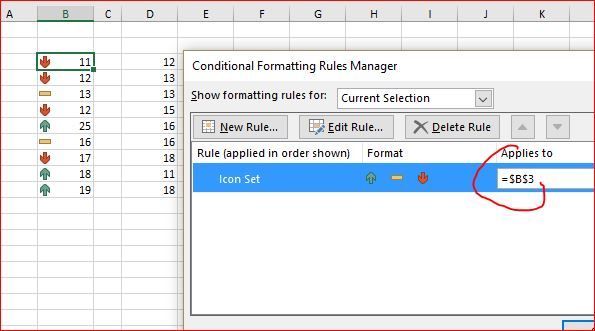

        apply it only to first cell

        and when Format Painter on entire column.

  • Willy Lau's avatar
    Willy Lau
    Steel Contributor

    Hi Tonya Troxtell, you don't need to base on the result of the arrow.  You just need three conditional formatting rule on the arrow cells to base on your formula

    1. for u
      =$C2<'2-1'!$B2
    2. for t
      =$C2>'2-1'!$B2
    3. for v
      =$C2='2-1'!$B2
