Can't add User Form in VBA project

When I try to add a User Form in a VBA project, I get an error that says "Component not correctly registered". This started happening a couple of months ago; I believe it was after I did a micrsoft u...
Macros & VBA
Need Help
Keith Perry's avatar
Keith Perry
Copper Contributor
Feb 21, 2018
Is Microsoft Forms 2.0 Object Library listed and checked?
jarad graham's avatar
jarad graham
Copper Contributor
Feb 21, 2018
Microsoft Forms 2.0 Library was listed but not checked. I checked it, but still received the error. Strangely, after checking the forms 2.0 library, if i close out of excel and reopen it, the forms 2.0 library is no longer checked; not sure if that is supposed to happen.
  • Haytham Amairah's avatar
    Haytham Amairah
    Silver Contributor
    Feb 21, 2018

    Jarad,



    Please record the steps step by step from opening Excel till insert a UserForm using the https://www.lifewire.com/using-windows-7-problem-steps-recorder-3506871

    Make sure to start recording before you open Excel, and to stop it when you get the error message!

    After you finish the recording, please save the recording steps as a zip file and attach it here in this community!



    This will provide us with a detailed info about the issue.



      • Haytham Amairah's avatar
        Haytham Amairah
        Silver Contributor
        Feb 22, 2018

        Please make sure that the file FM20.DLL is already found in this path:

        C:\Windows\System32\FM20.DLL

        I think it exists because you reinstalled the VB 6.0 Runtime.

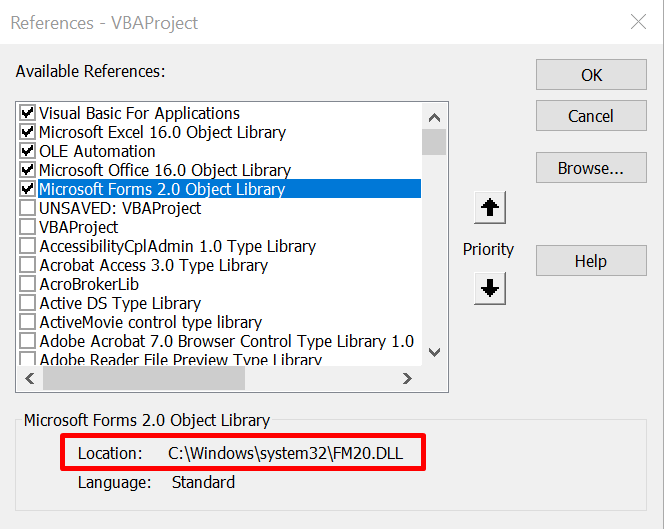

        Then make sure that the Microsoft Forms 2.0 Object Library is pointed to this file as below screenshot!

        If it's not, please click browse and point the library to it.
