MCC Phantom Install
Installing on Windows 2022. WSL and WSL kernel are fully updated.
MCC claims it installed successfully, but there is no distro installed. wsl --list says none exist.
The wslip.txt file just shows:
System.Object[]
COMPLETED
Starting MCC installation from scheduled task
[07/30/2025 17:03:04]
Verifying VHDX file exists and is accessible: c:\mccwsl02\Ubuntu-24.04-Mcc-Converted.vhdx
[07/30/2025 17:03:04]
VHDX file verified: Size 132074438656 bytes, accessible for import
[07/30/2025 17:03:04]
Importing MCC Ubuntu image from c:\mccwsl02\Ubuntu-24.04-Mcc-Converted.vhdx to WSL
[07/30/2025 17:03:04]
Completed imported MCC Ubuntu image from c:\mccwsl02\Ubuntu-24.04-Mcc-Converted.vhdx to WSL
[07/30/2025 17:03:04]
Validating that import was successful
[07/30/2025 17:03:17]
WSL Ubuntu Image detected running on IP : System.Object[], configuring port proxy
[07/30/2025 17:03:18]
Completed configuration of port forwarding
[07/30/2025 17:03:18]
Setting WslMccUbuntuEthZeroIp
[07/30/2025 17:03:18]
Successfully validated that WSL Imported MCC Ubuntu Image, WSLStatusText : Installed
[07/30/2025 17:03:19]
Creating cache folder locations within Ubuntu image
[07/30/2025 17:03:19]
Successfully completed creating cache folder locations within Ubuntu image
[07/30/2025 17:03:19]
Running MCC install command line within WSL Ubuntu distro...
[07/30/2025 17:04:28]
MCC install command line has completed within WSL Ubuntu distro
[07/30/2025 17:04:28]
Validating MCC install to ensure it has completed successfully
[07/30/2025 17:04:28]
Successfully verified that MCC has been installed on Ubuntu WSL instance
[07/30/2025 17:04:30]
Waiting for MCC container to become available...
[07/30/2025 17:04:35]
Waiting for MCC container to be downloaded (could take up to 30 minutes)...
[07/30/2025 17:06:15]
Jul 30 17:05:11 ***Removed for Privacy*** aziot-edged[4186]: 2025-07-30T21:05:11Z [INFO] - Pulling image via tag msconnectedcacheprod1.azurecr.io/mcc/linux/iot/mcc-ubuntu-iot-amd64:2.0.0.2112_e...
[07/30/2025 17:06:15]
Jul 30 17:06:14 ***Removed for Privacy*** aziot-edged[4186]: 2025-07-30T21:06:14Z [INFO] - Successfully pulled image msconnectedcacheprod1.azurecr.io/mcc/linux/iot/mcc-ubuntu-iot-amd64:2.0.0.2112_e
[07/30/2025 17:06:20]
MCC container detected as running, waiting for MCC to return ready status code
[07/30/2025 17:06:34]
Successfully validated MCC install, returned 200 for content request
[07/30/2025 17:06:34]
Setting LastCompletedInstallStepw2
[07/30/2025 17:06:34]
MCC Install Task has returned success
[07/30/2025 17:06:34]
Final validation, ensuring that MCC is up and responding to requests
[07/30/2025 17:06:34]
Checking for netsh interface portproxy forwarding rules
[07/30/2025 17:06:34]
Successfully verified that MCC public port :80 has been forwarded to WSL
[07/30/2025 17:06:34]
Verifying symlink created: Ubuntu-24.04-Mcc
[07/30/2025 17:06:34]
Current execution context - User: ***Removed for Privacy***, Path: C:\Program Files\WindowsApps\Microsoft.DeliveryOptimization_1.0.24.0_neutral__8wekyb3d8bbwe\deliveryoptimization-cli
[07/30/2025 17:06:34]
MCC Runtime Account: ***Removed for Privacy***
[07/30/2025 17:06:34]
Validating WSL distribution using gMSA account
[07/30/2025 17:06:34]
Current execution context - User: ***Removed for Privacy***
[07/30/2025 17:06:34]
Checking for WSL distribution: Ubuntu-24.04-Mcc as runtime account: ***Removed for Privacy***
[07/30/2025 17:06:34]
Created temporary task directory: c:\mccwsl02\TempWslCheck_a0d047e2-1dc9-45ce-be9b-a145ecbb5f3d
[07/30/2025 17:06:34]
Starting WSL distribution check task 'WSLDistroCheck_1654293464'
[07/30/2025 17:06:35]
Waiting for WSL distribution check task 'WSLDistroCheck_1654293464' to complete (max 30 seconds)...
[07/30/2025 17:06:37]
Task 'WSLDistroCheck_1654293464' finished. State: Ready, LastResult:
[07/30/2025 17:06:37]
Reading WSL distribution check result from file: c:\mccwsl02\TempWslCheck_a0d047e2-1dc9-45ce-be9b-a145ecbb5f3d\wsl_distro_check_result.txt
[07/30/2025 17:06:37]
Check result: U b u n t u - 2 4 . 0 4 - M c c - B a s e
U b u n t u - 2 4 . 0 4 - M c c
[07/30/2025 17:06:37]
WSL distribution 'Ubuntu-24.04-Mcc' found for runtime account: ***Removed for Privacy***
[07/30/2025 17:06:37]
Setting up certificate directories and WSL symlinks for gMSA account via scheduled task approach
[07/30/2025 17:06:37]
Creating Certificates directory: c:\mccwsl02\Certificates
[07/30/2025 17:06:37]
Certificates directory created successfully
[07/30/2025 17:06:37]
Creating certs subdirectory: c:\mccwsl02\Certificates\certs
[07/30/2025 17:06:37]
Certs subdirectory created successfully
[07/30/2025 17:06:37]
Creating logs subdirectory: c:\mccwsl02\Certificates\logs
[07/30/2025 17:06:37]
Logs subdirectory created successfully
[07/30/2025 17:06:37]
Creating WSL symlinks and config using scheduled task approach for gMSA account
[07/30/2025 17:06:37]
Registering WSL symlink setup task 'WSLSymlinkSetup_1872124169' using gMSA account for ***Removed for Privacy***
[07/30/2025 17:06:37]
Starting WSL symlink setup task 'WSLSymlinkSetup_1872124169'
[07/30/2025 17:06:37]
Waiting for WSL symlink setup task 'WSLSymlinkSetup_1872124169' to complete (max 45 seconds)...
[07/30/2025 17:06:43]
Task 'WSLSymlinkSetup_1872124169' finished. State: Ready, LastResult:
[07/30/2025 17:06:43]
WSL Setup Results: Directory setup:
Symlink creation:
Subdirectories:
Config file:
Symlink verification: lrwxrwxrwx 1 root root 28 Jul 30 17:06 windowsCerts -> /mnt/c/mccwsl02/Certificates
Config verification: Config file exists
SUCCESS: WSL setup completed
Directory setup:
Symlink creation:
Subdirectories:
Config file:
Symlink verification: lrwxrwxrwx 1 root root 28 Jul 30 17:06 windowsCerts -> /mnt/c/mccwsl02/Certificates
Config verification: Config file exists
SUCCESS: WSL setup completed
[07/30/2025 17:06:43]
WSL symlink and config creation completed successfully via scheduled task
[07/30/2025 17:06:43]
Successfully created WSL symlink for gMSA account using scheduled task approach
[07/30/2025 17:06:43]
Successfully created config file for gMSA account using scheduled task approach
[07/30/2025 17:06:43]
Cleaning up temporary task directory: c:\mccwsl02\TempWslCheck_a0d047e2-1dc9-45ce-be9b-a145ecbb5f3d
[07/30/2025 17:06:43]
==============================================================
[07/30/2025 17:06:43]
TLS INFRASTRUCTURE SETUP RESULT DETAILS:
[07/30/2025 17:06:43]
==============================================================
[07/30/2025 17:06:43]
WSLDistroFound: True
[07/30/2025 17:06:43]
CertificatesDirectoryCreated: True
[07/30/2025 17:06:43]
WSLSymlinkCreated: True
[07/30/2025 17:06:43]
ConfigFileCreated: True
[07/30/2025 17:06:43]
HasLocalAccountCredential: False
[07/30/2025 17:06:43]
ErrorMessage:
[07/30/2025 17:06:43]
ErrorDetails: None
[07/30/2025 17:06:43]
SUCCESS CALCULATION BREAKDOWN:
[07/30/2025 17:06:44]
[07/30/2025 17:06:44]
Has Local Credentials = False
[07/30/2025 17:06:44]
WSLDistroFound = True
[07/30/2025 17:06:44]
CertificatesDirectoryCreated = True
[07/30/2025 17:06:44]
WSLSymlinkCreated = True
[07/30/2025 17:06:44]
ConfigFileCreated = True
[07/30/2025 17:06:44]
FINAL SUCCESS RESULT: True
[07/30/2025 17:06:44]
==============================================================
[07/30/2025 17:06:44]
[07/30/2025 17:06:44]
TLS infrastructure setup completed successfully
[07/30/2025 17:06:44]
[07/30/2025 17:06:44]
Successfully received response from MCC content server, status description: OK, System.Net.HttpWebRequest.URL, System.Net.HttpWebRequest.StatusCode
[07/30/2025 17:06:44]
Successfully verified MCC is installed, running and responding to requests!
[07/30/2025 17:06:44]
Setting LastCompletedInstallStep
[07/30/2025 17:06:44]
Setting InvocationExitCode
[07/30/2025 17:06:44]
Unregistered base Ubuntu image version: Ubuntu-24.04-Mcc after successful install of MCC
[07/30/2025 17:06:44]
Setting InvocationEndTime
[07/30/2025 17:06:44]
Setting InvocationState
[07/30/2025 17:06:44]
Installer return code 0
**********************
Windows PowerShell transcript end
End time: 20250730170644
**********************
4 Replies
- jjmehrenCopper Contributor
Hi All,
This was rather complex, so I'll leave my full resolution to this and some other things I ran into. I believe most of the problem centered around us using a VLAN ID on the NIC in the OS.
I did manage to get it at least mostly working (though not confirmed by our workstation team yet) by going through a convoluted route of creating an additional Hyper-V virtual switch set to bridge the network connection and specify the VLAN ID. This isn't possible using the default v-switch because the installer makes it fresh each time, so there's no way you can set a vlan ID on it until after, by which time it has already failed. In addition to this I disabled IPv6 on it (which Microsoft generally doesn't recommend). This was our test environment. Network and Workstation team have been having some trouble getting things configured and working for their part, so it may still be related to this janky configuration. Once I got it mostly working here, I came at the problem from another angle when it came to configuring our production server, which we skipped to due to a tight deadline for this project.
The fix for our production server was to have the network team adjust the vlan settings so that we didn't have to specify it in the OS. Then instead of disabling IPv6, we just lowered the metric manually so that it would prefer IPv4 beyond the ethereal Microsoft statement that it is already preferred.
We still await testing, but I think the latter is going to work.
It's also worth noting, in case you weren't yet aware, importing a certificate when you're using a gMSA for a runtime account doesn't work. MS has acknowledged this, but to my knowledge they have not stated when or if they will fix this. They will also be requiring HTTPS for MCC sometime in the future, so just keep that in mind.
- JLDeLaCruzCopper Contributor
I have the same problem.
Any update on a resolution?
- JLDeLaCruzCopper Contributor
Here is an update on this.

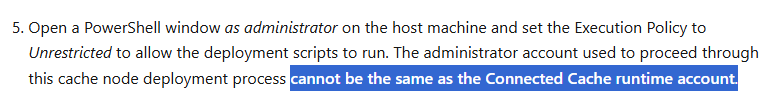

You can no longer use the same account you plan on using for the runtime account to do the deployment.
It is stated in step 5.
- bindumadhavaBrass Contributor
hi
had seen issue similar to this [WSL Ubuntu Image detected running on IP : System.Object[], configuring port proxy], and in addition my device had issue with "F a i l e d t o a t t a c h d i s k" step. During the installation, the installer was taking the path of the vhdx file as the old path [had retired installation couple of time. This made me search for the vhdx path and thats when i found the old vhdx information stored in Computer\HKEY_USERS\<GUID>\Software\Microsoft\Windows\CurrentVersion\Lxss\{guid}, and the eht0 ip stored at Computer\HKEY_USERS\<guid>-4956998\Software\Microsoft\Windows\CurrentVersion\Lxss\NetIpAddress , delete the entire hive of Lxss and re-installed, which then helped in getting the right vhdx as well as the ip assigned to eth0
[GUID is the runtime account ID]
Also do check Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\MicrosoftConnectedCache
