Troubleshooting Windows Feature updates in Microsoft Intune

By: Luke Ramsdale – Sr Security Customer Escalation Engineer | Microsoft Intune



Effectively managing feature updates for Windows devices is essential for maintaining system performance and security. This article focuses on the troubleshooting steps necessary to address common issues with feature update policies in Intune.

The feature update policy in Intune allows you to choose the Windows feature update version that devices should stay on or update to.

The process of managing feature updates on Windows 10 and 11 devices is done through a combination of update ring and feature update policies. Update ring policies utilize the Policy CSP - Update to configure the Windows devices with the desired settings.

Note: The unified suite of Windows update tools is officially known as Windows Autopatch. For further details, please visit: Why Windows Autopatch is the smart update solution - Windows IT Pro Blog to learn more.

Prerequisites

The first step in troubleshooting feature updates is to ensure the prerequisites are in place. This is a crucial step to take to ensure a smooth feature update policy implementation; missing a prerequisite accounts for many feature update failures or undesirable behavior.



Licenses

The core functionality requires an Intune license, but it’s important to note that the cloud-based capabilities such as gradual rollout and optional feature updates require a license that includes access to the Windows Update for Business deployment service, for example:

• Windows 10/11 Enterprise E3 or E5 (included in Microsoft 365 F3, E3, or E5)
• Windows 10/11 Education A3 or A5 (included in Microsoft 365 A3 or A5)
• Windows Virtual Desktop Access E3 or E5
• Microsoft 365 Business Premium

For more information about gradual rollouts please refer to the following document:

Configure schedules to gradually roll out Windows Updates in Intune



Telemetry

Ensure that a device restriction policy is deployed to all devices in scope for feature updates with reporting and telemetry configured. At minimum the Share usage data setting needs to be configured to “Required”.

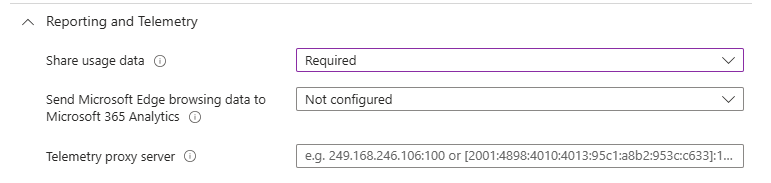

A screenshot of the Windows device restriction Reporting and Telemetry settings in the Microsoft Intune admin center.



For more details on this setting, review: Device restriction settings for Windows 10/11 in Microsoft Intune



Enable Windows diagnostic data collection

Configuring diagnostic data collection is essential to ensure feature update reporting is accurate. This is a tenant wide setting and is configured in the Intune admin center under Tenant administration > Connectors and tokens > Windows data. For more information, review:

Use Windows Update for Business reports for Windows Updates in Microsoft Intune



Microsoft Account sign-in Assistant service

Ensure the Microsoft Account sign-in Assistant service isn’t disabled, by default this is set to Manual.



An image of the Microsoft Account Sign-in Properties screen.

Connected User Experiences and Telemetry service

Ensure the Connected User Experiences and Telemetry service is not disabled , by default this is set to Automatic.



An image of the Connected User Experience and Telemetry screen.

Supported version of Windows 10/11

The Windows operating system being updated must be either Professional, Enterprise or Education editions.editions.



Network endpoints

Ensure the devices can access the Intune and Windows update endpoints:

• Network endpoints for Microsoft Intune
• Connection endpoints for Windows 10, version 1809 - Windows Privacy

Deploying feature update policies with update rings

If you’re deploying update rings in parallel to feature update policies, then it is important to consider the implications of configuring certain settings in the update ring policy:

Feature update deferral period (days)

The recommendation is to configure this to ‘0’ but if you choose to change this it’ll delay the deployment of feature updates.



Upgrade Windows 10 devices to Latest Windows 11 release

If this option is configured to yes, then eligible Windows 10 devices will update to the latest Windows 11 feature update regardless of what is configured in any feature update policy.

Note: It’s important to understand this update ring policy setting will overrule any Windows 10 feature update policy deployed.



Paused feature updates

If feature updates are paused in an update ring policy, then targeted devices won’t receive feature updates; ensure that feature updates are running for any update ring policies targeting users or devices that also have feature updates policies deployed.

Conflicting feature update policies

There are a couple of scenarios that are important to keep in mind when deploying feature update policies:

1. Deploying multiple feature update policies to devices could target multiple versions of feature updates to a device at the same time. The latest feature update will always be offered to the device under these circumstances.
2. An eligible Windows 10 device targeted with both Windows 10 and 11 feature update policies will update to Windows 11.

Our recommendation is to target a single feature update policy per operating system version, in other words, one for Windows 10 and one for Windows 11 devices.

We also recommended to deploy a new feature update policy per release, one policy for Windows 11 23H2 and a separate policy for Windows 11 24H2.

In this scenario administrators remove the devices from the group targeted with Windows 11 23H2 and move them to a group targeted with the Windows 11 24H2 policy.

Microsoft Entra hybrid joined devices

When feature updates are failing to deploy to machines that are Microsoft Entra hybrid joined, it’s important to investigate whether there are any pre-existing group policy objects (GPOs) deployed via Active Directory Services. These can conflict with the settings configured in Intune in general and the feature updates specifically.

There are a couple of ways to attempt to check and troubleshoot potential GPO conflicts:

1. On a device you suspect has conflicts run the following at the command line as a local administrator:


   gpresult /v >c:\temp\gpo.txt



   Open the text file and examine the contents for group policies which are configuring Windows update settings or redirecting update scanning to WSUS servers.

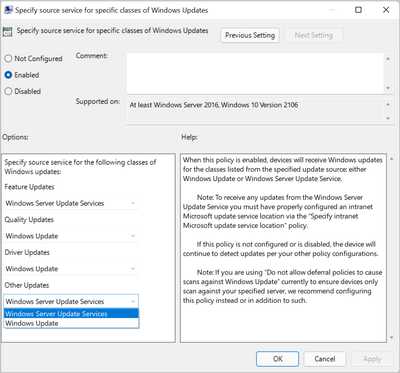

2. Consider configuring a scan source GPO to specify which sources should be used for each individual class of Windows update. For example, you can configure Feature Updates to use Windows Server Update Services (WSUS) and Quality Updates to use Windows Update as shown in the screenshot below.



   Configuring a scan source group policy can help ease the transition from an on premises managed environment and Intune.

   For more information about scan source group policy objects refer to Use Windows Update for Business and Windows Server Update Services (WSUS) together.

   Note: Using the GPO wins over the mobile device management (MDM) setting doesn’t work with Windows update policies.

Safeguard holds

A safeguard hold is a Windows function that prevents your device from receiving new feature updates.  The Windows update service enforces a safeguard hold on a device when it determines that a feature update may have a negative impact on your device.

Safeguard holds are applied when quality and compatibility data identify issues that might cause a Windows client feature update to fail or roll back. These holds can also be applied when a customer, partner, or internal validation finds an issue that would cause severe effects, such as data loss or loss of key functionality.

The lifespan of a safeguard hold varies depending on the time required to investigate and fix the issue. Once a fix is found and verified, the safeguard hold is lifted, and Windows Update resumes offering new operating system versions to the affected devices

It’s important to check the feature update failures report, which is mentioned in the next section. For more information on safeguard holds and Windows release health refer to:

• Safeguard holds for Windows
• Windows release health

Troubleshooting Feature updates from the Intune admin center

It’s important to enable the prerequisites for update reporting, there are two prerequisites which you must meet:

1. Enable Windows diagnostic data collection from devices by configuring telemetry to be at least required.
2. Configure the tenant level Windows data collection.

Windows feature update report

The Windows feature update report is a good starting point to get an overall status of the feature update deployment policy status. (Reports > Windows updates > Reports > Windows feature update report)

This report runs on individual feature update policies and provides a summary and details of the feature update state. This report doesn’t automatically update and you need to generate it manually.

The important data on this report is contained in the update state and update substate columns. If the update state is set to “Offering” and the update substate is set to “Offer ready”, then Windows update made the feature update available to the device.

If the update state is “Pending” and update substate is “Scheduled”, then the update will be available for installation later. If it’s “Pending validation”, then there’s a problem validating the device by Windows update.

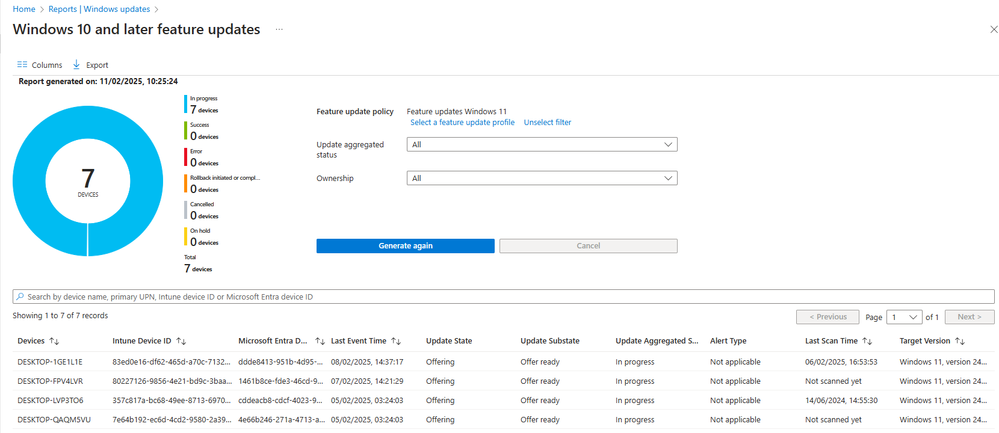

A screen capture of the Windows feature updates report.

Feature update failures report

The first point of contact for troubleshooting feature updates should be the feature update failures report which is in the Intune admin center > Devices > Monitor > Feature update policies with alerts.

This report shows you the reasons why individual devices have failed to install a feature update.

Note: You need to configure the data collection pre-requisite discussed above before this report shows any data.

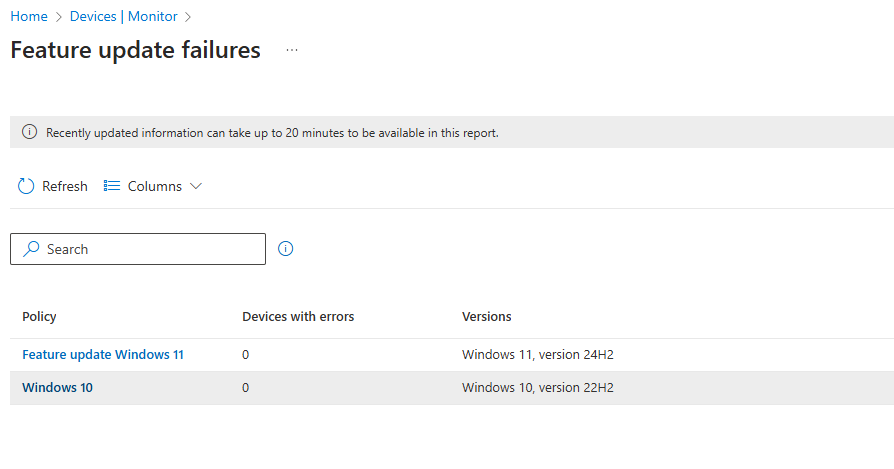

A screen capture of the Feature update failures report.

This lists all the current feature update policies with an overview of the number of devices with errors.

Clicking on the feature update policy will drill into the details and list the failures.



A screenshot of a feature update failure details.

This report should be the first place that an administrator checks to understand whether the feature update install has been attempted on a device and subsequently failed.

For a full list of possible errors populated in this report and recommendations for remediation refer to:Use Windows Update for Business reports for Windows Updates in Microsoft Intune - Microsoft Intune.



Checking the Windows update service using PowerShell

It’s possible to interact with the Windows Autopatch service via graph explorer or via PowerShell cmdlets using Windows update APIs. The cmdlets are documented in Microsoft.Graph.Beta.WindowsUpdates Module and theGraph APIs are documented in Windows updates API overview. There is also a training course on how to manage updates using the SDK Manage Windows updates for cloud-connected devices by using the Microsoft Graph PowerShell SDK - Training.

Administrators don’t need to use the SDK when deploying updates via Intune, but it can be used to investigate and troubleshoot deployment issues.deployment issues.

The following is an example of how to request the properties of a Microsoft Entra device using the device identifier.

You can view this record using a PowerShell cmdlet called: 'Get-MgBetaWindowsUpdatesUpdatableAsset' with the Microsoft Entra device id as a parameter, here is an example PowerShell script which gets the update information:

Import-Module Microsoft.Graph.Beta.WindowsUpdates Connect-MgGraph $updateInfo = Get-MgBetaWindowsUpdatesUpdatableAsset -UpdatableAssetId '<insert Entra device id>' Write-Host "Update Information:`n$($updateInfo | ConvertTo-Json -Depth 10)"



This is an example of the output where the feature update enrollment state is still “enrolling.” A Microsoft Entra ID device will need to be successfully enrolled into the Windows Autopatch service before it can start receiving the feature update policies. In this case the enrolling state could be caused if the feature update is paused in an update ring policy.

Update Information: { "Id": "13315f1b-96b4-4a88-b453-342d984a6e05", "AdditionalProperties": { "@odata.context": "https://graph.microsoft.com/beta/$metadata#admin/windows/updates/updatableAssets/$entity", "@odata.type": "#microsoft.graph.windowsUpdates.azureADDevice", "errors": [], "enrollment": { "feature": { "enrollmentState": "enrolling", "lastModifiedDateTime": "2025-01-23T14:39:07.8854424Z" }, "quality": { "enrollmentState": "notEnrolled" }, "driver": { "enrollmentState": "enrolledWithPolicy", "lastModifiedDateTime": "2024-02-08T15:14:30.5073437Z" } } } }



The ideal state is as follows; this shows the Microsoft Entra ID device is enrolled in the Windows Update for business service for feature updates. Note that the Entra ID enrollment into Windows Autopatch is distinct from enrolling a Windows device into Intune:

Update Information: { "Id": "0dde8413-951b-4d95-b628-705881f4901b", "AdditionalProperties": { "@odata.context": "https://graph.microsoft.com/beta/$metadata#admin/windows/updates/updatableAssets/$entity", "@odata.type": "#microsoft.graph.windowsUpdates.azureADDevice", "errors": [ ], "enrollment": { "feature": { "enrollmentState": "enrolled", "lastModifiedDateTime": "2025-02-06T16:02:59.0065266Z" }, "quality": { "enrollmentState": "notEnrolled" }, "driver": { "enrollmentState": "enrolled", "lastModifiedDateTime": "2025-02-06T16:02:57.5209828Z" } } } }



The enrollment state should equal enrolled if the device has a policy targeting one of the updates.



Graph explorer

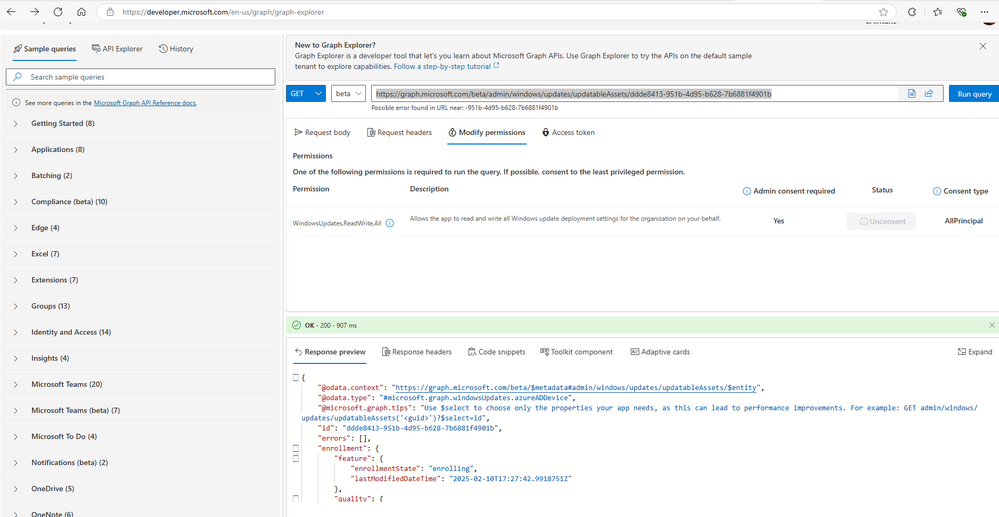

The same principle can be used with graph explorer by navigating to https://developer.microsoft.com/graph/graph-explorer and querying the following:

https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/<insert Microsoft Entra Device id>



A screen capture of the Graph explorer.

This returns the data associated with the asset in JSON format. In this example we see that the device is still enrolling for feature updates rather than enrolled.

Note: When you create a feature update policy in Intune it will interact directly with Windows Update for Business using the documented Windows  Autopatch APIs to configure the policies, however, these policies are not visible either though Graph or PowerShell.

Troubleshooting Feature updates from the client side

Device diagnostics

The first step when troubleshooting feature updates from the client side is to get hold of the device side logs. Intune provides a way to gather logs from the device using the Intune admin center within device diagnostics.

To ensure that device diagnostics is available in your tenant, navigate to Tenant admin > Device diagnostics and ensure that the options are enabled.

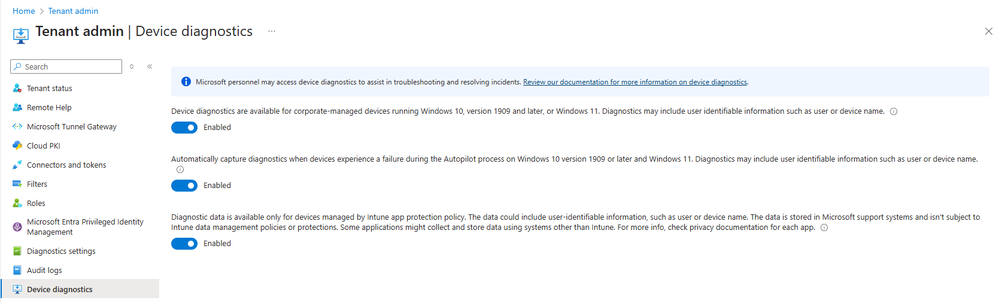

A screen capture of the Device diagnostics blade in the Intune admin center.

Once enabled it’s possible to collect diagnostics from the device by navigating to the device overview page, Collect diagnostics.

A screenshot of the Collect diagnostics action on the devices overview page in the Intune admin center.

After a short period, the diagnostics will be available to download from the device diagnostics view on the device:

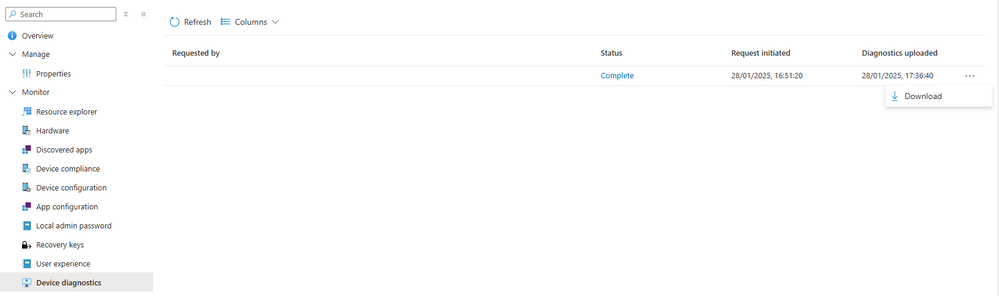

A screenshot of the Device diagnostics page with the ability to download the diagnostics.

For more information about device diagnostics please refer to Collect diagnostics from an Intune managed device - Microsoft Intune.



Device diagnostic logs

The device diagnostics feature in Intune gathers all the relevant MDM event logs along with other relevant data such as registry keys, log files, and commands.

When troubleshooting feature updates, the key logs to investigate from the device diagnostics are the following:

• %windir%\logs\CBS\cbs.log

The CBS, or component-based servicing, log gives detailed information on the installation of updates which relate to the component-based servicing system. This includes some aspects of the feature update install. If a feature update fails due to a missing or corrupted system component, the CBS.log may contain relevant errors.

• %windir%\logs\Panther\unattendgc\setupact.log

Setupact.log contains detailed step by step records of the Windows setup process. This log contains the actions performed during a feature update installation and is useful for scenarios where the update is delivered to the device but has not installed correctly.

SetupDiag is also available to download to help determine why upgrades fails for more information refer to: SetupDiag.

• %windir%\logs\WindowsUpdate\*.etl

The Windows update log is useful for investigating issues with scanning, downloading, and installing updates. The etl files can be converted to a more friendly text log file using the PowerShell cmdlet Get-WindowsUpdateLog.

For more information about troubleshooting via the Windows update logs refer to Windows Update log files.

• %temp%\MDMDiagnostics\mdmlogs-<Date/Time>.cab

The mdmlogs cab is a diagnostic log package generated by the device diagnostics to capture all relevant MDM logs and compresses them into a cab file.

The key logs and files for investigating feature updates are the MDM diagnostics report HTML file (which is discussed in detail below) and the microsoft-windows-devicemanagement-enterprise-diagnostics-provider-admin.evtx.



Checking the prerequisites via MDM diagnostics report

Once the diagnostics are downloaded, the first step is to check that all the prerequisites for feature updates are satisfied.

To do this unzip the DiagLogs zip file and search for a folder called: temp_MDMDiagnostics_mdmlogs, for example temp_MDMDiagnostics_mdmlogs-2025-01-28-16-51-20_cab, extract the files from the CAB file and search for the file MDMDiagHtmlReport.html.

The MDM diagnostic information has a list of all the policies that are applied to the device from Intune, and in the case of feature updates, the following settings need to be deployed and configured on the device. Note that there are two columns for the values, the default Windows value and the current value which is configured by Intune.

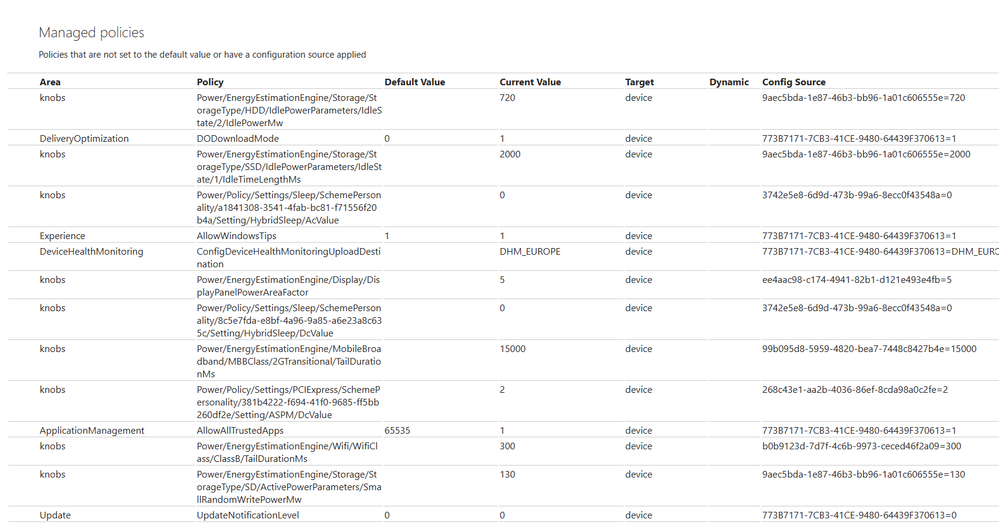

Here’s an example of how the policies look in the MDMDiagHtmlReport.html:

Search this file for the CSP area, such as Update or DeviceHealthMonitoring as in the example below:



These are the prerequisites areas, policies and settings that you should check:



In this example the policy values equate to:



If you want to understand these values further, refer to the CSP documentation:

• Policy CSP - Update
• Policy CSP - System
• Policy CSP - DeviceHealthMonitoring



Verifying Intune policy is applied

When a policy fails to apply on a device, the error returned from the CSP is reflected in the Intune admin center reports.

For all CSPs, including the update, device health monitoring and system policy CSP, any errors that occur when applying the CSP settings appear in the microsoft-windows-devicemanagement-enterprise-diagnostics-provider-admin event log.

To access this event log, you can either request the device diagnostics from a device and extract it from the zip file or access the event log directly on the device. To access this on a device, open the event viewer > Applications and Services Logs > Microsoft > Windows > DeviceManagement-Enterprise-Diagnostics-Provider > Admin.

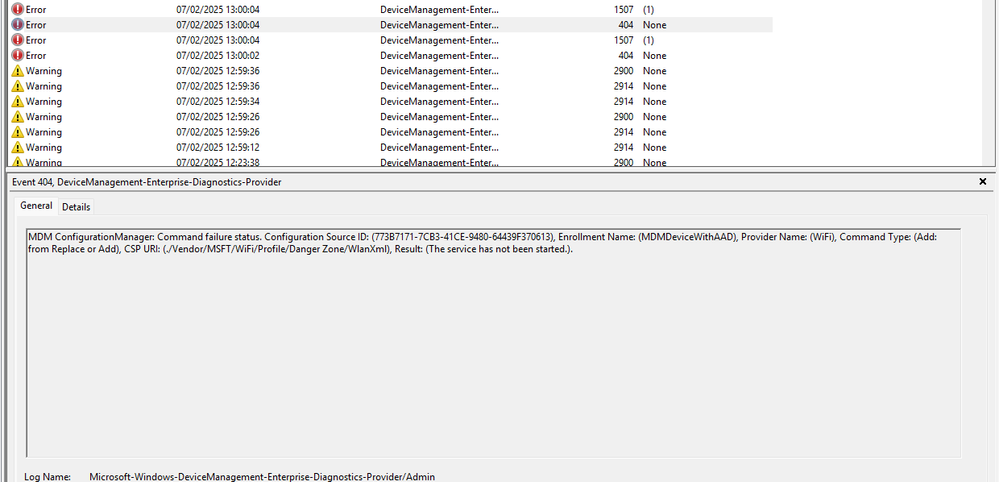

Here is an example of an error in the DeviceManagement-Enterprise-Diagnostics-Provider admin event log  from the WiFi CSP:

The error is as follows:

• MDM ConfigurationManager: Command failure status. Configuration Source ID: (773B7171-7CB3-41CE-9480-64439F370613), Enrollment Name: (MDMDeviceWithAAD), Provider Name: (WiFi), Command Type: (Add: from Replace or Add), CSP URI: (./Vendor/MSFT/WiFi/Profile/Danger Zone/WlanXml), Result: (The service has not been started.).

In the above error, a Wifi profile has failed to be applied via the Add/Replace command. The ‘Result’ is the important part. This can take the form of a hex code, such as 0x86000009, or can be more meaningful as in the example above: “The service has not been started”. In this case the device is a virtual machine which has no WiFi adapter, so the service is not running.

Update, System, and Device health monitoring CSP errors are not common, but it is important to understand how to investigate potential CSP errors.



Check the registry

The best method for checking the device side settings is to review the MDM diagnostics report that can be collected using device diagnostics as described above. The diagnostics report reflects the settings configured in the registry.

It’s also possible to check the prerequisites and the update settings in the registry. This helps verify the settings are configured as per the policies in Intune.



Safeguard holds

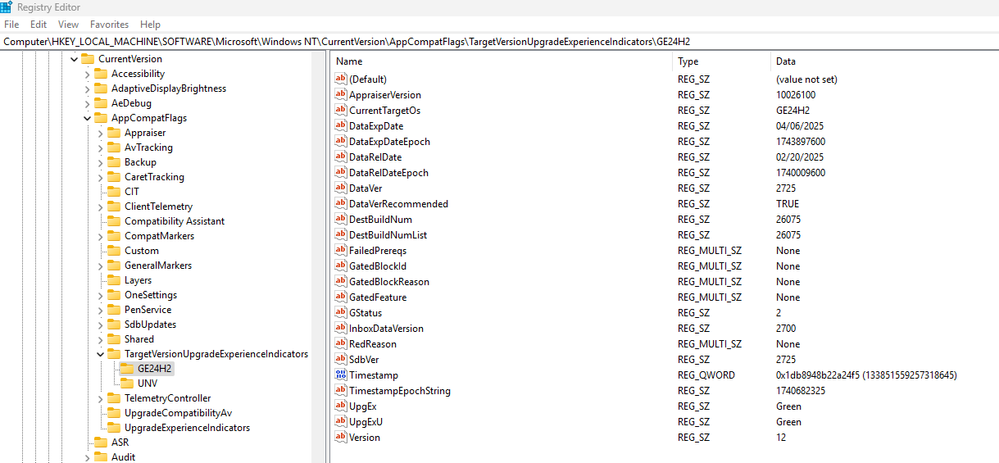

• Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators

This key specifically is related to Windows feature updates and tracks information about how a system is expected to behave during an upgrade to a newer Windows version.

The GE24H2 subkey in the above screenshot refers to Windows 11 24H2 and the values in this subkey help assess whether the device is ready for the update.



Telemetry settings

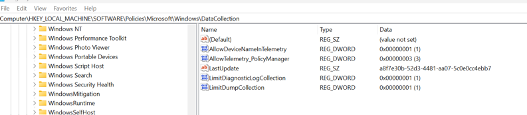

• Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\DataCollection

This location is where Windows stores telemetry specific settings, the value should either be 1 (Basic) or 3 (Full). In this screenshot, the AllowTelemetry_PolicyManager value shows 3 which means “Full”.



Device health monitoring

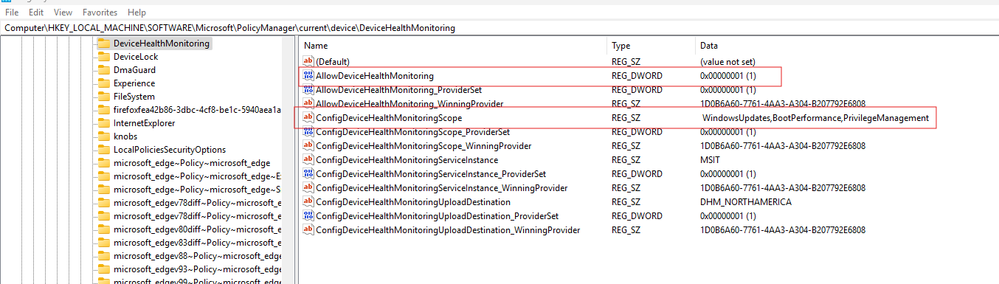

• Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\PolicyManager\current\device\DeviceHealthMonitoring

The device health monitoring settings highlighted in red below are required for various update reports in the Intune admin center. Make sure the WindowsUpdates setting is present for ConfigDeviceHealthMonitoringScope and AllowDeviceHealthMonitoring is set to 1 (enabled). Reviewing these registry entries is useful for verifying the settings have applied successfully, editing the values directly in the registry has no impact on functionality.



Note: If the administrator has configured the tenant wide Windows data settings in Tenant administration > Connectors and token > Windows data, the Windows update scope entry will not be present. This is only present when deploying the health monitoring settings via a device configuration profile: Use Windows Health Monitoring profile on Windows devices in Microsoft Intune.

Update settings

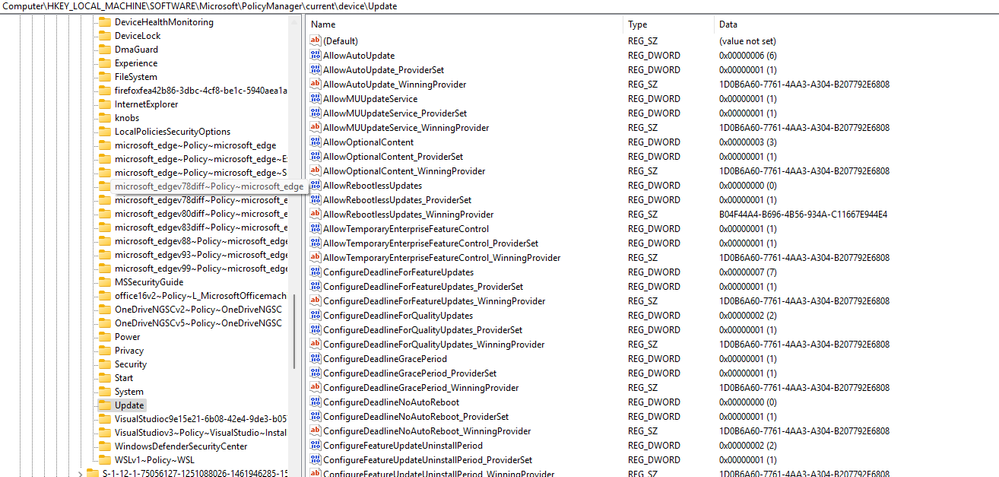

• Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\PolicyManager\current\device\Update

This key contains all the update CSP settings which are configured by the update policies. This includes feature, quality, driver, and update ring settings.

There are potentially many settings in this key and they vary depending on the settings configured in the policies configured in Intune. To understand what these settings mean refer to:

Update Policy CSP.





Microsoft Compatibility Appraiser

The Microsoft Compatibility Appraiser is a built-in Windows telemetry component that evaluates the compatibility of installed software and hardware in Windows. It runs as part of the Windows Compatibility Telemetry process.

Windows uses Microsoft Compatibility Appraiser for reporting and telemetry and is a key component for the Intune feature update reports. You configure Intune to leverage this tool using the Windows data tenant wide setting as described previously in the prerequisites section.

In some circumstances where devices show up as unknown in the Intune update reports, it’s useful to attempt to trigger Microsoft Compatibility Appraiser manually to force the device to report back telemetry data. To do this you can either manually run a scheduled task on the device or execute it using PowerShell or the command line.



Manually running the scheduled task

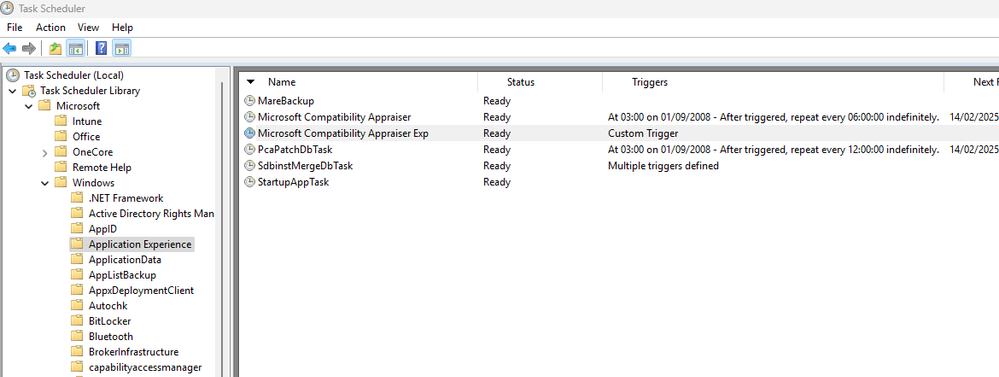

Navigate to the start menu > type “task scheduler” and open the task scheduler > navigate to Microsoft > Windows > Application Experience > Microsoft Compatibility Appraiser Exp> right click > Run.



A screenshot of the Microsoft Compatibility Appraiser.

Running the appraiser at the command line

The task above runs a command which you can also execute manually or script it to run on many machines:

Compattelrunner.exe -m:appraiser.dll -f:DoScheduledTelemetryRun

Both methods will trigger Microsoft Compatibility Appraiser to report the required telemetry data and update the Windows update reports.

Summary

This blog covered many aspects of troubleshooting feature updates, here are the key points:

• Make sure the prerequisites are in place. It’s important to emphasize that implementing the prerequisites for feature updates is important to ensuring a smooth feature update deployment. Take time to ensure that these are configured correctly as this is especially important for reporting.
• In more complex environments with Microsoft Entra hybrid joined devices, it’s important to ensure that there are no conflicting settings deployed from multiple sources, for example, having GPO settings, Microsoft Configuration Manager update policies, and conflicting Intune update policies deployed. Try to ensure that update policies are deployed from only one source. If multiple sources must be used, consider using the scan source group policy.


• It’s possible to interact with Windows Autopatch using PowerShell cmdlets and Graph APIs. This provides insight into a tenant's configuration, but it’s not a requirement as Intune will configure this for you using feature update and update ring policies.

  Note: It’s also important to understand that the Intune configured Windows Update client policies will not be visible via the PowerShell cmdlets or Graph APIs.


• Take note of whether safeguard holds are applied to specific device models, checking the feature update failures report will assist with identifying these.


• The device side event logs, Windows update logs, MDM diagnostics report, and registry values are all important sources for trying to narrow down why a device isn’t installing a feature update, or if a feature update was unexpectedly not installed or installed.


• Collecting diagnostics from affected devices will gather the relevant logs and data required for troubleshooting, this is important to gather if a support request is opened.

Hopefully these tips help you with troubleshooting feature updates! If you have any questions, leave a comment on this post or reach out on X @IntuneSuppTeam.



Post update:
04/10/25: Added link to: Why Windows Autopatch is the smart update solution - Windows IT Pro Blog.
