Managed Identity on SQL Server On-Prem: The End of Stored Secrets

The Problem with Credentials in SQL Server

For an On-Premises SQL Server to access Azure services, you traditionally need to store secrets:

Common Scenarios Requiring Credentials

Associated Risks

Manual Rotation

Secrets expire. You need to plan and execute rotation and not forget to update all references.

 Secure Storage

Where to store these secrets? In SQL Server via CREATE CREDENTIAL? In a config file? Each option has its risks.

Attack Surface

A compromised secret gives access to associated Azure resources. The more secrets you have, the larger the attack surface.

Complex Auditing

Who has access to these secrets? When were they used? Tracking is difficult.

The Solution: Azure Arc + Managed Identity

SQL Server 2025 connected to Azure Arc can geta Managed Identity :

This identity:

• Is managed by Microsoft Entra ID
• Has no secret to store or rotate
• Can receive RBAC permissions on Azure resources
• Is centrally audited in Entra ID

How It Works

• SQL Server 2025 On-Prem
  • Azure Arc Agent installed on the server
    • Managed Identity (automatically created in Entra ID)
      • RBAC assignment on Azure resources
        • -free access to Blob Storage, Key Vault, etc

Step-by-Step Configuration

Step 1: Enable Azure Arc on the Server and/or Register SQL Server in Azure Arc

Follow the procedure describes in this article to onboard your server in Azure Arc.

Connect Your SQL Server to Azure Arc

Remember that you can also evaluate Azure Arc on a Azure VM (test use only)
How to evaluate Azure Arc-enabled servers with an Azure virtual machine

Step 2: Retrieve the Managed Identity

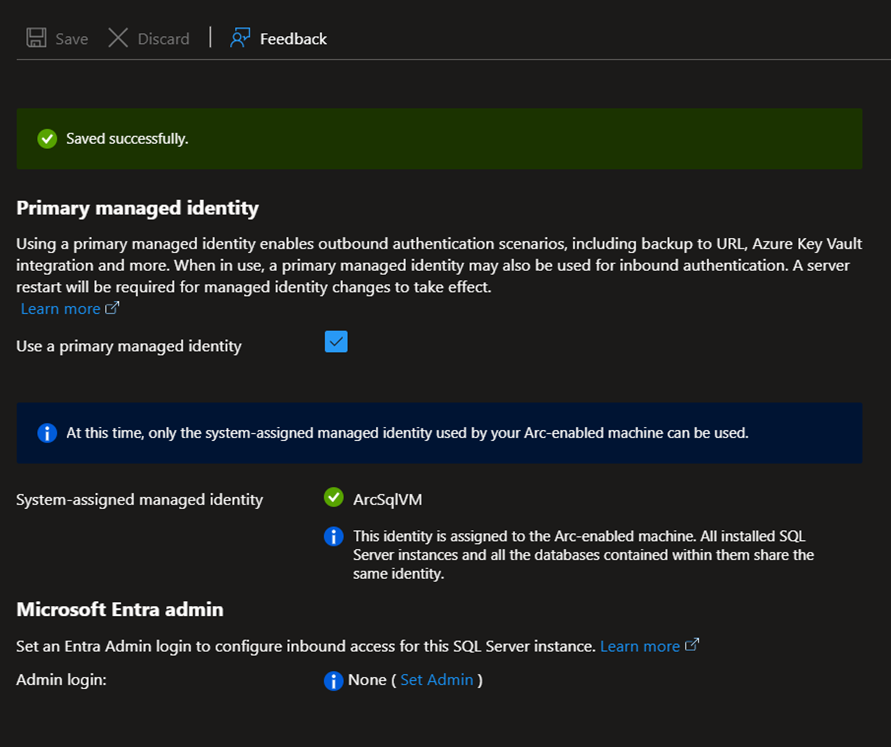

The Managed Identity can be enabled and retrieved from Azure Arc | SQL Servers > “SQL Server instance” > Settings > Microsoft Entra ID

Note: The Managed Identity is server-wide (not at the instance level)

Step 3: Assign RBAC Roles

Granting access to a Storage Account for backups

$sqlServerId = (az resource show --resource-group "MyRG" --name "ServerName" --resource-type "Microsoft.HybridCompute/machines" --query identity.principalId -o tsv)

az role assignment create --role "Storage Blob Data Contributor" `
    --assignee-object-id $sqlServerId `
    --scope "/subscriptions/xxx/resourceGroups/MyRG/providers/Microsoft.Storage/storageAccounts/mybackupaccount"

Ex:

Backup to URL Without Credential

• Before (with SAS token)

-- Create a credential with a SAS token (expires, must be rotated)
CREATE CREDENTIAL [https://mybackup.blob.core.windows.net/backups]
WITH IDENTITY = 'SHARED ACCESS SIGNATURE',
SECRET = 'sv=2022-11-02&ss=b&srt=sco&sp=rwdlacup...'


BACKUP DATABASE [MyDB]
TO URL = 'https://mybackup.blob.core.windows.net/backups/MyDB.bak'
WITH COMPRESSION

• After (with Managed Identity

--No secret anymore
CREATE CREDENTIAL [https://mybackup.blob.core.windows.net/backups]
WITH IDENTITY = 'Managed Identity'

BACKUP DATABASE [MyDB]
TO URL = 'https://mybackup.blob.core.windows.net/backups/MyDB.bak'
WITH COMPRESSION

Extensible Key Management with Key Vault

• EKM Configuration with Managed Identity

CREATE CREDENTIAL [MyAKV.vault.azure.net]
WITH IDENTITY = 'Managed Identity'
FOR CRYPTOGRAPHIC PROVIDER AzureKeyVault_EKM_Prov;

How Copilot Can Help

Infrastructure Configuration

 Walk me through setting up Azure Arc for SQL Server 2025 to use Managed Identity for backups to Azure Blob Storage
@mssql Generate the PowerShell commands to register my SQL Server with Azure Arc and configure RBAC for Key Vault access

Identify Existing Credentials to Migrate

 List all credentials in my SQL Server that use SHARED ACCESS SIGNATURE or contain secrets, so I can plan migration to Managed Identity

Migration Scripts

 I have backup jobs using SAS token credentials. Generate a migration script to convert them to use Managed Identity

Troubleshooting

 My backup WITH MANAGED_IDENTITY fails with "Authorization failed". What are the steps to diagnose RBAC permission issues?
@mssql The Azure Arc agent shows "Disconnected" status. How do I troubleshoot connectivity and re-register the server?

Audit and Compliance

 Generate a report showing all Azure resources my SQL Server's Managed Identity has access to, with their RBAC role assignments

Prerequisites and Limitations

Prerequisites

Azure Arc agent installed and connected SQL Server 2025, running on Windows

Azure Extension for SQL Server.

Current Limitations

• Failover cluster instances isn't supported.
• Disabling not recommended
• Only system-assigned managed identities are supported
• FIDO2 method not currently supported
• Azure public cloud access required

Documentation

• Overview
• Managed identity overview
• Set Up Managed Identity and Microsoft Entra Authentication for SQL Server Enabled by Azure Arc
• Set up Transparent Data Encryption (TDE) Extensible Key Management with Azure Key Vault
