Azure Synapse Studio CICD using YAML pipelines

poornamishra's avatar
poornamishra
Icon for Microsoft rankMicrosoft
Jan 07, 2022

Introduction:



In this article we are going to use YAML pipelines for doing the deployment of synapse code along with customization of input parameters which can help you create the deployment dynamic.

We will also display how to start and stop the triggers which will play important role in your synapse deployment.



Terminology related to Azure Synapse Analytics:



  • A Synapse workspace is a securable collaboration boundary for doing cloud-based enterprise analytics in Azure. A workspace is deployed in a specific region and has an associated ADLS Gen2 account and file system (for storing temporary data). A workspace is under a resource group.



  • A workspace allows you to perform analytics with SQL and Apache spark. Resources available for SQL and Spark analytics are organized into SQL and Spark pools.



Linked services

A workspace can contain any number of Linked service, essentially connection strings that define the connection information needed for the workspace to connect to external resources.



Synapse SQL

Synapse SQL is the ability to do T-SQL based analytics in Synapse workspace. Synapse SQL has two consumption models: dedicated and server less. For the dedicated model, use dedicated SQL pools. A workspace can have any number of these pools. To use the server less model, use the server less SQL pools. Every workspace has one of these pools. Inside Synapse Studio, you can work with SQL pools by running SQL scripts.



Apache Spark for Synapse

To use Spark analytics, create and use server less Apache Spark pools in your Synapse workspace. When you start using a Spark pool, the workspaces creates a spark session to handle the resources associated with that session.



Pipelines

Pipelines are how Azure Synapse provides Data Integration - allowing you to move data between services and orchestrate activities.



Source: Please refer this link to know more https://docs.microsoft.com/en-us/azure/synapse-analytics/overview-terminology



Git Integration in Synapse Workspace (Continuous Integration):

For this section you can refer to an existing tech blog from here.



Pre-requisites before Release to higher environments:



1.Make sure you have the 'Synapse Workspace Deployment' extension installed from visual studio marketplace in the organizational settings.



2.Make sure appropriate permissions are given to service connection (used for Azure DevOps Deployment Pipelines) in the Synapse Workspace as Synapse Administrator. (Refer below screenshot)





Stopping and Starting Pipeline Triggers before and after the Deployment:

  • Similar to Azure Data Factory, you need to stop the pipeline triggers before deploying synapse workspace artifact deployment and starting the triggers after the deployment is complete.
  • Note: We will be needing to install "Az.Synapse" Module in the agent because the Power-shell module is still in preview .
  • Note : We need to grant Event Grid Contributor Role access to service principal(which is used to deploy Synapse Workspace code) on Blob Storage(which has event based triggers related to it) in order to start and stop event based triggers.
  • The code will get list of triggers from the synapse workspace and stop/start each trigger using the for loop (looping through the list of triggers).
  • The following PowerShell code is used to start and stop triggers:























#starting the triggers
      - task: AzurePowerShell@5
        displayName: Stop Triggers
        inputs:
        azureSubscription: '$(azureSubscription)'
        ScriptType: 'InlineScript'
        Inline: |
          Install-Module -Name "Az.Synapse" -Confirm:$false  -Scope CurrentUser  -Force;
          $triggersSynapse = Get-AzSynapseTrigger -WorkspaceName "$(DeployWorkspaceName)" ;
          $triggersSynapse | ForEach-Object { Stop-AzSynapseTrigger -WorkspaceName "$(DeployWorkspaceName)" -Name $_.name }
          azurePowerShellVersion: 'LatestVersion'

#stopping the triggers

      - task: AzurePowerShell@5
        displayName: Restart Triggers
        inputs:
          azureSubscription: '$(azureSubscription)'
          ScriptType: 'InlineScript'
          Inline: '$triggersSynapse = Get-AzSynapseTrigger -WorkspaceName "$(DeployWorkspaceName)" ; $triggersSynapse | ForEach-Object { Start-AzSynapseTrigger -WorkspaceName "$(DeployWorkspaceName)" -Name $_.name }'
          azurePowerShellVersion: 'LatestVersion'

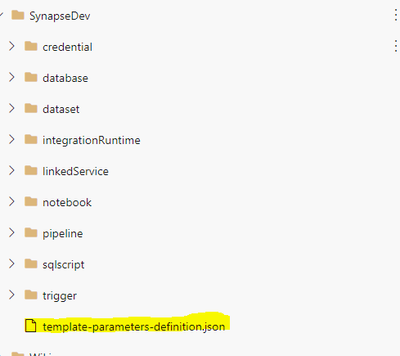

Template_parameters.json file to create custom parameters of the workspace template:



  • You need to parameterize certain values in the ARM template to override the values with the higher environment(UAT,QA,Prod) names and connection strings.
  • In order to do this, you need to override the default parameter template.
  • To override the default parameter template, you need to create a custom parameter template, a file named template-parameters-definition.json in the root folder of our git collaboration branch. You must use that exact file name.

Custom parameter syntax(Quoted from Microsoft Documentation):



Source : https://docs.microsoft.com/en-us/azure/synapse-analytics/cicd/continuous-integration-deployment#:~:text=In an Azure Synapse Analytics workspace%2C continuous integration,workspace to another workspace%2C there are two parts .

The following are some guidelines for creating the custom parameters file:

  • Enter the property path under the relevant entity type.
    Setting a property name to * indicates that you want to parameterize all properties under it (only down to the first level, not recursively). You can also provide exceptions to this configuration.
    Setting the value of a property as a string indicates that you want to parameterize the property. Use the format <action>:<name>:<stype>.
    <action> can be one of these characters:
  • "=" means keep the current value as the default value for the parameter.
  • "-" means don't keep the default value for the parameter.
  • "|" is a special case for secrets from Azure Key Vault for connection strings or keys.
  • <name> is the name of the parameter. If it's blank, it takes the name of the property. If the value starts with a - character, the name is shortened. For example, AzureStorage1_properties_typeProperties_connectionString would be shortened to AzureStorage1_connectionString.
  • <stype> is the type of parameter. If <stype> is blank, the default type is string. Supported values: string, securestring, int, bool, object, secureobject and array.
    Specifying an array in the file indicates that the matching property in the template is an array. Synapse iterates through all the objects in the array by using the definition that's specified. The second object, a string, becomes the name of the property, which is used as the name for the parameter for each iteration.
  • A definition can't be specific to a resource instance. Any definition applies to all resources of that type.
    By default, all secure strings, like Key Vault secrets, and secure strings, like connection strings, keys, and tokens, are parameterized.
  • Sample Template_parameters.json in Microsoft documentation:





















{
"Microsoft.Synapse/workspaces/notebooks": {
        "properties":{
            "bigDataPool":{
                "referenceName": "="
            }
        }
    },
    "Microsoft.Synapse/workspaces/sqlscripts": {
	 "properties": {
         "content":{
             "currentConnection":{
                    "*":"-"
                 }
            }
        }
	},
    "Microsoft.Synapse/workspaces/pipelines": {
        "properties": {
            "activities": [{
                 "typeProperties": {
                    "waitTimeInSeconds": "-::int",
                    "headers": "=::object"
                }
            }]
        }
    },
    "Microsoft.Synapse/workspaces/integrationRuntimes": {
        "properties": {
            "typeProperties": {
                "*": "="
            }
        }
    },
    "Microsoft.Synapse/workspaces/triggers": {
        "properties": {
            "typeProperties": {
                "recurrence": {
                    "*": "=",
                    "interval": "=:triggerSuffix:int",
                    "frequency": "=:-freq"
                },
                "maxConcurrency": "="
            }
        }
    },
    "Microsoft.Synapse/workspaces/linkedServices": {
        "*": {
            "properties": {
                "typeProperties": {
                     "*": "="
                }
            }
        },
        "AzureDataLakeStore": {
            "properties": {
                "typeProperties": {
                    "dataLakeStoreUri": "="
                }
            }
        }
    },
    "Microsoft.Synapse/workspaces/datasets": {
        "properties": {
            "typeProperties": {
                "*": "="
            }
        }
    }
}























Here's an explanation of how the preceding template is constructed, broken down by resource type.

  • Notebooks
    Any property in the path properties/bigDataPool/referenceName is parameterized with its default value. You can parameterize attached Spark pool for each notebook file.
  • SQL Scripts
    Properties (poolName and databaseName) in the path properties/content/currentConnection are parameterized as strings without the default values in the template.
  • Pipelines
    Any property in the path activities/typeProperties/waitTimeInSeconds is parameterized. Any activity in a pipeline that has a code-level property named waitTimeInSeconds (for example, the Wait activity) is parameterized as a number, with a default name. But it won't have a default value in the Resource Manager template. It will be a mandatory input during the Resource Manager deployment.
    Similarly, a property called headers (for example, in a Web activity) is parameterized with type object (Object). It has a default value, which is the same value as that of the source factory.
  • IntegrationRuntimes
    All properties under the path typeProperties are parameterized with their respective default values. For example, there are two properties under IntegrationRuntimes type properties: computeProperties and ssisProperties. Both property types are created with their respective default values and types (Object).

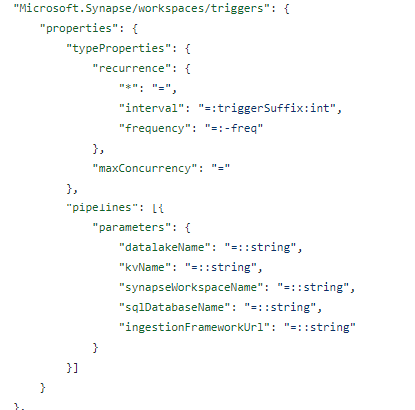

    Triggers
    Under typeProperties, two properties are parameterized. The first one is maxConcurrency, which is specified to have a default value and is of typestring. It has the default parameter name <entityName>_properties_typeProperties_maxConcurrency.
    The recurrence property also is parameterized. Under it, all properties at that level are specified to be parameterized as strings, with default values and parameter names. An exception is the interval property, which is parameterized as type int. The parameter name is suffixed with <entityName>_properties_typeProperties_recurrence_triggerSuffix. Similarly, the freq property is a string and is parameterized as a string. However, the freq property is parameterized without a default value. The name is shortened and suffixed. For example, <entityName>_freq.
  • LinkedServices
    Linked services are unique. Because linked services and datasets have a wide range of types, you can provide type-specific customization. In this example, for all linked services of type AzureDataLakeStore, a specific template will be applied. For all others (via *), a different template will be applied.
    The connectionString property will be parameterized as a securestring value. It won't have a default value. It will have a shortened parameter name that's suffixed with connectionString.
    The property secretAccessKey happens to be an AzureKeyVaultSecret (for example, in an Amazon S3 linked service). It's automatically parameterized as an Azure Key Vault secret and fetched from the configured key vault. You can also parameterize the key vault itself.
  • Datasets
    Although type-specific customization is available for datasets, you can provide configuration without explicitly having a *-level configuration. In the preceding example, all dataset properties under typeProperties are parameterized.

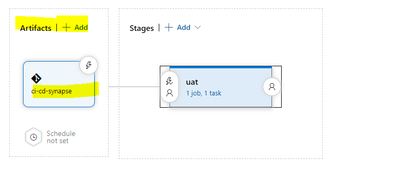

Continous Deployment(Release Pipeline) for Synapse Workspace Deployment:

  • We will be deploying Sql Scripts(Related to Dedicated SQL Pool and ServerLess), Spark Notebooks, ETL/ELT Pipelines, Pipeline Triggers, Linked Services , Datasets etc using the ARM template which will be generated after publishing the workspace artifacts from main branch to the 'workspace_publish' branch where a ARM template will be generated.

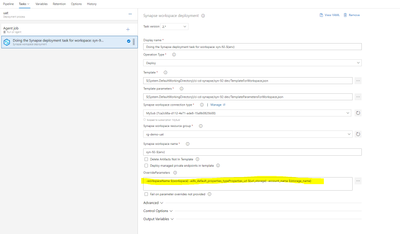

  • The following is the yaml template which uses Synapse workspace deployment task to deploy the workspace artifacts using ARM template in the workspace_publish branch.
  • We should store connection strings in the keyvault and then override those parameters for the linked services in the override parameters section(Synapse Workspace Deployment Task) and make sure the environment in the Synapse Workspace Deployment is selected as Azure Public.(Refer screenshot below)
  • Another instruction while overriding the parameters in synapse deployment task below:
    They should be overridden in the format

    -<parameter-overridden> : <value-to-be-overridden>
    -<parameter-overridden> : <value-to-be-overridden>

    CD YAML Code

    name: Release-$(rev:r)
    trigger:
      branches:
        include:
        - workspace_publish
      paths:
        include:
        - '<source workspace name>/*'
    resources:
      repositories:
      - repository: <repo name>
        type: git
        name: <repo name>
        ref: workspace_publish
    variables:
    - name: azureSubscription
      value: '<name of service connection>'
    - name: vmImageName
      value: 'windows-2019'
    - name: KeyVaultName
      value: '<Kv Name>'
    - name: SourceWorkspaceName
      value: '<Source workspace name>'
    - name: DeployWorkspaceName
      value: '<Deployment Workspace name>'
    - name: DeploymentResourceGroupName
      value: '<Deployment Workspace Name>'
    stages:
    - stage: Release
      displayName: Release stage
      jobs:
      - job: Release
        displayName: Release job
        pool:
          vmImage: $(vmImageName)
        steps:
        - task: AzureKeyVault@1
          inputs:
            azureSubscription: '$(azureSubscription)'
            KeyVaultName: $(KeyVaultName)
            SecretsFilter: '<Secrets needed to override template parameters>'

        - checkout: <repo name>

        - task: AzurePowerShell@5
          displayName: Stop Triggers
          inputs:
            azureSubscription: '$(azureSubscription)'
            ScriptType: 'InlineScript'
            Inline: "Install-Module -Name \"Az.Synapse\" -Confirm:$false  -Scope CurrentUser  -Force;\n$triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" ; \n$triggersSynapse | ForEach-Object { Stop-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" -Name $_.name }\n"
            azurePowerShellVersion: 'LatestVersion'
        - task: Synapse workspace deployment@1
          inputs:
            TemplateFile: '$(System.DefaultWorkingDirectory)/$(SourceWorkspaceName)/TemplateForWorkspace.json'
            ParametersFile: '$(System.DefaultWorkingDirectory)/$(SourceWorkspaceName)/TemplateParametersForWorkspace.json'
            azureSubscription: '$(azureSubscription)'
            ResourceGroupName: '$(DeploymentResourceGroupName)'
            TargetWorkspaceName: '$(DeployWorkspaceName)'
            DeleteArtifactsNotInTemplate: true
            OverrideArmParameters: |
              workspaceName: $(DeployWorkspaceName)
              #<parameter-overridden> : <value-to-be-overridden> there are parameters in arm template
              #<parameter-overridden> : <value-to-be-overridden>
            Environment: 'prod'
        - task: AzurePowerShell@5
          displayName: Restart Triggers
          inputs:
            azureSubscription: '$(azureSubscription)'
            ScriptType: 'InlineScript'
            Inline: '$triggersSynapse = Get-AzSynapseTrigger -WorkspaceName "$(DeployWorkspaceName)" ; $triggersSynapse | ForEach-Object { Start-AzSynapseTrigger -WorkspaceName "$(DeployWorkspaceName)" -Name $_.name }'
            azurePowerShellVersion: 'LatestVersion'

    ​





Updated Apr 06, 2022
Version 4.0

13 Comments

"}},"componentScriptGroups({\"componentId\":\"custom.widget.MicrosoftFooter\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/community/NavbarDropdownToggle\"]})":[{"__ref":"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/users/UserAvatar\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/ranks/UserRankLabel\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/tags/TagView/TagViewChip\"]})":[{"__ref":"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/users/UserRegistrationDate\"]})":[{"__ref":"CachedAsset:text:en_US-components/users/UserRegistrationDate-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/nodes/NodeAvatar\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/nodes/NodeAvatar-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/nodes/NodeDescription\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/nodes/NodeDescription-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageListMenu\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageListMenu-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/common/Pager/PagerLoadMorePreviousNextLinkable\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/common/Pager/PagerLoadMorePreviousNextLinkable-1745505307000"}],"message({\"id\":\"message:3628753\"})":{"__ref":"BlogReplyMessage:message:3628753"},"message({\"id\":\"message:3627185\"})":{"__ref":"BlogReplyMessage:message:3627185"},"message({\"id\":\"message:3625764\"})":{"__ref":"BlogReplyMessage:message:3625764"},"message({\"id\":\"message:3577348\"})":{"__ref":"BlogReplyMessage:message:3577348"},"message({\"id\":\"message:3448467\"})":{"__ref":"BlogReplyMessage:message:3448467"},"message({\"id\":\"message:3435637\"})":{"__ref":"BlogReplyMessage:message:3435637"},"message({\"id\":\"message:3434247\"})":{"__ref":"BlogReplyMessage:message:3434247"},"message({\"id\":\"message:3291204\"})":{"__ref":"BlogReplyMessage:message:3291204"},"message({\"id\":\"message:3253279\"})":{"__ref":"BlogReplyMessage:message:3253279"},"message({\"id\":\"message:3252152\"})":{"__ref":"BlogReplyMessage:message:3252152"},"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/nodes/NodeIcon\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/nodes/NodeIcon-1745505307000"}]},"Theme:customTheme1":{"__typename":"Theme","id":"customTheme1"},"User:user:-1":{"__typename":"User","id":"user:-1","uid":-1,"login":"Deleted","email":"","avatar":null,"rank":null,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":"ANONYMOUS","registrationTime":null,"confirmEmailStatus":false,"registrationAccessLevel":"VIEW","ssoRegistrationFields":[]},"ssoId":null,"profileSettings":{"__typename":"ProfileSettings","dateDisplayStyle":{"__typename":"InheritableStringSettingWithPossibleValues","key":"layout.friendly_dates_enabled","value":"false","localValue":"true","possibleValues":["true","false"]},"dateDisplayFormat":{"__typename":"InheritableStringSetting","key":"layout.format_pattern_date","value":"MMM dd yyyy","localValue":"MM-dd-yyyy"},"language":{"__typename":"InheritableStringSettingWithPossibleValues","key":"profile.language","value":"en-US","localValue":null,"possibleValues":["en-US","es-ES"]},"repliesSortOrder":{"__typename":"InheritableStringSettingWithPossibleValues","key":"config.user_replies_sort_order","value":"DEFAULT","localValue":"DEFAULT","possibleValues":["DEFAULT","LIKES","PUBLISH_TIME","REVERSE_PUBLISH_TIME"]}},"deleted":false},"CachedAsset:pages-1747038313600":{"__typename":"CachedAsset","id":"pages-1747038313600","value":[{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"BlogViewAllPostsPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId/all-posts/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"CasePortalPage","type":"CASE_PORTAL","urlPath":"/caseportal","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"CreateGroupHubPage","type":"GROUP_HUB","urlPath":"/groups/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"CaseViewPage","type":"CASE_DETAILS","urlPath":"/case/:caseId/:caseNumber","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"InboxPage","type":"COMMUNITY","urlPath":"/inbox","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"HelpFAQPage","type":"COMMUNITY","urlPath":"/help","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"IdeaMessagePage","type":"IDEA_POST","urlPath":"/idea/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"IdeaViewAllIdeasPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/all-ideas/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"LoginPage","type":"USER","urlPath":"/signin","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"BlogPostPage","type":"BLOG","urlPath":"/category/:categoryId/blogs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"UserBlogPermissions.Page","type":"COMMUNITY","urlPath":"/c/user-blog-permissions/page","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ThemeEditorPage","type":"COMMUNITY","urlPath":"/designer/themes","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TkbViewAllArticlesPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId/all-articles/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1730819800000,"localOverride":null,"page":{"id":"AllEvents","type":"CUSTOM","urlPath":"/Events","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"OccasionEditPage","type":"EVENT","urlPath":"/event/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"OAuthAuthorizationAllowPage","type":"USER","urlPath":"/auth/authorize/allow","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"PageEditorPage","type":"COMMUNITY","urlPath":"/designer/pages","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"PostPage","type":"COMMUNITY","urlPath":"/category/:categoryId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ForumBoardPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TkbBoardPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"EventPostPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"UserBadgesPage","type":"COMMUNITY","urlPath":"/users/:login/:userId/badges","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"GroupHubMembershipAction","type":"GROUP_HUB","urlPath":"/membership/join/:nodeId/:membershipType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"MaintenancePage","type":"COMMUNITY","urlPath":"/maintenance","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"IdeaReplyPage","type":"IDEA_REPLY","urlPath":"/idea/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"UserSettingsPage","type":"USER","urlPath":"/mysettings/:userSettingsTab","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"GroupHubsPage","type":"GROUP_HUB","urlPath":"/groups","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ForumPostPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"OccasionRsvpActionPage","type":"OCCASION","urlPath":"/event/:boardId/:messageSubject/:messageId/rsvp/:responseType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"VerifyUserEmailPage","type":"USER","urlPath":"/verifyemail/:userId/:verifyEmailToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"AllOccasionsPage","type":"OCCASION","urlPath":"/category/:categoryId/events/:boardId/all-events/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"EventBoardPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TkbReplyPage","type":"TKB_REPLY","urlPath":"/kb/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"IdeaBoardPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"CommunityGuideLinesPage","type":"COMMUNITY","urlPath":"/communityguidelines","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"CaseCreatePage","type":"SALESFORCE_CASE_CREATION","urlPath":"/caseportal/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TkbEditPage","type":"TKB","urlPath":"/kb/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ForgotPasswordPage","type":"USER","urlPath":"/forgotpassword","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"IdeaEditPage","type":"IDEA","urlPath":"/idea/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TagPage","type":"COMMUNITY","urlPath":"/tag/:tagName","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"BlogBoardPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"OccasionMessagePage","type":"OCCASION_TOPIC","urlPath":"/event/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ManageContentPage","type":"COMMUNITY","urlPath":"/managecontent","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ClosedMembershipNodeNonMembersPage","type":"GROUP_HUB","urlPath":"/closedgroup/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"CommunityPage","type":"COMMUNITY","urlPath":"/","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ForumMessagePage","type":"FORUM_TOPIC","urlPath":"/discussions/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"IdeaPostPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1730819800000,"localOverride":null,"page":{"id":"CommunityHub.Page","type":"CUSTOM","urlPath":"/Directory","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"BlogMessagePage","type":"BLOG_ARTICLE","urlPath":"/blog/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"RegistrationPage","type":"USER","urlPath":"/register","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"EditGroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ForumEditPage","type":"FORUM","urlPath":"/discussions/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ResetPasswordPage","type":"USER","urlPath":"/resetpassword/:userId/:resetPasswordToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1730819800000,"localOverride":null,"page":{"id":"AllBlogs.Page","type":"CUSTOM","urlPath":"/blogs","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TkbMessagePage","type":"TKB_ARTICLE","urlPath":"/kb/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"BlogEditPage","type":"BLOG","urlPath":"/blog/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ManageUsersPage","type":"USER","urlPath":"/users/manage/:tab?/:manageUsersTab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ForumReplyPage","type":"FORUM_REPLY","urlPath":"/discussions/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"PrivacyPolicyPage","type":"COMMUNITY","urlPath":"/privacypolicy","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"NotificationPage","type":"COMMUNITY","urlPath":"/notifications","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"UserPage","type":"USER","urlPath":"/users/:login/:userId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"HealthCheckPage","type":"COMMUNITY","urlPath":"/health","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"OccasionReplyPage","type":"OCCASION_REPLY","urlPath":"/event/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ManageMembersPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/manage/:tab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"SearchResultsPage","type":"COMMUNITY","urlPath":"/search","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"BlogReplyPage","type":"BLOG_REPLY","urlPath":"/blog/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"GroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TermsOfServicePage","type":"COMMUNITY","urlPath":"/termsofservice","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"CategoryPage","type":"CATEGORY","urlPath":"/category/:categoryId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"ForumViewAllTopicsPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/all-topics/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"TkbPostPage","type":"TKB","urlPath":"/category/:categoryId/kbs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1747038313600,"localOverride":null,"page":{"id":"GroupHubPostPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"}],"localOverride":false},"CachedAsset:text:en_US-components/context/AppContext/AppContextProvider-0":{"__typename":"CachedAsset","id":"text:en_US-components/context/AppContext/AppContextProvider-0","value":{"noCommunity":"Cannot find community","noUser":"Cannot find current user","noNode":"Cannot find node with id {nodeId}","noMessage":"Cannot find message with id {messageId}","userBanned":"We're sorry, but you have been banned from using this site.","userBannedReason":"You have been banned for the following reason: {reason}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-0":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-0","value":{"title":"Loading..."},"localOverride":false},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/cmstNC05WEo0blc\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/cmstNC05WEo0blc","height":512,"width":512,"mimeType":"image/png"},"Rank:rank:4":{"__typename":"Rank","id":"rank:4","position":6,"name":"Microsoft","color":"333333","icon":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/cmstNC05WEo0blc\"}"},"rankStyle":"OUTLINE"},"User:user:890726":{"__typename":"User","id":"user:890726","uid":890726,"login":"poornamishra","deleted":false,"avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/m_assets/avatars/default/avatar-6.svg?time=0"},"rank":{"__ref":"Rank:rank:4"},"email":"","messagesCount":2,"biography":null,"topicsCount":2,"kudosReceivedCount":4,"kudosGivenCount":0,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2020-12-03T22:15:45.961-08:00","confirmEmailStatus":null},"followersCount":null,"solutionsCount":0},"Category:category:AzureDatabases":{"__typename":"Category","id":"category:AzureDatabases","entityType":"CATEGORY","displayId":"AzureDatabases","nodeType":"category","depth":3,"title":"Azure Data","shortTitle":"Azure Data","parent":{"__ref":"Category:category:products-services"}},"Category:category:top":{"__typename":"Category","id":"category:top","entityType":"CATEGORY","displayId":"top","nodeType":"category","depth":0,"title":"Top","shortTitle":"Top"},"Category:category:communities":{"__typename":"Category","id":"category:communities","entityType":"CATEGORY","displayId":"communities","nodeType":"category","depth":1,"parent":{"__ref":"Category:category:top"},"title":"Communities","shortTitle":"Communities"},"Category:category:products-services":{"__typename":"Category","id":"category:products-services","entityType":"CATEGORY","displayId":"products-services","nodeType":"category","depth":2,"parent":{"__ref":"Category:category:communities"},"title":"Products","shortTitle":"Products"},"Blog:board:AzureSynapseAnalyticsBlog":{"__typename":"Blog","id":"board:AzureSynapseAnalyticsBlog","entityType":"BLOG","displayId":"AzureSynapseAnalyticsBlog","nodeType":"board","depth":4,"conversationStyle":"BLOG","repliesProperties":{"__typename":"RepliesProperties","sortOrder":"REVERSE_PUBLISH_TIME","repliesFormat":"threaded"},"tagProperties":{"__typename":"TagNodeProperties","tagsEnabled":{"__typename":"PolicyResult","failureReason":null}},"requireTags":true,"tagType":"PRESET_ONLY","description":"","title":"Azure Synapse Analytics Blog","shortTitle":"Azure Synapse Analytics Blog","parent":{"__ref":"Category:category:AzureDatabases"},"ancestors":{"__typename":"CoreNodeConnection","edges":[{"__typename":"CoreNodeEdge","node":{"__ref":"Community:community:gxcuf89792"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:communities"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:products-services"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:AzureDatabases"}}]},"userContext":{"__typename":"NodeUserContext","canAddAttachments":false,"canUpdateNode":false,"canPostMessages":false,"isSubscribed":false},"theme":{"__ref":"Theme:customTheme1"},"boardPolicies":{"__typename":"BoardPolicies","canViewSpamDashBoard":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.access_spam_quarantine.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.access_spam_quarantine.allowed.accessDenied","args":[]}},"canArchiveMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.content_archivals.enable_content_archival_settings.accessDenied","key":"error.lithium.policies.content_archivals.enable_content_archival_settings.accessDenied","args":[]}},"canPublishArticleOnCreate":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","key":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","args":[]}}},"eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/"},"BlogTopicMessage:message:3045553":{"__typename":"BlogTopicMessage","uid":3045553,"subject":"Azure Synapse Studio CICD using YAML pipelines","id":"message:3045553","revisionNum":13,"repliesCount":13,"author":{"__ref":"User:user:890726"},"depth":0,"hasGivenKudo":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"conversation":{"__ref":"Conversation:conversation:3045553"},"messagePolicies":{"__typename":"MessagePolicies","canPublishArticleOnEdit":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.forums.policy_can_publish_on_edit_workflow_action.accessDenied","key":"error.lithium.policies.forums.policy_can_publish_on_edit_workflow_action.accessDenied","args":[]}},"canModerateSpamMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","args":[]}}},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false},"shortScheduledTimezone":null},"readOnly":false,"editFrozen":false,"moderationData":{"__ref":"ModerationData:moderation_data:3045553"},"teaser":"

Azure Synapse Studio CICD using YAML pipelines

\n

\n



","body":"

Introduction:

\n



\n

In this article we are going to use YAML pipelines for doing the deployment of synapse code along with customization of input parameters which can help you create the deployment dynamic.

\n

We will also display how to start and stop the triggers which will play important role in your synapse deployment.

\n



\n

Terminology related to Azure Synapse Analytics:

\n



\n\n



\n\n



\n

Linked services

\n

A workspace can contain any number of Linked service, essentially connection strings that define the connection information needed for the workspace to connect to external resources.

\n



\n

Synapse SQL

\n

Synapse SQL is the ability to do T-SQL based analytics in Synapse workspace. Synapse SQL has two consumption models: dedicated and server less. For the dedicated model, use dedicated SQL pools. A workspace can have any number of these pools. To use the server less model, use the server less SQL pools. Every workspace has one of these pools. Inside Synapse Studio, you can work with SQL pools by running SQL scripts.

\n



\n

Apache Spark for Synapse

\n

To use Spark analytics, create and use server less Apache Spark pools in your Synapse workspace. When you start using a Spark pool, the workspaces creates a spark session to handle the resources associated with that session.

\n



\n

Pipelines

\n

Pipelines are how Azure Synapse provides Data Integration - allowing you to move data between services and orchestrate activities.

\n



\n

Source: Please refer this link to know more https://docs.microsoft.com/en-us/azure/synapse-analytics/overview-terminology

\n



\n

Git Integration in Synapse Workspace (Continuous Integration):

\n

For this section you can refer to an existing tech blog from here.

\n



\n

Pre-requisites before Release to higher environments:

\n



\n

1.Make sure you have the 'Synapse Workspace Deployment' extension installed from visual studio marketplace in the organizational settings.

\n

\n



\n

2.Make sure appropriate permissions are given to service connection (used for Azure DevOps Deployment Pipelines) in the Synapse Workspace as Synapse Administrator. (Refer below screenshot)

\n

\n



\n



\n

Stopping and Starting Pipeline Triggers before and after the Deployment:

\n\n\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n
#starting the triggers\n      - task: AzurePowerShell@5\n        displayName: Stop Triggers\n        inputs:\n        azureSubscription: '$(azureSubscription)'\n        ScriptType: 'InlineScript'\n        Inline: |\n          Install-Module -Name \"Az.Synapse\" -Confirm:$false  -Scope CurrentUser  -Force;\n          $triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" ; \n          $triggersSynapse | ForEach-Object { Stop-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" -Name $_.name }\n          azurePowerShellVersion: 'LatestVersion'\n\n#stopping the triggers\n\n      - task: AzurePowerShell@5\n        displayName: Restart Triggers\n        inputs:\n          azureSubscription: '$(azureSubscription)'\n          ScriptType: 'InlineScript'\n          Inline: '$triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" ; $triggersSynapse | ForEach-Object { Start-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" -Name $_.name }'\n          azurePowerShellVersion: 'LatestVersion'\n
\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n

Template_parameters.json file to create custom parameters of the workspace template:

\n



\n\n

Custom parameter syntax(Quoted from Microsoft Documentation):

\n



\n

Source : https://docs.microsoft.com/en-us/azure/synapse-analytics/cicd/continuous-integration-deployment#:~:text=In an Azure Synapse Analytics workspace%2C continuous integration,workspace to another workspace%2C there are two parts .

\n

The following are some guidelines for creating the custom parameters file:

\n\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n
{\n\"Microsoft.Synapse/workspaces/notebooks\": {\n        \"properties\":{\n            \"bigDataPool\":{\n                \"referenceName\": \"=\"\n            }\n        }\n    },\n    \"Microsoft.Synapse/workspaces/sqlscripts\": {\n\t \"properties\": {\n         \"content\":{\n             \"currentConnection\":{\n                    \"*\":\"-\"\n                 }\n            } \n        }\n\t},\n    \"Microsoft.Synapse/workspaces/pipelines\": {\n        \"properties\": {\n            \"activities\": [{\n                 \"typeProperties\": {\n                    \"waitTimeInSeconds\": \"-::int\",\n                    \"headers\": \"=::object\"\n                }\n            }]\n        }\n    },\n    \"Microsoft.Synapse/workspaces/integrationRuntimes\": {\n        \"properties\": {\n            \"typeProperties\": {\n                \"*\": \"=\"\n            }\n        }\n    },\n    \"Microsoft.Synapse/workspaces/triggers\": {\n        \"properties\": {\n            \"typeProperties\": {\n                \"recurrence\": {\n                    \"*\": \"=\",\n                    \"interval\": \"=:triggerSuffix:int\",\n                    \"frequency\": \"=:-freq\"\n                },\n                \"maxConcurrency\": \"=\"\n            }\n        }\n    },\n    \"Microsoft.Synapse/workspaces/linkedServices\": {\n        \"*\": {\n            \"properties\": {\n                \"typeProperties\": {\n                     \"*\": \"=\"\n                }\n            }\n        },\n        \"AzureDataLakeStore\": {\n            \"properties\": {\n                \"typeProperties\": {\n                    \"dataLakeStoreUri\": \"=\"\n                }\n            }\n        }\n    },\n    \"Microsoft.Synapse/workspaces/datasets\": {\n        \"properties\": {\n            \"typeProperties\": {\n                \"*\": \"=\"\n            }\n        }\n    }\n}
\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n

Here's an explanation of how the preceding template is constructed, broken down by resource type.

\n\n\n\n\n\n\n



\n

Continous Deployment(Release Pipeline) for Synapse Workspace Deployment:

\n\n



\n



","body@stringLength":"19812","rawBody":"

Introduction:

\n



\n

In this article we are going to use YAML pipelines for doing the deployment of synapse code along with customization of input parameters which can help you create the deployment dynamic.

\n

We will also display how to start and stop the triggers which will play important role in your synapse deployment.

\n



\n

Terminology related to Azure Synapse Analytics:

\n



\n\n



\n\n



\n

Linked services

\n

A workspace can contain any number of Linked service, essentially connection strings that define the connection information needed for the workspace to connect to external resources.

\n



\n

Synapse SQL

\n

Synapse SQL is the ability to do T-SQL based analytics in Synapse workspace. Synapse SQL has two consumption models: dedicated and server less. For the dedicated model, use dedicated SQL pools. A workspace can have any number of these pools. To use the server less model, use the server less SQL pools. Every workspace has one of these pools. Inside Synapse Studio, you can work with SQL pools by running SQL scripts.

\n



\n

Apache Spark for Synapse

\n

To use Spark analytics, create and use server less Apache Spark pools in your Synapse workspace. When you start using a Spark pool, the workspaces creates a spark session to handle the resources associated with that session.

\n



\n

Pipelines

\n

Pipelines are how Azure Synapse provides Data Integration - allowing you to move data between services and orchestrate activities.

\n



\n

Source: Please refer this link to know more https://docs.microsoft.com/en-us/azure/synapse-analytics/overview-terminology

\n



\n

Git Integration in Synapse Workspace (Continuous Integration):

\n

For this section you can refer to an existing tech blog from here.

\n



\n

Pre-requisites before Release to higher environments:

\n



\n

1.Make sure you have the 'Synapse Workspace Deployment' extension installed from visual studio marketplace in the organizational settings.

\n

\n



\n

2.Make sure appropriate permissions are given to service connection (used for Azure DevOps Deployment Pipelines) in the Synapse Workspace as Synapse Administrator. (Refer below screenshot)

\n

\n



\n



\n

Stopping and Starting Pipeline Triggers before and after the Deployment:

\n\n\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n#starting the triggers\n - task: AzurePowerShell@5\n displayName: Stop Triggers\n inputs:\n azureSubscription: '$(azureSubscription)'\n ScriptType: 'InlineScript'\n Inline: |\n Install-Module -Name \"Az.Synapse\" -Confirm:$false -Scope CurrentUser -Force;\n $triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" ; \n $triggersSynapse | ForEach-Object { Stop-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" -Name $_.name }\n azurePowerShellVersion: 'LatestVersion'\n\n#stopping the triggers\n\n - task: AzurePowerShell@5\n displayName: Restart Triggers\n inputs:\n azureSubscription: '$(azureSubscription)'\n ScriptType: 'InlineScript'\n Inline: '$triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" ; $triggersSynapse | ForEach-Object { Start-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" -Name $_.name }'\n azurePowerShellVersion: 'LatestVersion'\n\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n

Template_parameters.json file to create custom parameters of the workspace template:

\n



\n\n

Custom parameter syntax(Quoted from Microsoft Documentation):

\n



\n

Source : https://docs.microsoft.com/en-us/azure/synapse-analytics/cicd/continuous-integration-deployment#:~:text=In an Azure Synapse Analytics workspace%2C continuous integration,workspace to another workspace%2C there are two parts .

\n

The following are some guidelines for creating the custom parameters file:

\n\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n{\n\"Microsoft.Synapse/workspaces/notebooks\": {\n \"properties\":{\n \"bigDataPool\":{\n \"referenceName\": \"=\"\n }\n }\n },\n \"Microsoft.Synapse/workspaces/sqlscripts\": {\n\t \"properties\": {\n \"content\":{\n \"currentConnection\":{\n \"*\":\"-\"\n }\n } \n }\n\t},\n \"Microsoft.Synapse/workspaces/pipelines\": {\n \"properties\": {\n \"activities\": [{\n \"typeProperties\": {\n \"waitTimeInSeconds\": \"-::int\",\n \"headers\": \"=::object\"\n }\n }]\n }\n },\n \"Microsoft.Synapse/workspaces/integrationRuntimes\": {\n \"properties\": {\n \"typeProperties\": {\n \"*\": \"=\"\n }\n }\n },\n \"Microsoft.Synapse/workspaces/triggers\": {\n \"properties\": {\n \"typeProperties\": {\n \"recurrence\": {\n \"*\": \"=\",\n \"interval\": \"=:triggerSuffix:int\",\n \"frequency\": \"=:-freq\"\n },\n \"maxConcurrency\": \"=\"\n }\n }\n },\n \"Microsoft.Synapse/workspaces/linkedServices\": {\n \"*\": {\n \"properties\": {\n \"typeProperties\": {\n \"*\": \"=\"\n }\n }\n },\n \"AzureDataLakeStore\": {\n \"properties\": {\n \"typeProperties\": {\n \"dataLakeStoreUri\": \"=\"\n }\n }\n }\n },\n \"Microsoft.Synapse/workspaces/datasets\": {\n \"properties\": {\n \"typeProperties\": {\n \"*\": \"=\"\n }\n }\n }\n}\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n



\n

Here's an explanation of how the preceding template is constructed, broken down by resource type.

\n\n\n\n\n\n\n



\n

Continous Deployment(Release Pipeline) for Synapse Workspace Deployment:

\n\n



\n



","kudosSumWeight":4,"postTime":"2022-01-07T11:05:00.046-08:00","images":{"__typename":"AssociatedImageConnection","edges":[{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0M2k2QUVEREVFMEQ0ODRERTlC?revision=13\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDI","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0MWkwOTgwM0FCRjcxNjg1NjlE?revision=13\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDM","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0Mmk3RTFFNDFBMzU0MTREOTQ0?revision=13\"}"}}],"totalCount":3,"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"attachments":{"__typename":"AttachmentConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"tags":{"__typename":"TagConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDE","node":{"__typename":"Tag","id":"tag:Synapse SQL","text":"Synapse SQL","time":"2020-04-20T10:18:22.421-07:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}}]},"timeToRead":8,"rawTeaser":"

Azure Synapse Studio CICD using YAML pipelines

\n

\n



","introduction":"","coverImage":null,"coverImageProperties":{"__typename":"CoverImageProperties","style":"STANDARD","titlePosition":"BOTTOM","altText":""},"currentRevision":{"__ref":"Revision:revision:3045553_13"},"latestVersion":{"__typename":"FriendlyVersion","major":"4","minor":"0"},"metrics":{"__typename":"MessageMetrics","views":26732},"visibilityScope":"PUBLIC","canonicalUrl":null,"seoTitle":null,"seoDescription":null,"placeholder":false,"originalMessageForPlaceholder":null,"contributors":{"__typename":"UserConnection","edges":[]},"nonCoAuthorContributors":{"__typename":"UserConnection","edges":[]},"coAuthors":{"__typename":"UserConnection","edges":[]},"blogMessagePolicies":{"__typename":"BlogMessagePolicies","canDoAuthoringActionsOnBlog":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.blog.action_can_do_authoring_action.accessDenied","key":"error.lithium.policies.blog.action_can_do_authoring_action.accessDenied","args":[]}}},"archivalData":null,"replies":{"__typename":"MessageConnection","edges":[{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzNjI4NzUz","node":{"__ref":"BlogReplyMessage:message:3628753"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzNjI3MTg1","node":{"__ref":"BlogReplyMessage:message:3627185"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzNjI1NzY0","node":{"__ref":"BlogReplyMessage:message:3625764"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzNTc3MzQ4","node":{"__ref":"BlogReplyMessage:message:3577348"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzNDQ4NDY3","node":{"__ref":"BlogReplyMessage:message:3448467"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzNDM1NjM3","node":{"__ref":"BlogReplyMessage:message:3435637"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzNDM0MjQ3","node":{"__ref":"BlogReplyMessage:message:3434247"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzMjkxMjA0","node":{"__ref":"BlogReplyMessage:message:3291204"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzMjUzMjc5","node":{"__ref":"BlogReplyMessage:message:3253279"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzMjUyMTUy","node":{"__ref":"BlogReplyMessage:message:3252152"}}],"pageInfo":{"__typename":"PageInfo","hasNextPage":true,"endCursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzYyODc1MywzMjUyMTUy","hasPreviousPage":false,"startCursor":null}},"customFields":[],"revisions({\"constraints\":{\"isPublished\":{\"eq\":true}},\"first\":1})":{"__typename":"RevisionConnection","totalCount":13}},"Conversation:conversation:3045553":{"__typename":"Conversation","id":"conversation:3045553","solved":false,"topic":{"__ref":"BlogTopicMessage:message:3045553"},"lastPostingActivityTime":"2022-09-15T13:43:23.103-07:00","lastPostTime":"2022-09-15T13:43:23.103-07:00","unreadReplyCount":13,"isSubscribed":false},"ModerationData:moderation_data:3045553":{"__typename":"ModerationData","id":"moderation_data:3045553","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0M2k2QUVEREVFMEQ0ODRERTlC?revision=13\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0M2k2QUVEREVFMEQ0ODRERTlC?revision=13","title":"poornamishra_0-1640352204867.png","associationType":"TEASER","width":940,"height":290,"altText":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0MWkwOTgwM0FCRjcxNjg1NjlE?revision=13\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0MWkwOTgwM0FCRjcxNjg1NjlE?revision=13","title":"poornamishra_0-1640352122548.png","associationType":"BODY","width":527,"height":358,"altText":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0Mmk3RTFFNDFBMzU0MTREOTQ0?revision=13\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zMDQ1NTUzLTMzNTg0Mmk3RTFFNDFBMzU0MTREOTQ0?revision=13","title":"poornamishra_1-1640352122558.png","associationType":"BODY","width":1523,"height":341,"altText":null},"Revision:revision:3045553_13":{"__typename":"Revision","id":"revision:3045553_13","lastEditTime":"2022-04-06T15:14:38.907-07:00"},"CachedAsset:theme:customTheme1-1747038313024":{"__typename":"CachedAsset","id":"theme:customTheme1-1747038313024","value":{"id":"customTheme1","animation":{"fast":"150ms","normal":"250ms","slow":"500ms","slowest":"750ms","function":"cubic-bezier(0.07, 0.91, 0.51, 1)","__typename":"AnimationThemeSettings"},"avatar":{"borderRadius":"50%","collections":["default"],"__typename":"AvatarThemeSettings"},"basics":{"browserIcon":{"imageAssetName":"favicon-1730836283320.png","imageLastModified":"1730836286415","__typename":"ThemeAsset"},"customerLogo":{"imageAssetName":"favicon-1730836271365.png","imageLastModified":"1730836274203","__typename":"ThemeAsset"},"maximumWidthOfPageContent":"1300px","oneColumnNarrowWidth":"800px","gridGutterWidthMd":"30px","gridGutterWidthXs":"10px","pageWidthStyle":"WIDTH_OF_BROWSER","__typename":"BasicsThemeSettings"},"buttons":{"borderRadiusSm":"3px","borderRadius":"3px","borderRadiusLg":"5px","paddingY":"5px","paddingYLg":"7px","paddingYHero":"var(--lia-bs-btn-padding-y-lg)","paddingX":"12px","paddingXLg":"16px","paddingXHero":"60px","fontStyle":"NORMAL","fontWeight":"700","textTransform":"NONE","disabledOpacity":0.5,"primaryTextColor":"var(--lia-bs-white)","primaryTextHoverColor":"var(--lia-bs-white)","primaryTextActiveColor":"var(--lia-bs-white)","primaryBgColor":"var(--lia-bs-primary)","primaryBgHoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.85))","primaryBgActiveColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.7))","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","primaryBorderActive":"1px solid transparent","primaryBorderFocus":"1px solid var(--lia-bs-white)","primaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","secondaryTextColor":"var(--lia-bs-gray-900)","secondaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","secondaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","secondaryBgColor":"var(--lia-bs-gray-200)","secondaryBgHoverColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.96))","secondaryBgActiveColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.92))","secondaryBorder":"1px solid transparent","secondaryBorderHover":"1px solid transparent","secondaryBorderActive":"1px solid transparent","secondaryBorderFocus":"1px solid transparent","secondaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","tertiaryTextColor":"var(--lia-bs-gray-900)","tertiaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","tertiaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","tertiaryBgColor":"transparent","tertiaryBgHoverColor":"transparent","tertiaryBgActiveColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.04)","tertiaryBorder":"1px solid transparent","tertiaryBorderHover":"1px solid hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","tertiaryBorderActive":"1px solid transparent","tertiaryBorderFocus":"1px solid transparent","tertiaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","destructiveTextColor":"var(--lia-bs-danger)","destructiveTextHoverColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.95))","destructiveTextActiveColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.9))","destructiveBgColor":"var(--lia-bs-gray-200)","destructiveBgHoverColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.96))","destructiveBgActiveColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.92))","destructiveBorder":"1px solid transparent","destructiveBorderHover":"1px solid transparent","destructiveBorderActive":"1px solid transparent","destructiveBorderFocus":"1px solid transparent","destructiveBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","__typename":"ButtonsThemeSettings"},"border":{"color":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","mainContent":"NONE","sideContent":"LIGHT","radiusSm":"3px","radius":"5px","radiusLg":"9px","radius50":"100vw","__typename":"BorderThemeSettings"},"boxShadow":{"xs":"0 0 0 1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.08), 0 3px 0 -1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.16)","sm":"0 2px 4px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.12)","md":"0 5px 15px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.3)","lg":"0 10px 30px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.3)","__typename":"BoxShadowThemeSettings"},"cards":{"bgColor":"var(--lia-panel-bg-color)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":"var(--lia-box-shadow-xs)","__typename":"CardsThemeSettings"},"chip":{"maxWidth":"300px","height":"30px","__typename":"ChipThemeSettings"},"coreTypes":{"defaultMessageLinkColor":"var(--lia-bs-link-color)","defaultMessageLinkDecoration":"none","defaultMessageLinkFontStyle":"NORMAL","defaultMessageLinkFontWeight":"400","defaultMessageFontStyle":"NORMAL","defaultMessageFontWeight":"400","defaultMessageFontFamily":"var(--lia-bs-font-family-base)","forumColor":"#4099E2","forumFontFamily":"var(--lia-bs-font-family-base)","forumFontWeight":"var(--lia-default-message-font-weight)","forumLineHeight":"var(--lia-bs-line-height-base)","forumFontStyle":"var(--lia-default-message-font-style)","forumMessageLinkColor":"var(--lia-default-message-link-color)","forumMessageLinkDecoration":"var(--lia-default-message-link-decoration)","forumMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","forumMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","forumSolvedColor":"#148563","blogColor":"#1CBAA0","blogFontFamily":"var(--lia-bs-font-family-base)","blogFontWeight":"var(--lia-default-message-font-weight)","blogLineHeight":"1.75","blogFontStyle":"var(--lia-default-message-font-style)","blogMessageLinkColor":"var(--lia-default-message-link-color)","blogMessageLinkDecoration":"var(--lia-default-message-link-decoration)","blogMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","blogMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","tkbColor":"#4C6B90","tkbFontFamily":"var(--lia-bs-font-family-base)","tkbFontWeight":"var(--lia-default-message-font-weight)","tkbLineHeight":"1.75","tkbFontStyle":"var(--lia-default-message-font-style)","tkbMessageLinkColor":"var(--lia-default-message-link-color)","tkbMessageLinkDecoration":"var(--lia-default-message-link-decoration)","tkbMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","tkbMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaColor":"#4099E2","qandaFontFamily":"var(--lia-bs-font-family-base)","qandaFontWeight":"var(--lia-default-message-font-weight)","qandaLineHeight":"var(--lia-bs-line-height-base)","qandaFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkColor":"var(--lia-default-message-link-color)","qandaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","qandaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaSolvedColor":"#3FA023","ideaColor":"#FF8000","ideaFontFamily":"var(--lia-bs-font-family-base)","ideaFontWeight":"var(--lia-default-message-font-weight)","ideaLineHeight":"var(--lia-bs-line-height-base)","ideaFontStyle":"var(--lia-default-message-font-style)","ideaMessageLinkColor":"var(--lia-default-message-link-color)","ideaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","ideaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","ideaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","contestColor":"#FCC845","contestFontFamily":"var(--lia-bs-font-family-base)","contestFontWeight":"var(--lia-default-message-font-weight)","contestLineHeight":"var(--lia-bs-line-height-base)","contestFontStyle":"var(--lia-default-message-link-font-style)","contestMessageLinkColor":"var(--lia-default-message-link-color)","contestMessageLinkDecoration":"var(--lia-default-message-link-decoration)","contestMessageLinkFontStyle":"ITALIC","contestMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","occasionColor":"#D13A1F","occasionFontFamily":"var(--lia-bs-font-family-base)","occasionFontWeight":"var(--lia-default-message-font-weight)","occasionLineHeight":"var(--lia-bs-line-height-base)","occasionFontStyle":"var(--lia-default-message-font-style)","occasionMessageLinkColor":"var(--lia-default-message-link-color)","occasionMessageLinkDecoration":"var(--lia-default-message-link-decoration)","occasionMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","occasionMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","grouphubColor":"#333333","categoryColor":"#949494","communityColor":"#FFFFFF","productColor":"#949494","__typename":"CoreTypesThemeSettings"},"colors":{"black":"#000000","white":"#FFFFFF","gray100":"#F7F7F7","gray200":"#F7F7F7","gray300":"#E8E8E8","gray400":"#D9D9D9","gray500":"#CCCCCC","gray600":"#717171","gray700":"#707070","gray800":"#545454","gray900":"#333333","dark":"#545454","light":"#F7F7F7","primary":"#0069D4","secondary":"#333333","bodyText":"#1E1E1E","bodyBg":"#FFFFFF","info":"#409AE2","success":"#41C5AE","warning":"#FCC844","danger":"#BC341B","alertSystem":"#FF6600","textMuted":"#707070","highlight":"#FFFCAD","outline":"var(--lia-bs-primary)","custom":["#D3F5A4","#243A5E"],"__typename":"ColorsThemeSettings"},"divider":{"size":"3px","marginLeft":"4px","marginRight":"4px","borderRadius":"50%","bgColor":"var(--lia-bs-gray-600)","bgColorActive":"var(--lia-bs-gray-600)","__typename":"DividerThemeSettings"},"dropdown":{"fontSize":"var(--lia-bs-font-size-sm)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius-sm)","dividerBg":"var(--lia-bs-gray-300)","itemPaddingY":"5px","itemPaddingX":"20px","headerColor":"var(--lia-bs-gray-700)","__typename":"DropdownThemeSettings"},"email":{"link":{"color":"#0069D4","hoverColor":"#0061c2","decoration":"none","hoverDecoration":"underline","__typename":"EmailLinkSettings"},"border":{"color":"#e4e4e4","__typename":"EmailBorderSettings"},"buttons":{"borderRadiusLg":"5px","paddingXLg":"16px","paddingYLg":"7px","fontWeight":"700","primaryTextColor":"#ffffff","primaryTextHoverColor":"#ffffff","primaryBgColor":"#0069D4","primaryBgHoverColor":"#005cb8","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","__typename":"EmailButtonsSettings"},"panel":{"borderRadius":"5px","borderColor":"#e4e4e4","__typename":"EmailPanelSettings"},"__typename":"EmailThemeSettings"},"emoji":{"skinToneDefault":"#ffcd43","skinToneLight":"#fae3c5","skinToneMediumLight":"#e2cfa5","skinToneMedium":"#daa478","skinToneMediumDark":"#a78058","skinToneDark":"#5e4d43","__typename":"EmojiThemeSettings"},"heading":{"color":"var(--lia-bs-body-color)","fontFamily":"Segoe UI","fontStyle":"NORMAL","fontWeight":"400","h1FontSize":"34px","h2FontSize":"32px","h3FontSize":"28px","h4FontSize":"24px","h5FontSize":"20px","h6FontSize":"16px","lineHeight":"1.3","subHeaderFontSize":"11px","subHeaderFontWeight":"500","h1LetterSpacing":"normal","h2LetterSpacing":"normal","h3LetterSpacing":"normal","h4LetterSpacing":"normal","h5LetterSpacing":"normal","h6LetterSpacing":"normal","subHeaderLetterSpacing":"2px","h1FontWeight":"var(--lia-bs-headings-font-weight)","h2FontWeight":"var(--lia-bs-headings-font-weight)","h3FontWeight":"var(--lia-bs-headings-font-weight)","h4FontWeight":"var(--lia-bs-headings-font-weight)","h5FontWeight":"var(--lia-bs-headings-font-weight)","h6FontWeight":"var(--lia-bs-headings-font-weight)","__typename":"HeadingThemeSettings"},"icons":{"size10":"10px","size12":"12px","size14":"14px","size16":"16px","size20":"20px","size24":"24px","size30":"30px","size40":"40px","size50":"50px","size60":"60px","size80":"80px","size120":"120px","size160":"160px","__typename":"IconsThemeSettings"},"imagePreview":{"bgColor":"var(--lia-bs-gray-900)","titleColor":"var(--lia-bs-white)","controlColor":"var(--lia-bs-white)","controlBgColor":"var(--lia-bs-gray-800)","__typename":"ImagePreviewThemeSettings"},"input":{"borderColor":"var(--lia-bs-gray-600)","disabledColor":"var(--lia-bs-gray-600)","focusBorderColor":"var(--lia-bs-primary)","labelMarginBottom":"10px","btnFontSize":"var(--lia-bs-font-size-sm)","focusBoxShadow":"0 0 0 3px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","checkLabelMarginBottom":"2px","checkboxBorderRadius":"3px","borderRadiusSm":"var(--lia-bs-border-radius-sm)","borderRadius":"var(--lia-bs-border-radius)","borderRadiusLg":"var(--lia-bs-border-radius-lg)","formTextMarginTop":"4px","textAreaBorderRadius":"var(--lia-bs-border-radius)","activeFillColor":"var(--lia-bs-primary)","__typename":"InputThemeSettings"},"loading":{"dotDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.2)","dotLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.5)","barDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.06)","barLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.4)","__typename":"LoadingThemeSettings"},"link":{"color":"var(--lia-bs-primary)","hoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) - 10%))","decoration":"none","hoverDecoration":"underline","__typename":"LinkThemeSettings"},"listGroup":{"itemPaddingY":"15px","itemPaddingX":"15px","borderColor":"var(--lia-bs-gray-300)","__typename":"ListGroupThemeSettings"},"modal":{"contentTextColor":"var(--lia-bs-body-color)","contentBg":"var(--lia-bs-white)","backgroundBg":"var(--lia-bs-black)","smSize":"440px","mdSize":"760px","lgSize":"1080px","backdropOpacity":0.3,"contentBoxShadowXs":"var(--lia-bs-box-shadow-sm)","contentBoxShadow":"var(--lia-bs-box-shadow)","headerFontWeight":"700","__typename":"ModalThemeSettings"},"navbar":{"position":"FIXED","background":{"attachment":null,"clip":null,"color":"var(--lia-bs-white)","imageAssetName":"","imageLastModified":"0","origin":null,"position":"CENTER_CENTER","repeat":"NO_REPEAT","size":"COVER","__typename":"BackgroundProps"},"backgroundOpacity":0.8,"paddingTop":"15px","paddingBottom":"15px","borderBottom":"1px solid var(--lia-bs-border-color)","boxShadow":"var(--lia-bs-box-shadow-sm)","brandMarginRight":"30px","brandMarginRightSm":"10px","brandLogoHeight":"30px","linkGap":"10px","linkJustifyContent":"flex-start","linkPaddingY":"5px","linkPaddingX":"10px","linkDropdownPaddingY":"9px","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkColor":"var(--lia-bs-body-color)","linkHoverColor":"var(--lia-bs-primary)","linkFontSize":"var(--lia-bs-font-size-sm)","linkFontStyle":"NORMAL","linkFontWeight":"400","linkTextTransform":"NONE","linkLetterSpacing":"normal","linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkBgColor":"transparent","linkBgHoverColor":"transparent","linkBorder":"none","linkBorderHover":"none","linkBoxShadow":"none","linkBoxShadowHover":"none","linkTextBorderBottom":"none","linkTextBorderBottomHover":"none","dropdownPaddingTop":"10px","dropdownPaddingBottom":"15px","dropdownPaddingX":"10px","dropdownMenuOffset":"2px","dropdownDividerMarginTop":"10px","dropdownDividerMarginBottom":"10px","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","controllerIconColor":"var(--lia-bs-body-color)","controllerIconHoverColor":"var(--lia-bs-body-color)","controllerTextColor":"var(--lia-nav-controller-icon-color)","controllerTextHoverColor":"var(--lia-nav-controller-icon-hover-color)","controllerHighlightColor":"hsla(30, 100%, 50%)","controllerHighlightTextColor":"var(--lia-yiq-light)","controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerColor":"var(--lia-nav-controller-icon-color)","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","hamburgerBgColor":"transparent","hamburgerBgHoverColor":"transparent","hamburgerBorder":"none","hamburgerBorderHover":"none","collapseMenuMarginLeft":"20px","collapseMenuDividerBg":"var(--lia-nav-link-color)","collapseMenuDividerOpacity":0.16,"__typename":"NavbarThemeSettings"},"pager":{"textColor":"var(--lia-bs-link-color)","textFontWeight":"var(--lia-font-weight-md)","textFontSize":"var(--lia-bs-font-size-sm)","__typename":"PagerThemeSettings"},"panel":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-bs-border-radius)","borderColor":"var(--lia-bs-border-color)","boxShadow":"none","__typename":"PanelThemeSettings"},"popover":{"arrowHeight":"8px","arrowWidth":"16px","maxWidth":"300px","minWidth":"100px","headerBg":"var(--lia-bs-white)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius)","boxShadow":"0 0.5rem 1rem hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.15)","__typename":"PopoverThemeSettings"},"prism":{"color":"#000000","bgColor":"#f5f2f0","fontFamily":"var(--font-family-monospace)","fontSize":"var(--lia-bs-font-size-base)","fontWeightBold":"var(--lia-bs-font-weight-bold)","fontStyleItalic":"italic","tabSize":2,"highlightColor":"#b3d4fc","commentColor":"#62707e","punctuationColor":"#6f6f6f","namespaceOpacity":"0.7","propColor":"#990055","selectorColor":"#517a00","operatorColor":"#906736","operatorBgColor":"hsla(0, 0%, 100%, 0.5)","keywordColor":"#0076a9","functionColor":"#d3284b","variableColor":"#c14700","__typename":"PrismThemeSettings"},"rte":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":" var(--lia-panel-box-shadow)","customColor1":"#bfedd2","customColor2":"#fbeeb8","customColor3":"#f8cac6","customColor4":"#eccafa","customColor5":"#c2e0f4","customColor6":"#2dc26b","customColor7":"#f1c40f","customColor8":"#e03e2d","customColor9":"#b96ad9","customColor10":"#3598db","customColor11":"#169179","customColor12":"#e67e23","customColor13":"#ba372a","customColor14":"#843fa1","customColor15":"#236fa1","customColor16":"#ecf0f1","customColor17":"#ced4d9","customColor18":"#95a5a6","customColor19":"#7e8c8d","customColor20":"#34495e","customColor21":"#000000","customColor22":"#ffffff","defaultMessageHeaderMarginTop":"40px","defaultMessageHeaderMarginBottom":"20px","defaultMessageItemMarginTop":"0","defaultMessageItemMarginBottom":"10px","diffAddedColor":"hsla(170, 53%, 51%, 0.4)","diffChangedColor":"hsla(43, 97%, 63%, 0.4)","diffNoneColor":"hsla(0, 0%, 80%, 0.4)","diffRemovedColor":"hsla(9, 74%, 47%, 0.4)","specialMessageHeaderMarginTop":"40px","specialMessageHeaderMarginBottom":"20px","specialMessageItemMarginTop":"0","specialMessageItemMarginBottom":"10px","__typename":"RteThemeSettings"},"tags":{"bgColor":"var(--lia-bs-gray-200)","bgHoverColor":"var(--lia-bs-gray-400)","borderRadius":"var(--lia-bs-border-radius-sm)","color":"var(--lia-bs-body-color)","hoverColor":"var(--lia-bs-body-color)","fontWeight":"var(--lia-font-weight-md)","fontSize":"var(--lia-font-size-xxs)","textTransform":"UPPERCASE","letterSpacing":"0.5px","__typename":"TagsThemeSettings"},"toasts":{"borderRadius":"var(--lia-bs-border-radius)","paddingX":"12px","__typename":"ToastsThemeSettings"},"typography":{"fontFamilyBase":"Segoe UI","fontStyleBase":"NORMAL","fontWeightBase":"400","fontWeightLight":"300","fontWeightNormal":"400","fontWeightMd":"500","fontWeightBold":"700","letterSpacingSm":"normal","letterSpacingXs":"normal","lineHeightBase":"1.5","fontSizeBase":"16px","fontSizeXxs":"11px","fontSizeXs":"12px","fontSizeSm":"14px","fontSizeLg":"20px","fontSizeXl":"24px","smallFontSize":"14px","customFonts":[{"source":"SERVER","name":"Segoe UI","styles":[{"style":"NORMAL","weight":"400","__typename":"FontStyleData"},{"style":"NORMAL","weight":"300","__typename":"FontStyleData"},{"style":"NORMAL","weight":"600","__typename":"FontStyleData"},{"style":"NORMAL","weight":"700","__typename":"FontStyleData"},{"style":"ITALIC","weight":"400","__typename":"FontStyleData"}],"assetNames":["SegoeUI-normal-400.woff2","SegoeUI-normal-300.woff2","SegoeUI-normal-600.woff2","SegoeUI-normal-700.woff2","SegoeUI-italic-400.woff2"],"__typename":"CustomFont"},{"source":"SERVER","name":"MWF Fluent Icons","styles":[{"style":"NORMAL","weight":"400","__typename":"FontStyleData"}],"assetNames":["MWFFluentIcons-normal-400.woff2"],"__typename":"CustomFont"}],"__typename":"TypographyThemeSettings"},"unstyledListItem":{"marginBottomSm":"5px","marginBottomMd":"10px","marginBottomLg":"15px","marginBottomXl":"20px","marginBottomXxl":"25px","__typename":"UnstyledListItemThemeSettings"},"yiq":{"light":"#ffffff","dark":"#000000","__typename":"YiqThemeSettings"},"colorLightness":{"primaryDark":0.36,"primaryLight":0.74,"primaryLighter":0.89,"primaryLightest":0.95,"infoDark":0.39,"infoLight":0.72,"infoLighter":0.85,"infoLightest":0.93,"successDark":0.24,"successLight":0.62,"successLighter":0.8,"successLightest":0.91,"warningDark":0.39,"warningLight":0.68,"warningLighter":0.84,"warningLightest":0.93,"dangerDark":0.41,"dangerLight":0.72,"dangerLighter":0.89,"dangerLightest":0.95,"__typename":"ColorLightnessThemeSettings"},"localOverride":false,"__typename":"Theme"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-1745505307000","value":{"title":"Loading..."},"localOverride":false},"CachedAsset:quilt:o365.prod:pages/blogs/BlogMessagePage:board:AzureSynapseAnalyticsBlog-1747038311145":{"__typename":"CachedAsset","id":"quilt:o365.prod:pages/blogs/BlogMessagePage:board:AzureSynapseAnalyticsBlog-1747038311145","value":{"id":"BlogMessagePage","container":{"id":"Common","headerProps":{"backgroundImageProps":null,"backgroundColor":null,"addComponents":null,"removeComponents":["community.widget.bannerWidget"],"componentOrder":null,"__typename":"QuiltContainerSectionProps"},"headerComponentProps":{"community.widget.breadcrumbWidget":{"disableLastCrumbForDesktop":false}},"footerProps":null,"footerComponentProps":null,"items":[{"id":"blog-article","layout":"ONE_COLUMN","bgColor":null,"showTitle":null,"showDescription":null,"textPosition":null,"textColor":null,"sectionEditLevel":"LOCKED","bgImage":null,"disableSpacing":null,"edgeToEdgeDisplay":null,"fullHeight":null,"showBorder":null,"__typename":"OneColumnQuiltSection","columnMap":{"main":[{"id":"blogs.widget.blogArticleWidget","className":"lia-blog-container","props":null,"__typename":"QuiltComponent"}],"__typename":"OneSectionColumns"}},{"id":"section-1729184836777","layout":"MAIN_SIDE","bgColor":"transparent","showTitle":false,"showDescription":false,"textPosition":"CENTER","textColor":"var(--lia-bs-body-color)","sectionEditLevel":null,"bgImage":null,"disableSpacing":null,"edgeToEdgeDisplay":null,"fullHeight":null,"showBorder":null,"__typename":"MainSideQuiltSection","columnMap":{"main":[],"side":[],"__typename":"MainSideSectionColumns"}}],"__typename":"QuiltContainer"},"__typename":"Quilt","localOverride":false},"localOverride":false},"CachedAsset:text:en_US-components/common/EmailVerification-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/common/EmailVerification-1745505307000","value":{"email.verification.title":"Email Verification Required","email.verification.message.update.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. To change your email, visit My Settings.","email.verification.message.resend.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. Resend email."},"localOverride":false},"CachedAsset:text:en_US-pages/blogs/BlogMessagePage-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-pages/blogs/BlogMessagePage-1745505307000","value":{"title":"{contextMessageSubject} | {communityTitle}","errorMissing":"This blog post cannot be found","name":"Blog Message Page","section.blog-article.title":"Blog Post","archivedMessageTitle":"This Content Has Been Archived","section.section-1729184836777.title":"","section.section-1729184836777.description":"","section.CncIde.title":"Blog Post","section.tifEmD.description":"","section.tifEmD.title":""},"localOverride":false},"CachedAsset:quiltWrapper:o365.prod:Common:1747038253838":{"__typename":"CachedAsset","id":"quiltWrapper:o365.prod:Common:1747038253838","value":{"id":"Common","header":{"backgroundImageProps":{"assetName":null,"backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"CENTER_CENTER","lastModified":null,"__typename":"BackgroundImageProps"},"backgroundColor":"transparent","items":[{"id":"community.widget.navbarWidget","props":{"showUserName":true,"showRegisterLink":true,"useIconLanguagePicker":true,"useLabelLanguagePicker":true,"className":"QuiltComponent_lia-component-edit-mode__0nCcm","links":{"sideLinks":[],"mainLinks":[{"children":[],"linkType":"INTERNAL","id":"gxcuf89792","params":{},"routeName":"CommunityPage"},{"children":[],"linkType":"EXTERNAL","id":"external-link","url":"/Directory","target":"SELF"},{"children":[{"linkType":"INTERNAL","id":"microsoft365","params":{"categoryId":"microsoft365"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"windows","params":{"categoryId":"Windows"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"Common-microsoft365-copilot-link","params":{"categoryId":"Microsoft365Copilot"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-teams","params":{"categoryId":"MicrosoftTeams"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-securityand-compliance","params":{"categoryId":"microsoft-security"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"azure","params":{"categoryId":"Azure"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"Common-content_management-link","params":{"categoryId":"Content_Management"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"exchange","params":{"categoryId":"Exchange"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"windows-server","params":{"categoryId":"Windows-Server"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"outlook","params":{"categoryId":"Outlook"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-endpoint-manager","params":{"categoryId":"microsoftintune"},"routeName":"CategoryPage"},{"linkType":"EXTERNAL","id":"external-link-2","url":"/Directory","target":"SELF"}],"linkType":"EXTERNAL","id":"communities","url":"/","target":"BLANK"},{"children":[{"linkType":"INTERNAL","id":"a-i","params":{"categoryId":"AI"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"education-sector","params":{"categoryId":"EducationSector"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"partner-community","params":{"categoryId":"PartnerCommunity"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"i-t-ops-talk","params":{"categoryId":"ITOpsTalk"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"healthcare-and-life-sciences","params":{"categoryId":"HealthcareAndLifeSciences"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-mechanics","params":{"categoryId":"MicrosoftMechanics"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"public-sector","params":{"categoryId":"PublicSector"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"s-m-b","params":{"categoryId":"MicrosoftforNonprofits"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"io-t","params":{"categoryId":"IoT"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"startupsat-microsoft","params":{"categoryId":"StartupsatMicrosoft"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"driving-adoption","params":{"categoryId":"DrivingAdoption"},"routeName":"CategoryPage"},{"linkType":"EXTERNAL","id":"external-link-1","url":"/Directory","target":"SELF"}],"linkType":"EXTERNAL","id":"communities-1","url":"/","target":"SELF"},{"children":[],"linkType":"EXTERNAL","id":"external","url":"/Blogs","target":"SELF"},{"children":[],"linkType":"EXTERNAL","id":"external-1","url":"/Events","target":"SELF"},{"children":[{"linkType":"INTERNAL","id":"microsoft-learn-1","params":{"categoryId":"MicrosoftLearn"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-learn-blog","params":{"boardId":"MicrosoftLearnBlog","categoryId":"MicrosoftLearn"},"routeName":"BlogBoardPage"},{"linkType":"EXTERNAL","id":"external-10","url":"https://learningroomdirectory.microsoft.com/","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-3","url":"https://docs.microsoft.com/learn/dynamics365/?WT.mc_id=techcom_header-webpage-m365","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-4","url":"https://docs.microsoft.com/learn/m365/?wt.mc_id=techcom_header-webpage-m365","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-5","url":"https://docs.microsoft.com/learn/topics/sci/?wt.mc_id=techcom_header-webpage-m365","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-6","url":"https://docs.microsoft.com/learn/powerplatform/?wt.mc_id=techcom_header-webpage-powerplatform","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-7","url":"https://docs.microsoft.com/learn/github/?wt.mc_id=techcom_header-webpage-github","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-8","url":"https://docs.microsoft.com/learn/teams/?wt.mc_id=techcom_header-webpage-teams","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-9","url":"https://docs.microsoft.com/learn/dotnet/?wt.mc_id=techcom_header-webpage-dotnet","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-2","url":"https://docs.microsoft.com/learn/azure/?WT.mc_id=techcom_header-webpage-m365","target":"BLANK"}],"linkType":"INTERNAL","id":"microsoft-learn","params":{"categoryId":"MicrosoftLearn"},"routeName":"CategoryPage"},{"children":[],"linkType":"INTERNAL","id":"community-info-center","params":{"categoryId":"Community-Info-Center"},"routeName":"CategoryPage"}]},"style":{"boxShadow":"var(--lia-bs-box-shadow-sm)","controllerHighlightColor":"hsla(30, 100%, 50%)","linkFontWeight":"400","dropdownDividerMarginBottom":"10px","hamburgerBorderHover":"none","linkBoxShadowHover":"none","linkFontSize":"14px","backgroundOpacity":0.8,"controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerBgColor":"transparent","hamburgerColor":"var(--lia-nav-controller-icon-color)","linkTextBorderBottom":"none","brandLogoHeight":"30px","linkBgHoverColor":"transparent","linkLetterSpacing":"normal","collapseMenuDividerOpacity":0.16,"dropdownPaddingBottom":"15px","paddingBottom":"15px","dropdownMenuOffset":"2px","hamburgerBgHoverColor":"transparent","borderBottom":"1px solid var(--lia-bs-border-color)","hamburgerBorder":"none","dropdownPaddingX":"10px","brandMarginRightSm":"10px","linkBoxShadow":"none","collapseMenuDividerBg":"var(--lia-nav-link-color)","linkColor":"var(--lia-bs-body-color)","linkJustifyContent":"flex-start","dropdownPaddingTop":"10px","controllerHighlightTextColor":"var(--lia-yiq-dark)","controllerTextColor":"var(--lia-nav-controller-icon-color)","background":{"imageAssetName":"","color":"var(--lia-bs-white)","size":"COVER","repeat":"NO_REPEAT","position":"CENTER_CENTER","imageLastModified":""},"linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkHoverColor":"var(--lia-bs-body-color)","position":"FIXED","linkBorder":"none","linkTextBorderBottomHover":"2px solid var(--lia-bs-body-color)","brandMarginRight":"30px","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","linkBorderHover":"none","collapseMenuMarginLeft":"20px","linkFontStyle":"NORMAL","controllerTextHoverColor":"var(--lia-nav-controller-icon-hover-color)","linkPaddingX":"10px","linkPaddingY":"5px","paddingTop":"15px","linkTextTransform":"NONE","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","linkBgColor":"transparent","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkDropdownPaddingY":"9px","controllerIconColor":"var(--lia-bs-body-color)","dropdownDividerMarginTop":"10px","linkGap":"10px","controllerIconHoverColor":"var(--lia-bs-body-color)"},"showSearchIcon":false,"languagePickerStyle":"iconAndLabel"},"__typename":"QuiltComponent"},{"id":"community.widget.breadcrumbWidget","props":{"backgroundColor":"transparent","linkHighlightColor":"var(--lia-bs-primary)","visualEffects":{"showBottomBorder":true},"linkTextColor":"var(--lia-bs-gray-700)"},"__typename":"QuiltComponent"},{"id":"custom.widget.HeroBanner","props":{"widgetVisibility":"signedInOrAnonymous","usePageWidth":false,"useTitle":true,"cMax_items":3,"useBackground":false,"title":"","lazyLoad":false,"widgetChooser":"custom.widget.HeroBanner"},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"footer":{"backgroundImageProps":{"assetName":null,"backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"CENTER_CENTER","lastModified":null,"__typename":"BackgroundImageProps"},"backgroundColor":"transparent","items":[{"id":"custom.widget.MicrosoftFooter","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"__typename":"QuiltWrapper","localOverride":false},"localOverride":false},"CachedAsset:text:en_US-components/common/ActionFeedback-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/common/ActionFeedback-1745505307000","value":{"joinedGroupHub.title":"Welcome","joinedGroupHub.message":"You are now a member of this group and are subscribed to updates.","groupHubInviteNotFound.title":"Invitation Not Found","groupHubInviteNotFound.message":"Sorry, we could not find your invitation to the group. The owner may have canceled the invite.","groupHubNotFound.title":"Group Not Found","groupHubNotFound.message":"The grouphub you tried to join does not exist. It may have been deleted.","existingGroupHubMember.title":"Already Joined","existingGroupHubMember.message":"You are already a member of this group.","accountLocked.title":"Account Locked","accountLocked.message":"Your account has been locked due to multiple failed attempts. Try again in {lockoutTime} minutes.","editedGroupHub.title":"Changes Saved","editedGroupHub.message":"Your group has been updated.","leftGroupHub.title":"Goodbye","leftGroupHub.message":"You are no longer a member of this group and will not receive future updates.","deletedGroupHub.title":"Deleted","deletedGroupHub.message":"The group has been deleted.","groupHubCreated.title":"Group Created","groupHubCreated.message":"{groupHubName} is ready to use","accountClosed.title":"Account Closed","accountClosed.message":"The account has been closed and you will now be redirected to the homepage","resetTokenExpired.title":"Reset Password Link has Expired","resetTokenExpired.message":"Try resetting your password again","invalidUrl.title":"Invalid URL","invalidUrl.message":"The URL you're using is not recognized. Verify your URL and try again.","accountClosedForUser.title":"Account Closed","accountClosedForUser.message":"{userName}'s account is closed","inviteTokenInvalid.title":"Invitation Invalid","inviteTokenInvalid.message":"Your invitation to the community has been canceled or expired.","inviteTokenError.title":"Invitation Verification Failed","inviteTokenError.message":"The url you are utilizing is not recognized. Verify your URL and try again","pageNotFound.title":"Access Denied","pageNotFound.message":"You do not have access to this area of the community or it doesn't exist","eventAttending.title":"Responded as Attending","eventAttending.message":"You'll be notified when there's new activity and reminded as the event approaches","eventInterested.title":"Responded as Interested","eventInterested.message":"You'll be notified when there's new activity and reminded as the event approaches","eventNotFound.title":"Event Not Found","eventNotFound.message":"The event you tried to respond to does not exist.","redirectToRelatedPage.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.message":"The content you are trying to access is archived","redirectToRelatedPage.message":"The content you are trying to access is archived","relatedUrl.archivalLink.flyoutMessage":"The content you are trying to access is archived View Archived Content"},"localOverride":false},"QueryVariables:TopicReplyList:message:3045553:13":{"__typename":"QueryVariables","id":"TopicReplyList:message:3045553:13","value":{"id":"message:3045553","first":10,"sorts":{"postTime":{"direction":"DESC"}},"repliesFirst":3,"repliesFirstDepthThree":1,"repliesSorts":{"postTime":{"direction":"DESC"}},"useAvatar":true,"useAuthorLogin":true,"useAuthorRank":true,"useBody":true,"useKudosCount":true,"useTimeToRead":false,"useMedia":false,"useReadOnlyIcon":false,"useRepliesCount":true,"useSearchSnippet":false,"useAcceptedSolutionButton":false,"useSolvedBadge":false,"useAttachments":false,"attachmentsFirst":5,"useTags":true,"useNodeAncestors":false,"useUserHoverCard":false,"useNodeHoverCard":false,"useModerationStatus":true,"usePreviewSubjectModal":false,"useMessageStatus":true}},"ROOT_MUTATION":{"__typename":"Mutation"},"CachedAsset:component:custom.widget.HeroBanner-en-us-1747038351269":{"__typename":"CachedAsset","id":"component:custom.widget.HeroBanner-en-us-1747038351269","value":{"component":{"id":"custom.widget.HeroBanner","template":{"id":"HeroBanner","markupLanguage":"REACT","style":null,"texts":{"searchPlaceholderText":"Search this community","followActionText":"Follow","unfollowActionText":"Following","searchOnHoverText":"Please enter your search term(s) and then press return key to complete a search.","blogs.sidebar.pagetitle":"Latest Blogs | Microsoft Tech Community","followThisNode":"Follow this node","unfollowThisNode":"Unfollow this node"},"defaults":{"config":{"applicablePages":[],"description":null,"fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[{"id":"max_items","dataType":"NUMBER","list":false,"defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"control":"INPUT","__typename":"PropDefinition"}],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.HeroBanner","form":{"fields":[{"id":"widgetChooser","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"title","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useTitle","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useBackground","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"widgetVisibility","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"moreOptions","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"cMax_items","validation":null,"noValidation":null,"dataType":"NUMBER","list":false,"control":"INPUT","defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"__typename":"FormField"}],"layout":{"rows":[{"id":"widgetChooserGroup","type":"fieldset","as":null,"items":[{"id":"widgetChooser","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"titleGroup","type":"fieldset","as":null,"items":[{"id":"title","className":null,"__typename":"FormFieldRef"},{"id":"useTitle","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"useBackground","type":"fieldset","as":null,"items":[{"id":"useBackground","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"widgetVisibility","type":"fieldset","as":null,"items":[{"id":"widgetVisibility","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"moreOptionsGroup","type":"fieldset","as":null,"items":[{"id":"moreOptions","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"componentPropsGroup","type":"fieldset","as":null,"items":[{"id":"cMax_items","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"}],"actionButtons":null,"className":"custom_widget_HeroBanner_form","formGroupFieldSeparator":"divider","__typename":"FormLayout"},"__typename":"Form"},"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":null,"fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[{"id":"max_items","dataType":"NUMBER","list":false,"defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"control":"INPUT","__typename":"PropDefinition"}],"__typename":"ComponentProperties"},"form":{"fields":[{"id":"widgetChooser","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"title","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useTitle","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useBackground","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"widgetVisibility","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"moreOptions","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"cMax_items","validation":null,"noValidation":null,"dataType":"NUMBER","list":false,"control":"INPUT","defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"__typename":"FormField"}],"layout":{"rows":[{"id":"widgetChooserGroup","type":"fieldset","as":null,"items":[{"id":"widgetChooser","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"titleGroup","type":"fieldset","as":null,"items":[{"id":"title","className":null,"__typename":"FormFieldRef"},{"id":"useTitle","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"useBackground","type":"fieldset","as":null,"items":[{"id":"useBackground","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"widgetVisibility","type":"fieldset","as":null,"items":[{"id":"widgetVisibility","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"moreOptionsGroup","type":"fieldset","as":null,"items":[{"id":"moreOptions","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"componentPropsGroup","type":"fieldset","as":null,"items":[{"id":"cMax_items","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"}],"actionButtons":null,"className":"custom_widget_HeroBanner_form","formGroupFieldSeparator":"divider","__typename":"FormLayout"},"__typename":"Form"},"__typename":"Component","localOverride":false},"globalCss":null,"form":{"fields":[{"id":"widgetChooser","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"title","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useTitle","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useBackground","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"widgetVisibility","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"moreOptions","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"cMax_items","validation":null,"noValidation":null,"dataType":"NUMBER","list":false,"control":"INPUT","defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"__typename":"FormField"}],"layout":{"rows":[{"id":"widgetChooserGroup","type":"fieldset","as":null,"items":[{"id":"widgetChooser","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"titleGroup","type":"fieldset","as":null,"items":[{"id":"title","className":null,"__typename":"FormFieldRef"},{"id":"useTitle","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"useBackground","type":"fieldset","as":null,"items":[{"id":"useBackground","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"widgetVisibility","type":"fieldset","as":null,"items":[{"id":"widgetVisibility","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"moreOptionsGroup","type":"fieldset","as":null,"items":[{"id":"moreOptions","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"componentPropsGroup","type":"fieldset","as":null,"items":[{"id":"cMax_items","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"}],"actionButtons":null,"className":"custom_widget_HeroBanner_form","formGroupFieldSeparator":"divider","__typename":"FormLayout"},"__typename":"Form"}},"localOverride":false},"CachedAsset:component:custom.widget.MicrosoftFooter-en-us-1747038351269":{"__typename":"CachedAsset","id":"component:custom.widget.MicrosoftFooter-en-us-1747038351269","value":{"component":{"id":"custom.widget.MicrosoftFooter","template":{"id":"MicrosoftFooter","markupLanguage":"HANDLEBARS","style":".context-uhf {\n min-width: 280px;\n font-size: 15px;\n box-sizing: border-box;\n -ms-text-size-adjust: 100%;\n -webkit-text-size-adjust: 100%;\n & *,\n & *:before,\n & *:after {\n box-sizing: inherit;\n }\n a.c-uhff-link {\n color: #616161;\n word-break: break-word;\n text-decoration: none;\n }\n &a:link,\n &a:focus,\n &a:hover,\n &a:active,\n &a:visited {\n text-decoration: none;\n color: inherit;\n }\n & div {\n font-family: 'Segoe UI', SegoeUI, 'Helvetica Neue', Helvetica, Arial, sans-serif;\n }\n}\n.c-uhff {\n background: #f2f2f2;\n margin: -1.5625;\n width: auto;\n height: auto;\n}\n.c-uhff-nav {\n margin: 0 auto;\n max-width: calc(1600px + 10%);\n padding: 0 5%;\n box-sizing: inherit;\n &:before,\n &:after {\n content: ' ';\n display: table;\n clear: left;\n }\n @media only screen and (max-width: 1083px) {\n padding-left: 12px;\n }\n .c-heading-4 {\n color: #616161;\n word-break: break-word;\n font-size: 15px;\n line-height: 20px;\n padding: 36px 0 4px;\n font-weight: 600;\n }\n .c-uhff-nav-row {\n .c-uhff-nav-group {\n display: block;\n float: left;\n min-height: 1px;\n vertical-align: text-top;\n padding: 0 12px;\n width: 100%;\n zoom: 1;\n &:first-child {\n padding-left: 0;\n @media only screen and (max-width: 1083px) {\n padding-left: 12px;\n }\n }\n @media only screen and (min-width: 540px) and (max-width: 1082px) {\n width: 33.33333%;\n }\n @media only screen and (min-width: 1083px) {\n width: 16.6666666667%;\n }\n ul.c-list.f-bare {\n font-size: 11px;\n line-height: 16px;\n margin-top: 0;\n margin-bottom: 0;\n padding-left: 0;\n list-style-type: none;\n li {\n word-break: break-word;\n padding: 8px 0;\n margin: 0;\n }\n }\n }\n }\n}\n.c-uhff-base {\n background: #f2f2f2;\n margin: 0 auto;\n max-width: calc(1600px + 10%);\n padding: 30px 5% 16px;\n &:before,\n &:after {\n content: ' ';\n display: table;\n }\n &:after {\n clear: both;\n }\n a.c-uhff-ccpa {\n font-size: 11px;\n line-height: 16px;\n float: left;\n margin: 3px 0;\n }\n a.c-uhff-ccpa:hover {\n text-decoration: underline;\n }\n ul.c-list {\n font-size: 11px;\n line-height: 16px;\n float: right;\n margin: 3px 0;\n color: #616161;\n li {\n padding: 0 24px 4px 0;\n display: inline-block;\n }\n }\n .c-list.f-bare {\n padding-left: 0;\n list-style-type: none;\n }\n @media only screen and (max-width: 1083px) {\n display: flex;\n flex-wrap: wrap;\n padding: 30px 24px 16px;\n }\n}\n\n.social-share {\n position: fixed;\n top: 60%;\n transform: translateY(-50%);\n left: 0;\n z-index: 1000;\n}\n\n.sharing-options {\n list-style: none;\n padding: 0;\n margin: 0;\n display: block;\n flex-direction: column;\n background-color: white;\n width: 43px;\n border-radius: 0px 7px 7px 0px;\n}\n.linkedin-icon {\n border-top-right-radius: 7px;\n}\n.linkedin-icon:hover {\n border-radius: 0;\n}\n.social-share-rss-image {\n border-bottom-right-radius: 7px;\n}\n.social-share-rss-image:hover {\n border-radius: 0;\n}\n\n.social-link-footer {\n position: relative;\n display: block;\n margin: -2px 0;\n transition: all 0.2s ease;\n}\n.social-link-footer:hover .linkedin-icon {\n border-radius: 0;\n}\n.social-link-footer:hover .social-share-rss-image {\n border-radius: 0;\n}\n\n.social-link-footer img {\n width: 40px;\n height: auto;\n transition: filter 0.3s ease;\n}\n\n.social-share-list {\n width: 40px;\n}\n.social-share-rss-image {\n width: 40px;\n}\n\n.share-icon {\n border: 2px solid transparent;\n display: inline-block;\n position: relative;\n}\n\n.share-icon:hover {\n opacity: 1;\n border: 2px solid white;\n box-sizing: border-box;\n}\n\n.share-icon:hover .label {\n opacity: 1;\n visibility: visible;\n border: 2px solid white;\n box-sizing: border-box;\n border-left: none;\n}\n\n.label {\n position: absolute;\n left: 100%;\n white-space: nowrap;\n opacity: 0;\n visibility: hidden;\n transition: all 0.2s ease;\n color: white;\n border-radius: 0 10 0 10px;\n top: 50%;\n transform: translateY(-50%);\n height: 40px;\n border-radius: 0 6px 6px 0;\n display: flex;\n align-items: center;\n justify-content: center;\n padding: 20px 5px 20px 8px;\n margin-left: -1px;\n}\n.linkedin {\n background-color: #0474b4;\n}\n.facebook {\n background-color: #3c5c9c;\n}\n.twitter {\n background-color: white;\n color: black;\n}\n.reddit {\n background-color: #fc4404;\n}\n.mail {\n background-color: #848484;\n}\n.bluesky {\n background-color: white;\n color: black;\n}\n.rss {\n background-color: #ec7b1c;\n}\n#RSS {\n width: 40px;\n height: 40px;\n}\n\n@media (max-width: 991px) {\n .social-share {\n display: none;\n }\n}\n","texts":{"New tab":"What's New","New 1":"Surface Laptop Studio 2","New 2":"Surface Laptop Go 3","New 3":"Surface Pro 9","New 4":"Surface Laptop 5","New 5":"Surface Studio 2+","New 6":"Copilot in Windows","New 7":"Microsoft 365","New 8":"Windows 11 apps","Store tab":"Microsoft Store","Store 1":"Account Profile","Store 2":"Download Center","Store 3":"Microsoft Store Support","Store 4":"Returns","Store 5":"Order tracking","Store 6":"Certified Refurbished","Store 7":"Microsoft Store Promise","Store 8":"Flexible Payments","Education tab":"Education","Edu 1":"Microsoft in education","Edu 2":"Devices for education","Edu 3":"Microsoft Teams for Education","Edu 4":"Microsoft 365 Education","Edu 5":"How to buy for your school","Edu 6":"Educator Training and development","Edu 7":"Deals for students and parents","Edu 8":"Azure for students","Business tab":"Business","Bus 1":"Microsoft Cloud","Bus 2":"Microsoft Security","Bus 3":"Dynamics 365","Bus 4":"Microsoft 365","Bus 5":"Microsoft Power Platform","Bus 6":"Microsoft Teams","Bus 7":"Microsoft Industry","Bus 8":"Small Business","Developer tab":"Developer & IT","Dev 1":"Azure","Dev 2":"Developer Center","Dev 3":"Documentation","Dev 4":"Microsoft Learn","Dev 5":"Microsoft Tech Community","Dev 6":"Azure Marketplace","Dev 7":"AppSource","Dev 8":"Visual Studio","Company tab":"Company","Com 1":"Careers","Com 2":"About Microsoft","Com 3":"Company News","Com 4":"Privacy at Microsoft","Com 5":"Investors","Com 6":"Diversity and inclusion","Com 7":"Accessiblity","Com 8":"Sustainibility"},"defaults":{"config":{"applicablePages":[],"description":"The Microsoft Footer","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.MicrosoftFooter","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"The Microsoft Footer","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":{"css":".custom_widget_MicrosoftFooter_context-uhf_105bp_1 {\n min-width: 17.5rem;\n font-size: 0.9375rem;\n box-sizing: border-box;\n -ms-text-size-adjust: 100%;\n -webkit-text-size-adjust: 100%;\n & *,\n & *:before,\n & *:after {\n box-sizing: inherit;\n }\n a.custom_widget_MicrosoftFooter_c-uhff-link_105bp_12 {\n color: #616161;\n word-break: break-word;\n text-decoration: none;\n }\n &a:link,\n &a:focus,\n &a:hover,\n &a:active,\n &a:visited {\n text-decoration: none;\n color: inherit;\n }\n & div {\n font-family: 'Segoe UI', SegoeUI, 'Helvetica Neue', Helvetica, Arial, sans-serif;\n }\n}\n.custom_widget_MicrosoftFooter_c-uhff_105bp_12 {\n background: #f2f2f2;\n margin: -1.5625;\n width: auto;\n height: auto;\n}\n.custom_widget_MicrosoftFooter_c-uhff-nav_105bp_35 {\n margin: 0 auto;\n max-width: calc(100rem + 10%);\n padding: 0 5%;\n box-sizing: inherit;\n &:before,\n &:after {\n content: ' ';\n display: table;\n clear: left;\n }\n @media only screen and (max-width: 1083px) {\n padding-left: 0.75rem;\n }\n .custom_widget_MicrosoftFooter_c-heading-4_105bp_49 {\n color: #616161;\n word-break: break-word;\n font-size: 0.9375rem;\n line-height: 1.25rem;\n padding: 2.25rem 0 0.25rem;\n font-weight: 600;\n }\n .custom_widget_MicrosoftFooter_c-uhff-nav-row_105bp_57 {\n .custom_widget_MicrosoftFooter_c-uhff-nav-group_105bp_58 {\n display: block;\n float: left;\n min-height: 0.0625rem;\n vertical-align: text-top;\n padding: 0 0.75rem;\n width: 100%;\n zoom: 1;\n &:first-child {\n padding-left: 0;\n @media only screen and (max-width: 1083px) {\n padding-left: 0.75rem;\n }\n }\n @media only screen and (min-width: 540px) and (max-width: 1082px) {\n width: 33.33333%;\n }\n @media only screen and (min-width: 1083px) {\n width: 16.6666666667%;\n }\n ul.custom_widget_MicrosoftFooter_c-list_105bp_78.custom_widget_MicrosoftFooter_f-bare_105bp_78 {\n font-size: 0.6875rem;\n line-height: 1rem;\n margin-top: 0;\n margin-bottom: 0;\n padding-left: 0;\n list-style-type: none;\n li {\n word-break: break-word;\n padding: 0.5rem 0;\n margin: 0;\n }\n }\n }\n }\n}\n.custom_widget_MicrosoftFooter_c-uhff-base_105bp_94 {\n background: #f2f2f2;\n margin: 0 auto;\n max-width: calc(100rem + 10%);\n padding: 1.875rem 5% 1rem;\n &:before,\n &:after {\n content: ' ';\n display: table;\n }\n &:after {\n clear: both;\n }\n a.custom_widget_MicrosoftFooter_c-uhff-ccpa_105bp_107 {\n font-size: 0.6875rem;\n line-height: 1rem;\n float: left;\n margin: 0.1875rem 0;\n }\n a.custom_widget_MicrosoftFooter_c-uhff-ccpa_105bp_107:hover {\n text-decoration: underline;\n }\n ul.custom_widget_MicrosoftFooter_c-list_105bp_78 {\n font-size: 0.6875rem;\n line-height: 1rem;\n float: right;\n margin: 0.1875rem 0;\n color: #616161;\n li {\n padding: 0 1.5rem 0.25rem 0;\n display: inline-block;\n }\n }\n .custom_widget_MicrosoftFooter_c-list_105bp_78.custom_widget_MicrosoftFooter_f-bare_105bp_78 {\n padding-left: 0;\n list-style-type: none;\n }\n @media only screen and (max-width: 1083px) {\n display: flex;\n flex-wrap: wrap;\n padding: 1.875rem 1.5rem 1rem;\n }\n}\n.custom_widget_MicrosoftFooter_social-share_105bp_138 {\n position: fixed;\n top: 60%;\n transform: translateY(-50%);\n left: 0;\n z-index: 1000;\n}\n.custom_widget_MicrosoftFooter_sharing-options_105bp_146 {\n list-style: none;\n padding: 0;\n margin: 0;\n display: block;\n flex-direction: column;\n background-color: white;\n width: 2.6875rem;\n border-radius: 0 0.4375rem 0.4375rem 0;\n}\n.custom_widget_MicrosoftFooter_linkedin-icon_105bp_156 {\n border-top-right-radius: 7px;\n}\n.custom_widget_MicrosoftFooter_linkedin-icon_105bp_156:hover {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162 {\n border-bottom-right-radius: 7px;\n}\n.custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162:hover {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169 {\n position: relative;\n display: block;\n margin: -0.125rem 0;\n transition: all 0.2s ease;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169:hover .custom_widget_MicrosoftFooter_linkedin-icon_105bp_156 {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169:hover .custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162 {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169 img {\n width: 2.5rem;\n height: auto;\n transition: filter 0.3s ease;\n}\n.custom_widget_MicrosoftFooter_social-share-list_105bp_188 {\n width: 2.5rem;\n}\n.custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162 {\n width: 2.5rem;\n}\n.custom_widget_MicrosoftFooter_share-icon_105bp_195 {\n border: 2px solid transparent;\n display: inline-block;\n position: relative;\n}\n.custom_widget_MicrosoftFooter_share-icon_105bp_195:hover {\n opacity: 1;\n border: 2px solid white;\n box-sizing: border-box;\n}\n.custom_widget_MicrosoftFooter_share-icon_105bp_195:hover .custom_widget_MicrosoftFooter_label_105bp_207 {\n opacity: 1;\n visibility: visible;\n border: 2px solid white;\n box-sizing: border-box;\n border-left: none;\n}\n.custom_widget_MicrosoftFooter_label_105bp_207 {\n position: absolute;\n left: 100%;\n white-space: nowrap;\n opacity: 0;\n visibility: hidden;\n transition: all 0.2s ease;\n color: white;\n border-radius: 0 10 0 0.625rem;\n top: 50%;\n transform: translateY(-50%);\n height: 2.5rem;\n border-radius: 0 0.375rem 0.375rem 0;\n display: flex;\n align-items: center;\n justify-content: center;\n padding: 1.25rem 0.3125rem 1.25rem 0.5rem;\n margin-left: -0.0625rem;\n}\n.custom_widget_MicrosoftFooter_linkedin_105bp_156 {\n background-color: #0474b4;\n}\n.custom_widget_MicrosoftFooter_facebook_105bp_237 {\n background-color: #3c5c9c;\n}\n.custom_widget_MicrosoftFooter_twitter_105bp_240 {\n background-color: white;\n color: black;\n}\n.custom_widget_MicrosoftFooter_reddit_105bp_244 {\n background-color: #fc4404;\n}\n.custom_widget_MicrosoftFooter_mail_105bp_247 {\n background-color: #848484;\n}\n.custom_widget_MicrosoftFooter_bluesky_105bp_250 {\n background-color: white;\n color: black;\n}\n.custom_widget_MicrosoftFooter_rss_105bp_254 {\n background-color: #ec7b1c;\n}\n#custom_widget_MicrosoftFooter_RSS_105bp_1 {\n width: 2.5rem;\n height: 2.5rem;\n}\n@media (max-width: 991px) {\n .custom_widget_MicrosoftFooter_social-share_105bp_138 {\n display: none;\n }\n}\n","tokens":{"context-uhf":"custom_widget_MicrosoftFooter_context-uhf_105bp_1","c-uhff-link":"custom_widget_MicrosoftFooter_c-uhff-link_105bp_12","c-uhff":"custom_widget_MicrosoftFooter_c-uhff_105bp_12","c-uhff-nav":"custom_widget_MicrosoftFooter_c-uhff-nav_105bp_35","c-heading-4":"custom_widget_MicrosoftFooter_c-heading-4_105bp_49","c-uhff-nav-row":"custom_widget_MicrosoftFooter_c-uhff-nav-row_105bp_57","c-uhff-nav-group":"custom_widget_MicrosoftFooter_c-uhff-nav-group_105bp_58","c-list":"custom_widget_MicrosoftFooter_c-list_105bp_78","f-bare":"custom_widget_MicrosoftFooter_f-bare_105bp_78","c-uhff-base":"custom_widget_MicrosoftFooter_c-uhff-base_105bp_94","c-uhff-ccpa":"custom_widget_MicrosoftFooter_c-uhff-ccpa_105bp_107","social-share":"custom_widget_MicrosoftFooter_social-share_105bp_138","sharing-options":"custom_widget_MicrosoftFooter_sharing-options_105bp_146","linkedin-icon":"custom_widget_MicrosoftFooter_linkedin-icon_105bp_156","social-share-rss-image":"custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162","social-link-footer":"custom_widget_MicrosoftFooter_social-link-footer_105bp_169","social-share-list":"custom_widget_MicrosoftFooter_social-share-list_105bp_188","share-icon":"custom_widget_MicrosoftFooter_share-icon_105bp_195","label":"custom_widget_MicrosoftFooter_label_105bp_207","linkedin":"custom_widget_MicrosoftFooter_linkedin_105bp_156","facebook":"custom_widget_MicrosoftFooter_facebook_105bp_237","twitter":"custom_widget_MicrosoftFooter_twitter_105bp_240","reddit":"custom_widget_MicrosoftFooter_reddit_105bp_244","mail":"custom_widget_MicrosoftFooter_mail_105bp_247","bluesky":"custom_widget_MicrosoftFooter_bluesky_105bp_250","rss":"custom_widget_MicrosoftFooter_rss_105bp_254","RSS":"custom_widget_MicrosoftFooter_RSS_105bp_1"}},"form":null},"localOverride":false},"CachedAsset:text:en_US-components/community/Breadcrumb-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/Breadcrumb-1745505307000","value":{"navLabel":"Breadcrumbs","dropdown":"Additional parent page navigation"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBanner-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBanner-1745505307000","value":{"messageMarkedAsSpam":"This post has been marked as spam","messageMarkedAsSpam@board:TKB":"This article has been marked as spam","messageMarkedAsSpam@board:BLOG":"This post has been marked as spam","messageMarkedAsSpam@board:FORUM":"This discussion has been marked as spam","messageMarkedAsSpam@board:OCCASION":"This event has been marked as spam","messageMarkedAsSpam@board:IDEA":"This idea has been marked as spam","manageSpam":"Manage Spam","messageMarkedAsAbuse":"This post has been marked as abuse","messageMarkedAsAbuse@board:TKB":"This article has been marked as abuse","messageMarkedAsAbuse@board:BLOG":"This post has been marked as abuse","messageMarkedAsAbuse@board:FORUM":"This discussion has been marked as abuse","messageMarkedAsAbuse@board:OCCASION":"This event has been marked as abuse","messageMarkedAsAbuse@board:IDEA":"This idea has been marked as abuse","preModCommentAuthorText":"This comment will be published as soon as it is approved","preModCommentModeratorText":"This comment is awaiting moderation","messageMarkedAsOther":"This post has been rejected due to other reasons","messageMarkedAsOther@board:TKB":"This article has been rejected due to other reasons","messageMarkedAsOther@board:BLOG":"This post has been rejected due to other reasons","messageMarkedAsOther@board:FORUM":"This discussion has been rejected due to other reasons","messageMarkedAsOther@board:OCCASION":"This event has been rejected due to other reasons","messageMarkedAsOther@board:IDEA":"This idea has been rejected due to other reasons","messageArchived":"This post was archived on {date}","relatedUrl":"View Related Content","relatedContentText":"Showing related content","archivedContentLink":"View Archived Content"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageView/MessageViewStandard-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageView/MessageViewStandard-1745505307000","value":{"anonymous":"Anonymous","author":"{messageAuthorLogin}","authorBy":"{messageAuthorLogin}","board":"{messageBoardTitle}","replyToUser":" to {parentAuthor}","showMoreReplies":"Show More","replyText":"Reply","repliesText":"Replies","markedAsSolved":"Marked as Solution","movedMessagePlaceholder.BLOG":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.TKB":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.FORUM":"{count, plural, =0 {This reply has been} other {These replies have been} }","movedMessagePlaceholder.IDEA":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.OCCASION":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholderUrlText":"moved.","messageStatus":"Status: ","statusChanged":"Status changed: {previousStatus} to {currentStatus}","statusAdded":"Status added: {status}","statusRemoved":"Status removed: {status}","labelExpand":"expand replies","labelCollapse":"collapse replies","unhelpfulReason.reason1":"Content is outdated","unhelpfulReason.reason2":"Article is missing information","unhelpfulReason.reason3":"Content is for a different Product","unhelpfulReason.reason4":"Doesn't match what I was searching for"},"localOverride":false},"CachedAsset:text:en_US-components/messages/ThreadedReplyList-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/ThreadedReplyList-1745505307000","value":{"title":"{count, plural, one{# Reply} other{# Replies}}","title@board:BLOG":"{count, plural, one{# Comment} other{# Comments}}","title@board:TKB":"{count, plural, one{# Comment} other{# Comments}}","title@board:IDEA":"{count, plural, one{# Comment} other{# Comments}}","title@board:OCCASION":"{count, plural, one{# Comment} other{# Comments}}","noRepliesTitle":"No Replies","noRepliesTitle@board:BLOG":"No Comments","noRepliesTitle@board:TKB":"No Comments","noRepliesTitle@board:IDEA":"No Comments","noRepliesTitle@board:OCCASION":"No Comments","noRepliesDescription":"Be the first to reply","noRepliesDescription@board:BLOG":"Be the first to comment","noRepliesDescription@board:TKB":"Be the first to comment","noRepliesDescription@board:IDEA":"Be the first to comment","noRepliesDescription@board:OCCASION":"Be the first to comment","messageReadOnlyAlert:BLOG":"Comments have been turned off for this post","messageReadOnlyAlert:TKB":"Comments have been turned off for this article","messageReadOnlyAlert:IDEA":"Comments have been turned off for this idea","messageReadOnlyAlert:FORUM":"Replies have been turned off for this discussion","messageReadOnlyAlert:OCCASION":"Comments have been turned off for this event"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyCallToAction-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyCallToAction-1745505307000","value":{"leaveReply":"Leave a reply...","leaveReply@board:BLOG@message:root":"Leave a comment...","leaveReply@board:TKB@message:root":"Leave a comment...","leaveReply@board:IDEA@message:root":"Leave a comment...","leaveReply@board:OCCASION@message:root":"Leave a comment...","repliesTurnedOff.FORUM":"Replies are turned off for this topic","repliesTurnedOff.BLOG":"Comments are turned off for this topic","repliesTurnedOff.TKB":"Comments are turned off for this topic","repliesTurnedOff.IDEA":"Comments are turned off for this topic","repliesTurnedOff.OCCASION":"Comments are turned off for this topic","infoText":"Stop poking me!"},"localOverride":false},"Category:category:Exchange":{"__typename":"Category","id":"category:Exchange","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Outlook":{"__typename":"Category","id":"category:Outlook","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Community-Info-Center":{"__typename":"Category","id":"category:Community-Info-Center","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:EducationSector":{"__typename":"Category","id":"category:EducationSector","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:DrivingAdoption":{"__typename":"Category","id":"category:DrivingAdoption","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Azure":{"__typename":"Category","id":"category:Azure","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Windows-Server":{"__typename":"Category","id":"category:Windows-Server","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftTeams":{"__typename":"Category","id":"category:MicrosoftTeams","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:PublicSector":{"__typename":"Category","id":"category:PublicSector","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:microsoft365":{"__typename":"Category","id":"category:microsoft365","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:IoT":{"__typename":"Category","id":"category:IoT","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:HealthcareAndLifeSciences":{"__typename":"Category","id":"category:HealthcareAndLifeSciences","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:ITOpsTalk":{"__typename":"Category","id":"category:ITOpsTalk","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftLearn":{"__typename":"Category","id":"category:MicrosoftLearn","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Blog:board:MicrosoftLearnBlog":{"__typename":"Blog","id":"board:MicrosoftLearnBlog","blogPolicies":{"__typename":"BlogPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:AI":{"__typename":"Category","id":"category:AI","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftMechanics":{"__typename":"Category","id":"category:MicrosoftMechanics","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftforNonprofits":{"__typename":"Category","id":"category:MicrosoftforNonprofits","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:StartupsatMicrosoft":{"__typename":"Category","id":"category:StartupsatMicrosoft","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:PartnerCommunity":{"__typename":"Category","id":"category:PartnerCommunity","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Microsoft365Copilot":{"__typename":"Category","id":"category:Microsoft365Copilot","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Windows":{"__typename":"Category","id":"category:Windows","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Content_Management":{"__typename":"Category","id":"category:Content_Management","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:microsoft-security":{"__typename":"Category","id":"category:microsoft-security","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:microsoftintune":{"__typename":"Category","id":"category:microsoftintune","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Rank:rank:37":{"__typename":"Rank","id":"rank:37","position":18,"name":"Copper Contributor","color":"333333","icon":null,"rankStyle":"TEXT"},"User:user:1519138":{"__typename":"User","id":"user:1519138","uid":1519138,"login":"dpires92","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2022-09-13T10:39:34.935-07:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/dS0xNTE5MTM4LTU4OTQ2M2k4MDU1QUI3M0NDN0ZDNzBG"},"rank":{"__ref":"Rank:rank:37"},"entityType":"USER","eventPath":"community:gxcuf89792/user:1519138"},"ModerationData:moderation_data:3628753":{"__typename":"ModerationData","id":"moderation_data:3628753","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3628753":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1519138"},"id":"message:3628753","revisionNum":1,"uid":3628753,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3628753"},"body":"

Hi, Akshay_Attota

Unfortunately, it didn't work. I did the same steps as you did. My cells in my notebook are in parameters and so on.

I created two storage account, one called st92dev and another one called st92uat

And also two synapse workspaces.

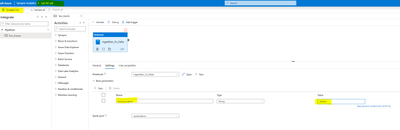

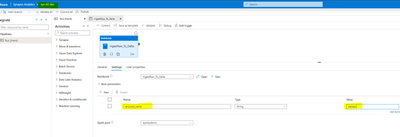

In my notebook on workspace dev, I put my cell as parameter as you did and my parameter account_name.

 ( as you can notice, my dev enviroment is linked to my ADO, the cell is as parameters and the name of my var is st92dev. )

And in my notebook I created the Parameters as you did.

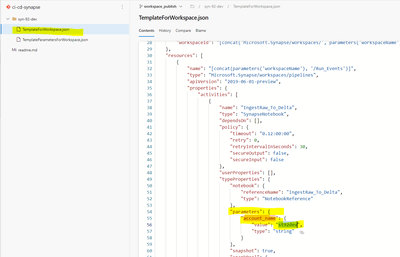

I published, and appeared the parameters in my ARM template.



Then, I created a variable Group called uat, added the var called env == uat.

Later, I created the release pipeline, build the Artifact pointing to my folder workspace_publish

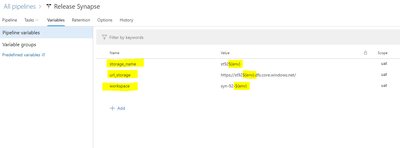

I put these variables in my pipeline.



Then I replaced them in the field override parameters, as depicted below.



It works well, and the deployment happens. But I don't know what happens in my uat environment, it doesn't appear as the correct name for my parameter.



And honestly, I didn't understand really well, how to add the template_parameters.json that you mentioned.

And another thing that I noticed, my env uat was not running the notebook, it throws an error \"AVAILABLE_WORKSPACE_CAPACITY_EXCEEDED: Livy session has failed. Session state: Error. Error code: AVAILABLE_WORKSPACE_CAPACITY_EXCEEDED. Your job requested 40 vcores. However, the workspace only has 12 vcores available out of quota of 12 vcores for node size family [MemoryOptimized]. Try ending the running job(s), reducing the numbers of vcores requested or increasing your vcore quota. Source: User.\"



My Spark pools across my environments have the same name.

My Service Principal from ADO is already a Workspace Publisher Artifact on the environment uat.

I appreciate your patience and kindness in helping.

All the best...





","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"218","kudosSumWeight":0,"repliesCount":0,"postTime":"2022-09-15T13:43:23.103-07:00","lastPublishTime":"2022-09-15T13:43:23.103-07:00","metrics":{"__typename":"MessageMetrics","views":14118},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3628753","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"User:user:1175480":{"__typename":"User","id":"user:1175480","uid":1175480,"login":"Akshay_Attota","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2021-10-05T04:11:52.218-07:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/m_assets/avatars/default/avatar-2.svg?time=0"},"rank":{"__ref":"Rank:rank:4"},"entityType":"USER","eventPath":"community:gxcuf89792/user:1175480"},"ModerationData:moderation_data:3627185":{"__typename":"ModerationData","id":"moderation_data:3627185","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3627185":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1175480"},"id":"message:3627185","revisionNum":1,"uid":3627185,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3627185"},"body":"

Hi dpires92 ,
For answering your question:

\n

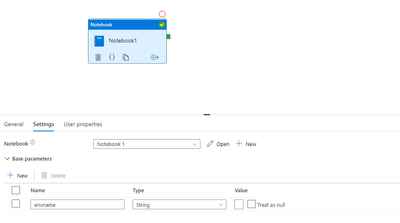

I have created a notebook and called it from the pipeline. Created base parameters (Below Screenshot)

\n

\n

Now You can use these parameters directly by using the parameter name in your notebook (Screenshot below)

\n

\n

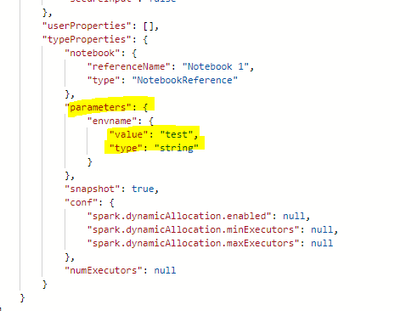

After you publish the parameter will get reflected in the workspace_publish ARM template

\n

\n



\n

parameterize this in the ARM template using template_parameters.json

\n

source : Parameterize Synapse Analytics Spark Notebooks Efficiently - diangermishuizen.com

Hope this answers your question. Thanks for following the blog post.


\n

Thanks and Regards,
Akshay Attota

\n



","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"213","kudosSumWeight":1,"repliesCount":0,"postTime":"2022-09-14T07:17:44.588-07:00","lastPublishTime":"2022-09-14T07:17:44.588-07:00","metrics":{"__typename":"MessageMetrics","views":14178},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3627185","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"ModerationData:moderation_data:3625764":{"__typename":"ModerationData","id":"moderation_data:3625764","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3625764":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1519138"},"id":"message:3625764","revisionNum":1,"uid":3625764,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3625764"},"body":"

Hi...

I am stuck. If, we are gonna use it for a CI/CD with Synapse, how could I parametrize Notebooks for Spark Pools? For example, one issue I faced, was the name of the Storage Account, if they are different, on our dev, it could be st_DEV but for uat can be st_UAT. If we hardcoded the name into our notebooks, to set the path, the next environments will be wrong. I tried using parameters in my pipeline and setting my cell as toggle parameters, but I think this is not the way.
For example, with linked services with the same name, changing into the TemplateParameters the name of Storage Account works well across different stages, but I search here and I couldn't find a way with pyspark using linked service.

","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"203","kudosSumWeight":0,"repliesCount":0,"postTime":"2022-09-13T11:06:42.769-07:00","lastPublishTime":"2022-09-13T11:06:42.769-07:00","metrics":{"__typename":"MessageMetrics","views":14286},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3625764","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"User:user:1417652":{"__typename":"User","id":"user:1417652","uid":1417652,"login":"Harpreet_Kaur","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2022-06-08T05:26:04.659-07:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/m_assets/avatars/default/avatar-5.svg?time=0"},"rank":{"__ref":"Rank:rank:4"},"entityType":"USER","eventPath":"community:gxcuf89792/user:1417652"},"ModerationData:moderation_data:3577348":{"__typename":"ModerationData","id":"moderation_data:3577348","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3577348":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1417652"},"id":"message:3577348","revisionNum":1,"uid":3577348,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3577348"},"body":"

To deploy Managed Private Endpoints to Synapse workspace through automation, below powershell script could be used:

\n
 # Creating Managed Private Endpoint in Synapse\nParam (\n[string]$synapseWorkspaceName,\n[string]$managedPEName,\n[string]$privateLinkResourceId,\n[string]$groupId\n)\n\nWrite-Host \"Synapse Workspace :\" $synapseWorkspaceName\nWrite-Host \"Managed PE name:\" $managedPEName\nWrite-Host \"Private Link Resource ID:\" $privateLinkResourceId\nWrite-Host \"Group ID:\" $groupId\n\n$tokenObject = Get-AzAccessToken -ResourceUrl \"https://dev.azuresynapse.net\"\n$token = $tokenObject.Token\n    \n$url = \"https://\"+ $SynapseWorkspaceName +\".dev.azuresynapse.net/managedVirtualNetworks/default/managedPrivateEndpoints/\"+ $managedPEName +\"?api-version=2020-12-01\"\n$headers = @{\n    'Authorization' = \"Bearer $token\"\n    'content-type'  = 'application/json; charset=utf-8'\n}\n$body = @'\n    {\n        \"name\": \"{managedPEName}\",\n        \"properties\": {\n            \"privateLinkResourceId\": \"{privateLinkResourceId}\",\n            \"groupId\": \"{groupId}\"\n        }\n    }\n'@\n\n$body =  $body -Replace ('{managedPEName}',$managedPEName)\n$body =  $body -Replace ('{privateLinkResourceId}',$privateLinkResourceId)\n$body =  $body -Replace ('{groupId}',$groupId)\n\nInvoke-RestMethod -Uri $url -Method 'Put' -Headers $headers -Body $body -ContentType \"application/json\"\n
\n



","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"203","kudosSumWeight":1,"repliesCount":0,"postTime":"2022-07-20T01:21:40.749-07:00","lastPublishTime":"2022-07-20T01:21:40.749-07:00","metrics":{"__typename":"MessageMetrics","views":14845},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3577348","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"User:user:308103":{"__typename":"User","id":"user:308103","uid":308103,"login":"colinrippeyfinarne","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2019-03-26T03:36:42.445-07:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/m_assets/avatars/default/avatar-5.svg?time=0"},"rank":{"__ref":"Rank:rank:37"},"entityType":"USER","eventPath":"community:gxcuf89792/user:308103"},"ModerationData:moderation_data:3448467":{"__typename":"ModerationData","id":"moderation_data:3448467","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3448467":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:308103"},"id":"message:3448467","revisionNum":1,"uid":3448467,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3448467"},"body":"

Akshay_Attota yes the powershell commandlet does in fact successfully stop/start the triggers (I've not looked inside the commandlet code but my guess is it is just calling the REST API directly anyway).



As I understand it the commandlet code calls the REST API but has a bug in how it handles the return value and then throws the error up. Your solution to wrap in a try/catch will work too.

","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"208","kudosSumWeight":1,"repliesCount":0,"postTime":"2022-05-31T02:16:55.979-07:00","lastPublishTime":"2022-05-31T02:16:55.979-07:00","metrics":{"__typename":"MessageMetrics","views":15421},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3448467","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"ModerationData:moderation_data:3435637":{"__typename":"ModerationData","id":"moderation_data:3435637","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3435637":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1175480"},"id":"message:3435637","revisionNum":3,"uid":3435637,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3435637"},"body":"

colinrippeyfinarneColinrippeyfinarne

\n

thanks a lot for pointing this out. It was working earlier, but these issues were occurring later.  Coincidentally just few hours ago I saw this GitHub link while searching regarding the error and I was about to post this comment and you made my job easier :).

\n

Adding another point, I have observed the behavior of the code that it is throwing error message but does the job.
Let us take an example of stop-trigger code inside a foreach loop, it stops the first trigger in the list and throws the below error message

\n

\"The requested operation requires an element of type 'Object', but the target element has type 'String'\"

\n

, then the for-each loop in the code stops because of the error and it won't complete its job.

\n

Result: Only a single trigger is stopped

\n

small fix: I added a try catch inside the for each loop in start and stop triggers code and it worked (refer code below):

\n



\n



\n
- task: AzurePowerShell@5\n  displayName: Stop Triggers\n  inputs:\n    azureSubscription: '$(azureSubscription)'\n    ScriptType: 'InlineScript'\n    Inline: |\n      $triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" ; \n      $triggersSynapse | ForEach-Object { Try{Stop-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" -Name $_.name} Catch{}  }\n    azurePowerShellVersion: 'LatestVersion'\n\n- task: AzurePowerShell@5\n  displayName: Restart Triggers\n  inputs:\n    azureSubscription: '$(azureSubscription)'\n    ScriptType: 'InlineScript'\n    Inline: '$triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" ; $triggersSynapse | ForEach-Object { Try{Start-AzSynapseTrigger -WorkspaceName \"$(DeployWorkspaceName)\" -Name $_.name} Catch{ Write-Output \"Started Trigger\"+$_.name  } }'\n    azurePowerShellVersion: 'LatestVersion'
\n



\n



\n



\n



\n

\n



","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"208","kudosSumWeight":1,"repliesCount":0,"postTime":"2022-05-26T13:49:24.755-07:00","lastPublishTime":"2022-05-26T13:54:10.414-07:00","metrics":{"__typename":"MessageMetrics","views":15406},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3435637","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"ModerationData:moderation_data:3434247":{"__typename":"ModerationData","id":"moderation_data:3434247","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3434247":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:308103"},"id":"message:3434247","revisionNum":2,"uid":3434247,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3434247"},"body":"

A comment on the Powershell to stop/start the triggers, there is a current bug in the module and so a workaround is documented in this issue:



https://github.com/Azure/azure-powershell/issues/16368#issuecomment-975110601



Here's a sample to get it working:



           Install-Module -Name \"Az.Synapse\" -Confirm:$false  -Scope CurrentUser  -Force;
           $bearerToken = Get-AzAccessToken -ResourceUrl https://dev.azuresynapse.net
           $authHeader = @{
             'Content-Type' = 'application/octet-stream'
             'Authorization' = 'Bearer ' + $bearerToken.Token
           }

           $triggersSynapse = Get-AzSynapseTrigger -WorkspaceName \"$(synapseWorkspaceNameProd)\";
           $triggersSynapse | ForEach-Object { Invoke-WebRequest -Method POST -Uri \"https://$(synapseWorkspaceNameProd).dev.azuresynapse.net/triggers/$($_.name)/stop?api-version=2020-12-01\" -Headers $authHeader}
","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"208","kudosSumWeight":1,"repliesCount":0,"postTime":"2022-05-26T08:39:06.644-07:00","lastPublishTime":"2022-05-26T08:40:51.481-07:00","metrics":{"__typename":"MessageMetrics","views":15461},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3434247","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"User:user:556209":{"__typename":"User","id":"user:556209","uid":556209,"login":"Rohan_Kulkarni","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2020-02-13T03:29:04.830-08:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/m_assets/avatars/default/avatar-8.svg?time=0"},"rank":{"__ref":"Rank:rank:37"},"entityType":"USER","eventPath":"community:gxcuf89792/user:556209"},"ModerationData:moderation_data:3291204":{"__typename":"ModerationData","id":"moderation_data:3291204","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3291204":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:556209"},"id":"message:3291204","revisionNum":1,"uid":3291204,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3291204"},"body":"

I updated template-parameters-definition.json file to parameterize the trigger parameters. If I add only one parameter to the trigger then it generates the templates correctly but if there are multiple parameters then the name of all the parameters is same and same value is used for all the parameters. Ideally names should be different for multiple parameters like _0, _1, etc but only _0 is generated. Added files below first is arm template file generated and second is the template-parameters-definition.json file

","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"208","kudosSumWeight":0,"repliesCount":0,"postTime":"2022-04-21T04:14:23.563-07:00","lastPublishTime":"2022-04-21T04:14:23.563-07:00","metrics":{"__typename":"MessageMetrics","views":15971},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3291204","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"ModerationData:moderation_data:3253279":{"__typename":"ModerationData","id":"moderation_data:3253279","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3253279":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1175480"},"id":"message:3253279","revisionNum":3,"uid":3253279,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3253279"},"body":"

Hi Elliott_LW  The correct file should be template-parameters-defination.json  not template-parameters-defination.txt and in that file you should write the correct path in order to parameterize the arm template generated.

\n

That file should be placed in the main branch where the workspace code is committed.(The same path mentioned in Git configuration in the workspace)

\n



\n

cc : poornamishra

\n



\n

For example : In my case I mentioned /SynapseDev as root folder (Screenshot below)

\n

\n

So I need to place the template-parameters-definition.json in the same path(Screenshot below)

\n

\n



\n

Final Step : After you place the template-parameters-defination.json , you need to republish the code from the Synapse Workspace so that the ARM template is parameterized according to the template-parameters-defination.json file

\n



\n

Please follow the heading \"Custom parameter syntax(Quoted from Microsoft Documentation)\" in the blog above and

\n

\"Create custom parameters in the workspace template\"  heading in the documentation Continuous integration & delivery in Azure Synapse Analytics - Azure Synapse Analytics | Microsoft Docs which has some guidelines on how to create a template-parameters-defination.json for customer parameterization .

\n



\n

Please also refer the sample template-parameters-defination.json file above in the blog

\n



\n

For example : If I want to parameterize bigdatapool reference names for the notebooks in workspace we need to mention the following, so that it refers to the JSON path in the ARM template and parameterizes it

\n
{\n\"Microsoft.Synapse/workspaces/notebooks\": {\n        \"properties\":{\n            \"bigDataPool\":{\n                \"referenceName\": \"=\"\n            }\n        }\n    }
\n



\n

Note :

\n

- Based on the location you want to parameterize in ARM template, you should mention the path like the above example

\n



\n

Hope this gives you a insight and helps šŸ™‚ Thanks for following the blog

","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"223","kudosSumWeight":1,"repliesCount":0,"postTime":"2022-03-09T23:44:06.080-08:00","lastPublishTime":"2022-03-09T23:49:11.626-08:00","metrics":{"__typename":"MessageMetrics","views":16622},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3253279","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"User:user:1328549":{"__typename":"User","id":"user:1328549","uid":1328549,"login":"Elliott_LW","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2022-03-09T09:47:39.741-08:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/m_assets/avatars/default/avatar-7.svg?time=0"},"rank":{"__ref":"Rank:rank:37"},"entityType":"USER","eventPath":"community:gxcuf89792/user:1328549"},"ModerationData:moderation_data:3252152":{"__typename":"ModerationData","id":"moderation_data:3252152","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3252152":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1328549"},"id":"message:3252152","revisionNum":1,"uid":3252152,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:AzureSynapseAnalyticsBlog"},"parent":{"__ref":"BlogTopicMessage:message:3045553"},"conversation":{"__ref":"Conversation:conversation:3045553"},"subject":"Re: Azure Synapse Studio CICD using YAML pipelines","moderationData":{"__ref":"ModerationData:moderation_data:3252152"},"body":"

poornamishra / Akshay_Attotathanks for the post and comments, it has pointed me in the right direction, I am however struggling to get the override parameters function to make changes with DEV objects being passed through to TEST despite me also having a template-parameters-definition.txt and the params showing within the TemplateParametersForWorkspace.json file, any idea or tips?

","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"213","kudosSumWeight":0,"repliesCount":0,"postTime":"2022-03-09T09:51:00.948-08:00","lastPublishTime":"2022-03-09T09:51:00.948-08:00","metrics":{"__typename":"MessageMetrics","views":16682},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:AzureDatabases/category:products-services/category:communities/community:gxcuf89792board:AzureSynapseAnalyticsBlog/message:3045553/message:3252152","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"CachedAsset:text:en_US-components/community/Navbar-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/Navbar-1745505307000","value":{"community":"Community Home","inbox":"Inbox","manageContent":"Manage Content","tos":"Terms of Service","forgotPassword":"Forgot Password","themeEditor":"Theme Editor","edit":"Edit Navigation Bar","skipContent":"Skip to content","gxcuf89792":"Tech Community","external-1":"Events","s-m-b":"Nonprofit Community","windows-server":"Windows Server","education-sector":"Education Sector","driving-adoption":"Driving Adoption","Common-content_management-link":"Content Management","microsoft-learn":"Microsoft Learn","s-q-l-server":"Content Management","partner-community":"Microsoft Partner Community","microsoft365":"Microsoft 365","external-9":".NET","external-8":"Teams","external-7":"Github","products-services":"Products","external-6":"Power Platform","communities-1":"Topics","external-5":"Microsoft Security","planner":"Outlook","external-4":"Microsoft 365","external-3":"Dynamics 365","azure":"Azure","healthcare-and-life-sciences":"Healthcare and Life Sciences","external-2":"Azure","microsoft-mechanics":"Microsoft Mechanics","microsoft-learn-1":"Community","external-10":"Learning Room Directory","microsoft-learn-blog":"Blog","windows":"Windows","i-t-ops-talk":"ITOps Talk","external-link-1":"View All","microsoft-securityand-compliance":"Microsoft Security","public-sector":"Public Sector","community-info-center":"Lounge","external-link-2":"View All","microsoft-teams":"Microsoft Teams","external":"Blogs","microsoft-endpoint-manager":"Microsoft Intune","startupsat-microsoft":"Startups at Microsoft","exchange":"Exchange","a-i":"AI and Machine Learning","io-t":"Internet of Things (IoT)","Common-microsoft365-copilot-link":"Microsoft 365 Copilot","outlook":"Microsoft 365 Copilot","external-link":"Community Hubs","communities":"Products"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarHamburgerDropdown-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarHamburgerDropdown-1745505307000","value":{"hamburgerLabel":"Side Menu"},"localOverride":false},"CachedAsset:text:en_US-components/community/BrandLogo-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/BrandLogo-1745505307000","value":{"logoAlt":"Khoros","themeLogoAlt":"Brand Logo"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarTextLinks-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarTextLinks-1745505307000","value":{"more":"More"},"localOverride":false},"CachedAsset:text:en_US-components/authentication/AuthenticationLink-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/authentication/AuthenticationLink-1745505307000","value":{"title.login":"Sign In","title.registration":"Register","title.forgotPassword":"Forgot Password","title.multiAuthLogin":"Sign In"},"localOverride":false},"CachedAsset:text:en_US-components/nodes/NodeLink-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/nodes/NodeLink-1745505307000","value":{"place":"Place {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageCoverImage-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageCoverImage-1745505307000","value":{"coverImageTitle":"Cover Image"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeTitle-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeTitle-1745505307000","value":{"nodeTitle":"{nodeTitle, select, community {Community} other {{nodeTitle}}} "},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageTimeToRead-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageTimeToRead-1745505307000","value":{"minReadText":"{min} MIN READ"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageSubject-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageSubject-1745505307000","value":{"noSubject":"(no subject)"},"localOverride":false},"CachedAsset:text:en_US-components/users/UserLink-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/users/UserLink-1745505307000","value":{"authorName":"View Profile: {author}","anonymous":"Anonymous"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/users/UserRank-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserRank-1745505307000","value":{"rankName":"{rankName}","userRank":"Author rank {rankName}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageTime-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageTime-1745505307000","value":{"postTime":"Published: {time}","lastPublishTime":"Last Update: {time}","conversation.lastPostingActivityTime":"Last posting activity time: {time}","conversation.lastPostTime":"Last post time: {time}","moderationData.rejectTime":"Rejected time: {time}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBody-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBody-1745505307000","value":{"showMessageBody":"Show More","mentionsErrorTitle":"{mentionsType, select, board {Board} user {User} message {Message} other {}} No Longer Available","mentionsErrorMessage":"The {mentionsType} you are trying to view has been removed from the community.","videoProcessing":"Video is being processed. Please try again in a few minutes.","bannerTitle":"Video provider requires cookies to play the video. Accept to continue or {url} it directly on the provider's site.","buttonTitle":"Accept","urlText":"watch"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageCustomFields-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageCustomFields-1745505307000","value":{"CustomField.default.label":"Value of {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageRevision-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageRevision-1745505307000","value":{"lastUpdatedDatePublished":"{publishCount, plural, one{Published} other{Updated}} {date}","lastUpdatedDateDraft":"Created {date}","version":"Version {major}.{minor}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/QueryHandler-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/QueryHandler-1745505307000","value":{"title":"Query Handler"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyButton-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyButton-1745505307000","value":{"repliesCount":"{count}","title":"Reply","title@board:BLOG@message:root":"Comment","title@board:TKB@message:root":"Comment","title@board:IDEA@message:root":"Comment","title@board:OCCASION@message:root":"Comment"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageAuthorBio-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageAuthorBio-1745505307000","value":{"sendMessage":"Send Message","actionMessage":"Follow this blog board to get notified when there's new activity","coAuthor":"CO-PUBLISHER","contributor":"CONTRIBUTOR","userProfile":"View Profile","iconlink":"Go to {name} {type}"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarDropdownToggle-1745505307000","value":{"ariaLabelClosed":"Press the down arrow to open the menu"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserAvatar-1745505307000","value":{"altText":"{login}'s avatar","altTextGeneric":"User's avatar"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/ranks/UserRankLabel-1745505307000","value":{"altTitle":"Icon for {rankName} rank"},"localOverride":false},"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/tags/TagView/TagViewChip-1745505307000","value":{"tagLabelName":"Tag name {tagName}"},"localOverride":false},"CachedAsset:text:en_US-components/users/UserRegistrationDate-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/users/UserRegistrationDate-1745505307000","value":{"noPrefix":"{date}","withPrefix":"Joined {date}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeAvatar-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeAvatar-1745505307000","value":{"altTitle":"Node avatar for {nodeTitle}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeDescription-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeDescription-1745505307000","value":{"description":"{description}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageListMenu-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageListMenu-1745505307000","value":{"postTimeAsc":"Oldest","postTimeDesc":"Newest","kudosSumWeightAsc":"Least Liked","kudosSumWeightDesc":"Most Liked","sortTitle":"Sort By","sortedBy.item":" { itemName, select, postTimeAsc {Oldest} postTimeDesc {Newest} kudosSumWeightAsc {Least Liked} kudosSumWeightDesc {Most Liked} other {}}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Pager/PagerLoadMorePreviousNextLinkable-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Pager/PagerLoadMorePreviousNextLinkable-1745505307000","value":{"loadMore":"Show More"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeIcon-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeIcon-1745505307000","value":{"contentType":"Content Type {style, select, FORUM {Forum} BLOG {Blog} TKB {Knowledge Base} IDEA {Ideas} OCCASION {Events} other {}} icon"},"localOverride":false}}}},"page":"/blogs/BlogMessagePage/BlogMessagePage","query":{"boardId":"azuresynapseanalyticsblog","messageSubject":"azure-synapse-studio-cicd-using-yaml-pipelines","messageId":"3045553"},"buildId":"-gVUpXaWnPcjlrLJZ92B7","runtimeConfig":{"buildInformationVisible":false,"logLevelApp":"info","logLevelMetrics":"info","openTelemetryClientEnabled":false,"openTelemetryConfigName":"o365","openTelemetryServiceVersion":"25.3.0","openTelemetryUniverse":"prod","openTelemetryCollector":"http://localhost:4318","openTelemetryRouteChangeAllowedTime":"5000","apolloDevToolsEnabled":false,"inboxMuteWipFeatureEnabled":false},"isFallback":false,"isExperimentalCompile":false,"dynamicIds":["./components/community/Navbar/NavbarWidget.tsx","./components/community/Breadcrumb/BreadcrumbWidget.tsx","./components/customComponent/CustomComponent/CustomComponent.tsx","./components/blogs/BlogArticleWidget/BlogArticleWidget.tsx","./components/messages/MessageView/MessageViewStandard/MessageViewStandard.tsx","./components/messages/ThreadedReplyList/ThreadedReplyList.tsx","./components/external/components/ExternalComponent.tsx","../shared/client/components/common/List/UnwrappedList/UnwrappedList.tsx","./components/tags/TagView/TagView.tsx","./components/tags/TagView/TagViewChip/TagViewChip.tsx","../shared/client/components/common/List/UnstyledList/UnstyledList.tsx","./components/messages/MessageView/MessageView.tsx","../shared/client/components/common/Pager/PagerLoadMorePreviousNextLinkable/PagerLoadMorePreviousNextLinkable.tsx","./components/customComponent/CustomComponentContent/TemplateContent.tsx"],"appGip":true,"scriptLoader":[{"id":"analytics","src":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/pagescripts/1730819800000/analytics.js?page.id=BlogMessagePage&entity.id=board%3Aazuresynapseanalyticsblog&entity.id=message%3A3045553","strategy":"afterInteractive"}]}
