Troubleshooting Common issues with Elastic Jobs in Azure SQL Database

Determining the Cause of Failure

Assume for the purposes of demonstration that I have created a job with a typo (missing parenthesis before the CREATE) in it:

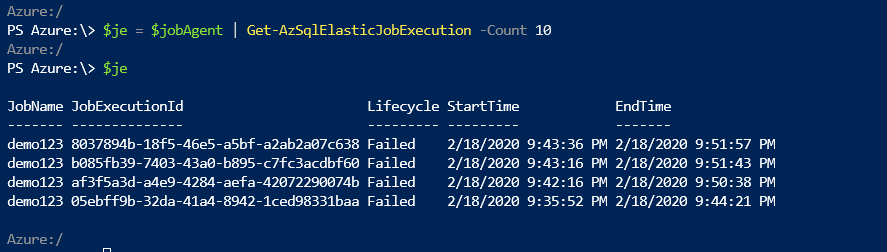

I run the job several times, but it fails. We can see this in the portal, or through Azure Cloud Shell:

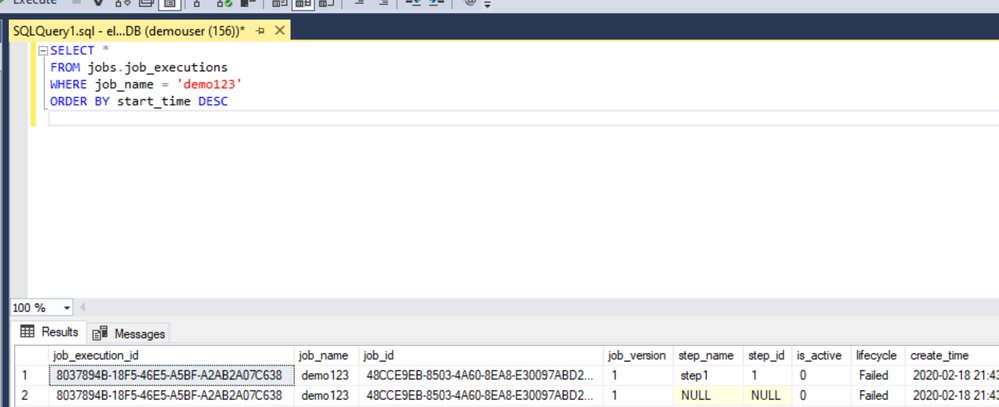

We can confirm the failure by issuing the following query in Sql Server Management Studio when connected to the job database (this hosts my Elastic Jobs agent) directly:

SELECT *
FROM jobs.job_executions
WHERE job_name = 'demo123'
ORDER BY start_time DESC

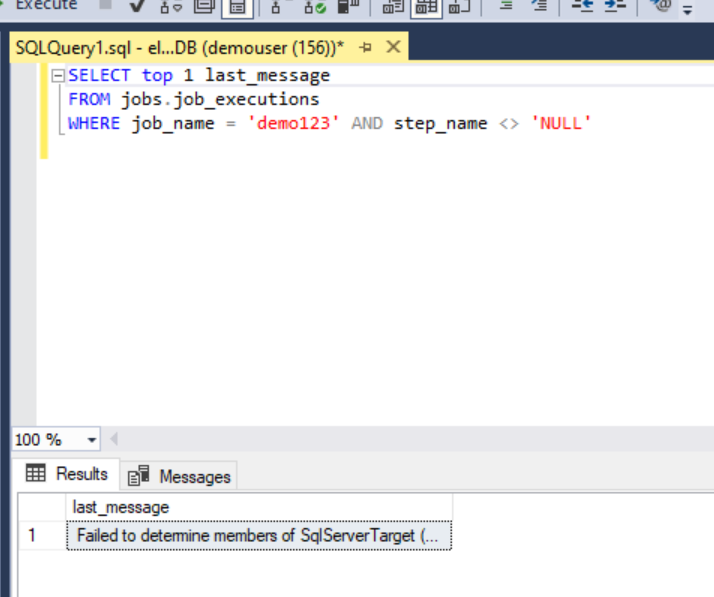

Using any of these three methods confirms that the job failed. So, the first step is to drill down onto the failure message by executing the following query:

SELECT last_message
FROM jobs.job_executions
WHERE job_name = 'demo123' AND step_name <> 'NULL'

 This yields the following error message:

Fixing the Firewall Rules

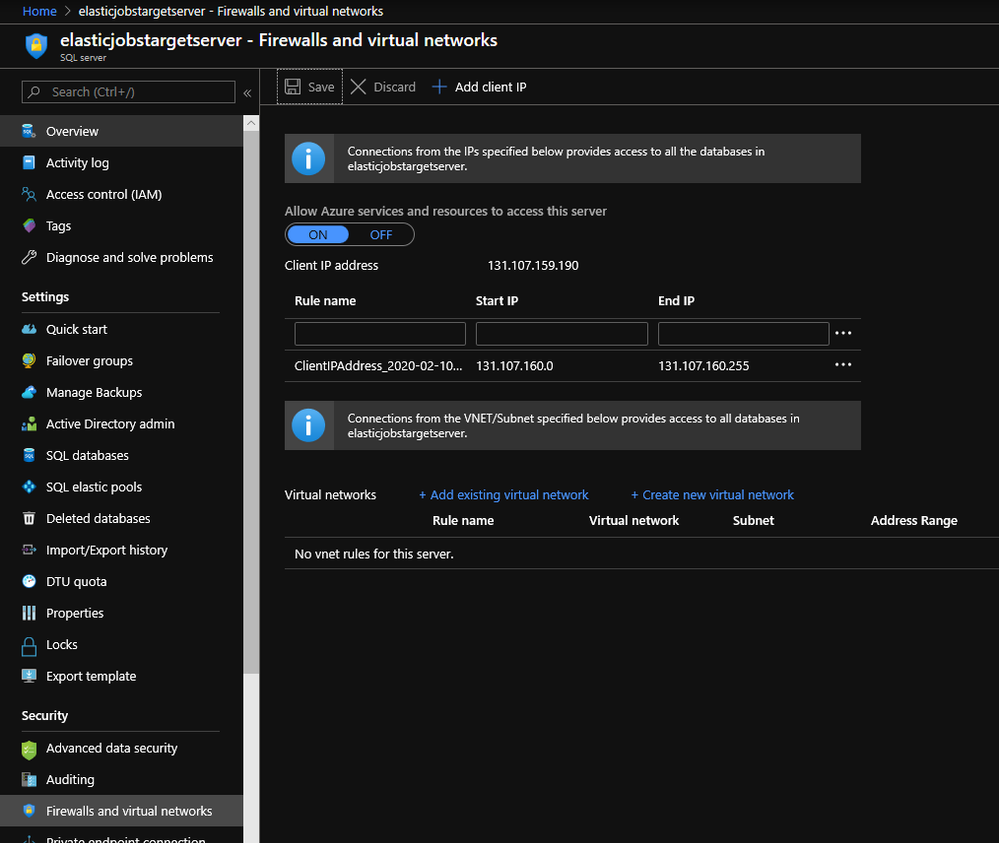

This error means that the Elastic Job Agent cannot connect to the target server(s) because the target has some firewall rules blocking the connection requests.  Indeed - it is required that every target in the target group allows connections from Azure Services in order for Elastic Jobs to work.  To fix this, I go to the target server in the Azure Portal and click on the “Firewalls and virtual networks” item under “Security”.  Next, I toggle the "Allow Azure services" from OFF to ON, and save my changes.

Fixing Typos or Syntax Errors in Job Steps 

Now, we re-execute the job, but the execution fails again.  If I use SQL Server Management Studio to execute the same query as before, I can get the most recent failure message.  This time, the error is:

Recall that we expected this, since we knew there was a typo in the T-SQL used to define the step.  I am going to update the T-SQL with the correct parenthesis.  There are two ways to update a job step when you want to make this kind of a change - T-SQL or PowerShell.  If you are using T-SQL, you will want to use the stored procedure jobs.sp_update_jobstep .  In PowerShell you will use the Set-AzSqlElasticJobStep command from the specific job step you want to change.  I am going to update my job step using PowerShell.  To do this, first we need to bind the correct T-SQL text, then bind the specific job step we want to change, and then update it:

:\> $sqlText1 = "if not exists (select * from sys.Tables where object_id = object_id('T')) create table T (a int, b int)"

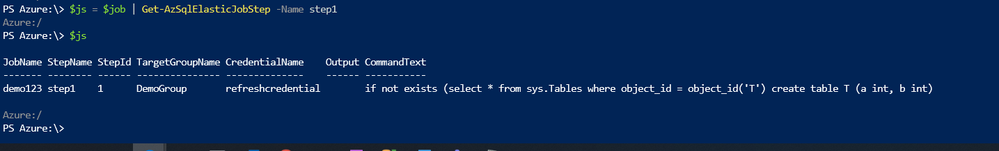

:\> $js = $job | Get-AzSqlElasticJobStep -Name step1
:\> $js | Set-AzSqlElasticJobStep -CommandText $sqlText1

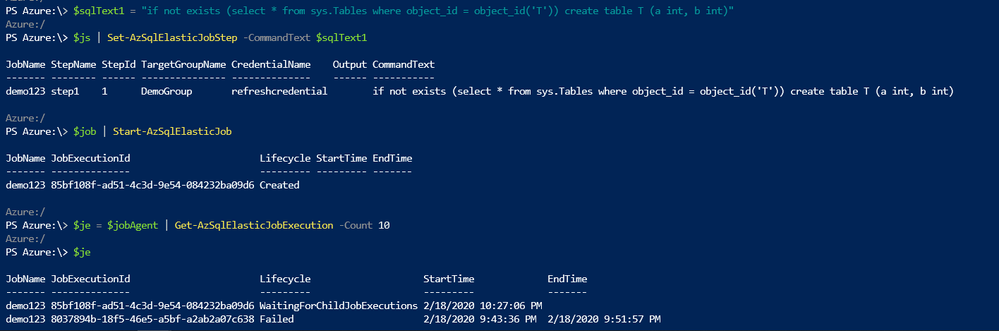

Now that the job step has been updated, we wait for all running instances of the job to complete (if there are any) and re-run the job.  And, of course, check on its execution.

:\> $job | Start-AzSqlElasticJob

Next, we can check the status by executing our query about job executions from Management Studio.  Note the job_version is now 2 instead of 1 (because of the update).  The job is running, and can complete successfully.

This post concludes my series covering Elastic Jobs on Azure SQL Database. I hope that you found it informative and helpful.

This blog is part of a series about Elastic Jobs on Azure SQL Database.

Code samples are also available on GitHub.
