We are thrilled to announce the latest improvement in the Azure SQL Database conversion process to Hyperscale. This update, now available in public preview, streamlines the database conversion process, reducing downtime and offering greater control and visibility to our customers. Let’s dive into the enhancements and what they mean for you.
Overview
We have heard feedback from customers about possible improvements we could make while converting their databases to Hyperscale. Customers complained about longer than expected downtime during conversion, no insights into the current state of conversion, and unpredictable cutover time. We acted on the feedback and made several key improvements in this release.
1. Shorter cutover time
One of the most significant enhancements in this improvement is the reduction in cutover times when converting a database to Hyperscale. This improvement ensures that the cutover process is faster and more efficient, minimizing downtime and connectivity disruptions. Based on our telemetry, cutover time 99th percentile has been reduced from ~6 minutes to less than ~1 minute.
2. Support for higher log generation rate
During the migration, the new process supports a higher log generation rate on the source database, ensuring that the conversion can handle more write intensive workloads and complete successfully. In the previous version we saw that the database conversions were not able to finish when log generation on the source was more than 8 MiBps continuously, throughout the conversion process. With this improvement we can now support up to 50 MiBps log generation on source and still succeed. This was achieved by improving synchronizing mechanisms between source and destination while conversion is in progress.
3. Manual cutover
A new option introduced with this improvement is manual cutover. This allows customers to initiate the conversion process and pause it when the database is ready to cutover to Hyperscale, giving them up to 72 hours to perform the cutover at a time that best suits their operational needs. If the manual cutover is not completed within the given timeframe, the process is automatically canceled, and the database remains on the original service tier, without any data loss. If the new parameter is not passed, then the cutover experience would be the same as earlier i.e. automatic cutover as soon as Hyperscale database is ready.
4. Granular progress reporting
Another improvement in the conversion process is that now customers can monitor the entire conversion process at a granular level. Whether using T-SQL, REST API, PowerShell, Azure CLI or Azure portal, detailed progress information about conversion phases is available, providing greater transparency and control over the process.
Customer feedback
Throughout the private preview phase, we have received overwhelmingly positive feedback from several customers about this improvement. John Nafa, Cloud Architect, Asurgent says:
|
The new database conversion experience from Microsoft has been incredibly seamless and efficient, making the conversion process to Azure SQL Database Hyperscale smooth and straightforward. The progress reporting and manual cutover features were especially valuable, providing real-time insights and ensuring a smooth transition. It’s been a pleasure working with this improvement, and I’m excited to see it become available to a wider audience. |
Get started
Out of the four key improvements mentioned above, most are automatic.
To utilize the manual cutover option, you need to use a new optional parameter in T-SQL, PowerShell, Azure CLI, or REST API while initiating the conversion process. Azure portal also provides a new option to select manual cutover. Granular progress reporting is available irrespective of the cutover mode.
Use manual cutover
Let us go through new options available in various interfaces with this improvement.
Azure Portal
To use manual cutover, a new Cutover mode option is provided in the Azure portal. The following screenshot shows the steps to convert a database to Hyperscale. The new option is shown under step 3.
Azure portal with new Cutover mode option
If you have not seen this option in the Azure portal yet, don’t worry. We are enabling this capability now and you can expect it to be available within days.
Commands
A new parameter has been introduced in each interface to initiate the conversion process with the manual cutover option. The following table provides sample commands to convert a database named WideWorldImporters on a logical server called contososerver to an 8-vcore serverless Hyperscale database.
|
Method |
Command |
|
T-SQL |
ALTER DATABASE WideWorldImporters MODIFY (EDITION = 'Hyperscale', SERVICE_OBJECTIVE = 'HS_S_Gen5_8') WITH MANUAL_CUTOVER |
|
PowerShell |
Set-AzSqlDatabase -ResourceGroupName "ResourceGroup01" -ServerName "contososerver" -DatabaseName "WideWorldImporters" -Edition "Hyperscale" -requestedServiceObjectiveName "HS_S_Gen5_2" -ManualCutover |
|
Azure CLI |
az sql db update --resource-group ResourceGroup01 --server contososerver --name WideWorldImporters --edition Hyperscale --service-objective HS_S_Gen5_2 --manual-cutover |
Note: Additional parameters like backup storage redundancy or zone redundancy etc. can also be added. Refer documentation Set-AzSqlDatabase (Az.Sql) | Microsoft Learn (for PowerShell) and az sql db | Microsoft Learn (for Azure CLI).
REST API also has new properties manualCutover and performCutover. Refer Databases - Create Or Update - REST API (Azure SQL Database) | Microsoft Learn for more details.
Monitor the conversion progress
The progress during this conversion can be monitored using various interfaces. Detailed phase information is available in the Dynamic Management View (DMV) sys.dm_operation_status for those using T-SQL. Similar command options are available for PowerShell and Azure CLI users.
Azure Portal

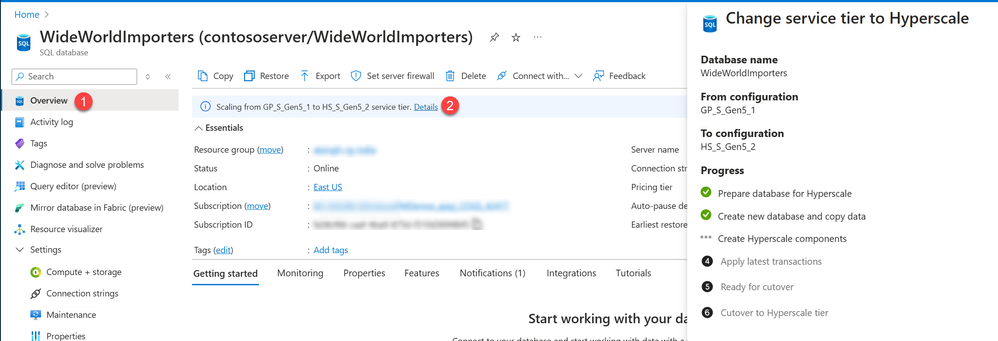

Progress of the conversion process can be seen by clicking on Details hyperlink as shown in the below screenshot at step 2.
Progress reporting in Azure portalMonitoring programmatically
As a part of this improvement, we have introduced new columns in the sys.dm_operation_status DMV called phase_code, phase_desc and phase_info which are populated during conversion process. Refer to documentation for more details.
Similarly, new output columns, phase and phaseInformation, are available if using PowerShell under OperationPhaseDetails and if using Azure CLI under operationPhaseDetails.
Here is the quick reference for commands via various interfaces.
|
Method |
Command |
|
T-SQL |
SELECT state_desc, phase_code, phase_desc, JSON_VALUE(phase_info, '$.currentStep') AS currentStep, JSON_VALUE(phase_info, '$.totalSteps') AS totalSteps, phase_info, start_time, error_code, error_desc, last_modify_time FROM sys.dm_operation_status WHERE resource_type = 0 AND operation='ALTER DATABASE' AND major_resource_id = 'WideWorldImporters' |
|
PowerShell |
(Get-AzSqlDatabaseActivity -ResourceGroupName "ResourceGroup01" -ServerName "contososerver" -DatabaseName "WideWorldImporters").OperationPhaseDetails |
|
Azure CLI |
(az sql db op list --resource-group ResourceGroup01 --server contososerver --database WideWorldImporters | ConvertFrom-Json).operationPhaseDetails.phase |
Perform manual cutover
The manual cutover, if specified, can be performed using the Azure portal or programmatically, ensuring a smooth transition to the Hyperscale tier.
Azure Portal

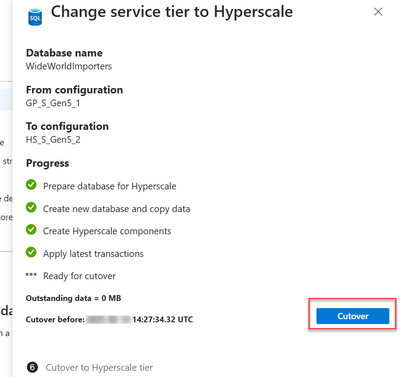

Cutover can be initiated from the same screen where progress of conversion is reported.
Commands
Here is the quick reference of the commands to perform cutover.
|
Method |
Command |
|
T-SQL |
ALTER DATABASE WideWorldImporters PERFORM_CUTOVER |
|
PowerShell |
Set-AzSqlDatabase -ResourceGroupName "ResourceGroup01" -ServerName "contososerver" -DatabaseName "WideWorldImporters" -PerformCutover |
|
Azure CLI |
az sql db update --resource-group ResourceGroup01 --server contososerver --name WideWorldImporters --perform-cutover |
Conclusion
This update marks a significant step forward in the Hyperscale conversion process, offering faster cutover time, enhanced control with a manual cutover option, and improved progress visibility. We encourage you to try these features and provide your valuable feedback and help us refine this feature for general availability.
You can contact us by commenting on this blog post and we’ll be happy to get back to you. Alternatively, you can also email us at sqlhsfeedback AT microsoft DOT com. We are eager to hear from you all!
