This article explores the integration of Microsoft's OneLake with the Medallion Architecture, detailing a structured three-layer data management approach—Bronze (raw data), Silver (cleaned and transformed data), and Gold (optimized data for analytics). It highlights benefits such as scalability, enhanced data governance, and robust security measures, providing best practices for implementing this architecture within Microsoft Fabric.
Medallion Architecture Overview
Medallion Architecture, a systematic data management approach, offers a three-tier structure for data processing: Bronze, Silver, and Gold.
Bronze Layer
This raw layer stores different data types, including unstructured, semi-structured, and structured. The aim here is to ensure that the data is secured in its raw form during the storage processes so that it can be processed in the future.
Silver Layer
This is an intermediate layer where the data is cleaned and transformed to maintain uniformity and fitness. Each data source is suitable for analysis by employing data cleaning, joining, and filtering methods that permit data unification from different sources. Therefore, the layer takes care of errors or a non-standardized data structure and improves its quality, easing end users' understanding of the data.
Gold Layer
This the final layer incorporates the best available and most consolidated data suited to a particular business need; for example, reporting, machine learning, or analytics. It addresses business logic and requirements and delivers aggregated data suitable for operational queries and dashboards.

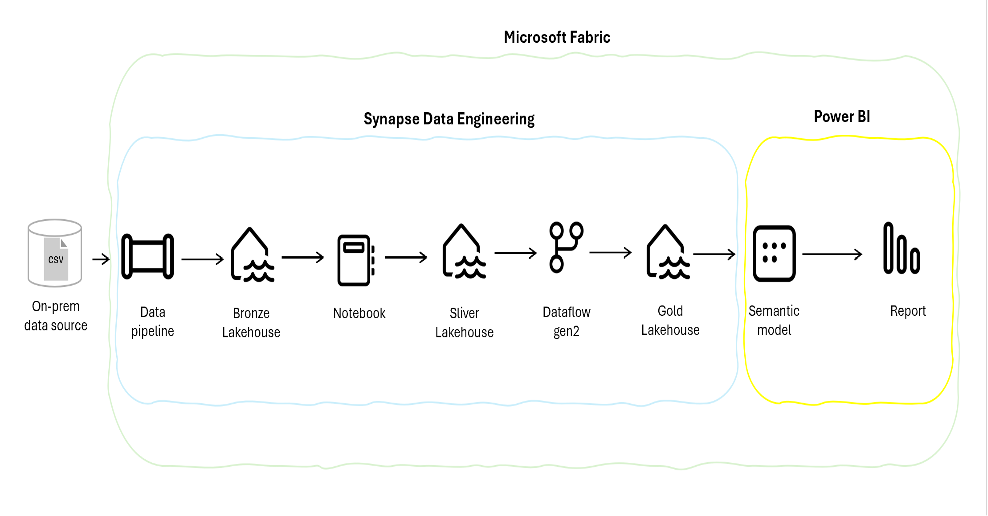

Medallion ArchitectureIntegration of OneLake with the Medallion Architecture

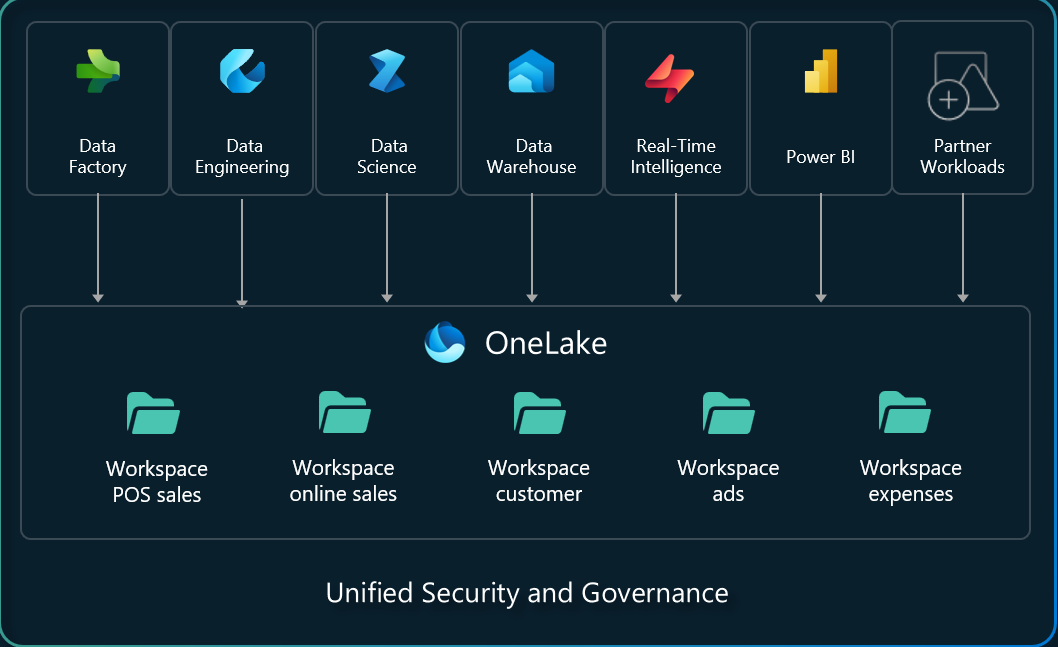

With OneLake, data is divided into three levels for the Medallion Architecture: Bronze, Silver, and Gold, in increasing order of sophistication. The Bronze layer takes in and retains unprocessed data from various sources and does not modify it. This data undergoes cleansing and transformation in the Silver layer to ensure consistency and quality.
This structured data in the OneLake within the organization certainly makes access easier while improving data quality and creating more controlled processes while ensuring that reporting has clear-cut and purposeful quantitative insights.
There are several important factors support the integration of OneLake with the Medallion Architecture in the Microsoft Fabric environment.
Scalability
OneLake provides a unified conceptual data hub to correspond with the increasing volume of data. As data progresses from the Bronze layer to the Silver and Gold layers of the Medallion Architecture, such scalability ensures that there can always be sufficient capacity for processing and storage requirements.
Data Governance
By distributing data in layers with different characteristics and authentication levels, OneLake and the Medallion structure allow for greater data control. By providing such a clear-cut framework, the need for such a framework minimizes the processes and procedures needed to meet legal and corporate compliances while ensuring standardization of data treatment and storage.
Security
OneLake practices multi-layered security, offering detailed access permissions for folders, items, and workspaces. Organizations can use role-based access permissions for every layer of the Medallion Architecture to protect sensitive information throughout the data lifecycle.
Best Practices for OneLake Medallion Architecture
Below are some Medallion Best Practices for One Lake:
Optimizing Performance Across Layers
All layers must employ low-latency techniques to store and configure the data sets in OneLake's Medallion Architecture. Several of these methods, resources, and techniques involve partitioning large data sets, which helps in faster information retrieval and processing times.
Moreover, the dynamic adjustment of compute resources in response to workload demands helps to guarantee that certain performance requirements are maintained throughout busy periods. This elasticity allows computing capacity to match data processing requirements without being over-provisioned, improving performance relative to resource consumption.
Cost Optimization
Cost management in OneLake does not occur spontaneously; thus, effort must be made to ensure that resources are scaled efficiently. With the help of the cost management tools available in Fabric, resource requirements can be estimated, and expenditure on storage and computing can be monitored and avoided to minimize losses.
Maintenance and Monitoring
A well-defined maintenance and continuous monitoring plan is one of the most pivotal factors in achieving a sustained, effective data pipeline in OneLake. Users' performance is measurable through built-in monitoring tools, which help users pinpoint limits and ensure seamless data movement between layers.
To maintain the pipeline in good working order, it is recommended that performance evaluations and modifications be carried out frequently. This also eliminates the possibility of problems occurring in the first place so that the entire architecture can guarantee access to data at any time and in the required quality.
Explore Data in OneLake
Using OneLake File Explorer for Data Access
OneLake’s Key Developer enables developers to read and manipulate OneLake through the File Explorer interface. This tool provides a file system interface that allows users to browse, view, and work with data files.
OneLake File Explorer allows its users to work with data from different levels, Bronze, Silver, and Gold and enables them to work with the data that has been archived. This tool also has features that allow users to access the data and resolve problems, i.e., issues in the data pipeline.
Consumption of Data in OneLake
Many tools, such as Power BI, Synapse Analytics, and other external tools, complement data consumption in OneLake. Using Power BI to integrate with other OneLake services allows users to access OneLake directly to visualize and analyze data and produce interactive reports and dashboards.
Security and Governance in OneLake
Built-In Security Mechanisms
A well-designed security model within OneLake secures data in all layers. In this model, Role-Based Access Control (RBAC) allows administrators to grant specific access rights according to the user’s purpose.
This makes it possible to prevent unauthorized users from reading sensitive information at various levels of the Medallion Architecture. Moreover, data is secured through encryption both when transmitted and when it is stored to prevent the occurrence of unauthorized access.
Data Lineage and Governance
As a part of Fabric, data lineage tracking tools are present, making data transparency and compliance possible throughout the data pipeline. Data lineage tracking permits users to follow data to its very creation and can do so for any data processing phase.
This aspect is very important in meeting regulatory requirements, making auditing tasks and the processes associated with the confirmation of data’s movement simple. In addition, Fabric provides the necessary tools for controlling and monitoring data quality in the Bronze, Silver, and Gold tiers for timely governance and control of trust in data used for decision-making and analytics.
Conclusion
Combining OneLake and the Medallion Architecture in a Fabric environment creates a secure and efficient framework for data management that is also easily scalable. Such layered approaches, in turn, improve data governance, quality, and accessibility and allow organizations to have the confidence to make data-centered decisions.
