In a recent support case, an application using Hibernate and the Microsoft JDBC Driver for SQL Server reported "The query has timed out". The application team had timestamps for the failures, but the SQL evidence reviewed did not show matching query cancellations.

This raised a question that developers and DBAs frequently ask: If the exception contains SQLServerException, does that mean the database engine generated the timeout?

The important distinction is where the timeout is reported and enforced, versus what caused the operation to exceed that limit. A command timeout is controlled by the client. Its underlying cause can still be a slow query, blocking, a communication delay, or another issue along the client and database path.

In this article, we will explain that distinction, what to capture when it happens, and when increasing the command timeout can be appropriate. The examples use invented values and generic statements; no customer identifiers or application SQL are included.

First identify which timeout occurred

An application request can wait at several different stages. Before changing a setting, identify the stage that failed.

Changing a connection timeout does not increase the query timeout. Similarly, an HTTP request deadline is not the same setting as a database command timeout. A failure while obtaining a pooled connection should not automatically be investigated as a query that timed out in SQL.

The Microsoft JDBC timeout documentation distinguishes these settings. JDBC queryTimeout and cancelQueryTimeout use seconds; socketTimeout uses milliseconds.

Understand what the exception tells us

The useful part of the exception chain in this case was:

org.hibernate.QueryTimeoutException
Caused by: java.sql.SQLTimeoutException:
          The query has timed out.
Caused by: com.microsoft.sqlserver.jdbc.SQLServerException:
          The query has timed out.
          ... TDSCommand.checkForInterrupt(...)

The stack places the observed exception in the client/JDBC execution and response handling path, propagated through Hibernate. SQLServerException is a driver exception class. Its presence alone does not establish that SQL Server generated a corresponding engine error.

This is a client reported query timeout. That describes the observed error, not the root cause. If blocking prevents a command from completing before the client's limit, the client raises the timeout, while the delay is explained by database activity. Developers and DBAs need to investigate the same attempt together.

What queryTimeout actually controls

The Microsoft JDBC Driver uses queryTimeout to limit its wait for a server response after sending an execute command. When that timeout expires, the documented behavior is to cancel the command. cancelQueryTimeout controls the subsequent wait for acknowledgment of cancellation before the driver closes the connection.

These settings do not define an exact stopwatch for the entire business request. Pool acquisition, connection establishment, cancellation handling, retries, and application processing can have different deadlines. The caller's total elapsed time can therefore differ from the configured query timeout.

For JDBC, setQueryTimeout sets the timeout on a statement in seconds. In .NET, the corresponding setting is SqlCommand.CommandTimeout. Its documented semantics include network reads during command execution or result processing; it is not a limit on all user code that processes those results.

The default is also provider dependent. SqlClient documents a 30 second default. Do not assume the same default for JDBC or for statements created by an ORM. Check the effective value used by the failing operation. This client command timeout is not an Azure SQL Database engine configuration setting. The same distinction applies when the application connects to Azure SQL Managed Instance or SQL Server on an Azure VM.

How a command timeout becomes an Attention

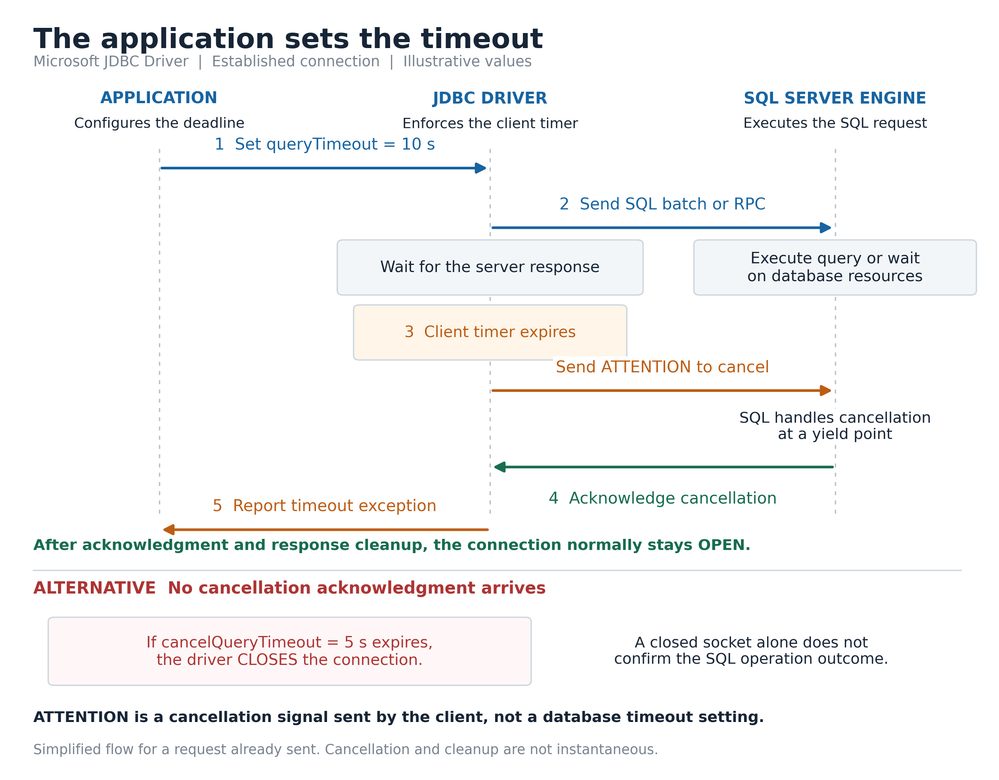

The application configures the driver's deadline; it does not send a "CommandTimeout" SQL error to the engine. The diagram shows the cancellation path for a request already sent through the Microsoft JDBC Driver. If the command completes within the limit, no timeout driven Attention is needed.





Figure 1. The application owns the deadline. The driver enforces it and requests cancellation; the engine handles the SQL request. The values are illustrative, not recommended settings.

For an already submitted request, Attention is a TDS cancellation message. SQL Server marks the request for cancellation and honors it at yield points, as described in the Attention and error 3617 guidance. The timer expiring and the engine stopping are not necessarily simultaneous.

The driver consumes the remaining response until it receives the cancellation acknowledgment. The TDS cancellation state describes this response cleanup. A query timeout normally leaves the connection open after that exchange; it does not immediately cut off all communication.

If no acknowledgment arrives and a configured cancelQueryTimeout expires, the Microsoft JDBC Driver closes the connection. A socket timeout or transport failure can also close it. Closing the socket alone does not establish the SQL operation's outcome. Other providers can have different cancellation and connection handling details.

What we could conclude from the case

We reviewed the reported failure windows, the available SQL activity, and the query identified by the application team. Some client initiated aborts were recorded, but we could not correlate them with the reported failures. The resource metrics reviewed did not establish resource pressure as the cause either.

The supported conclusion was that the client reported a query timeout, while the SQL evidence reviewed did not identify a matching cancellation or establish the root cause. Further correlation was required.

The reported statement was a SELECT. The transaction and write examples later in this article explain additional design considerations; they are not findings of failed writes or abandoned transactions in this case. Statistics maintenance had also been performed, but that action did not establish why the client timed out.

A fast maximum or average in the available query statistics does not prove that the failed attempt was fast. Confirm the query, parameter types, destination database and replica, execution context, and time window. Successful executions and retries may appear alongside the attempt that failed.

Developers should capture each failed attempt

The message alone is not enough. Record the failure as an individual attempt that a DBA can correlate with database evidence.



Measure pool acquisition, execution, result reading, and subsequent application processing separately. A request duration alone cannot tell us where the time was spent. If the ordinary logs are insufficient, collect a targeted JDBC driver trace during the same window.

Keep credentials and personal data out of diagnostic examples. Retain the necessary correlation details in controlled diagnostic records and anonymize them before sharing publicly.

DBAs should correlate cancellations with execution evidence

On the database side, use Extended Events to capture sqlserver.attention together with relevant batch or RPC start and completion events. Correlate the timestamps and session or connection information with the application's failed attempt. The query timeout troubleshooting guidance describes this approach.

An Attention indicates a client cancellation signal, but it does not identify why the client canceled. A user pressing Cancel can also produce it. Compare the associated execution duration with the application's effective timeout and logs; do not interpret the Attention event's own duration as the query's total runtime.

Query Store adds historical context. In sys.query_store_runtime_stats, execution_type = 3 means client initiated aborted execution. It is not an exclusive count of query timeouts.

Query Store statistics are aggregated. Select intervals overlapping the incident window, aggregate rows for the same plan, execution type, and interval, and examine both aborted and regular executions. Filtering only on last_execution_time can miss relevant activity within an interval. A query hash identifies a query family, not an individual request.

For additional examples, see Lesson Learned 1 on capturing a TSQL command timeout, Lesson Learned 202 on reproducing and finding a command timeout, and Lesson Learned 525 on tracking timeouts beyond Query Store with Extended Events.

For Azure SQL Database, use database scoped Extended Events. Check capture coverage, filters, retention, and possible event loss before interpreting missing events. Do not expect every command timeout to appear in the SQL error log.

Also check transaction cleanup. Canceling a statement does not guarantee that the entire explicit transaction has been rolled back. The application's error handling must account for the resulting transaction state, as explained in the Azure SQL blocking guidance.

When increasing the command timeout makes sense

In Lesson Learned 253 and Lesson Learned 372, I shared examples that increase the execution timeout across retry attempts, including a PowerShell example.

That technique changes how long the client is prepared to wait. It does not make the SQL statement execute faster. A bounded increase may be appropriate when the workload legitimately needs more time, or as a temporary mitigation while investigating. It can also help a controlled diagnostic execution complete so its behavior can be examined.

If the operation normally completes quickly but suddenly exceeds the limit, investigate blocking, plan changes, resource waits, and communication before treating a larger timeout as the permanent solution. Verify the change against representative load and the application's response time requirements.

The following examples show where the setting belongs. They assume an already open connection and run a generic statement with an intentional delay. Use them only in a test environment.

For Java with the Microsoft JDBC Driver:

try (java.sql.Statement statement = connection.createStatement()) {
    statement.setQueryTimeout(20); // seconds
    statement.execute("WAITFOR DELAY '00:00:12'; SELECT 1;");
}

For .NET with Microsoft.Data.SqlClient:

using var command = connection.CreateCommand();
command.CommandTimeout = 20; // seconds
command.CommandText = "WAITFOR DELAY '00:00:12'; SELECT 1;";
using var reader = command.ExecuteReader();

With a 5 second command timeout, the deliberate 12 second delay should produce a timeout. With 20 seconds, the operation should have time to complete under normal test conditions. The delay has not become shorter; only the client's permitted wait has changed. This demonstrates the mechanism, not a fix for the original case.

For each test, record the UTC start and end, effective timeout, elapsed time, exception, and attempt identifier. Capture Attention and the related execution events at the same time. Compare the two runs: the application setting changed, while the SQL statement and database configuration remained the same. Use the captured events to verify the expected behavior rather than assuming exact timestamps or a fixed event count.

When an ORM creates the statement, apply the equivalent setting through the supported ORM configuration and verify its effective value and unit. Setting setQueryTimeout(0) or CommandTimeout = 0 removes that statement's timeout limit; it should not be a routine response to unexplained failures.

If retries are used, record the timeout on every attempt, limit the attempts, allow a delay between them, and keep the total within the request's overall deadline.

Transactions determine what must succeed or fail together

A single UPDATE, INSERT, or DELETE already executes within a transaction in autocommit mode. Use an explicit transaction when several statements form one business operation and must be committed or rolled back together. The transaction documentation describes these transaction modes.

For example, an application might UPDATE inventory, INSERT an order, and DELETE its reservation. If the first two statements finish and the third is canceled, the outcome depends on how the unit of work was managed.



One transaction preserves the intended unit of work; it does not replace timeout and error handling. An open transaction left after cancellation can retain locks and delay other sessions. A poorly handled timeout can therefore contribute to further timeouts.

Keep the transaction as short as the business rules allow. Do not include user interaction or unrelated external calls while holding it open. A command timeout also does not automatically limit the transaction's total duration: if the application sends several commands separately, each command has its own limit. Track the total operation deadline as well.

A rollback inside TSQL CATCH may never run for Attention

This is an important detail for developers: T-SQL TRY CATCH does not catch Attentions, including client interrupt requests. Placing ROLLBACK only in a stored procedure's CATCH block is therefore insufficient protection against a client cancellation.

The application or ORM that owns the transaction must handle the failed call and resolve that transaction. Attempt rollback using its transaction API when the connection remains usable; log cleanup failures separately and do not continue using an unresolved transaction. A rollback attempt is not proof of a completed rollback. Follow the provider's cleanup rules before returning the connection to normal pool use.

SET XACT_ABORT ON controls transaction abortion for applicable runtime errors. Microsoft's Attention and transaction guidance also describes it as a way to control rollback when a cancellation occurs. Set it deliberately for the SQL session or batch and validate the behavior with the actual driver, ORM, and transaction ownership model. It does not change CommandTimeout, and it cannot undo a transaction that already committed.

In a disposable test environment, repeat the cancellation experiment inside a transaction after a small data modification. Compare XACT_ABORT OFF and ON. After cancellation acknowledgment, inspect transaction state on the same usable connection and ensure cleanup. If cancellation closes the connection, record that outcome instead of claiming to have queried its former session. This test is separate from the original SELECT investigation.

A timeout does not establish whether a write committed

If a connection fails after COMMIT was processed but before its acknowledgment reaches the application, the client can receive an error even though the changes were committed. Retrying an INSERT or increment blindly can then duplicate a business operation. Microsoft's connection resiliency documentation describes this commit failure and idempotency issue.

Use a stable operation identifier that is reused across retries. Record it atomically with the business changes and enforce uniqueness in the database, so a repeated attempt can identify the prior operation rather than apply it again. If the original transaction is still in progress, resolve or wait for its outcome; an absent record in a single check is not always conclusive.

The transaction provides atomicity for the changes. An operation identifier and deliberate retry handling help the application manage an uncertain result. Together, they make the timeout response part of the business operation's design.
