While working on a support case, our customer told us that the application was performing very poorly. We identified the affected query and found two execution plans in Query Store. When we compared them, we saw a clear difference: one plan used the CustomerId index, while the other scanned the table's clustered index. That led us to investigate why the query was no longer using that index.

The following example reproduces this scenario with 100,000 fictional orders in an existing test database in Azure SQL Database.

Follow the execution history

In the example, query_id 231 has two captured plans, 243 and 251. Comparing their XML revealed the following differences:

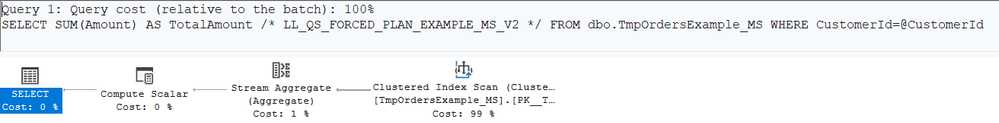

The scan references PK__TmpOrder__C3905BCF2BEADCD8. It still uses an index, but it no longer uses the nonclustered CustomerId index.

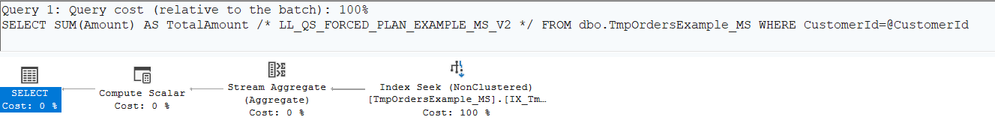

The most useful difference for our investigation was EstimatedRowsRead: 10 for the seek and 100,000 for the scan, with the same compiled parameter value of 42. The XML also identifies each plan through QueryPlanHash: 0xA9A905E8788F2826 for the seek and 0xD122865CD758CA3C for the scan.

Investigate why the index was no longer used

The plan comparison showed a change from an Index Seek to a Clustered Index Scan, but it did not explain why that change occurred. I therefore reviewed the Query Store metadata for both plans to check.

DECLARE @QueryId bigint = 231;
SELECT  *
FROM sys.query_store_plan
WHERE query_id = @QueryId
ORDER BY plan_id;

The results were:

1. Plan 243 had is_forced_plan = 1, force_failure_count = 1 and last_force_failure_reason_desc = NO_INDEX.
2. Plan 251 was not marked as forced.

This is where we discovered that the earlier plan had been configured as forced and that an attempt to apply it had failed.

• NO_INDEX identifies an unavailable index dependency. The forcing flag records configuration, while the failure fields record unsuccessful attempts. The counter increments on recompilation failures and resets when forcing changes from off to on. This gives us a specific explanation. The expected plan references an index that was removed. The engine could not apply that plan and could optimize the query normally instead. The query can therefore continue returning the correct result while its execution strategy changes.

Check the actual index definition and the deployment changes, then inspect the alternative plan. The NO_INDEX result explains the forcing failure; demonstrating that the alternative caused the reported slowdown still requires the runtime comparison. This is one possible cause of a regression, not an explanation for every slow query.

Review forcing failures during maintenance

This case also gave us a useful maintenance check. Instead of looking only for NO_INDEX, we can review the other forcing failures recorded by sys.query_store_plan. The following query groups affected plans by their last reported reason. Run it in the database being reviewed.

DECLARE @SinceUtc datetimeoffset =    DATEADD(day, -7, SYSUTCDATETIME());

SELECT last_force_failure_reason_desc AS LastFailureReason,
       COUNT_BIG(*) AS PlansWithFailures,
       COUNT(DISTINCT query_id) AS AffectedQueries,
       SUM(CASE WHEN is_forced_plan = 1
                THEN CONVERT(bigint, 1) ELSE 0 END)
           AS CurrentlyForcedPlans,
       SUM(force_failure_count) AS CumulativeFailureCount
FROM sys.query_store_plan
WHERE force_failure_count > 0
  AND (@SinceUtc IS NULL OR last_execution_time >= @SinceUtc)
GROUP BY last_force_failure_reason_desc
ORDER BY PlansWithFailures DESC;

Use @SinceUtc to focus on plans with execution activity since a date, or set it to NULL to review all retained plans with failures. The date filters activity, not the time of the forcing failure. The counters are cumulative and may include older failures or failures with a different earlier reason.

Identify queries that reference an index before removing it

Before removing an index, we can ask a related question: which captured query plans read from it, and how often have those plans executed recently? The following query searches the retained plan XML for the index and returns one row per matching plan.

Change the schema, table, index and UTC dates. This example looks for the CustomerId index used in my labs.

DECLARE @SchemaName sysname = N'dbo';
DECLARE @TableName sysname = N'TmpOrdersExample_MS';
DECLARE @IndexName sysname = N'IX_TmpOrdersExample_MS_CustomerId';
DECLARE @SinceUtc datetimeoffset = DATEADD(day, -7, SYSUTCDATETIME());
DECLARE @UntilUtc datetimeoffset = SYSUTCDATETIME();
DECLARE @XmlDatabase nvarchar(258) = QUOTENAME(DB_NAME());
DECLARE @XmlSchema nvarchar(258) = QUOTENAME(@SchemaName);
DECLARE @XmlTable nvarchar(258) = QUOTENAME(@TableName);
DECLARE @XmlIndex nvarchar(258) = QUOTENAME(@IndexName);

;WITH XMLNAMESPACES
    (DEFAULT 'http://schemas.microsoft.com/sqlserver/2004/07/showplan'),
Plans AS
(
    SELECT query_id, plan_id, is_forced_plan,
           TRY_CONVERT(xml, query_plan) AS PlanXml
    FROM sys.query_store_plan
)
SELECT p.query_id, p.plan_id, p.is_forced_plan,
       COALESCE(r.Executions, 0) AS CapturedExecutions,
       r.FirstIntervalStartUtc, r.LastIntervalEndUtc
FROM Plans AS p
OUTER APPLY
(
    SELECT SUM(rs.count_executions) AS Executions,
           MIN(i.start_time) AS FirstIntervalStartUtc,
           MAX(i.end_time) AS LastIntervalEndUtc
    FROM sys.query_store_runtime_stats AS rs
    JOIN sys.query_store_runtime_stats_interval AS i
      ON i.runtime_stats_interval_id = rs.runtime_stats_interval_id
    WHERE rs.plan_id = p.plan_id
      AND rs.execution_type = 0
      AND i.start_time >= @SinceUtc
      AND i.end_time <= @UntilUtc
) AS r
WHERE p.PlanXml.exist('
    //RelOp/IndexScan/Object[
        @Database = sql:variable("@XmlDatabase") and
        Schema = sql:variable("@XmlSchema") and
        @Table = sql:variable("@XmlTable") and
        @Index = sql:variable("@XmlIndex")
    ]') = 1
ORDER BY CapturedExecutions DESC, p.query_id, p.plan_id;

Read the output in three steps:

1. query_id and plan_id identify the captured plans to inspect. The same query can appear with several plans.
2. CapturedExecutions counts successful executions of those plans in intervals fully inside the requested window.
3. is_forced_plan = 1 highlights a current forcing dependency, even when the plan has no executions in that window.

These are plan execution counts, not exact counts of index operator executions: an operator in a conditional branch may not run every time.

A missing result does not prove that an index is unused. Check Query Store capture and retention, infrequent jobs, read replicas, index hints and constraints before deciding to remove it.

Compare with index usage counters

We can also check the current index usage counters. This query provides a second view of the same index:

SELECT i.name AS IndexName,
       u.user_seeks, u.user_scans, u.user_lookups,
       u.user_updates,
       u.last_user_seek, u.last_user_scan,
       u.last_user_lookup, u.last_user_update
FROM sys.indexes AS i
LEFT JOIN sys.dm_db_index_usage_stats AS u
  ON u.database_id = DB_ID()
 AND u.object_id = i.object_id
 AND u.index_id = i.index_id
WHERE i.object_id = OBJECT_ID(N'dbo.TmpOrdersExample_MS')
  AND i.name = N'IX_TmpOrdersExample_MS_CustomerId';

These counters describe index operations, not distinct queries, and they have their own reset history. They are not limited to the Query Store date window.

For a maintenance review, save two snapshots and compare them only after checking for resets or index changes. Use Query Store to identify the queries and these counters to understand the recorded read and write activity. Neither source alone proves that removing an index is safe.

Lessons learned

A forced plan is a configuration that still has dependencies. In this example, NO_INDEX explains why the intended index could not be used. Query Store shows the latest forcing status and counters, while an event capture provides dated evidence. Before removing an index, inspect recent captured plans and current forcing dependencies, then assess whether the observation period represents the workload that matters.
