AAD Auth Error - Login failed for user '<token-identified principal>'

FonsecaSergio's avatar
FonsecaSergio
Icon for Microsoft rankMicrosoft
May 26, 2020

An error may appear when trying to login to Azure SQL DB using AAD authentication



===================================
Cannot connect to SERVENAME.database.windows.net.
===================================
Login failed for user '<token-identified principal>'. (.Net SqlClient Data Provider)
------------------------------
For help, click: http://go.microsoft.com/fwlink?ProdName=Microsoft%20SQL%20Server&Evtsrc=MSSQLServer&EvtID=18456&LinkId=20476
------------------------------
Server Name: SERVENAME.database.windows.net
Error Number: 18456
Severity: 14
State: 1
Line Number: 65536
------------------------------
Program Location:
at System.Data.SqlClient.SqlInternalConnectionTds..ctor(DbConnectionPoolIdentity identity, SqlConnectionString connectionOptions, SqlCredential credential, Object providerInfo, String newPassword, SecureString newSecurePassword, Boolean redirectedUserInstance, SqlConnectionString userConnectionOptions, SessionData reconnectSessionData, DbConnectionPool pool, String accessToken, Boolean applyTransientFaultHandling, SqlAuthenticationProviderManager sqlAuthProviderManager)
at System.Data.SqlClient.SqlConnectionFactory.CreateConnection(DbConnectionOptions options, DbConnectionPoolKey poolKey, Object poolGroupProviderInfo, DbConnectionPool pool, DbConnection owningConnection, DbConnectionOptions userOptions)
at System.Data.ProviderBase.DbConnectionFactory.CreateNonPooledConnection(DbConnection owningConnection, DbConnectionPoolGroup poolGroup, DbConnectionOptions userOptions)
at System.Data.ProviderBase.DbConnectionFactory.TryGetConnection(DbConnection owningConnection, TaskCompletionSource`1 retry, DbConnectionOptions userOptions, DbConnectionInternal oldConnection, DbConnectionInternal& connection)
at System.Data.ProviderBase.DbConnectionInternal.TryOpenConnectionInternal(DbConnection outerConnection, DbConnectionFactory connectionFactory, TaskCompletionSource`1 retry, DbConnectionOptions userOptions)
at System.Data.ProviderBase.DbConnectionClosed.TryOpenConnection(DbConnection outerConnection, DbConnectionFactory connectionFactory, TaskCompletionSource`1 retry, DbConnectionOptions userOptions)
at System.Data.SqlClient.SqlConnection.TryOpenInner(TaskCompletionSource`1 retry)
at System.Data.SqlClient.SqlConnection.TryOpen(TaskCompletionSource`1 retry)
at System.Data.SqlClient.SqlConnection.Open()
at Microsoft.SqlServer.Management.SqlStudio.Explorer.ObjectExplorerService.ValidateConnection(UIConnectionInfo ci, IServerType server)
at Microsoft.SqlServer.Management.UI.ConnectionDlg.Connector.ConnectionThreadUser()

This error mean the user is invalid in the database that you are trying to connect, usually related to a AAD user that does not have user created on SQL DB that you are trying to connect (User DB or Master DB) or that the user is not the AAD Server Admin


  • CREATE USER <Azure_AD_principal_name> FROM EXTERNAL PROVIDER;
  • CREATE USER [bob@contoso.com] FROM EXTERNAL PROVIDER;
  • CREATE USER [alice@fabrikam.onmicrosoft.com] FROM EXTERNAL PROVIDER;
  • CREATE USER [ICU Nurses] FROM EXTERNAL PROVIDER;
  • CREATE USER [appName] FROM EXTERNAL PROVIDER;

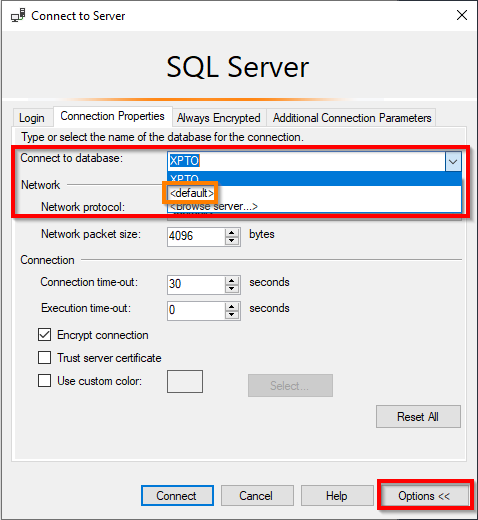

*If you are connecting from SSMS you may also need to change the default database option (Image below). By default it will try to connect to master DB where this user may not exists there as AAD users are contained inside each user database.

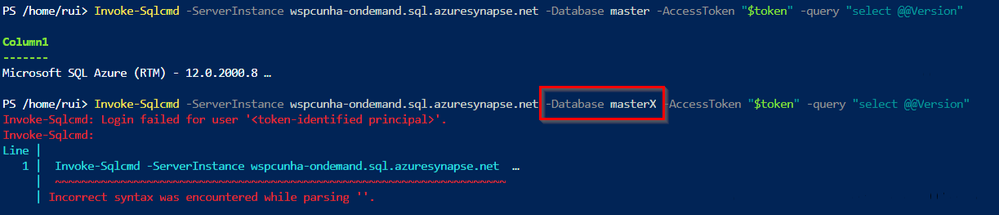

Another sample where this issue can happen is when you typed incorrectly the DB name like sample below. Tks for my colleague Rui Cunha



Another scenario that happened on some customer is where a user / group does not match with SQL by ID. As sample when user was deleted and recreated on AAD with same name. Even though same name you need to make sure SQL User SID match the AAD Object ID or Application ID (In case of Service Principal or MSI).



To fix it you will need to recreate user and grant required permissions



To verify if this is the issue run query below in the database you are trying to connect



--SID to OBJECTID
SELECT
	DP.name
	,DP.principal_id
	,DP.type
	,DP.type_desc
	,DP.SID
	,OBJECTID = CONVERT(uniqueidentifier, DP.SID)
FROM SYS.database_principals DP
WHERE DP.type IN ('S','X','E')



And compare results with AAD object that you can check on Azure Portal



Just look for Azure Active Directory

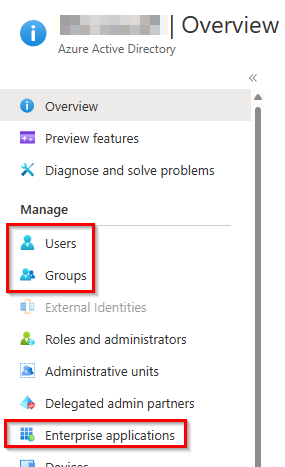

You can look for users, groups or Enterprise applications (Service Principals / MSI)

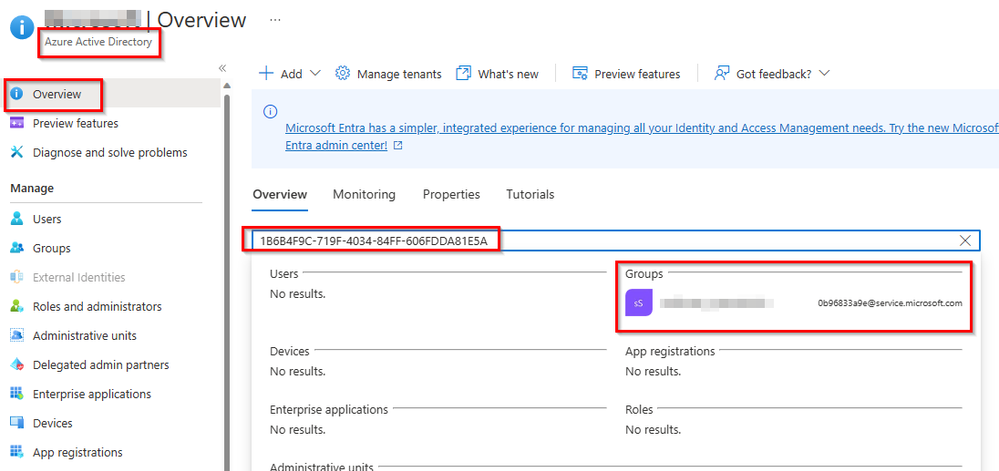

Or just use search feature in overview page where you can look for the user found on SQL



In case of Service Principal and Managed Identities look for Application ID instead of Object ID
