With Azure SQL or Synapse, you can facilitate a dynamic ETL for incremental processing (dynamic SQL delete and insert) and full table processing with 3 metadata pipelines.

Developing ETLs/ELTs can be a complex process when you add in business logic, large amounts of data, and the high volume of table data that needs to be moved from source to target. This is especially true in analytical workloads involving Azure SQL when there is a need to either fully reload a table or incrementally update a table. In order to handle the logic to incrementally update a table or fully reload a table in Azure SQL (or Azure Synapse), we will need to create the following assets:

\n
• Metadata table in Azure SQL \n
  \n
  • This will contain the configurations needed to load each table end to end
  \n
  \n
\n
• Metadata driven pipelines\n
  \n
  • Parent and child pipeline templates that will orchestrate and execute the ETL/ELT end to end
  \n
  \n
\n
• Custom SQL logic for incremental processing\n
  \n
  • Dynamic SQL to perform the delete and insert based on criteria the user provides in the metadata table
  \n
  \n
\n

*This article uses Azure SQL DB as the source and sink databases. However, Azure SQL MI, On-Prem SQL, and Synapse Dedicated Pools (along with Synapse Pipelines) will also be compatible for this solution. As a source, you can use databases like MySQL, Oracle, and others. You will just need to adjust the query syntax/connections to match the desired source.

Scenario

There is a need to load SQL tables from a SQL Server source on a daily frequency or multiple times a day. The requirements are to land the data first in ADLS Gen 2, and then finally load the tables into Azure SQL DB with the correct processing (incremental or full) while using a dynamic pipeline strategy to limit the number of objects used.

Metadata Table

The first set up that is required in our dynamic ETL is going to be a metadata (sometimes called \"config\" table) table on the destination SQL server environment. This table contains all of the information that is needed to pass into the ADF pipelines to determine the source query, ADLS Gen 2 storage location and metadata, processing metadata, staging metadata, and other metadata critical to performing the ETL. An example of a metadata table design and sample are below.

Metadata table definition

CREATE TABLE [meta].[ADLS_Metadata](\n\t[FileName] [varchar](100) NULL,\n\t[StorageAccount] [varchar](100) NULL,\n\t[StorageContainer] [varchar](100) NULL,\n\t[ContainerDirectoryPath] [varchar](100) NULL,\n\t[LoadType] [varchar](25) NULL,\n\t[LoadIndicator] [varchar](25) NULL,\n\t[SourceSchema] [varchar](25) NULL,\n\t[SourceTable] [varchar](100) NULL,\n\t[StagingSchema] [varchar](25) NULL,\n\t[StagingTable] [varchar](100) NULL,\n\t[TargetSchema] [varchar](25) NULL,\n\t[TargetTable] [varchar](100) NULL,\n\t[ColumnKey] [varchar](500) NULL,\n\t[WaterfallColumn] [varchar](100) NULL,\n\t[TableColumns] [varchar](1000) NULL\n) ON [PRIMARY]\nGO

Sample output of metadata table

The ETL will be facilitated entirely from this metadata table. Any tables that are not included within this table, would not be executed in our ETL pipelines. Any new tables or work that are needed to be added, simply insert them into the metadata table and they will be available when the pipeline is triggered, without needing to alter the ADF pipelines. Whether the data is going to the same storage container or a different one, different databases, etc. the metadata table allows you dictate where, what, and how of your ETL from one central location. This is a simple metadata table example, but you can make this as robust as you desire by adding in test flags, different load frequency indicators, and many others.

Metadata Driven Pipelines

Now that the metadata table is constructed, time to build the dynamic ADF pipelines to orchestrate and execute the ETL.

Here are the ADF objects needed to execute the ETL for 'N' number of tables. These will be shown in steps below. It is important the note the power of the dynamic metadata driven pipelines, they are able to execute/facilitate an enterprise level ETL with only 3 pipelines, 2-3 linked services, and 2-3 datasets in this scenario.

\n
• Linked Services:\n
  \n
  • Source SQL Server*\n
    \n
    • Authenticated with system-assigned managed identity.
    \n
    \n
  \n
  • Sink SQL Server*\n
    \n
    • Authenticated with system-assigned managed identity.
    \n
    \n
  \n
  • ADLS Gen 2 Storage\n
    \n
    • Authenticated with system-assigned managed identity.
    \n
    \n
  \n
  • *IF the source SQL Server and sink are the same service with the same authentication and integration runtime then you only need one linked service. Ex. both are Azure SQL DBs with the same authentication. However, if the authentication differs or they are different services (Azure SQL DB vs Azure SQL MI) then create one dynamic linked service for each.
  \n
  \n
\n
• Datasets:\n
  \n
  • Source SQL Server Dataset*
  \n
  • Sink SQL Server Dataset*
  \n
  • ADLS Gen 2 Storage Dataset
  \n
  • *One dataset per linked service. Separate datasets may not be needed if you have one dynamic linked service.
  \n
  \n
\n
• Pipelines:\n
  \n
  • Main Orchestration Pipeline
  \n
  • Full Load Processing Pipeline
  \n
  • Incremental Processing Pipeline
  \n
  \n
\n

Linked Service Creation

In this scenario, the source and sink SQL environments are both Azure SQL DB with the same authentication, so there will be only one linked service created with parameters to handle the dynamic use. Feel free to use your own naming conventions for the objects and parameters, just be sure they are generic and descriptive. Ex. not using \"parameter1\" or \"linkedService1\".

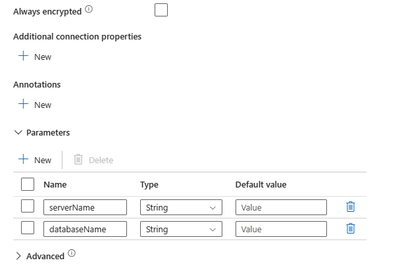

The generic name of the linked service will be \"AzureSQLDB\". The domain name and database name are referenced from the parameters that we created in the linked service to pass this connection information at runtime from the pipelines. Default values are available and will be used if there are not values passed through the pipeline.

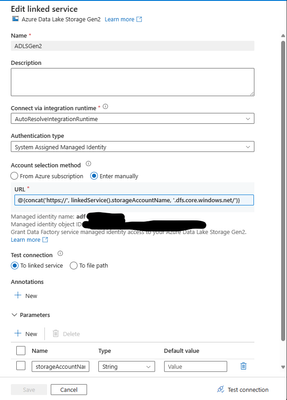

The same pattern will be used for the ADLS Gen 2 linked service. In this linked service, there is a generic name used \"ADLSGen2\" and only the storage account parameter is used. There is no path specification used here to allow the use of the linked service for all containers and paths using the same authentication method and Integration Runtime. The path and file will be optional parameters of the dataset that references this linked service.

Dataset Creation

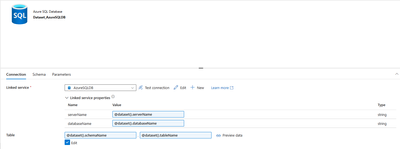

The dataset will created and using the linked services that were created above. There needs to be the parameters that are used in the linked service as well as additional parameters. The parameter names will align with the metadata table column names to provide ease of use.

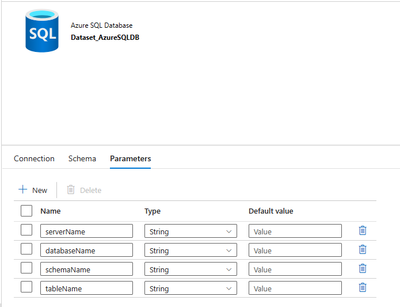

For the SQL environment, there needs to be the parameters \"serverName\" and \"databaseName\" which come from the linked service. Then adding the parameters \"schemaName\" and \"tableName\" to have the ability to query/use all tables in a server or database using that linked service. Create the parameters first on the \"Parameters\" tab and then use the 'add dynamic content' to place the reference to the parameters that were just created. These parameters will be exposed/prompted when referenced in the pipelines that are created later in this article.

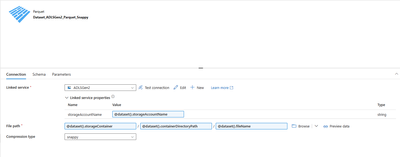

For ADLS Gen 2 storage, there will be a dataset for each type of file and compression. In this scenario, the data will be stored as Parquet files with snappy compression. The same concept as above is used for the parameters. For the linked service, the parameter is created on the dataset \"storageAccountName\". Then dataset specific parameters to identify all possible containers, paths and files within the dataset are \"storageContainer\", \"containerDirectoryPath\", and \"fileName\".

Pipeline and ETL Creation

With the metadata table, linked services, and datasets created, it is time to build out the metadata driven pipelines. The walkthrough below is split up into the 3 different pipelines, the main orchestration (parent) pipeline, full processing pipeline (child), and incremental processing pipeline (child). These pipelines are organized into folders for ease of access/formatting. The folders are virtual and offer no functionality other than organization in the UI. The folders are \"Orchestration\" which houses the main parent pipeline and \"ETL\" which contains the children pipelines that perform the processing.

Main Orchestration pipeline:

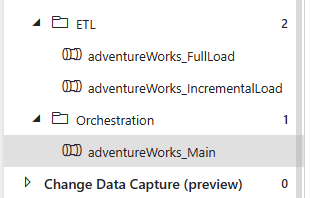

The main orchestration pipeline in this example is called \"adventureWorks_Main\". This pipeline will have a trigger associated with it and will control the execution of the whole ETL. This is the design of the pipeline in the UI, and each activity will be described.

On the parent pipeline, it is critical to have pipeline parameters to allow this process to be dynamic. These pipeline parameters will be used throughout the activities, and passed to the children pipelines. They will look familiar as they will be used in the dynamic datasets, linked services, and querying the metadata table.

\n
• sourceServerName\n
  \n
  • source server connection to passed through the parameterized dataset to the parameterized linked service
  \n
  \n
\n
• sourceDatabaseName\n
  \n
  • source database connection to passed through the parameterized dataset to the parameterized linked service
  \n
  \n
\n
• targetServerName\n
  \n
  • Target server connection to passed through the parameterized dataset to the parameterized linked service. Typically where your metadata table lives as well.
  \n
  \n
\n
• targetDatabaseName\n
  \n
  • Target database connection to passed through the parameterized dataset to the parameterized linked service. Typically where your metadata table lives as well.
  \n
  \n
\n
• loadIndicator\n
  \n
  • This is a frequency/use indicator. 'Daily' is an example that signifies the table is loaded daily. This is used as a filter. So, you can place'Test' or some other value to control which tables and different frequencies or uses to execute.\n
    \n
    • Ex. 'Testing Only', 'Monthly', 'Hourly'. The frequency would correspond with a trigger frequency as well.
    \n
    \n
  \n
  \n
\n
• waterfallLookbackDays\n
  \n
  • The amount of days to incrementally process. Used only to find the changed rows in incremental data sources. Requires a reliable date stamp that corresponds to tracked inserts and updates.\n
    \n
    • Ex. rows that have been updated within the last 120 days (-120)
    \n
    \n
  \n
  • There are many ways to incrementally process, and this is just one used in the example. This article discusses using waterfall column/columns. You would just need to adjust the parameters, syntax, and dynamic script to fit your criteria.
  \n
  \n
\n

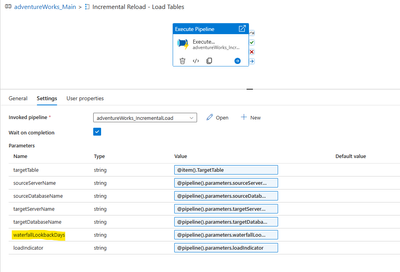

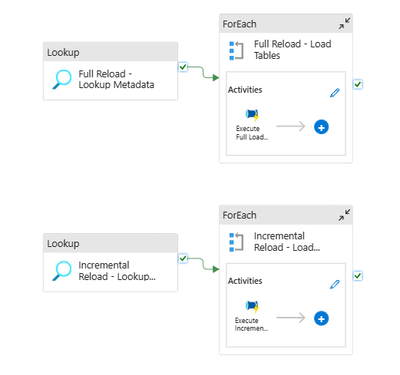

The full reload path and the incremental reload path have the same activities and pattern, however they differ in 2 ways.

\n
1. Look up query. Specifically, the WHERE clause
\n
2. The parameters passed to the 'Execute Pipeline' activity within the 'ForEach Loop'
\n

Full Reload Pattern/Queries:

Use a look up to extract the rows based on the SQL query criteria -> pass that result set to the for each loop and iterate over each table to perform the loading in the full load processing pipeline.

Lookup Activity - Full Reload:

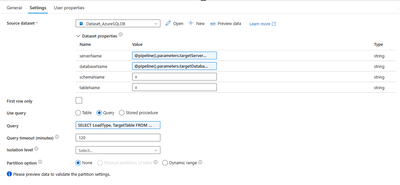

Inside the look up activity - \"Full Reload - Lookup Metadata\".

The parameters defined on the dataset appear as properties within the activity using the dataset. The lookup activity will query the metadata table, which lives in the target server. This uses the pipeline parameters. The \"schemaName\" and \"tableName\" parameters are not needed since the lookup activity is performing a query, so placing a \"x\" value allows the pipeline to validate even though these are not used.

Dynamic content for \"serverName\" parameter

@pipeline().parameters.targetServerName

Dynamic content for the query. The pipeline parameter for \"loadIndicator\" is used in the SQL query as well as a hard coded filter for \"Full\" load types.

SELECT LoadType, TargetTable \nFROM \n\tmeta.ADLS_Metadata\nWHERE \n\tLoadIndicator = '@{pipeline().parameters.loadIndicator}'\n\tAND LoadType = 'Full'

Sample query output:

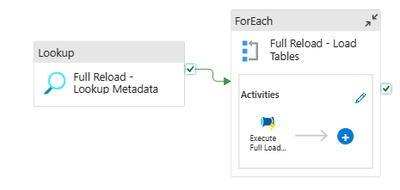

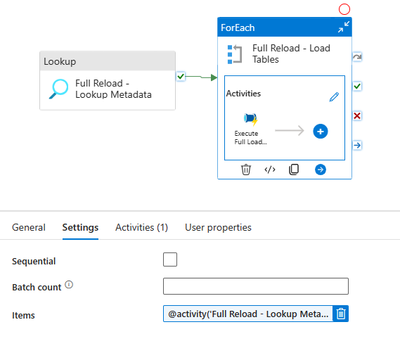

For Each Loop - Full Reload:

The next step is to iterate through the output in the for each loop. Use the settings tab to define the items from the full reload lookup.

@activity('Full Reload - Lookup Metadata').output.value

Inside the for each loop, an execute pipeline activity will be used to call the full load processing pipeline (child). There are parameters on the child pipeline that are required to enter when executing. The parameters are going to be the pipeline parameters (from the parent pipeline) EXCEPT for a new parameter called 'targetTable'. The 'targetTable' comes from the item value that we are iterating from the output of look up activity.

Full Reload - Processing Pipeline (child)

The processing pipeline called \"adventureWorks_FullLoad\" is executed from the parent pipeline with the pipeline parameters being passed from parent to child. Because this pipeline is called within a for each loop, each table that is being iterated will be have their own execution from this pipeline. The overall purpose and design of this pipeline is:

\n
1. Extract source data
\n
2. Load source data to ADLS Gen 2 storage
\n
3. Full reload of data from ADLS Gen 2 to Azure SQL DB
\n

Lookup Activity:

This will be the same dataset and configuration for the use of pipeline parameters as the parent pipeline lookup activity with the only difference being the query that is being passed through.

Query used in dynamic content. This will return all the columns associated with the row, there should only be one row returned, if there are multiple due to the addition of different testing scenarios/frequencies, then refine the filtering logic for the appropriate context.

SELECT * \nFROM \n\tmeta.ADLS_Metadata\nWHERE \n\tTargetTable = '@{pipeline().parameters.targetTable}'\n\tAND LoadIndicator = '@{pipeline().parameters.loadIndicator}'

Copy data to ADLS Gen 2:

The metadata gathered from the look up activity is used to extract the source table data and load to the location in ADLS Gen 2 specified by the metadata.

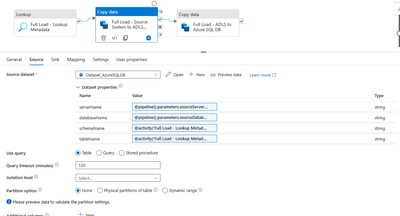

In the 'Source' - The pipeline parameters for the source server and source database are used for \"serverName\" and \"databaseName\". Then the output from the lookup provides the \"schemaName\" and \"tableName\". This time, a table is used instead of a query.

Example of activity output use in a parameter.

@activity('Full Load - Lookup Metadata').output.firstRow.SourceSchema

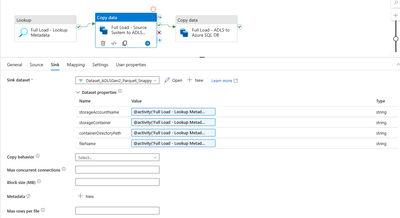

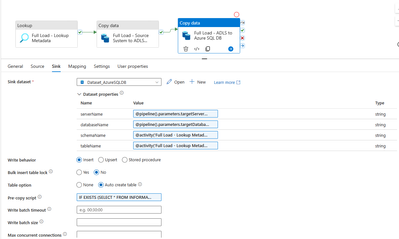

In the 'Sink' - all the parameters are populated from the lookup activity reading from the metadata table. This creates a path for each file. Each file will be overwritten with every execution. If you wish to retain historical copies of the loads, you can add an archive step to move the files from this location and/or add customer logic for date suffixes in the expression builder.

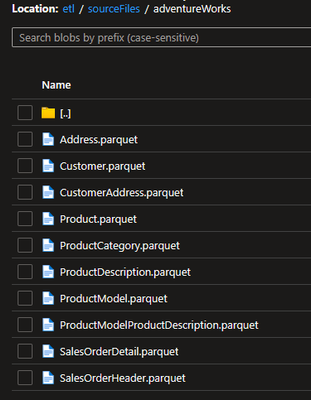

Example of storage container with loaded files

Copy Data to Azure SQL DB:

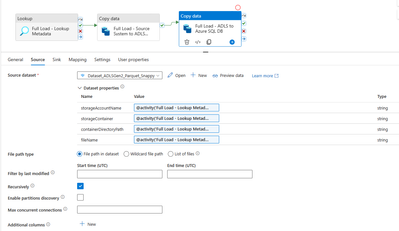

Once the data has been landed into ADLS Gen 2 as parquet files, it is time to load the files into the Azure SQL DB using another Copy activity.

In the 'Source' - this will be the same configuration as the 'Sink' of the previous copy activity. Using the output from the lookup activity which contains the metadata table result.

In the 'Sink' - The dataset parameters will be populated with the pipeline parameters for the \"targetServerName\" and \"targetDatabaseName\". The \"schemaName\" and \"tableName\" are populated from the lookup activity output.

There is a 'Pre-copy script' that is being executed to truncate the table if it exists already. If the table does not exist, the script will not try to truncate the table, and the 'Table option' of 'Auto create table' being selected will handle any new tables. The write behavior will be 'Insert' since there is a full reload.

If schema drift is present, one solution is to replace the truncate with a drop instead to recreate the table each execution. That has other risks associated with it that need to be considered.

Pre-copy script using pipeline parameters and lookup activity output parameters

IF EXISTS (SELECT * FROM INFORMATION_SCHEMA.TABLES WHERE TABLE_SCHEMA = '@{activity('Full Load - Lookup Metadata').output.firstRow.TargetSchema}' AND TABLE_NAME =  '@{activity('Full Load - Lookup Metadata').output.firstRow.TargetTable}' )\nBEGIN \nTRUNCATE TABLE [@{activity('Full Load - Lookup Metadata').output.firstRow.TargetSchema}].[@{activity('Full Load - Lookup Metadata').output.firstRow.TargetTable}] \nEND\n

Incremental Load Pattern/Queries:

The incremental processing load is going to be very similar the full reload processing method, with differences being in the filtering of lookup activities, additional parameters, and different methods to perform the loading inside the processing pipeline.

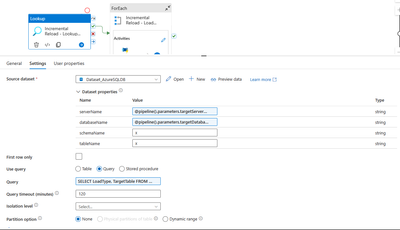

Lookup Activity - Incremental Load

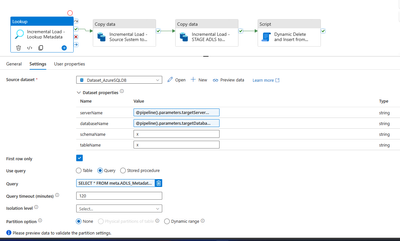

This lookup activity will be the exact same dataset configuration as the full reload version, with the minor change of 'Incremental' being hard coded as the WHERE clause 'LoadType' filter instead of 'Full'. The parameters are still using the pipeline parameters to connect to the metadata table.

SELECT LoadType, TargetTable \nFROM \n\tmeta.ADLS_Metadata\nWHERE \n\tLoadIndicator = '@{pipeline().parameters.loadIndicator}'\n\tAND LoadType = 'Incremental'

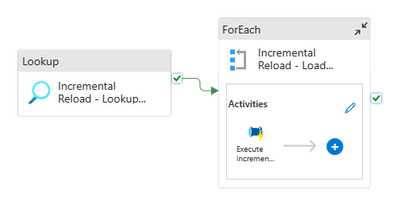

For Each Loop - Incremental Load

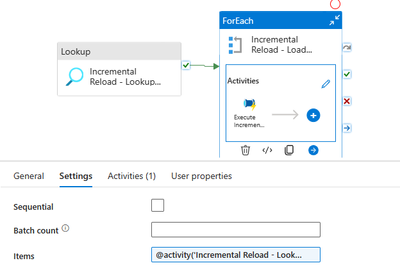

The for each loop will use the output from the incremental reload lookup activity output in the 'Items'.

@activity('Incremental Reload - Lookup Metadata').output.value

Inside the for each loop, there is an execute pipeline activity which calls the incremental reload processing pipeline (child). There is one extra parameter that was not used in the full reload processing pipeline execution - 'waterfallLookbackDays' (pipeline parameter).

Incremental Reload - Processing Pipeline (child)

The processing pipeline called \"adventureWorks_IncrementalLoad\" is executed from the parent pipeline with the pipeline parameters being passed from parent to child. Because this pipeline is called within a for each loop, each table that is being iterated will be have their own execution from this pipeline. The overall purpose and design of this pipeline is (differs slightly from the full reload):

\n
1. Extract source data
\n
2. Load source data to ADLS Gen 2 storage
\n
3. Full reload of data from ADLS Gen 2 to a staging table in Azure SQL DB
\n
4. Dynamic delete and insert from staging table into production table within Azure SQL DB
\n

Lookup Activity:

This will be the same as the full reload version of the query and the dataset configuration.

SELECT * \nFROM \n\tmeta.ADLS_Metadata\nWHERE \n\tTargetTable = '@{pipeline().parameters.targetTable}'\n\tAND LoadIndicator = '@{pipeline().parameters.loadIndicator}'

Copy Data to ADLS Gen 2:

This activity is where the main difference between the full reload and the incremental loads start.

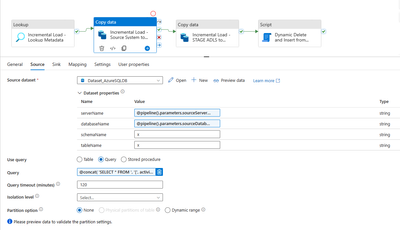

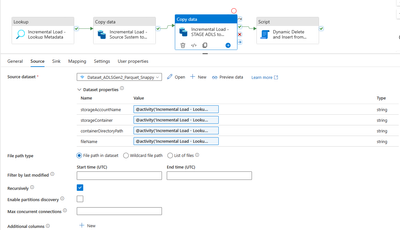

In the 'Source' - instead of the table, there will a query used. This query will utilize the 'waterfallColumn' value from the metadata table lookup and the 'waterfallLookbackDays' pipeline parameter to filter the results to only that time period. This will allow the query to build for each table dynamically and return a subset of the source table regardless of where the source is, the table, etc.

Query using dynamic content

@concat(\n    'SELECT * \n     FROM ', '[', activity('Incremental Load - Lookup Metadata').output.firstRow.SourceSchema, '].[', activity('Incremental Load - Lookup Metadata').output.firstRow.SourceTable, '] ',\n     'WHERE ', 'CONVERT(DATE, ', activity('Incremental Load - Lookup Metadata').output.firstRow.WaterfallColumn, ') >= DATEADD(DAY,', pipeline().parameters.waterfallLookbackDays, ', GETDATE())'  )

If the source is different than SQL, you can adjust the dynamic query to match the syntax for the source environment like Oracle, MySQL, etc.

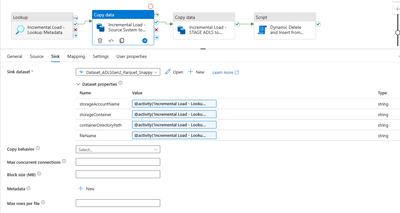

In the 'Sink' - the configuration will the same as the full reload. The dataset parameters will come from the lookup activity output on the same dataset.

@activity('Incremental Load - Lookup Metadata').output.firstRow.StorageAccount

Copy Data from ADLS Gen 2 to Stage Table in Azure SQL DB:

The next step is to load the data from ADLS Gen 2 into a staging table to prep to perform the incremental processing. The staging table allows for temporary data to be stored and leverage the full compute power of the Azure SQL DB, as well as maintaining more control over the processing.

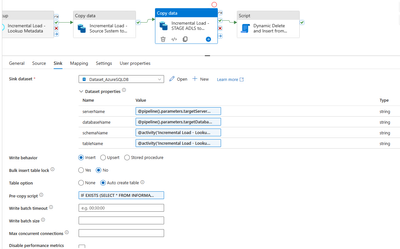

In both 'Source' and 'Sink' - The configurations that are used will be the same as the full reload version, with the only differences being the parameters are pointing to the staging table referenced in the metadata table instead of the final version of the table. This table is in a different schema and has a 'STAGE_' prefix on the table name. In the 'Sink', the process of truncating the table pre copy, full loading, and/or auto creating tables that don't exist is the same.

@activity('Incremental Load - Lookup Metadata').output.firstRow.FileName

Pipeline parameter example for 'tableName' pointing to the 'StagingTable'

@activity('Incremental Load - Lookup Metadata').output.firstRow.StagingTable

Pre-copy script - referencing the staging tables

IF EXISTS (SELECT * FROM INFORMATION_SCHEMA.TABLES WHERE TABLE_SCHEMA = '@{activity('Incremental Load - Lookup Metadata').output.firstRow.StagingSchema}' AND TABLE_NAME =  '@{activity('Incremental Load - Lookup Metadata').output.firstRow.StagingTable}' )\nBEGIN\nTRUNCATE TABLE [@{activity('Incremental Load - Lookup Metadata').output.firstRow.StagingSchema}].[@{activity('Incremental Load - Lookup Metadata').output.firstRow.StagingTable}]\nEND\n

Dynamic Delete and Insert Script

This step is what actually performs the incremental processing of the tables. It will delete the rows that are in the staging table (simulating that data has changed and needs to be either updated or inserted) and then insert the staging table rows into the production table. The script will be provided and explained below.

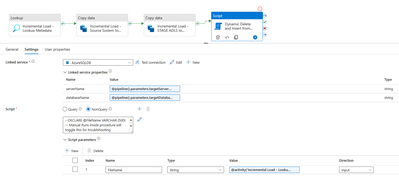

This is a 'Script' activity with the linked service parameters pointing to the location of the target tables and metadata table. There is also an input script parameter 'FileName' that uses the 'FileName' value from the lookup activity. The option for 'NonQuery' is selected since this script performs a DDL statement and does not return a result. If a result was being returned instead of DDL statements, then 'Query' would be selected.

FileName parameter dynamic content

@activity('Incremental Load - Lookup Metadata').output.firstRow.FileName

Dynamic Delete and Insert SQL Script

--DECLARE @FileName VARCHAR (500) -- Manual Runs inside procedure will toggle this for troublshooting\nDECLARE @TargetTable VARCHAR (500)\nDECLARE @StagingTable VARCHAR (500)\nDECLARE @WhereClause VARCHAR(MAX) \nDECLARE @StagingSchema VARCHAR (50)\nDECLARE @TargetSchema VARCHAR (50)\nDECLARE @FullStagingTableName VARCHAR (500)\nDECLARE @FullTargetTableName VARCHAR (500)\nDECLARE @TargetTableColumnList NVARCHAR(MAX)\nDECLARE @DeleteStatementSQL NVARCHAR (MAX)\nDECLARE @InsertStatementSQL NVARCHAR (MAX)\nDECLARE @StatisticsUpdateSQL NVARCHAR (MAX)\n\n\n--SET @FileName = 'SalesOrderHeader.parquet' -- Manual Runs inside procedure will toggle this for troublshooting\nSET @TargetTable = (SELECT TargetTable FROM meta.ADLS_Metadata WHERE FileName = @FileName)\nSET @TargetSchema = (SELECT TargetSchema FROM meta.ADLS_Metadata WHERE FileName = @FileName)\nSET @StagingTable = (SELECT StagingTable FROM meta.ADLS_Metadata WHERE FileName = @FileName)\nSET @StagingSchema = (SELECT StagingSchema FROM meta.ADLS_Metadata WHERE FileName = @FileName)\nSET @FullStagingTableName = CONCAT(@StagingSchema, '.', @StagingTable)\nSET @FullTargetTableName = CONCAT(@TargetSchema, '.', @TargetTable)\nSET @TargetTableColumnList = (\tSELECT \n\t\t\t\t\t\t\t\t\tColumnList = STRING_AGG('[' + col.NAME + ']', ',' )\n\t\t\t\t\t\t\t\tFROM\n\t\t\t\t\t\t\t\t\tsys.tables tab\n\t\t\t\t\t\t\t\t\t\tLEFT JOIN \n\t\t\t\t\t\t\t\t\tsys.schemas sch\n\t\t\t\t\t\t\t\t\t\tON tab.schema_id = sch.schema_id\n\t\t\t\t\t\t\t\t\t\tLEFT JOIN \n\t\t\t\t\t\t\t\t\tsys.columns col\n\t\t\t\t\t\t\t\t\t\tON tab.object_id = col.object_id\n\t\t\t\t\t\t\t\tWHERE \n\t\t\t\t\t\t\t\t\tsch.name = @TargetSchema\n\t\t\t\t\t\t\t\t\tAND tab.name = @TargetTable\n\t\t\t\t\t\t\t\t\tAND col.is_identity = 0\n\t\t\t\t\t\t\t)\n ;\n\nWITH PrimaryKeyList AS (\n\t\t\t\t\t\tSELECT \n\t\t\t\t\t\t\tColumnKey = RTRIM(LTRIM(Value)),\n\t\t\t\t\t\t\tRowNumber = ROW_NUMBER () OVER (ORDER BY value ASC)\n\n\t\t\t\t\t\tFROM\n\t\t\t\t\t\t\tmeta.ADLS_Metadata\n\t\t\t\t\t\t\t\tCROSS APPLY \n\t\t\t\t\t\t\tSTRING_SPLIT( ColumnKey, ',')\n\t\t\t\t\t\tWHERE \n\t\t\t\t\t\t\tFileName = @FileName\n\t\t\t\t\t\t)\n \n /******* Section for single primary key OR Keys that do not need to be concated to be uniquely identified *********************/\n        SELECT\n            @WhereClause =   STRING_AGG(CASE \n                                            WHEN E.ColumnKey IS NOT NULL THEN CONCAT( Beg.ColumnKey,' IN (SELECT ', Beg.ColumnKey, ' FROM ', @FullStagingTableName, ') AND')\n                                            ELSE CONCAT( Beg.ColumnKey,' IN (SELECT ', Beg.ColumnKey, ' FROM ', @FullStagingTableName, ')' )\n                                        END, ' ')\n        FROM \n            PrimaryKeyList Beg\n                LEFT JOIN\n            PrimaryKeyList E\n                ON Beg.Rownumber = E.Rownumber - 1 \n                ;\n/***************************************************************************************************************************************/\n\n/************************* Section used to concat a composite key and create the unique identifier during the load process if it does not exist in the source tables *******************\nSELECT\n    @WhereClause = CONCAT(\t'CONCAT(', \n\t\t\t\t\t\t\tSTRING_AGG(CASE \n\t\t\t\t\t\t\t\t\t\t\tWHEN E.ColumnKey IS NOT NULL THEN  Beg.ColumnKey\n\t\t\t\t\t\t\t\t\t\t\tELSE CONCAT(Beg.ColumnKey, ') ')\n\t\t\t\t\t\t\t\t\t\tEND, ', '\n\t\t\t\t\t\t\t\t\t\t),\n\t\t\t\t\t\t\t'IN (SELECT CONCAT(', \n\t\t\t\t\t\t\tSTRING_AGG(CASE \n\t\t\t\t\t\t\t\t\t\t\tWHEN E.ColumnKey IS NOT NULL THEN  Beg.ColumnKey\n\t\t\t\t\t\t\t\t\t\t\tELSE CONCAT(Beg.ColumnKey, ') ')\n\t\t\t\t\t\t\t\t\t\tEND, ', '\n\t\t\t\t\t\t\t\t\t\t),\n\t\t\t\t\t\t\t'FROM ', @FullStagingTableName, ')'\n\t\t\t\t\t\t)\nFROM \n    PrimaryKeyList Beg\n        LEFT JOIN\n    PrimaryKeyList E\n        ON Beg.Rownumber = E.Rownumber - 1 \n        ;\n \n *********************************************************************************************************************************************************/\n \nSELECT\n    @DeleteStatementSQL = CONCAT('DELETE FROM ', @FullTargetTableName, ' WHERE ', @WhereClause) ;\n \nSELECT \n    @InsertStatementSQL = CONCAT('INSERT INTO ', @FullTargetTableName, ' (', @TargetTableColumnList, ') ', ' SELECT ', @TargetTableColumnList, ' FROM ', @FullStagingTableName)\n \n--SELECT \n--\t@StatisticsUpdateSQL = CONCAT('UPDATE STATISTICS ', @FullTargetTableName) \n\n--PRINT @DeleteStatementSQL\n--PRINT @InsertStatementSQL\n--PRINT @StatisticsUpdateSQL\n \nEXECUTE sp_executesql @DeleteStatementSQL ; \n\nEXECUTE sp_executesql @InsertStatementSQL ;\n\n--EXECUTE sp_executesql @StatisticsUpdateSQL ; Used in Dedicated SQL Pool to update statistics once tables have been loaded

See examples of the different steps of the script below for the table 'SalesOrderHeader'

Metadata table results for the staging table, target table, and the primary keys for the target table 'SalesOrderHeader'. You will notice that this table has multiple primary keys to provide the unique record for the data. This script will handle multiple primary keys or single primary keys in a method shown later.

First, the variables are built. One important variable is @TargetTableColumnList which compiles a comma separated list of the target table columns from the system tables. You will not need to maintain the columns in the target table since the script will compile a list from the system tables and exclude identity columns since these are not updated or inserted. If that is needed, then logic can be added to turn the identity insert on and off in the script.

The next step is to build the WHERE clause of our delete statement. This is done by using the column keys and splitting them out into different predicates. Executing the code down to the @WhereClause creation will produce this output.

@WhereClause = rowguid IN (SELECT rowguid FROM stage.STAGE_SalesOrderHeader) AND SalesOrderNumber IN (SELECT SalesOrderNumber FROM stage.STAGE_SalesOrderHeader) AND SalesOrderID IN (SELECT SalesOrderID FROM stage.STAGE_SalesOrderHeader)

There is a section commented out for handling composite keys that will not evaluate with each column key in their own predicate. In this scenario, the values are concatenated. The commented section for composite keys will show the below result for the same table/key combination.

@WhereClause = CONCAT(rowguid, SalesOrderNumber, SalesOrderID) IN (SELECT CONCAT(rowguid, SalesOrderNumber, SalesOrderID) FROM stage.STAGE_SalesOrderHeader)

Next, the delete and insert statements are created using the dynamic SQL in the script and previous steps. Here are the outputs from our example.

Delete statement

DELETE FROM salesLT.SalesOrderHeader WHERE rowguid IN (SELECT rowguid FROM stage.STAGE_SalesOrderHeader) AND SalesOrderNumber IN (SELECT SalesOrderNumber FROM stage.STAGE_SalesOrderHeader) AND SalesOrderID IN (SELECT SalesOrderID FROM stage.STAGE_SalesOrderHeader)

Insert statement

INSERT INTO salesLT.SalesOrderHeader ([SalesOrderID],[RevisionNumber],[OrderDate],[DueDate],[ShipDate],[Status],[OnlineOrderFlag],[SalesOrderNumber],[PurchaseOrderNumber],[AccountNumber],[CustomerID],[ShipToAddressID],[BillToAddressID],[ShipMethod],[CreditCardApprovalCode],[SubTotal],[TaxAmt],[Freight],[TotalDue],[Comment],[rowguid],[ModifiedDate])  SELECT [SalesOrderID],[RevisionNumber],[OrderDate],[DueDate],[ShipDate],[Status],[OnlineOrderFlag],[SalesOrderNumber],[PurchaseOrderNumber],[AccountNumber],[CustomerID],[ShipToAddressID],[BillToAddressID],[ShipMethod],[CreditCardApprovalCode],[SubTotal],[TaxAmt],[Freight],[TotalDue],[Comment],[rowguid],[ModifiedDate] FROM stage.STAGE_SalesOrderHeader

Finally, those statements are passed into sp_executesql to be executed.

Summary

The template and scripts will allow you to build dynamic metadata driven ETL process at enterprise scale with as little as 3 pipelines to facilitate 'N' number of tables. This metadata driven approach is highly flexible and scalable, which will allow you to build upon this solution and even cater it to your exact needs. Even if the requirements or change tracking logic is more complex than waterfall columns or composite keys, there is still an ability to add complex logic into this process to handle your ETL needs.

Developing ETLs/ELTs can be a complex process when you add in business logic, large amounts of data, and the high volume of table data that needs to be moved from source to target. This is especially true in analytical workloads involving Azure SQL when there is a need to either fully reload a table or incrementally update a table. In order to handle the logic to incrementally update a table or fully reload a table in Azure SQL (or Azure Synapse), we will need to create the following assets:

\n
• Metadata table in Azure SQL \n
  \n
  • This will contain the configurations needed to load each table end to end
  \n
  \n
\n
• Metadata driven pipelines\n
  \n
  • Parent and child pipeline templates that will orchestrate and execute the ETL/ELT end to end
  \n
  \n
\n
• Custom SQL logic for incremental processing\n
  \n
  • Dynamic SQL to perform the delete and insert based on criteria the user provides in the metadata table
  \n
  \n
\n

*This article uses Azure SQL DB as the source and sink databases. However, Azure SQL MI, On-Prem SQL, and Synapse Dedicated Pools (along with Synapse Pipelines) will also be compatible for this solution. As a source, you can use databases like MySQL, Oracle, and others. You will just need to adjust the query syntax/connections to match the desired source.

Scenario

There is a need to load SQL tables from a SQL Server source on a daily frequency or multiple times a day. The requirements are to land the data first in ADLS Gen 2, and then finally load the tables into Azure SQL DB with the correct processing (incremental or full) while using a dynamic pipeline strategy to limit the number of objects used.

Metadata Table

The first set up that is required in our dynamic ETL is going to be a metadata (sometimes called \"config\" table) table on the destination SQL server environment. This table contains all of the information that is needed to pass into the ADF pipelines to determine the source query, ADLS Gen 2 storage location and metadata, processing metadata, staging metadata, and other metadata critical to performing the ETL. An example of a metadata table design and sample are below.

Metadata table definition

Sample output of metadata table

The ETL will be facilitated entirely from this metadata table. Any tables that are not included within this table, would not be executed in our ETL pipelines. Any new tables or work that are needed to be added, simply insert them into the metadata table and they will be available when the pipeline is triggered, without needing to alter the ADF pipelines. Whether the data is going to the same storage container or a different one, different databases, etc. the metadata table allows you dictate where, what, and how of your ETL from one central location. This is a simple metadata table example, but you can make this as robust as you desire by adding in test flags, different load frequency indicators, and many others.

Metadata Driven Pipelines

Now that the metadata table is constructed, time to build the dynamic ADF pipelines to orchestrate and execute the ETL.

Here are the ADF objects needed to execute the ETL for 'N' number of tables. These will be shown in steps below. It is important the note the power of the dynamic metadata driven pipelines, they are able to execute/facilitate an enterprise level ETL with only 3 pipelines, 2-3 linked services, and 2-3 datasets in this scenario.

\n
• Linked Services:\n
  \n
  • Source SQL Server*\n
    \n
    • Authenticated with system-assigned managed identity.
    \n
    \n
  \n
  • Sink SQL Server*\n
    \n
    • Authenticated with system-assigned managed identity.
    \n
    \n
  \n
  • ADLS Gen 2 Storage\n
    \n
    • Authenticated with system-assigned managed identity.
    \n
    \n
  \n
  • *IF the source SQL Server and sink are the same service with the same authentication and integration runtime then you only need one linked service. Ex. both are Azure SQL DBs with the same authentication. However, if the authentication differs or they are different services (Azure SQL DB vs Azure SQL MI) then create one dynamic linked service for each.
  \n
  \n
\n
• Datasets:\n
  \n
  • Source SQL Server Dataset*
  \n
  • Sink SQL Server Dataset*
  \n
  • ADLS Gen 2 Storage Dataset
  \n
  • *One dataset per linked service. Separate datasets may not be needed if you have one dynamic linked service.
  \n
  \n
\n
• Pipelines:\n
  \n
  • Main Orchestration Pipeline
  \n
  • Full Load Processing Pipeline
  \n
  • Incremental Processing Pipeline
  \n
  \n
\n

Linked Service Creation

In this scenario, the source and sink SQL environments are both Azure SQL DB with the same authentication, so there will be only one linked service created with parameters to handle the dynamic use. Feel free to use your own naming conventions for the objects and parameters, just be sure they are generic and descriptive. Ex. not using \"parameter1\" or \"linkedService1\".

The generic name of the linked service will be \"AzureSQLDB\". The domain name and database name are referenced from the parameters that we created in the linked service to pass this connection information at runtime from the pipelines. Default values are available and will be used if there are not values passed through the pipeline.

The same pattern will be used for the ADLS Gen 2 linked service. In this linked service, there is a generic name used \"ADLSGen2\" and only the storage account parameter is used. There is no path specification used here to allow the use of the linked service for all containers and paths using the same authentication method and Integration Runtime. The path and file will be optional parameters of the dataset that references this linked service.

Dataset Creation

The dataset will created and using the linked services that were created above. There needs to be the parameters that are used in the linked service as well as additional parameters. The parameter names will align with the metadata table column names to provide ease of use.

For the SQL environment, there needs to be the parameters \"serverName\" and \"databaseName\" which come from the linked service. Then adding the parameters \"schemaName\" and \"tableName\" to have the ability to query/use all tables in a server or database using that linked service. Create the parameters first on the \"Parameters\" tab and then use the 'add dynamic content' to place the reference to the parameters that were just created. These parameters will be exposed/prompted when referenced in the pipelines that are created later in this article.

For ADLS Gen 2 storage, there will be a dataset for each type of file and compression. In this scenario, the data will be stored as Parquet files with snappy compression. The same concept as above is used for the parameters. For the linked service, the parameter is created on the dataset \"storageAccountName\". Then dataset specific parameters to identify all possible containers, paths and files within the dataset are \"storageContainer\", \"containerDirectoryPath\", and \"fileName\".

Pipeline and ETL Creation

With the metadata table, linked services, and datasets created, it is time to build out the metadata driven pipelines. The walkthrough below is split up into the 3 different pipelines, the main orchestration (parent) pipeline, full processing pipeline (child), and incremental processing pipeline (child). These pipelines are organized into folders for ease of access/formatting. The folders are virtual and offer no functionality other than organization in the UI. The folders are \"Orchestration\" which houses the main parent pipeline and \"ETL\" which contains the children pipelines that perform the processing.

Main Orchestration pipeline:

The main orchestration pipeline in this example is called \"adventureWorks_Main\". This pipeline will have a trigger associated with it and will control the execution of the whole ETL. This is the design of the pipeline in the UI, and each activity will be described.

On the parent pipeline, it is critical to have pipeline parameters to allow this process to be dynamic. These pipeline parameters will be used throughout the activities, and passed to the children pipelines. They will look familiar as they will be used in the dynamic datasets, linked services, and querying the metadata table.

\n
• sourceServerName\n
  \n
  • source server connection to passed through the parameterized dataset to the parameterized linked service
  \n
  \n
\n
• sourceDatabaseName\n
  \n
  • source database connection to passed through the parameterized dataset to the parameterized linked service
  \n
  \n
\n
• targetServerName\n
  \n
  • Target server connection to passed through the parameterized dataset to the parameterized linked service. Typically where your metadata table lives as well.
  \n
  \n
\n
• targetDatabaseName\n
  \n
  • Target database connection to passed through the parameterized dataset to the parameterized linked service. Typically where your metadata table lives as well.
  \n
  \n
\n
• loadIndicator\n
  \n
  • This is a frequency/use indicator. 'Daily' is an example that signifies the table is loaded daily. This is used as a filter. So, you can place'Test' or some other value to control which tables and different frequencies or uses to execute.\n
    \n
    • Ex. 'Testing Only', 'Monthly', 'Hourly'. The frequency would correspond with a trigger frequency as well.
    \n
    \n
  \n
  \n
\n
• waterfallLookbackDays\n
  \n
  • The amount of days to incrementally process. Used only to find the changed rows in incremental data sources. Requires a reliable date stamp that corresponds to tracked inserts and updates.\n
    \n
    • Ex. rows that have been updated within the last 120 days (-120)
    \n
    \n
  \n
  • There are many ways to incrementally process, and this is just one used in the example. This article discusses using waterfall column/columns. You would just need to adjust the parameters, syntax, and dynamic script to fit your criteria.
  \n
  \n
\n

The full reload path and the incremental reload path have the same activities and pattern, however they differ in 2 ways.

\n
1. Look up query. Specifically, the WHERE clause
\n
2. The parameters passed to the 'Execute Pipeline' activity within the 'ForEach Loop'
\n

Full Reload Pattern/Queries:

Use a look up to extract the rows based on the SQL query criteria -> pass that result set to the for each loop and iterate over each table to perform the loading in the full load processing pipeline.

Lookup Activity - Full Reload:

Inside the look up activity - \"Full Reload - Lookup Metadata\".

The parameters defined on the dataset appear as properties within the activity using the dataset. The lookup activity will query the metadata table, which lives in the target server. This uses the pipeline parameters. The \"schemaName\" and \"tableName\" parameters are not needed since the lookup activity is performing a query, so placing a \"x\" value allows the pipeline to validate even though these are not used.

Dynamic content for \"serverName\" parameter

Dynamic content for the query. The pipeline parameter for \"loadIndicator\" is used in the SQL query as well as a hard coded filter for \"Full\" load types.

Sample query output:

For Each Loop - Full Reload:

The next step is to iterate through the output in the for each loop. Use the settings tab to define the items from the full reload lookup.

Inside the for each loop, an execute pipeline activity will be used to call the full load processing pipeline (child). There are parameters on the child pipeline that are required to enter when executing. The parameters are going to be the pipeline parameters (from the parent pipeline) EXCEPT for a new parameter called 'targetTable'. The 'targetTable' comes from the item value that we are iterating from the output of look up activity.

Full Reload - Processing Pipeline (child)

The processing pipeline called \"adventureWorks_FullLoad\" is executed from the parent pipeline with the pipeline parameters being passed from parent to child. Because this pipeline is called within a for each loop, each table that is being iterated will be have their own execution from this pipeline. The overall purpose and design of this pipeline is:

\n
1. Extract source data
\n
2. Load source data to ADLS Gen 2 storage
\n
3. Full reload of data from ADLS Gen 2 to Azure SQL DB
\n

Lookup Activity:

This will be the same dataset and configuration for the use of pipeline parameters as the parent pipeline lookup activity with the only difference being the query that is being passed through.

Query used in dynamic content. This will return all the columns associated with the row, there should only be one row returned, if there are multiple due to the addition of different testing scenarios/frequencies, then refine the filtering logic for the appropriate context.

Copy data to ADLS Gen 2:

The metadata gathered from the look up activity is used to extract the source table data and load to the location in ADLS Gen 2 specified by the metadata.

In the 'Source' - The pipeline parameters for the source server and source database are used for \"serverName\" and \"databaseName\". Then the output from the lookup provides the \"schemaName\" and \"tableName\". This time, a table is used instead of a query.

Example of activity output use in a parameter.

In the 'Sink' - all the parameters are populated from the lookup activity reading from the metadata table. This creates a path for each file. Each file will be overwritten with every execution. If you wish to retain historical copies of the loads, you can add an archive step to move the files from this location and/or add customer logic for date suffixes in the expression builder.

Example of storage container with loaded files

Copy Data to Azure SQL DB:

Once the data has been landed into ADLS Gen 2 as parquet files, it is time to load the files into the Azure SQL DB using another Copy activity.

In the 'Source' - this will be the same configuration as the 'Sink' of the previous copy activity. Using the output from the lookup activity which contains the metadata table result.

In the 'Sink' - The dataset parameters will be populated with the pipeline parameters for the \"targetServerName\" and \"targetDatabaseName\". The \"schemaName\" and \"tableName\" are populated from the lookup activity output.

There is a 'Pre-copy script' that is being executed to truncate the table if it exists already. If the table does not exist, the script will not try to truncate the table, and the 'Table option' of 'Auto create table' being selected will handle any new tables. The write behavior will be 'Insert' since there is a full reload.

If schema drift is present, one solution is to replace the truncate with a drop instead to recreate the table each execution. That has other risks associated with it that need to be considered.

Pre-copy script using pipeline parameters and lookup activity output parameters

Incremental Load Pattern/Queries:

The incremental processing load is going to be very similar the full reload processing method, with differences being in the filtering of lookup activities, additional parameters, and different methods to perform the loading inside the processing pipeline.

Lookup Activity - Incremental Load

This lookup activity will be the exact same dataset configuration as the full reload version, with the minor change of 'Incremental' being hard coded as the WHERE clause 'LoadType' filter instead of 'Full'. The parameters are still using the pipeline parameters to connect to the metadata table.

For Each Loop - Incremental Load

The for each loop will use the output from the incremental reload lookup activity output in the 'Items'.

Inside the for each loop, there is an execute pipeline activity which calls the incremental reload processing pipeline (child). There is one extra parameter that was not used in the full reload processing pipeline execution - 'waterfallLookbackDays' (pipeline parameter).

Incremental Reload - Processing Pipeline (child)

The processing pipeline called \"adventureWorks_IncrementalLoad\" is executed from the parent pipeline with the pipeline parameters being passed from parent to child. Because this pipeline is called within a for each loop, each table that is being iterated will be have their own execution from this pipeline. The overall purpose and design of this pipeline is (differs slightly from the full reload):

\n
1. Extract source data
\n
2. Load source data to ADLS Gen 2 storage
\n
3. Full reload of data from ADLS Gen 2 to a staging table in Azure SQL DB
\n
4. Dynamic delete and insert from staging table into production table within Azure SQL DB
\n

Lookup Activity:

This will be the same as the full reload version of the query and the dataset configuration.

Copy Data to ADLS Gen 2:

This activity is where the main difference between the full reload and the incremental loads start.

In the 'Source' - instead of the table, there will a query used. This query will utilize the 'waterfallColumn' value from the metadata table lookup and the 'waterfallLookbackDays' pipeline parameter to filter the results to only that time period. This will allow the query to build for each table dynamically and return a subset of the source table regardless of where the source is, the table, etc.

Query using dynamic content

If the source is different than SQL, you can adjust the dynamic query to match the syntax for the source environment like Oracle, MySQL, etc.

In the 'Sink' - the configuration will the same as the full reload. The dataset parameters will come from the lookup activity output on the same dataset.

Copy Data from ADLS Gen 2 to Stage Table in Azure SQL DB:

The next step is to load the data from ADLS Gen 2 into a staging table to prep to perform the incremental processing. The staging table allows for temporary data to be stored and leverage the full compute power of the Azure SQL DB, as well as maintaining more control over the processing.

In both 'Source' and 'Sink' - The configurations that are used will be the same as the full reload version, with the only differences being the parameters are pointing to the staging table referenced in the metadata table instead of the final version of the table. This table is in a different schema and has a 'STAGE_' prefix on the table name. In the 'Sink', the process of truncating the table pre copy, full loading, and/or auto creating tables that don't exist is the same.

Pipeline parameter example for 'tableName' pointing to the 'StagingTable'

Pre-copy script - referencing the staging tables

Dynamic Delete and Insert Script

This step is what actually performs the incremental processing of the tables. It will delete the rows that are in the staging table (simulating that data has changed and needs to be either updated or inserted) and then insert the staging table rows into the production table. The script will be provided and explained below.

This is a 'Script' activity with the linked service parameters pointing to the location of the target tables and metadata table. There is also an input script parameter 'FileName' that uses the 'FileName' value from the lookup activity. The option for 'NonQuery' is selected since this script performs a DDL statement and does not return a result. If a result was being returned instead of DDL statements, then 'Query' would be selected.

FileName parameter dynamic content

Dynamic Delete and Insert SQL Script

See examples of the different steps of the script below for the table 'SalesOrderHeader'

Metadata table results for the staging table, target table, and the primary keys for the target table 'SalesOrderHeader'. You will notice that this table has multiple primary keys to provide the unique record for the data. This script will handle multiple primary keys or single primary keys in a method shown later.

First, the variables are built. One important variable is @TargetTableColumnList which compiles a comma separated list of the target table columns from the system tables. You will not need to maintain the columns in the target table since the script will compile a list from the system tables and exclude identity columns since these are not updated or inserted. If that is needed, then logic can be added to turn the identity insert on and off in the script.

The next step is to build the WHERE clause of our delete statement. This is done by using the column keys and splitting them out into different predicates. Executing the code down to the @WhereClause creation will produce this output.

There is a section commented out for handling composite keys that will not evaluate with each column key in their own predicate. In this scenario, the values are concatenated. The commented section for composite keys will show the below result for the same table/key combination.

Next, the delete and insert statements are created using the dynamic SQL in the script and previous steps. Here are the outputs from our example.

Delete statement

Insert statement

Finally, those statements are passed into sp_executesql to be executed.

Summary

The template and scripts will allow you to build dynamic metadata driven ETL process at enterprise scale with as little as 3 pipelines to facilitate 'N' number of tables. This metadata driven approach is highly flexible and scalable, which will allow you to build upon this solution and even cater it to your exact needs. Even if the requirements or change tracking logic is more complex than waterfall columns or composite keys, there is still an ability to add complex logic into this process to handle your ETL needs.

With Azure SQL or Synapse, you can facilitate a dynamic ETL for incremental processing (dynamic SQL delete and insert) and full table processing with 3 metadata pipelines.

Khaled_Ghardallou Yes, in this scenario you can copy directly from source to SQL. The reasons for the pattern I presented are:

\n
1. General usability to multiple scenarios that may not support source to SQL directly.\n
   \n
   1. Such as Snowflake to SQL. Many others but that is a common one. You would need to stage this data in this scenario anyway, and best to control the process with proper naming/standardization.
   \n
   \n
\n
2. Staging the data within ADLS is a general best practice instead of loading directly from source to SQL, in most scenarios. \n
   \n
   1. Especially when loading from on-prem, the latency and performance is far better when loading the data into ADLS then loading into SQL vs loading directly from on-prem into Azure SQL.
   \n
   2. Staging the data in ADLS allows for reusability across different compute engines without hitting the database. A common example is providing raw files to a Data Science team or other teams to work on the same raw data. This would reduce the number of copies in the organization, storage costs, and data movement.
   \n
   3. You may not want to load all of your data to Azure SQL. A common scenario is to load all raw source data into ADLS, but you may not be modeling/reporting on everything yet. So, you can still leverage that data with external tables, but not bring it into your database until you really need it. This can cut down on cost significantly depending on how much is not ingested vs ingested into the database.
   \n
   \n
\n

Marc_Bushong
Hi, Just a question why you make 2 copy, first from Source-SQL to ADLS and second from ADSL to Sink-SQL. I think we can make a copy from Source-SQL to Sink-SQL

Marc_Bushong , thank you for the great explanation. Would it be possible for you to share the .json payload from the 3 Azure Data Factory pipelines? That would be such a big help for others who wish to implement your template!
