Unable to read server queue performance data
Has anyone started seeing this on Windows Server 2016? Unable to read Server Queue performance data from the Server service. The first four bytes (DWORD) of the Data section contains the status code, the second four bytes contains the IOSB.Status and the next four bytes contains the IOSB.Information. We have this on two of our Cluster at the moment. The same two nodes also end up having issues draining and will lock resources. The other 2 nodes are fine as far as I can seeBLOG: Determine and modernize Filesystem Deduplication
Version history - 1.6 Added references / links - 1.5 Added insights from Steven Ekren. Many thanks! / Added ReFS Docs link and added clarification about drawbacks. - 1.4 revised script so ReFS volumes with classic dedup will be identified, added more eligibly checks and error handling - 1.3 added point #4 in migration guidance - 1.2 revised script - 1.1 formatting This blog explains the two Windows deduplication modes classic Windows Data Deduplication (ReFS or NTFS) and ReFS Deduplication (ReFS). It covers how they differ, why you should consider upgrading to Windows Server 2025 to leverage the new ReFS dedup engine, and clear warnings about scenarios where ReFS is not recommended. Practical migration guidance and detection commands are included. Differences between classic dedup and ReFS dedup File system: Classic dedup runs on NTFS or ReFS; ReFS dedup runs on ReFS and Windows Server 2025 or later, only. Implementation: They are separate engines with different metadata formats and management cmdlets. Management: Classic dedup uses the Dedup PowerShell module (Get‑DedupVolume, Start‑DedupJob, Disable‑DedupVolume). ReFS dedup uses its own ReFS dedup cmdlets (Get‑ReFSDedupStatus, Enable‑ReFSDedup). Conversion: There is no in‑place conversion between the two; metadata and chunk formats are incompatible. Improvements: the new in-line ReFS Deduplication leverages the advantages of ReFS files system. This makes deduplication more efficient and less CPU intensive. The new ReFS Deduplication can also compress data in-line using L1Z algorithm. This makes it up to par with enterprise solutions, often found in SAN storage or Linux appliances. Compression needs to be set per volume, and optional. Edit: Steven Ekren, a former Senior Product Manager for Hyper-V shared valuable insights on how both engines operate in a comment on LinkedIn: [...] the basic conceptual difference between WS Deduplication and ReFS deduplication is that the Windows Server [dedup] version takes the duplicate file data and moves it to a repository and puts a reparse point in the file system from each point that references the data. This involves data movement and therefore not recommended for workloads that are changing it's data often, but best for more static data like documents and picture/videos. ReFS is a file system that uses links natively for all the objects so leaving the data in place and managing the links is much more efficient and doesn't involve the data copy and managing a repository. Effectively it's built into the file system. As the blog notes, there are some situations not recommended for this version of dedupe, but generally it's lower performance and storage I/O impact. Why upgrade to Windows Server 2025 Improved version of ReFS Filesystem Improved ReFS in-line deduplication + optional L1Z compression: Server 2025 includes enhancements to ReFS dedup performance, scalability, and integration with modern storage features. Support and fixes: Windows Server 2016 and 2019 are past mainstream support, increasing the likelihood of costly support cases and delayed fixes; upgrading reduces operational risk and ensures access to ongoing improvements. Future compatibility: Newer OS releases receive optimizations and bug fixes for ReFS and dedup scenarios that older releases will not. SMB compression: for reasonably faster data transfer at minimal CPU when transferring data through the networks. Feature and security related improvements refer to availabile Microsoft Windows Server 2025 Summit content on techcommunity.microsoft.com Scenarios where ReFS is not recommended ReFS on SAN in clustered CSV environments: Avoid placing ReFS dedup on top of SAN‑backed Cluster Shared Volumes (CSVFS) in production clusters; clustered SAN/CSV scenarios causing severe performance issues in practice. Please refer to the ReFS documentation. (personal opinion and experience, not endorsed by Microsoft): Many small, fast‑changing files: Workloads with frequent small writes, such as user profiles, folder redirection of AppData folders, or applications that churn small config files (for example, Lotus Notes config files) can cause locks, performance degradation, or unexpected behavior on ReFS. Exclude these disks from dedup or keep them on NTFS. Note: Restrictions on high churn rate, like lockups or high RAM consumption, deadlocks / BSOD might have been addressed in Windows Server 2025 and the ReFS Dedup, see comment of Steven Ekren. Improving reliability and performance is a top goal for ReFS, to improve the adoption and feature parity with NTFS. For information about feature parity please refer to the ReFS documentation. Migration guidance The following instructions describe a high level and supported migration path from Windows deduplication using the NTFS file system to native ReFS Deduplication. Note: Step #3, data migration is not required when already using ReFS with Data Deduplication. In this case it's enough to execute step #1 and #2. Note: Validate on non‑production data first. Plan for rehydration time and network/storage throughput. Ensure backups are current before starting. Make sure to have a full backup before upgrading Server OS or making changes. 1. Disable classic dedup on the NTFS source: Disable-DedupVolume -Volume YourDriveLetter: 2. Rehydrate (un‑deduplicate) the data: Start-DedupJob -Volume YourDriveLetter: -Type Unoptimization 3. Copy or move data to a ReFS volume (new target): For straightforward NTFS→ReFS copies, robocopy is recommended. A GUI and job based alternative to this is the File Server Migration Feature (uses robocopy) in Windows Admin Center. For complex scenarios, open files long path names very large datasets (< 5 TB) or many small files restructuring, GUI (including Windows Server Core) automation, improved logging cloud/hybrid migrations I recommend the usage of GS RichCopy Enterprise by GuruSquad for higher speed (up to 40%) and reliability, compared to robocopy. 4. Optionally remove the Windows Server feature When there is no old deduplication in use consider to remove the feature. Your advantages of doing so: removes an unneccessary service. removes the file system filter driver for dedup, which causes performance impacts, even when not in use. removes the PowerShell commandlets for the old dedup, so they cannot mistakenly used by existing scripts, unaware admins etc. When migrating files over network: SMB compression: consider both source and target run Windows Server 2025 and leverage SMB compression. SMB Compression is available in Microsoft xcopy, Microsoft robocopy and Gurusquad GScopy Enterprise. Balancing and Teaming with SMB: SMB does not require LFBO or SET Teaming. It automagically detects network links and actively balances on its own on Windows Server 2016 and later. Using teaming, depending the configuration, can negatively affect transfer speed. Quick detection and diagnostic commands Check file systems: Get-Volume | Select DriveLetter, FileSystem Check classic dedup feature: Get-WindowsFeature -Name FS-Data-Deduplication Get-DedupVolume Get-DedupStatus Check ReFS dedup: Get-Command -Module Microsoft.ReFsDedup.Commands Get-ReFSDedupStatus -Volume YourDriveLetter: Diagnostic script to detect both: <# .SYNOPSIS Detects classic NTFS Data Deduplication and ReFS Deduplication across local volumes. .DESCRIPTION - Reports NTFS volumes with classic Data Dedup enabled. - Lists ReFS volumes present on the host. - If the ReFS dedup cmdlet exists AND OS build >= 26100, checks ReFS dedup status per ReFS volume. - Color coding: * Classic dedup enabled → Yellow * Classic dedup not enabled → Cyan * ReFS dedup enabled → Green * ReFS dedup not enabled → Cyan .NOTES Version: 1.7 Author: Karl Wester-Ebbinghaus + Copilot Requirements: Elevated PowerShell session, PowerShell 5.1 or newer Supported OS: Windows Server 2025, Azure Stack HCI 24H2 or newer Unsupported OS: Windows 10, Windows 11 (script terminates) #> #region Initialization Write-Verbose "Initializing variables and environment..." $Volumes = $null $Volume = $null $DedupVolumesList = $null $DedupReFSVolumesList = $null $DedupReFSVolumesListLetters = $null $DedupReFSStatus = $null $refsCmd = $null $OSBuild = $null $runReFSDedupChecks = $null #endregion Initialization #region Volume Discovery Clear-Host Write-Verbose "Querying NTFS and ReFS volumes..." $Volumes = Get-Volume | Where-Object FileSystem -in 'NTFS','ReFS' #endregion Volume Discovery #region ReFS Dedup Cmdlet, OS Build and OS SKU Detection Write-Verbose "Checking for ReFS deduplication cmdlet..." $refsCmd = Get-Command -Name Get-ReFSDedupStatus -ErrorAction SilentlyContinue Write-Verbose "Reading OS build number..." try { $OSBuild = [int](Get-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion' -Name CurrentBuildNumber).CurrentBuildNumber } catch { Write-Verbose "Registry read for OS build failed. Falling back to Environment OSVersion." $OSBuild = [int][Environment]::OSVersion.Version.Build } # end try/catch for OS build detection Write-Verbose "Checking OS InstallationType and EditionID..." $CurrentVersionKey = Get-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion' $InstallationType = $CurrentVersionKey.InstallationType # "Client" or "Server" $EditionID = $CurrentVersionKey.EditionID # e.g. "AzureStackHCI", "ServerStandard", etc. Write-Verbose "Detected InstallationType: $InstallationType" Write-Verbose "Detected EditionID: $EditionID" Write-Verbose "Detected OSBuild: $OSBuild" # Block Windows 10/11 (Client OS) if ($InstallationType -eq 'Client') { Write-Error "Unsupported OS detected: Windows Client (Windows 10/11). Only Windows Server or Azure Stack HCI are supported. Script will terminate." exit } # Allow Azure Stack HCI explicitly if ($EditionID -eq 'AzureStackHCI') { Write-Verbose "Azure Stack HCI detected. Supported platform." } else { # Must be Windows Server if ($InstallationType -ne 'Server') { Write-Error "Unsupported OS detected. Only Windows Server or Azure Stack HCI are supported. Script will terminate." exit } Write-Verbose "Windows Server detected (EditionID: $EditionID). Supported platform." } Write-Verbose "Evaluating ReFS dedup eligibility based on cmdlet presence and build >= 26100..." $runReFSDedupChecks = $false if ($refsCmd -and ($OSBuild -ge 26100)) { $runReFSDedupChecks = $true Write-Verbose "ReFS dedup checks ENABLED (cmdlet present and OS build >= 26100)." } else { Write-Verbose "ReFS dedup checks DISABLED (cmdlet missing or OS build < 26100)." } #endregion ReFS Dedup Cmdlet, OS Build and OS SKU Detection #region Main Loop foreach ($Volume in $Volumes) { # begin foreach volume loop Write-Host "Volume $($Volume.DriveLetter): ($($Volume.FileSystem))" Write-Verbose "Processing volume $($Volume.DriveLetter)..." #region Classic Dedup + ReFS Volume Listing if ($Volume.FileSystem -eq 'NTFS' -or $Volume.FileSystem -eq 'ReFS') { Write-Verbose "Checking classic deduplication status for volume $($Volume.DriveLetter)..." $DedupVolumesList = Get-DedupVolume -Volume $Volume.DriveLetter -ErrorAction SilentlyContinue if ($DedupVolumesList) { Write-Host " → Classic Data Dedup ENABLED on $($Volume.DriveLetter), $($Volume.FileSystem)" -ForegroundColor Yellow } else { Write-Host " → Classic Data Dedup NOT enabled on $($Volume.DriveLetter),$($Volume.FileSystem)" -ForegroundColor Cyan } # end if classic dedup enabled Write-Verbose "Listing ReFS volumes on host..." $DedupReFSVolumesList = Get-Volume | Where-Object FileSystem -eq 'ReFS' if ($DedupReFSVolumesList) { $DedupReFSVolumesListLetters = ($DedupReFSVolumesList | ForEach-Object { $_.DriveLetter }) -join ',' Write-Host " → ReFS volumes present on host: $DedupReFSVolumesListLetters" } else { Write-Host " → No ReFS volumes detected on host" } # end if ReFS volumes present } # end NTFS/ReFS block #endregion Classic Dedup + ReFS Volume Listing #region ReFS Dedup Status if ($Volume.FileSystem -eq 'ReFS') { if ($runReFSDedupChecks) { Write-Verbose "Checking ReFS deduplication status for volume $($Volume.DriveLetter)..." $DedupReFSStatus = Get-ReFSDedupStatus -Volume $Volume.DriveLetter -ErrorAction SilentlyContinue if ($DedupReFSStatus) { Write-Host " → ReFS Dedup ENABLED on $($Volume.DriveLetter), $($Volume.FileSystem)" -ForegroundColor Green } else { Write-Host " → ReFS Dedup NOT enabled on $($Volume.DriveLetter), $($Volume.FileSystem)" -ForegroundColor Cyan } # end if ReFS dedup enabled } else { if (-not $refsCmd) { Write-Error " → Skipping ReFS dedup check: Get-ReFSDedupStatus cmdlet not present" -ForegroundColor Cyan } else { Write-Error " → Skipping ReFS dedup check: OS build $OSBuild < required 26100" -ForegroundColor Cyan } # end reason for skipping ReFS dedup check } # end if runReFSDedupChecks } # end if ReFS filesystem block #endregion ReFS Dedup Status Write-Host "" } # end foreach volume loop #endregion Main Loop #region End Write-Verbose "Script completed." #endregion End Recommendations and next steps Inventory: Identify volumes using NTFS dedup and ReFS dedup, and map workloads that create many small or rapidly changing files. Plan: Schedule rehydration and migration windows; test ReFS dedup on representative datasets. Upgrade: Prioritize upgrading servers still on 2016/2019 (End of Mainstream Support) to reduce support risk and gain the latest ReFS dedup improvements. Kindly consider reading my Windows Server Installation Guidance and Windows Server Upgrade Guidance Exclude: Keep user profiles, AppData, and other high‑churn small‑file paths off ReFS dedup or on NTFS. Consider ReFS Dedup with Compression: Enable compression optionally. Mind ReFS dedup compression is not the same as compress files integration in File Explorer or File Explorer properties (Windows 9x). It's transparent to the application Make smart decisions: Avoid using dedup when the dataset is changing fast or your dedup + compression rate is below 20%. Usually you can expect 40% or more savings, and up to 80% in specific use cases like VDI VHDX with ReFS Dedup + Compression. Plan your dedup jobs: Ensure of making use of the planning features for dedup jobs through PowerShell or Windows Admin Center (WAC) when using ReFS dedup on more than one volume per Server. Otherwise they might all run at the same time and impact your storage performance (esp. spinning rust) and consumption of RAM and CPU. Share and Educate: Inform your infrastructure team about the changes so they avoid using the traditional dedup on ReFS. Related blogposts: https://splitbrain.com/windows-data-deduplication-vs-refs-deduplication/ , Thanks Darryl van der Peijl and team. https://www.veeam.com/kb2023 Veeam best practices about Windows Deduplication and ReFS Deduplication.BLOG: "Only 16 nodes per cluster?! - but VMware..." limitations and rightsizing of failover clusters

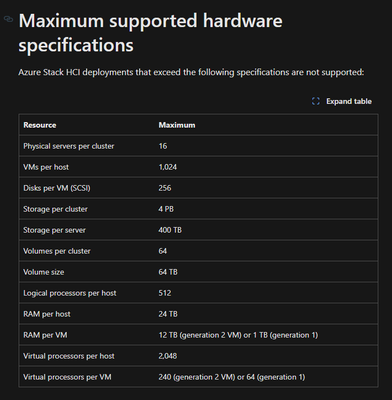

Greetings community Windows Server Community members! Today I am sharing insights with you on an often discussed matter. Intro This is an exercise on technical limitations and rightsizing of Hyper-V based clusters. The article applies to rules for general Hyper-V based failover clusters, using Windows Server with Shared Storage (SAN), dHCI, (Azure Stack) HCI and the underlying S2D considerations in special. Seriously, I've stopped counting the number of customers telling me about Hyper-V / Storage Spaces Direct / Azure Stack not being scalable. Especially when thinking about Azure Stack HCI, this gives me chuckles. Inspired by a simple question from a Microsoft techcommunity member I thought it is about time to share my experience on this "limitation". Granted it is themed for S2D and Azure Stack HCI and I do see differences for many use cases out there using shared storages (SAN) or Scale Out File server. If you have comments and suggestions, I am all ears. I appreciate your comments and thoughts. This article is something I am writing from the top of my mind so, bear with me if I missed aspects or things are wrong, I will certainly investigate your comments and corrections. Thinking about Cluster Size - I am putting all my eggs in one basket A great classic song, we will look into this further from an IT perspective. As always in IT: IT depends™. The cluster size possible with S2D scales from 1-16 physical or in lab virtual nodes forming one logical cluster. Especially with S2D (Storage Spaces Direct) using Windows Server and Hyper-V or the more advanced adaptive cloud (hybrid cloud) focused Azure Stack HCI. It is using the same technology as a base product on Windows Server with some notable extras in terms of deployment and management. One should consider though that the number of nodes in a Failover Cluster (and with that the number of disks) does not necessarily help to defend physical disk errors. It depends how the Storage Pool deals with fault domains. This is automatic and just sometimes is good to revise and adjust (if you know what you are doing). Considering fault domains Independent from a Storage point of view, running a large cluster also means it is one large fault domain. In case of issues with the failover-cluster, and there are numerous from networking, physical up to “it is always DNS™”, storage issues, configuration issues and changes or drift. Performance impacts Running one large cluster also causes higher performance and bandwidth impacts. No so much when using a shared SAN, one might think, but certainly when using SDS, dHCI, HCI, like Microsoft Storage Spaces Direct. This is especially true for rebuild times of S2D in case of disk failures, replacement or HW especially disk capacity expansions. Costs When considering cost, S2D requires equal disks in a pool and mostly identical hardware within a cluster. Larger cluster could be less efficient and not tightly targeted and HW optimized to use case, especially for general VM or VDI workloads. Lifespan and oopsies with physical disks Granted NVMe, when choosing appropriated TBW / TWPD models, offer a long very lifespan, excellent response times and performance galore, for sequential but especially for random operations and IOPS. Today they are more cost efficient than SSDs. Albeit when one does not follow the advice to patch your OS, FW and drivers regularly you might be hitting sudden outtakes on NVMe, SSDs and HDDs due to code issues in the firmware. This happened sometimes in the past and just recently also affected Samsung NVMe but have been spotted before disasters at scale. Understanding Storage Spaces (Direct) / Storage Pools In Windows Server S2D (always equally include Azure Stack HCI), all physical disks are pooled. In general, there is just one Storage pool available for all servers within a cluster. An exception are Stretched Clusters, something I do not want to go into detail here. If you want to learn more about these, I can recommend you this epic YT series. If you face a problem with your pool, you are facing a problem for all nodes. This is common and likely what happens with other third-party SAN / RAID / SDS systems. No change here, we are all cooking with water. Here is a general overview of this amazing and "free" technology. It requires Windows Server Datacenter licensing, that's all for all bells and whistles of a highly performant and reliable Software defined Storage. It runs best on with NVMe only setups, but allows flexibility, based on the use case. A high level overview for now to explain the relation to the original topic. Storage Spaces Direct (S2D) has been introduced with Windows Server 2016 and uses ReFS 3.1. Currently we are at Windows Server 2025 soon, and ReFS 3.12, which comes with a ton of improvements. Next to S2D there is Storage Spaces, a similar technology, but not forming a shared storage across different servers, so designed for standalone servers, opposing to server clusters. Something you should consider with ReFS for unclustered Hyper-V, Scale-out File Server and Backup Servers, instead of RAID or SAN. When larger doesn’t mean more secure – Storage Resiliency affects also Cluster resilience On both you define your storage policies per Volume / Cluster Shared Volume, likely to LUNs. So, you can dedicate how much of resiliency, Deduplication and performance is required based on the workload that is going to be stored on that volume. Some basic and common policies are Mirror and Nested Mirror. There exist other depending the number of disks / hosts, but these are not all recommended for VM workloads. When using these resiliency methods, especially Mirror, adding several disks (or hosts) exponentially raises the risks of a full data loss on this Volume / CSV in case of unfortunate events. So, choose and plan wisely. Can just recommend doing the RTFM job beforehand, as later changes are possible but require juggling the data and require having space left in the pool (physical disks) for such storage (migration) operations. Sure there are other methods that scale better like Dual parity. Be warned that the diagrams are simplified, and the data is not equally distributed "per disks" as you would expect in traditional RAID but using 256 MB data blocks (slabs) by using an algorithm that care for the balanced placement. It is important to understand this small difference to understand better on the predicable outcome of disk or host failures within the cluster. Not saying the docs are wrong, just the display of it is simplified. Read on more here: S2D - Nested Resiliency S2D - Understanding Storage fault tolerance Speaking of clusters the best effort is starting with 2 or 4 nodes. I would avoid and unequal number of nodes like three nodes or a multiple of it, as they are not very efficient (33%) and expanding on or from these require changing the Storage Policy (e. g. Three Way Mirror). S2D also support single node clusters, with nested mirror. You have heard right. Still satisfactory performance for many use cases, when you do not need full hardware stack resiliency, at a very low footprint and cost. Notable upcoming improvements to Clustering Storage Spaces (Direct) and beyond I trust that Azure Stack HCI will receive some of the recently announced improvements of Windows Server 2025. Be curious what's coming up next in the from Microsoft in regards of storage and storage options. Have a look at this later on. S2D - New Storage Options for Windows Server 2025 (release planned later this year) One large vs one or more smaller use case designed, scaled clusters Again, it is a common question why the limit of 16 nodes while e. g. VMware supports larger clusters. With no further ado, let's talk about how to do it right (imho). You might seek to create smaller clusters and Azure Stack HCI by design makes it easier to do management, RBAC / Security and LCM operations across several clusters. Having more than one Cluster also enables you to leverage different Azure Subscriptions (RBAC, Cost Management / Billing > Controlling). Sizing considerations – Why you do not need the same amount of hardware you had > smaller clusters Proper (physical) CPU sizing Often, when sizing is done, it is not considered about rightsizing the workloads, and rightsizing the CPU in use in a node. Modern CPUs compared to e.g. Sandy Bridge can help to consolidate in an 8:1 physical server. This way, you can easily save quite some complexity and costs for HW, licensing, cooling etc. To understand the efficiency and why you should not expect current pCPUs to be same on new systems, these calculators from Intel and AMD help you to find a right sized CPU for your Windows Server and what to expect on reducing hardware, TCO and environmental impact. That is climate action up to par. You can find the calculator from Intel here. Same exists for AMD. The vCPU to pCPU ration in today’s environments appear much higher than we are used to in previous clusters. Yes, That's true. I often hear VMware / Hyper-V customers being happy with a 2:1 vCPU:pCPU ratio across their workloads. It depends on the use case but often CPU resources are wasted and pCPUs are idling for their money, even at the end of life of a usual hardware cycle. Plan for rightsizing existing workloads before sizing hardware > Save costs Please consider: Storage Deduplication, also included in a more efficient way, in with in-line Deduplication and Compression with Windows Server 2025. Extra points (savings) for keeping all OS on a similar release. Storage Savings and RAM saving, using Windows Server Core for infrastructure VMs. Saving through Dynamic Memory vCPU / RAM reduction per VM Disk Space (too large, fixed disks, or Thin Provisioned Disks that got a relevant amount data deleted and have not been compressed) etc. etc. All this can be based on your monitoring metrics with your existing solution, or Azure Monitoring through Azure Arc. There is an enormous potential for savings and reduction of Cluster Nodes, RAM and Storage when you are interpreting your metrics before the migration to a more efficient platform. VM Assessment As outlined you can rely on your own methods and monitoring for the assessment of your workloads for rightsizing of hardware and VMs. In addition you can leverage Azure Migrate, to do that for you. It does not matter if you finally decide to migrate to Azure or Azure Stack HCI, it can help you with the general assessment using live data during your operation, which gives you good conclusions on right sizing. No matter the target. Consider growth and migrations There is always growth of the business or increased requirements to consider. The Azure Stack HCI Sizing tool helps you here but watch out sometimes there is huge gap of free resources. The tool is not logically perfect. It is math. Also OS migrations cause temporary growth that can surpass 50% of resources. Good news it is getting better with IPU starting with Windows Server 2022 and later. Additionally, services on older VMs are not well designed like Fileserver+ DHCP + RDS + Certificate Auth on a Domain Controller. These scenarios are still around existing and scream to be resolved, at costs of more VMs / resources. Have you heard Hyper-V isn't scalable? Get you own idea, here are the facts for Windows Server / Azure Stack HCI. And often growing with every release. Source: Azure Stack HCI System Requirements Azure Stack HCI and S2D These limitations shall not be confused with the ability of Hyper-V using a general Hypervisor, e.g. not using S2D but attached SAN: General Hyper-V Scalability and Limitations Conclusion You see there is some complexity in the game on the decision and the “limitation” of 16 nodes per cluster. I personally do not see this as a limitation in Windows Server Hyper-V or Azure Stack HCI given all of those aspects. Smaller clusters use case targeted clusters can also ensure flexibility, inherit the motivation for (cost) reductions and right sizing in the first place. No doubt lift and shift is easy, but it is often more expensive than investing some time into assessments, same with on-premises as in the cloud. So why a 16+ node cluster? Hope this helped you to make a decision. Allow me to cite Kenny Lowe, Regional Director and expert for Azure Stack HCI and other topics: “As ever, just because you can, doesn't mean you should.” Looking for more? Here is an amazing 1h video, you should consider watching if this article just fueled your interest into alternatives to classic clusters. VMware to Hyper-V migration options. Full agenda, on-demand, of Windows Server Summit 2024 https://techcommunity.microsoft.com/t5/tech-community-live/windows-server-summit-2024/ev-p/4068971 Thank you for reading, learning, sharing. Do you find this post helpful? Appreciate your thumbs up, feedback, questions. Let me know in the comments below.BLOG: Windows Server / Azure Local keeps setting Live Migration to 1 - here is why
Affected products: Windows Server 2022, Windows Server 2025 Azure Local 21H2, Azure Local 22H2, Azure Local 23H2 Network ATC Dear Community, I have seen numerous reports from customers running Windows Server 2022 servers or Azure Local (Azure Stack HCI) that Live Migration settings are constantly changed to 1 per Hyper-V Host, as mirrored in PowerShell and Hyper-V Host Settings. The customer previously set the value to 4 via PowerShell, so he could prove it was a different value at a certain time. First, I didn't step into intense research why the configuration altered over time, but the stumbled across it, quite accidently, when fetching all parameters of Get-Cluster. According to an article a LCU back in September 2022 changed the default behaviour and allows to specify the live migrations at cluster level. The new live migration default appears to be 1 at cluster level and this forces to change the values on the Hyper-V nodes to 1 accordingly. In contrast to the commandlet documentation, the value is not 2, which would make more sense. Quite unknown, as not documented in the LCU KB5017381 itself, but only referenced in the documentation for the PowerShell commandlet Get-Cluster. Frankly, none of the aren't areas customers nor partners would check quite regularly to spot any of such relevant feature improvements or changes. "Beginning with the 2022-09 Cumulative Update, you can now configure the number of parallel live migrations within a cluster. For more information, see KB5017381 for Windows Server 2022 and KB5017382 for Azure Stack HCI (Azure Local), version 21H2. (Get-Cluster).MaximumParallelMigrations = 2 The example above sets the cluster property MaximumParallelMigrations to a value of 2, limiting the number of live migrations that a cluster node can participate in. Both existing and new cluster nodes inherit this value of 2 because it's a cluster property. Setting the cluster property overrides any values configured using the Set-VMHost command." Network ATC in Azure Local 22H2+ and Windows Server 2025+: When using Network ATC in Windows Server 2025 and Azure Local, it will set the live migration to 1 per default and enforce this across all cluster nodes. Disregarding the Cluster Settings above or Local Hyper-V Settings. To change the number of live migration you can specify a cluster-wide override in Network ATC. Conclusion: The default values for live migration have been changes. The global cluster setting or Network ATC forcing these down to the Hyper-V hosts based on Windows Server 2022+/ Azure Local nodes and ensure consistency. Previously we thought this would happen after using Windows Admin Center (WAC) when opening the WAC cluster settings, but this was not the initial cause. Finding references: Later the day, as my interest grew about this change I found an official announcement. In agreement to another article, on optimizing live migrations, the default value should be 2, but for some reason at most customers, even on fresh installations and clusters, it is set to 1. TLDR: 1. Stop bothering on changing the Livemigration setting manually or PowerShell or DSC / Policy. 2. Today and in future train your muscle memory to change live migration at cluster level with Get-Cluster, or via Network ATC overrides. These will be forced down quite immediately to all nodes and will be automatically corrected if there is any configuration drift on a node. 3. Check and set the live migration value to 2 as per default and follow these recommendations: Optimizing Hyper-V Live Migrations on an Hyperconverged Infrastructure | Microsoft Community Hub Optimizing your Hyper-V hosts | Microsoft Community Hub 4. You can stop blaming WAC or overeager colleagues for changing the LM settings to undesirable values over and over. Starting with Windows Admin Center (WAC) 2306, you can set the Live Migration Settings at cluster level in Cluster > Settings. Happy Clustering! 😀
Dynamic processor compatibility mode
Hi, I was reading up on the new Dynamic processor compatibility mode in 2025 and have been doing some testing and not happy with the result. We have about 400 blades and that comes to about 8 different CPU types in those blades. As our customers have very dynamic demands we're constantly resizing clusters and the blades give me a lot of flexibility in this. In the past the CPU compatibility setting gave us even more flexibility to live migrate between different CPU families, but it also set back the CPU to 1970 levels feature wise. Now with the new updated dynamic processor compatibility mode we have much more CPU functions that are exposed, which is good. The bad thing though is that the CPU level on the cluster is dynamic and my VMs could get different CPU features available with every power off - power on. For example when I start a new cluster with some fresh blades I just received from my supplier, the cluster will determine the common CPU level to be the latest (say XYZ). The VMs I run on it all have CPU compatibility enabled, so they see level XYZ. Now the customer asks for some quick expansion of the cluster and I have to add some older type of blade. My personal testing has learned that the cluster now determines the common level to be somewhat lower, say RST. The VMs that are already running will keep seeing the XYZ (as expected) but: - they can't live migrate to the older host - on next power off and restart, they will go back to level RST. This gives me two major issues. One is that I can't just update my clusters anymore without VM downtime since I can't move VMs to the older hosts. And the bigger issue is that VMs can sometimes have and sometimes not have a specific CPU feature set. Would love to have an option to manually set a CPU feature set for a cluster. I would take my oldest blade, get that feature set and apply it on all clusters and when that blade type is gone, I'd just update all clusters to a new lowest level. Also, I can't find anywhere how I can see through powershell or GUI, what the common CPU feature set for a cluster is. Love to hear everyone's thoughts about this.....
Failover Cluster Manager error when not running as administrator (on a PAW)
I've finally been trying (hard) to use a PAW, where the user I'm signed into the PAW as does NOT have local admin privileges on that machine, but DOES have admin privileges on the servers I'm trying to manage. Most recent hiccup is that Failover Cluster Manager aka cluadmin.msc doesn't seem to work properly if you don't have admin privileges on the machine where you're running it from. Obviously on a PAW your server admin account is NOT supposed to be an admin on the PAW itself, you're just a standard user. The error I get when opening Failover Cluster Manager is as follows: Error The operation has failed. An unexpected error has occurred. Error Code: 0x800702e4 The requested operation requires elevation. [OK] Which is nice. I've never tried to run cluadmin as a non-admin, because historically everyone always just ran everything as a domain admin (right?) so you were an admin on everything. But this is not so in the land of PAW. I've run cluadmin on a different machine where I am a local admin, and it works fine. I do not need to run it elevated to make it work properly, it just works. e.g. open PowerShell, cluadmin <enter>. PowerShell has NOT been opened via "Run as administrator" (aka UAC). I've tried looking for some kind of access denied message via procmon but can't see anything obvious (to my eyes anyway). A different person on a different PAW has the same thing. Is anyone successfully able to run Failover Cluster Manager on a machine where you're just a standard user?
Failover Cluster DNS Record For vIP Is Scavenged
I have a physical, two node Windows 2016 failover cluster that is periodically unable to refresh the DNS entry for its virtual IP. There is no rhyme or reason and the only way to remedy the issue is to delete the record and reboot the cluster nodes one at a time. I have been through all of the troubleshooting articles RE: AD permissions and the issue persists. At this point I am done troubleshooting and would like to just create the DNS record statically, is there any reason I should not do this? Thanks
windows 2022 hyper-v issue connection problem network slow preformance TeamsNIC cluster
Hi, Problem is network. Windows 2022 hyper-v 2 interfaces NIC broadcom 10GB, insert 1 GB Conifguration: NIC Teams, Created VMswitch. Network 1GBit. If Received server transfer file to speed is 100 MB/s, but if send from server to another only 20MB/s Thanks for reply.
iSCSI Target servers - high availability?
Hello, I have two VMs configured as iSCSI target servers with a 600GB VDHX file on each, and then two VMs configured as file servers in a failover cluster. The iSCSI servers should serve out the data that is shared in the failover cluster file server. I would like to also configure the iSCSI target servers in high availability mode, so that they replicate their data and if one of the iSCSI target server go down, the shares and data is still accessible. How would I go about doing this? So far I've tried setting up storage replica, but since I only have one site, it doesn't allow me to replicate to the second iSCSI disk from the one that currently has data. I also tried iSCSI Target-role in the failover cluster manager, but it puts me back at the same situation where if the storage server with the virtual iSCSI disk goes down, I lose access to all data.Hyper-V Cluster live migrating Window 11 Guest
Hi all, Having a Hyper-V 2019 cluster using multiple nodes with san storage. I have several Virtual pc's running Windows 10 pro witch i can live migrate without problems. I'm testing a Windows 11 pro to use in the future. The settings are identical to the Win 10 pro version exept voor enabling "TPM enabled" witch i need voor starting Windows 11. The new Virtual PC is running fine exept i am not able to perform a live migration. Window 11 should be supported https://learn.microsoft.com/en-us/windows-server/virtualization/hyper-v/supported-windows-guest-operating-systems-for-hyper-v-on-windows Is annyone experiencing this? Best regards
