BitLocker Network Unlock Question
I set up network unlock for two servers in our network as a test for a future deployment of BitLocker. Both HP's. One is a DL 360 Gen9 server with aftermarket TPM, the other is a DL360 Gen11 with onboard/HP TPM. Configured first NIC on both boxes for DHCP. Just to test things, I unplugged NIC1 but kept NIC2 plugged in on the Gen11 server and rebooted. It prompted for a PIN on boot up (expected behavior). Did the same test on the Gen9 server and it boots straight into the OS (unexpected behavior). As a further test, I kept NIC1 unplugged and then unplugged NIC2, rebooted and got prompted for a PIN (as expected since box was completely off network). Does anyone have any ideas why this is happening? Could it have something to do with the aftermarket TPM? From what I've read network unlock requires the first NIC to be DHCP so it can communicate with the WDS server and allow network unlock to work. Could it be something with the NIC's on the Gen9 server? I'm at a loss to explain this behavior. Hoping someone may have some insight. TIA
Recovery BitLocker key on Win10 Pro
Hello, I've got Windows 10 Pro on my laptop. I have installed Windows myself & have used the same account till now, I haven't changed that. When I log into Microsoft account, I can find my device and the license which is linked to that laptop, but there are no BitLocker keys linked to that. That means, I'm trying to find my BitLocker key but it's not visible on Microsoft account which is linked to my Windows license. I can't access that encrypted SSD because my laptop is down so I can't check it in CMD. I'm trying to use that disc in another laptop but to access that I need a BitLocker key. Just for you to know, I believe I have studied all Microsoft instructions, tutorials etc related to BitLocker key recovering... Could anyone support me with recovering that key, please? I know Win10 is not supported anymore, but I don't believe that is the reason why I can't find my BitLocker key there. Kindly asking for help 🙏
What are the system requirements for hardware-accelerated BitLocker announced in ignite 2025?
Microsoft has recently announced hardware-accelerated Bitlocker (Ref. Link: https://techcommunity.microsoft.com/blog/windows-itpro-blog/announcing-hardware-accelerated-bitlocker/4474609) I would like to know system requirements (Specifically Hardware) that supports this functionality. The article also says below "Coordinate with your suppliers and keep an eye on listings from us and other vendors as PCs become available on the market." But I am unable to find any link for the listing from Microsoft. Does it support all the devices that has TPM 2.0 or does it require any other hardware?
External SSD Locked by BitLocker After Restart
Hello, I am experiencing an issue with my external SSD, which has been locked by BitLocker. I had to restart my work computer, and after the restart, the drive was automatically locked. I did not make any changes; I simply restarted the computer. Now, the drive is locked, and I am being prompted to enter a 48-digit recovery key, which I do not have. Could you please advise me on what to do in this situation? Is there a location on my computer where I might be able to find the recovery key? Thank you for your assistance.Which Windows Licenses are required to manage BitLocker through Intune
License Confusion for Managing BitLocker via Intune Scenario: We are managing BitLocker through Intune, with recovery keys backed up to Entra ID for both Hybrid and Entra ID-joined devices. Our devices run Windows 10/11 Professional, and we have EMS E3 licenses. Confusion: Most Microsoft documents state that Windows 10/11 Professional is sufficient to enable and manage BitLocker. However, one document mentions that Windows 10/11 Enterprise is required to manage BitLocker using CSP (Configuration Service Provider). We need clarification on whether Windows 10/11 Professional is fully capable of BitLocker management via Intune or if Enterprise is required for CSP-based management. I am providing reference Microsoft articles and screenshots to support this. BitLocker Enablement: https://learn.microsoft.com/en-us/windows/security/operating-system-security/data-protection/bitlocker/#windows-edition-and-licensing-requirements BitLocker Management: https://learn.microsoft.com/en-us/windows/security/operating-system-security/data-protection/bitlocker/configure?tabs=common#windows-edition-and-licensing-requirements Encrypt Devices with Intune: https://learn.microsoft.com/en-us/mem/intune/protect/encrypt-devices#view-details-for-recovery-keys You can find this paragraph in above document. "Information for BitLocker is obtained using the (CSP). BitLocker CSP is supported on Windows 10 version 1703 and later, Windows 10 Pro version 1809 and later, and Windows 11." Contradictory Statement Document: https://learn.microsoft.com/en-us/windows/client-management/mdm/bitlocker-cspMigrating BitLocker Recovery Key Management from ConfigMgr to Intune: A Practical Guide
Hi, I'm Herbert Fuchs, a Cloud Solution Architect. In this blog, I’ll guide you through migrating existing BitLocker recovery keys from Configuration Manager to Intune—especially for scenarios involving already encrypted devices. While many posts cover Intune setup basics for greenfield deployments, this guide dives deeper into real-world considerations for Hybrid-Joined, co-managed environments. Current Setup: ConfigMgr BitLocker Management In many organizations, BitLocker encryption and key management is handled via MBAM Standalone or the Configuration Manager BitLocker feature. In both cases, the MBAM Agent Service is responsible for encrypting devices and configuring key protectors based on policy — either via GPO or Configuration Manager profiles. You configure a BitLocker policy and assign it to devices. For Configuration Manager, the Configuration tab will show a BitLocker configuration profile once the client receives the policy. Once the encryption process starts, the BitLocker API events show: Key protector creation TPM sealing Encryption initiation You can check encryption status via PowerShell or using manage-bde.exe. You can also compare the recovery password with what's available in the MBAM Helpdesk Portal. PowerShell: Manage-bde: Compare Key: Note: When Configuration Manager escrows the BitLocker key, the information is written to the registry in UNIX DateTime format. Here's how to convert it: $LastEscrowTime = Get-ItemPropertyValue HKLM:\SOFTWARE\Microsoft\CCM\BLM -Name 'LastEscrowTime' $oUNIXDate=[System.DateTimeOffset]::FromUnixTimeSeconds($LastEscrowTime) $oUNIXDate If your environment is running MECM 2203 and higher than you can test the Escrow through the local API, also the Key-Rotation: Function Invoke-CCMBitlockerEscrowKey { [CmdletBinding()] Param ( [Parameter(Mandatory = $false)] [switch]$rotate ) $ErrorActionPreference = 'stop' #ensure client agent is at least CB 2203 if (([wmi]"ROOT\ccm:SMS_Client=@").ClientVersion.Split('.')[2] -lt 9078){ Write-Host "Required client version is at least CB 2203! Aborting..." -ForegroundColor Yellow break } if ($rotate) { # remove escrowed reference to force key rotation Write-Verbose "Removing HKLM\SOFTWARE\Microsoft\CCM\BLM\Escrowed key (if exists), to force key rotation" Remove-Item HKLM:\SOFTWARE\Microsoft\CCM\BLM\Escrowed -Recurse -ErrorAction SilentlyContinue } # Execute Package/Program Try { $ReturnObj = New-Object System.Collections.ArrayList Write-Verbose "Connect CCM_BLM_KeyEscrow Class" $CCMBLMSDK = ([WMIClass]'root\ccm\clientsdk:CCM_BLM_KeyEscrow') Write-Verbose "Retrieving drive letter(s) of encrypted volumes" $EncryptedDrives = (([wmiclass]"ROOT\cimv2\Security\MicrosoftVolumeEncryption:Win32_EncryptableVolume").GetInstances() | Where-Object ProtectionStatus -EQ 1).DriveLetter # loop through all encrypted drives & escrow the recovery key foreach ($ed in $EncryptedDrives) { Write-Verbose "Execute EscrowKey-Method for drive $ed" $Escrow = $CCMBLMSDK.EscrowKey($ed) Write-Verbose "Fill up HashTable-Object with Information" $Input = @{ 'ReturnValue'= $Escrow.ReturnValue 'Escrowkey' = $Escrow.KeyID 'DriveLetter' = $ed } $InfoTable = New-Object PSObject -Property $Input [Void]$ReturnObj.Add($InfoTable) } Return $ReturnObj } Catch { Write-Host "Exception Type: $($_.Exception.GetType().FullName)" -ForegroundColor Red Write-Host "Exception Message: $($_.Exception.Message)" -ForegroundColor Red Write-Host "Exception Stack: $($_.ScriptStackTrace)" -ForegroundColor Red } } Invoke-CCMBitlockerEscrowKey -rotate -Verbose Step 1: Identify Co-Managed Devices In this migration scenario, we're working with Entra-Hybrid-Joined devices that are co-managed. First, set Endpoint Protection workload authority to Intune. Assign your devices to a staging collection. This will not immediately change BitLocker policies on the device — but prepares the system to receive policy from Intune. In this Registry-Area you can see the Windows Encryption Settings which are enforced: You'll also find the MBAM-Agent configurations here: You can verify workload authority using the CoManagementFlag via this PowerShell Function. The CoManagement Flag you get from the Configmgr-Control-Panel or the Registry: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\CCM\CoManagementFlags. You can also find this state in the SQL-View vClientCoManagementState. Function Get-CoMgmtClientFlag { [CmdletBinding()] Param ( [Parameter(Mandatory=$True)] [Int]$CoMgmtFlag ) $CoMgmtFlagsTable = @{ 'CompliancePolicy' = 2 'ConfigurationSettings' = 8 'Default' = 8193 'DiskEncryption' = 4096 'EpSplit' = 8192 'Inventory' = 1 'ModernApps' = 64 'None' = 0 'Office365' = 128 'ResourceAccess' = 4 'Security' = 32 'WUfB' = 16 } $FlagsObject = [ordered]@{} foreach ($FlagType in $CoMgmtFlagsTable.Keys) { if (($CoMgmtFlag -band $CoMgmtFlagsTable[$FlagType]) -ne 0) { $FlagsObject.Add($FlagType, $True) } } return $FlagsObject } Get-CoMgmtClientFlag -CoMgmtFlag 12527 Once the workload is set to Intune, Configuration Manager is no longer responsible for BitLocker. The original configuration item remains visible, but BitLockerManagementHandler will defer to Intune. Key Insight: Even if you decrypt the disk and reevaluate the BitLocker CI, ConfigMgr will report it as compliant—but it is no longer enforcing the settings. In the next step we will discuss the BitLocker Policy in Intune. In a Migration-Workflow, ensure you setup the same Encryption Policies as you did in your Configuration Manager Policies – with one exception Startup Pin. Intune does not require the MBAM-Agent to manage and control Disk-Encryption – the downside out of the Box you cannot configure a Silent/Unattended Encryption with a Startup PIN because no UI for a Standard User is provided. For Registry-Policies, you might want to deploy the Custom CSP MDMWinOverGPO. However, if you for instance, define a different Cipher-Strength you will always get a Non-Compliant-State. The Reason for such an activity it would be necessary to decrypt and encrypt the System again. Step 2: Create and Assign BitLocker Policy in Intune You can create BitLocker policies in Intune via: Endpoint Security > Disk Encryption Device Configuration Templates Settings Catalog Each has slightly different UI/UX and wording, so take care during setup. Recommendation: Use Endpoint Security > Disk Encryption—it maps directly to the Settings Catalog, and the UI enforces proper dependencies and validations. Example: Silent Encryption Configuration by Endpoint Security Disk Encryption Configure OS drive encryption settings, cipher strength, and recovery options. Assign the policy to a test group in Entra or your staged collection by Collection/Group Sync. Once assigned, the device will receive the policy via the MDM channel. You can verify this via the Windows Settings app or Registry: HKLM\SOFTWARE\Policies\Microsoft\FVE – As we can see now each Configuration Options now added to this space – which is difference to the Configuration Manager Policy item. HKLM\SOFTWARE\Microsoft\PolicyManager\current\device\BitLocker The PolicyManager is in general a good reference for tracking which provider is managing settings. Important: The KeyProtector RecoveryPassword will not automatically back up to Entra unless a new key protector is created and encryption is re-triggered. Step 3: Trigger Backup to Entra or Rotate Key To ensure key escrow to Entra: Option 1: Use Intune to Rotate BitLocker Key From Intune, trigger BitLocker Key Rotation for the device for ad hoc testing. Requires that Windows Recovery Environment (WinRE) is enabled. Windows Recovery Environment (Windows RE) | Microsoft Learn The Client will receive the Notification and execute the Rotation Successful Upload Event to Entra: Successful Upload Event to Active Directory Option 2: Use PowerShell Use the built-in PowerShell cmdlet to back up the recovery key manually. Ideal for scripting or proactive remediation: BackupToAAD-BitLockerKeyProtector BackupToAAD-BitLockerKeyProtector (BitLocker) | Microsoft Learn Here an example for this purpose: <# .Synopsis Backup Bitlocker Recovery Key to Entra .DESCRIPTION The Script will get all Volumes which have Bitlocker Protection On. For each of this Volumes we look for the RecoveryPassword KeyProtector. The ID of this KeyProtector is used to execute the BuiltIn-Cmdlet BackupToAAD-BitlockerRecoveryKey. The activities are added to a Hashtable for a Final Return to be displayed in Endpoint-Analytics. For Troubleshooting Write-Verbose Output can be called. .EXAMPLE BackupBitlockerKeyToEntra.ps1 -Verbose .REQUIREMENT The Script Execution requires Elevated Permissions #> [CmdletBinding()] Param() Try { Write-Verbose "Create empty Array-Object" $BLKeyObject = New-Object System.Collections.ArrayList Write-Verbose "Get all Volumes where Bitlocker Protection is on" $Volumes = Get-BitLockerVolume | where {$_.ProtectionStatus.value__ -eq 1} If ($Volumes -is [System.Object]) { Foreach ($Volume in $Volumes) { Write-Verbose "Get for Drive $($Volume.MountPoint) RecoveryPassword KeyProtector" $KeyProtector = (Get-BitLockerVolume -MountPoint $Volume.Mountpoint).KeyProtector | where {$_.KeyProtectorType -eq 'RecoveryPassword'} If ($KeyProtector) { Write-Verbose "Trigger Backup Bitlocker Recovery Key to Entra for Drive: $($Volume.MountPoint) with ID: $($KeyProtector.KeyProtectorId)" BackupToAAD-BitLockerKeyProtector -MountPoint $Volume.MountPoint -KeyProtectorId $KeyProtector.KeyProtectorId Write-Verbose "Prepare Return HashTable" $Input = @{ Drive = $Volume.MountPoint KeyProtector = $KeyProtector.KeyProtectorId BackupToEntra = $true } $ResultTable = New-Object PSObject -Property $Input [void]$BLKeyObject.Add($ResultTable) } } } Else { Write-Host "WARNING - The System does not have any Bitlocker Encrypted Drive!!!" Exit 1 } Write-Verbose "Backup-Execution successful" Return $BLKeyObject } Catch { Write-Error $_ } Note: In hybrid scenarios, keys may be escrowed to both AD and Entra. If Entra is unavailable during encryption and you've set "Do not enable BitLocker until recovery information is stored to AD DS...", the key will be escrowed to AD only. Recommendation: Use a Proactive Remediation Script to periodically validate and enforce Entra key escrow. You can safely run BackupToAAD-BitLockerKeyProtector multiple times without issues. You can verify backup locations using: manage-bde -protectors -get C -type RecoveryPassword Step 4: Test a Fresh Encryption Cycle To confirm full Intune-based encryption and key escrow: Confirm Policies are applied Decrypt the Volume Remove all key protectors Trigger an Intune policy sync Confirm silent encryption with proper key backup Tip: You can test this with a Generation 2 VM with a virtual TPM. Key Takeaways Ensure BitLocker workload is shifted to Intune before key migration. Match Intune Configuration Profile with existing Configuration Manager Policies – otherwise you get Non-Compliance Messages (Note that Bitlocker-PreProvisioning in a TaskSequences, implies Used Space Encryption) Use key rotation or PowerShell scripts to escrow keys to Entra. Hybrid-joined devices may escrow to both AD and Entra (this is by Design, there is no option to configure only Entra) Confirm encryption compliance locally via Settings app, Registry, and manage-bde.exe – or use the Intune Reports Consider a proactive remediation script to ensure consistent key backup. Intune does not offer RBAC for viewing recovery keys. Show BitLocker-Recovery-Key is an Entra-Permission Device management permissions for Microsoft Entra custom roles - Microsoft Entra ID | Microsoft Learn Thanks for reading! Let me know your feedback or share your own tips and tricks for BitLocker migration from ConfigMgr to Intune! Disclaimer The sample scripts are not supported under any Microsoft standard support program or service. The sample scripts are provided AS IS without warranty of any kind. Microsoft further disclaims all implied warranties including, without limitation, any implied warranties of merchantability or of fitness for a particular purpose. The entire risk arising out of the use or performance of the sample scripts and documentation remains with you. In no event shall Microsoft, its authors, or anyone else involved in the creation, production, or delivery of the scripts be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use the sample scripts or documentation, even if Microsoft has been advised of the possibility of such damages.
Bitlocker Recovery Key Sync Issue in Intune
Hello All, We’ve configured Bitlocker settings in Intune using a device configuration profile in a hybrid environment. While it was previously working fine, for the past two weeks, devices assigned to the Bitlocker policy are encrypting successfully, but the recovery keys are not syncing to Intune/Entra. Below are the relevant event logs from the affected devices: - Event ID: 846 - Failed to backup Bitlocker Drive Encryption recovery information for volume C: to your Azure AD. - TraceId: (xxxx) - Error: JSON value not found. - Event ID: 875 - Server reported a failure while attempting to retrieve recovery password information from AAD. - Error: Unknown HResult Error code: 0x80190000 - HTTP Status Code: 0 - RetryRequest: false - DidSetRetryHint: false - RetryHintSeconds: 0 - Event ID: 868 - Failed while attempting to get Bitlocker Drive Encryption recovery information from Azure AD. - Error Code: Unauthorized (401) If anyone has encountered similar issues, your guidance on troubleshooting would be greatly appreciated. Thanks,
Bitlocker pushed via Intune does not work

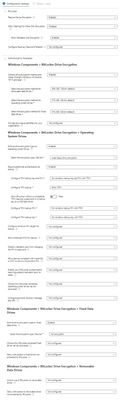

Hello, I'm trying to set up silent bitlocker deployment via Intune->Endpoint Security -> Disk Encryption. I have assigned a testing machine to it but it doesn't seems to enable bitlocker at all on the machine. I am attaching the configuration. We are in hybrid scenario and the computer is hybrid joined... Now... I can see the policy SUCCEEDED in intune... also "Per setting status" report shows all successful the laptop has only one drive - OS drive - and it is not encrypted in Event Viewer, I see "Bitlocker CSP: OS Drive not protected" before, I saw also "encryption type not supported" when I had "Full encryption" enabled. After changing it to "Used data only" this warning does not appear anymore I have forced sync from the laptop.. also restarted few times already... but the drive still does not have bitlocker turned on. Btw, it is a fresh new laptop Any advise? Am I missing anything here? UPDATE: I see one more warning in Event Viewer that is related to Bitlocker: "BitLocker CSP: GetDeviceEncryptionComplianceStatus indicates OSV is not compliant with returned status 0x106" Regards, Michal
