Azure ExpressRoute - Cisco Meraki MX or directly into LAN?
We are in the process of deploying Azure ExpressRoute across multiple sites via a provider Layer 2 VPLS circuit and are evaluating our CPE options. Our provider is delivering a Layer 2 handoff to each site, meaning we are responsible for all Layer 3 BGP configuration on the customer edge. We currently run a full Cisco Meraki environment — Meraki MX appliances as our edge firewalls and Meraki MS switches on the LAN side — and are wondering if anyone has successfully terminated an ExpressRoute BGP session directly on a Meraki MX, or alternatively terminated it directly into the LAN without a dedicated edge router in between. Terminating ExpressRoute BGP directly on a Meraki MX appliance — is this even possible given Meraki's limited BGP support? Connecting the Layer 2 provider handoff (dot1Q or QinQ) directly into a Meraki MS LAN switch and routing from there — has anyone made this work, and what were the caveats? Running a dedicated CPE router in front of the Meraki MX — and if so, how did you handle the integration between the CPE router and the Meraki SD-WAN fabric, particularly around route advertisement and traffic steering? Our provider model uses QinQ VLAN tagging with a provider-assigned S-tag and customer-defined C-tags for private and Microsoft peering. Since the provider is only delivering Layer 2, all BGP session establishment, prefix advertisement, and routing policy must be handled entirely on our CPE. Our understanding is that Meraki MX does not support QinQ subinterfaces or the level of BGP policy control needed for ExpressRoute, but we wanted to see if anyone has found a creative workaround before we commit to dedicated CPE hardware at each site. Device recommendations welcome: If a dedicated CPE router is the only viable path, we'd also love to hear what devices others have used successfully for this use case. Our circuit is 1Gbps, so we need something that can handle that throughput comfortably with BGP active — but we're a mid-size enterprise and are looking for cost-effective options rather than carrier-grade platforms. What has worked well for you without breaking the budget? Any real-world experience, gotchas, or recommended architectures would be greatly appreciated, especially from anyone running a Meraki-only environment who has tackled this!
Can only remote into azure vm from DC
Hi all, I have set up a site to site connection from on prem to azure and I can remote in via the main dc on prem but not any other server or ping from any other server to the azure. Why can I only remote into the azure VM from the server that has Routing and remote access? Any ideas on how I can fix this?Expressroute Coexistence P2S
Hi We have an IPVPN ExpressRoute connection back to our MPLS. We also have a central Internet breakout from our MPLS, its quite small, only 300mb. we don't want to increase the bandwidth on that circuit and at the moment it is getting a little over used by workers connecting to on-premise and Azure service via the client VPN they have. We want to look at the possibility of bringing up a P2S VPN in Azure that can also utilise the ExpressRoute for connectivity back down to the MPLS. We also have multiple VNGs setup that are linked to other Azure subs and a spare VNG that has a larger GatewaySubnet than the others (/27) Has anyone successfully brought up another VNG in the same GatewaySubnet asn an ExpressRoute VNG to allow P2S connections back either into the Azure environment or using the ExpressRoute back into an on-premise LAN (via the MPLS)? if you have, get in touch because I'd like to know how you managed it. I have looked at Virtual WAN, but that would entail bringing down the current ER which is a no no at the moment. thanks
Azure Express Route Peering with on Prem Firewall
Is there any way we can have express route peer BGP directly with on Prem Firewall via /29 subnet The firewall has active / standby and VIP. The express route peering require two /30 . if I have an active standby and VIP on the firewall how is that going to work ?Issue with Azure VM Conditional Access for Office 365 and Dynamic Public IP Detection
Hi all, I have a VM in Azure where I need to allow an account with MFA to bypass the requirement on this specific server when using Office 365. I've tried to achieve this using Conditional Access by excluding locations, specifically the IP range of my Azure environment. Although I’ve disconnected any public IPs from this server, the Conditional Access policy still isn’t working as intended. The issue seems to be that it continues to detect a public IP, which changes frequently, making it impossible to exclude. What am I doing wrong?Azure SD-WAN
Hi, I'm looking for good SD-WAN options for connecting our branches to our Azure vWAN with secured hubs (Azure Firewall). The plan is to ditch our current on-prem network circuit + express route and move to Azure vWan as the central hub with branch offices connecting over SD-WAN. I've had a look at https://learn.microsoft.com/en-us/azure/virtual-wan/virtual-wan-locations-partners. We currently do have Fortigate NGFW on-prem but doesn't belong to us as its managed by a vendor. Besides, deploying dual role Fortigate NGFW into the vWan hub seems like an over-kill since we already have Azure Firewall Premium? Would be grateful for your experience \ suggestions. Thanks
Azure Coexistence ExpressRoute and VPN Gateway
Good Day Team, Got a rookie question I'm not getting. Does the coexistence between the expressroute and VPN gateway mean: 1. one of each gateway type can be provisioned within a VNET or 2. both VPN and ExpressRoute connections can be terminated on a single gateway within a Virtual Network? Thanks to all those who are to help. AegisAzure VMware Solution - Design Networking

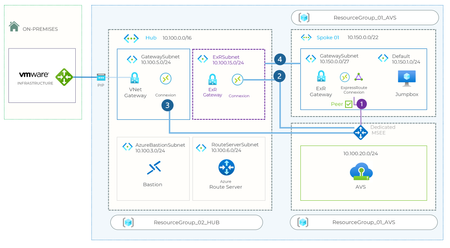

Hello the community I would like your opinion and your help on the network implementation of the AVS solution Design picture I deployed a Vpn Gateway connection to interconnect the on-premise connection to Azure. (VpnGw Routed-Based 2e generation) I deployed Azure Route Server, Azure Bastion and Azure VMware Solution. To connect AVS to my Hub, I wanted to deploy another ExpressRoute Gateway in my hub. (purple, connection 2) Unfortunately, this doesn't seem possible. The peering (connection 4) doesn’t work, but I’m not really surprised. When I deployed AVS, an 'Azure vNet connect' option allowed me to create a new vNet, only in the same resource group (ResourceGroup_01_AVS). In this vNet, the vNet Gateway (ExR Gateway) is connected. I added a new subnet to connect the Jumpbox and manage AVS. It's not possible for me to create a new connection (connection 3) to AVS with a new ExpressRoute key. And to use ExpressRoute Global Reach, I need an existing ExpressRoute. (no available items) And for now, I only have one vpn. Since I’m at a dead end, I take any hypothesis of resolution. To complete the discussion, two diagrams I could find in Microsoft sessions that can complement our exchange. Use case 01 - AVS and NVA, VPN over ExR Use case 02- AVS and NVA, 2 Vnet Thank you in advance for your time and help.
ExpressRoute with IPsec tunnel to on-prem
Is it possible to configure an IPsec tunnel over ExpressRoute with NVAs? The ExpressRoute is configured for Azure Private Peering. Is there any kind of list of supported NVAs for this scenario? So far we've tried vWAN with ExpressRoute to configure the IPsec and it works but we can see a significant impact on billing due to vWAN I guess. Also if you can think of any alternatives to setup ExpressRoute (with Az Private Peering) with IPsec tunnel then please share. So far for me the available options are vWAN and NVAs - at least according to this thread https://docs.microsoft.com/en-us/answers/questions/50909/configure-ipsec-encryption-over-express-route.htmlSDWAN and Express route
Hello Team , We have a global MPLS Network for a Service Provider X . Now we want to estalish Express route for our Hub vnets in Azure cloud . this looks fine Now we also have an SDWAN project running ;there is a Juniper Device on prem . which split the traffic between MPLS and VPN . when traffic switch to MPLS , juniper will do encryption . So do express route support encryption ? will there be any benefit ? how do we use pure MPLS express route and SDWAN together
