Azure VMware Solution - Design Networking

Hello the community

I would like your opinion and your help on the network implementation of the AVS solution

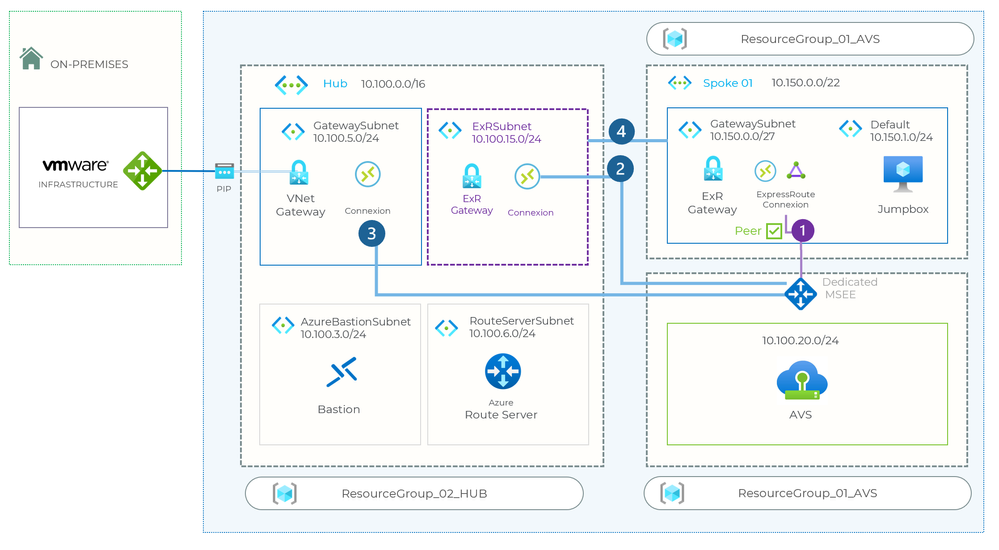

Design picture





I deployed a Vpn Gateway connection to interconnect the on-premise connection to Azure.

(VpnGw Routed-Based 2e generation)



I deployed Azure Route Server, Azure Bastion and Azure VMware Solution.



To connect AVS to my Hub, I wanted to deploy another ExpressRoute Gateway in my hub. (purple, connection 2)

Unfortunately, this doesn't seem possible.



The peering (connection 4) doesn’t work, but I’m not really surprised.



When I deployed AVS, an 'Azure vNet connect' option allowed me to create a new vNet, only in the same resource group (ResourceGroup_01_AVS).



In this vNet, the vNet Gateway (ExR Gateway) is connected.



I added a new subnet to connect the Jumpbox and manage AVS.



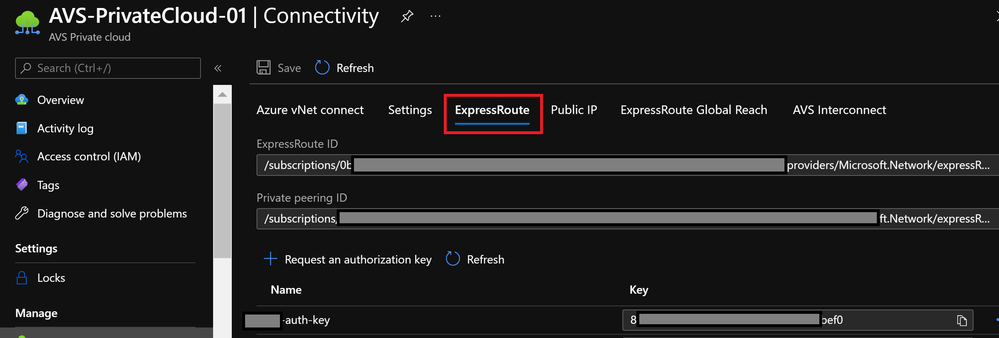

It's not possible for me to create a new connection (connection 3) to AVS with a new ExpressRoute key.

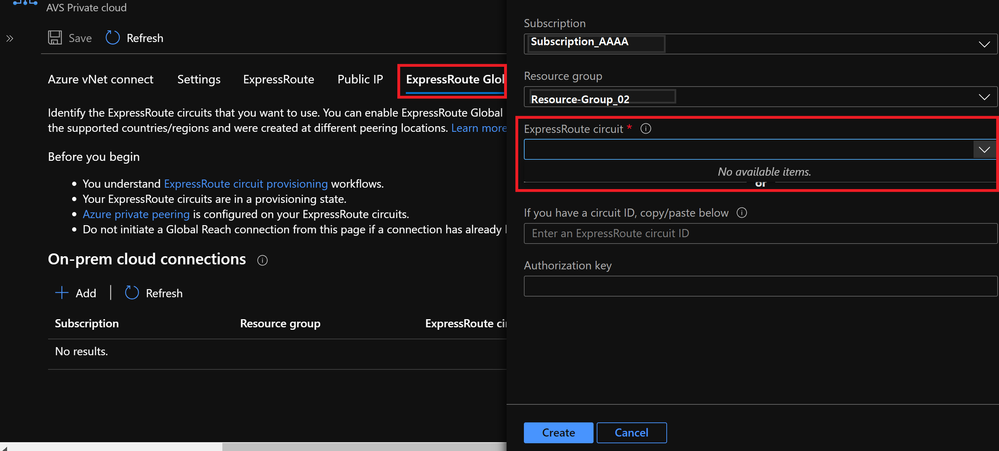

And to use ExpressRoute Global Reach, I need an existing ExpressRoute. (no available items)

And for now, I only have one vpn.



Since I’m at a dead end, I take any hypothesis of resolution.
To complete the discussion, two diagrams I could find in Microsoft sessions that can complement our
exchange.

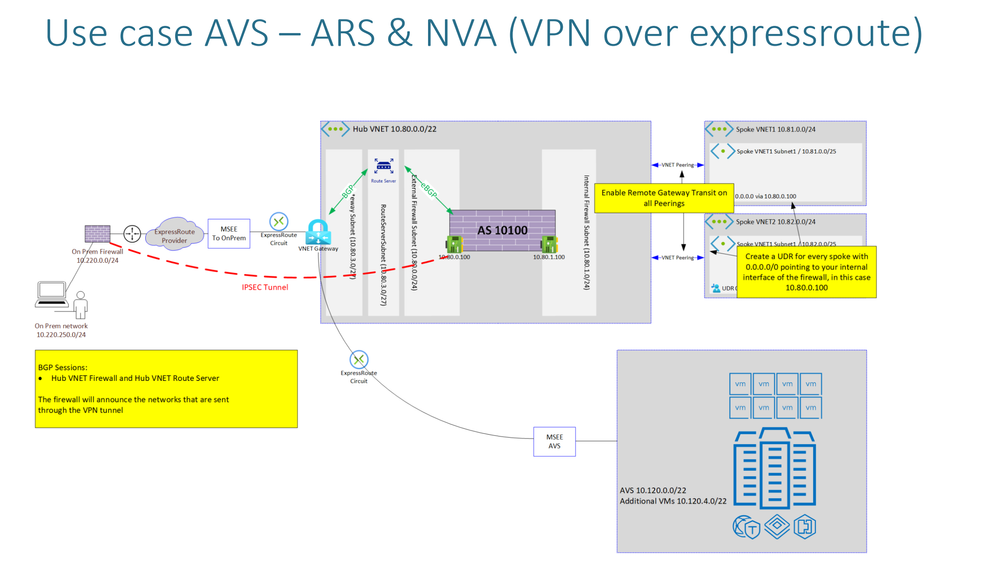

Use case 01 - AVS and NVA, VPN over ExR
MS doc 01

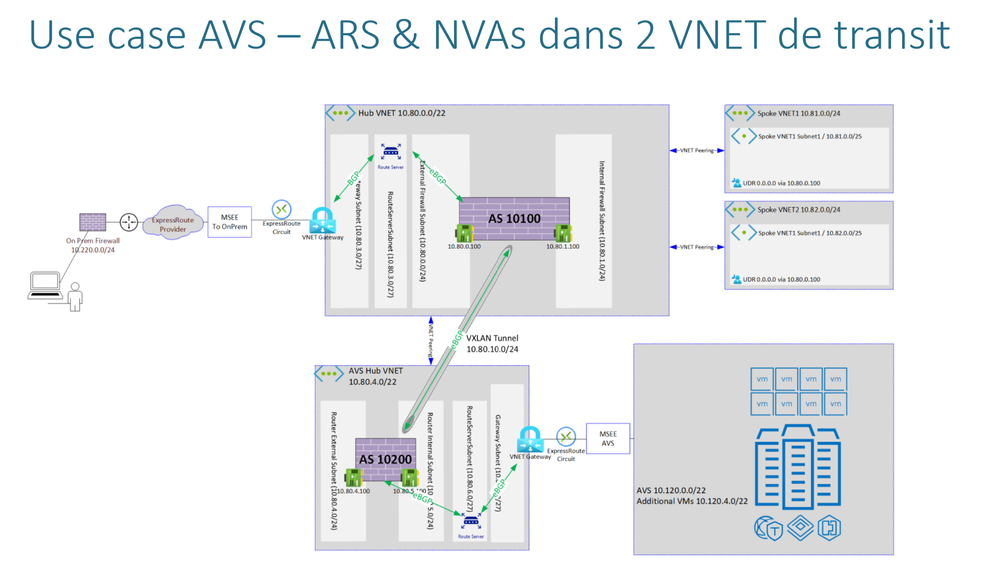

Use case 02- AVS and NVA, 2 Vnet
MS doc 2

Thank you in advance for your time and help.

Azure ExpressRoute
virtual network
VPN Gateway
  • MSDennis's avatar
    MSDennis
    Icon for Microsoft rankMicrosoft
    Dec 08, 2021

    Olivier-IT Best is to follow Configure a site-to-site VPN in vWAN for Azure VMware Solution - Azure VMware Solution | Microsoft Docs This will guide you through the process of setting up VWAN which will get the necessary transitivity in place for you to be able to connect from on-premise across that IPSEC tunnel and ExR GW setup in the VWAN HUB into AVS.  That way you don't need that spoke, the bastion and jumphost in place at all.  As soon as the tunnel is there you will find yourself being able to connect straight to the AVS vcenter, NSX or HCX console.  Hope this helps.  Please feel free to reach out.

    • Olivier-IT's avatar
      Olivier-IT
      Brass Contributor
      Dec 13, 2021

      Thank you for your answer MSDennis

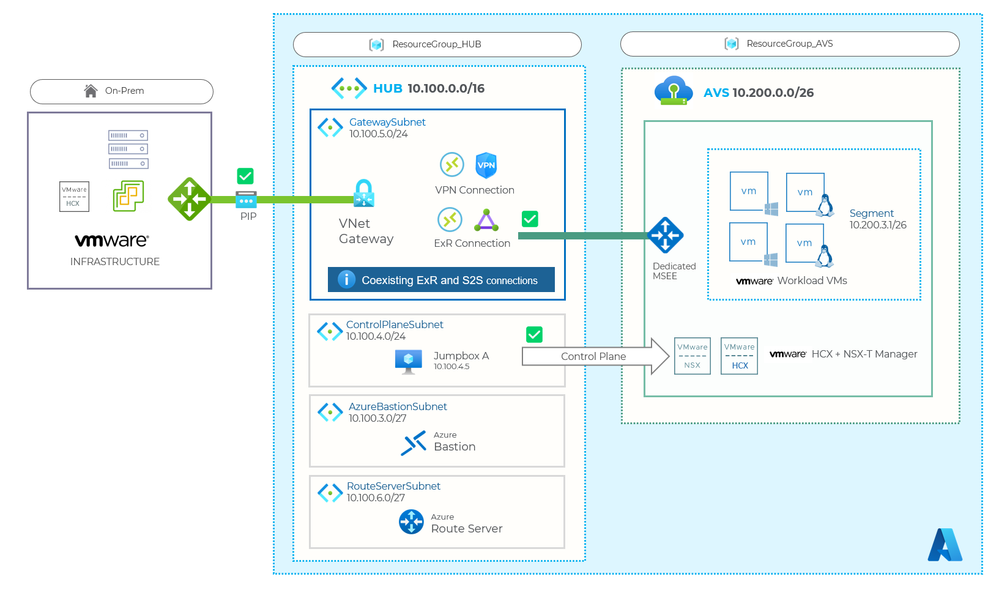

      I solved my design problem. The result in the following diagram.




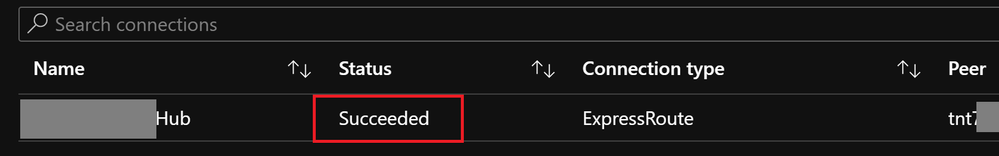

      Although it is possible to use vWAN, it seemed possible to use Azure Route Server, by making coexist a VPN connection and ExpressRoute connection.


      :blue_book:https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager#add

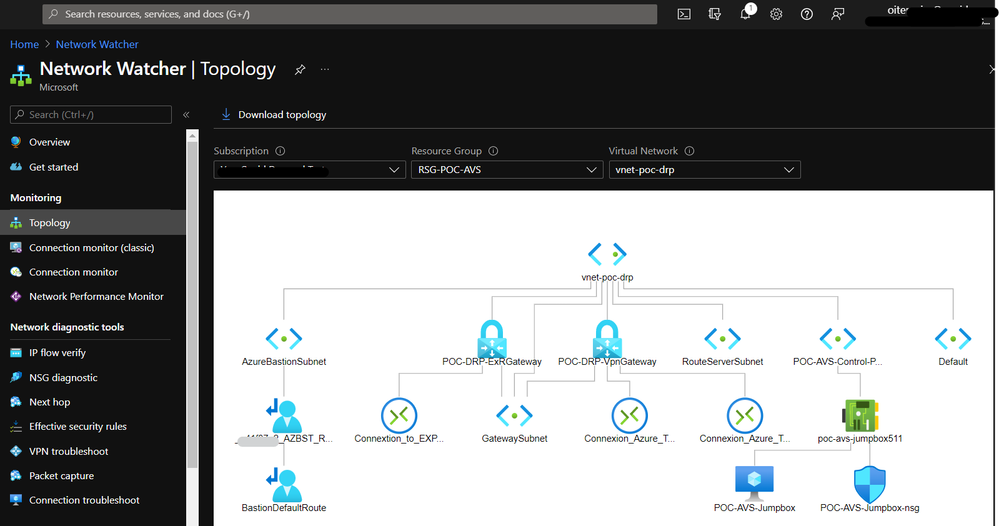

      From Network Watcher



      IP Flow verify



      Work continues on NSX/HCX configuration for layer 2 extension and SRM configuration.
      Thanks for your help Dennis !

      • MSDennis's avatar
        MSDennis
        Icon for Microsoft rankMicrosoft
        Dec 13, 2021

        Olivier-IT Azure Route Server is the core component also used in VWAN.  VWAN, it being managed as a service all together provides redundancy for all of the GW services it provides (except for Azure Firewall) out of the box across AZs in the region.  There is nothing you need to setup to get that redundancy therefore.

        If you add everything up (VPN GW across AZ (specific type), Route server and High performance ExR GW) and compare that to VWAN you will find that the latter is also cheaper for the customer.

        Pricing and redundancy out of the box therefore makes VWAN the preferred way forward.  I have not even mentioned future expansion capabilities.

        Hope this is useful.
