Create a snapshot of a VM with PowerShell in Azure
Hi Azure friends, I used the PowerShell ISE for this configuration. But you are also very welcome to use Visual Studio Code, just as you wish. Please start with the following steps to begin the deployment (the Hashtags are comments): #The first two lines have nothing to do with the configuration, but make some space below in the blue part of the ISE Set-Location C:\Temp Clear-Host #So that you can carry out the configuration, you need the necessary cmdlets, these are contained in the module Az (is the higher-level module from a number of submodules) Install-Module -Name Az -Force -AllowClobber -Verbose #Log into Azure Connect-AzAccount #Select the correct subscription Get-AzContext Get-AzSubscription Get-AzSubscription -SubscriptionName "your subscription name" | Select-AzSubscription #Set some parameters $resourceGroupName = 'tw-rg01' $location = 'westeurope' $vmName = 'tw-winsrv' $snapshotName = 'mySnapshot' #Get the VM $vm = Get-AzVM -ResourceGroupName $resourceGroupName -Name $vmName #Create the snapshot configuration $snapshot = New-AzSnapshotConfig -SourceUri $vm.StorageProfile.OsDisk.ManagedDisk.Id -Location $location -CreateOption copy #Take the snapshot New-AzSnapshot -Snapshot $snapshot -SnapshotName $snapshotName -ResourceGroupName $resourceGroupName #Next steps in the Azure Portal #Create a virtual machine from a snapshot by creating a managed disk #from a snapshot and then attaching the new managed disk as the OS disk Now you have used the PowerShell to create a snapshot of virtual machine! Congratulations! I hope this article was useful. Best regards, Tom Wechsler P.S. All scripts (#PowerShell, Azure CLI, #Terraform, #ARM) that I use can be found on github! https://github.com/tomwechsler
Move Azure resources from Tenant x to Tenant Y
Hi community I have one subscription-A in azure under Tenant-A with few resources like Staging/UAT vm & storage account which has certain data like in size 3TB(overall); keyvault webapp now I got new subscription-B in Azure Under Tenant-B(Subscription-B) which is provided by CSP Tenant A (Subscription-A)is pay-as you go Tenant B (Subscription-B)is under CSP pay as you go model what is the process/procedure to move/migrate resources from Tenant A(Subscription-A) to Tenant B(Subscription-B)
Python Django Web Role = 500 internal server error?
I created a fresh Python Cloud Service project with 1 Django Web Role (basically fresh VS 2017 installation) After the initial project creation I got this error also opening the "readme.html" gives me "Object reference not set to an instance of an object" error (I can't find even manually any readme.html in the project folder) when I publish the freshly created django webrole to azure cloud service I get a 500 internal server error, I tried googling a little bit and changed ALLOWED_HOSTS in settings.py to ALLOWED_HOSTS = ["*"] as suggested in several posts and I also changed DEBUG (just above the ALLOWED_HOSTS) to False, however I still am getting 500 internal server error... I also tried changing the $defaultpython variable in ConfigureCloudService.ps1 to "python2" to use python 2.7, however I get the very same error with any "solution" I've found so far... any suggestions? I've never worked with any python web framework before and still am just figuring out azure, so anything will be appreciatedUsing PowerShell in Azure to assign a new virtual machine to an existing virtual network!
Hi Azure friends, I used the PowerShell ISE for this configuration. But you are also very welcome to use Visual Studio Code, just as you wish. Please start with the following steps to begin the deployment (the Hashtags are comments): #The first two lines have nothing to do with the configuration, but make some space below in the blue part of the ISE Set-Location C:\Temp Clear-Host #So that you can carry out the configuration, you need the necessary cmdlets, these are contained in the module Az (is the higher-level module from a number of submodules) Install-Module -Name Az -Force -AllowClobber -Verbose #Log into Azure Connect-AzAccount #Search for the resource groups Get-AzResourceGroup | Format-Table #Whats in a specific resource group Get-AzResource -ResourceGroupName tw-azuredemo-rg | Format-Table #Some variables $RGName = "tw-azuredemo-rg" $VnetName = "tw-vnet-workload" $Location = "westeurope" $VMName = "twsrv2021" $credential = Get-Credential #We need all infos about the virtual network $VirtualNetwork = (Get-AzVirtualNetwork -Name $VnetName -ResourceGroupName $RGName) #Let's have a look at the variable $VirtualNetwork #Create a network interface $nic = New-AzNetworkInterface ` -ResourceGroupName $RGName ` -Name "twsrv2021-nic" ` -Location $Location ` -SubnetId $VirtualNetwork.Subnets[0].Id #Define your VM $vmConfig = New-AzVMConfig -VMName $VMName -VMSize "Standard_D2s_v4" #Create the rest of your VM configuration $vmConfig = Set-AzVMOperatingSystem -VM $vmConfig ` -Windows ` -ComputerName $VMName ` -Credential $credential ` -ProvisionVMAgent ` -EnableAutoUpdate $vmConfig = Set-AzVMSourceImage -VM $vmConfig ` -PublisherName "MicrosoftWindowsServer" ` -Offer "WindowsServer" ` -Skus "2016-Datacenter" ` -Version "latest" #Attach the network interface that you previously created $vmConfig = Add-AzVMNetworkInterface -VM $vmConfig -Id $nic.Id #Create your VM New-AzVM -VM $vmConfig -ResourceGroupName $RGName -Location $Location Now you have used the PowerShell to create a new virtual machine and added to an existing virtual network! Congratulations! I hope this article was useful. Best regards, Tom Wechsler P.S. All scripts (#PowerShell, Azure CLI, #Terraform, #ARM) that I use can be found on github! https://github.com/tomwechslerWith the PowerShell collect details about all Azure VM's in a subscription!
Hi Microsoft Azure Friends, I used the PowerShell ISE for this configuration. But you are also very welcome to use Visual Studio Code, just as you wish. Please start with the following steps to begin the deployment (the Hashtags are comments): #The first two lines have nothing to do with the configuration, but make some space below in the blue part of the ISE Set-Location C:\Temp Clear-Host #So that you can carry out the configuration, you need the necessary cmdlets, these are contained in the module Az (is the higher-level module from a number of submodules) Install-Module -Name Az -Force -AllowClobber -Verbose #Log into Azure Connect-AzAccount #Select the correct subscription Get-AzContext Get-AzSubscription Get-AzSubscription -SubscriptionName "your subscription name" | Select-AzSubscription #Provide the subscription Id where the VMs reside $subscriptionId = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" #Provide the name of the csv file to be exported $reportName = "myReport.csv" #If you didn't select the subscription in the step above, you can do so now (or just skip it) Select-AzSubscription $subscriptionId #Some variables $report = @() $vms = Get-AzVM $publicIps = Get-AzPublicIpAddress $nics = Get-AzNetworkInterface | ?{ $_.VirtualMachine -NE $null} #Now start the loop foreach ($nic in $nics) { $info = "" | Select VmName, ResourceGroupName, Region, VirturalNetwork, Subnet, PrivateIpAddress, OsType, PublicIPAddress $vm = $vms | ? -Property Id -eq $nic.VirtualMachine.id foreach($publicIp in $publicIps) { if($nic.IpConfigurations.id -eq $publicIp.ipconfiguration.Id) { $info.PublicIPAddress = $publicIp.ipaddress } } $info.OsType = $vm.StorageProfile.OsDisk.OsType $info.VMName = $vm.Name $info.ResourceGroupName = $vm.ResourceGroupName $info.Region = $vm.Location $info.VirturalNetwork = $nic.IpConfigurations.subnet.Id.Split("/")[-3] $info.Subnet = $nic.IpConfigurations.subnet.Id.Split("/")[-1] $info.PrivateIpAddress = $nic.IpConfigurations.PrivateIpAddress $report+=$info } #Now let's look at the result $report | ft VmName, ResourceGroupName, Region, VirturalNetwork, Subnet, PrivateIpAddress, OsType, PublicIPAddress #We save the file in our home folder $report | Export-CSV "$home/$reportName" Now you have used the PowerShell to create a report with the details about the vm's in a subscription! Congratulations! I hope this article was useful. Best regards, Tom Wechsler P.S. All scripts (#PowerShell, Azure CLI, #Terraform, #ARM) that I use can be found on github! https://github.com/tomwechslerCreating Reliability Through Chaos With Azure VMs and Gremlin
Creating Reliability Through Chaos With Azure VMs and Gremlin The idea of “Chaos Engineering” isn’t just about putting faith in a provider to stay online, it’s finding ways to simulate failure in order to determine that you’ll withstand an outage of any kind within your application. This means that if a number of your app servers take on a large portion of traffic and are highly CPU taxes, you’ll know how to properly scale your application to withstand it. If portions of your application infrastructure were to take on a massive amount of packet loss, how does your team respond? Chaos engineering helps answer some of these questions by allowing you to simulate the possibilities of what a failure may look like in your production environment. For some, using tools like Chaos Monkey has helps produce load and service failures to help create attack simulations. Lately I have been working with Gremlin, which acts as a “Chaos-as-a-Service” through a simple client-server model. Read more here on mediumAzure Recovery Services Vault Pricing for specific VMs
Hi, We have recently setup a few VMs for our security department and they will be paying for them out of their budget. We can easily filter the costs by the resource group for the VMs, storage etc but we are struggling with re-charging them for the cost of their backups. We are using Azure Recovery Services Vault and performing a selective disk backup on two of their VMs. I can manually cost this using the pricing calculator, but i don;t want to have to work this out every time based on how much data they have used. Is there a way to see the cost per VM for backups? I can only see a cost per Recovery Services vault and nothing more granuar. Thanks JManage serverless APIs with Apache APISIX

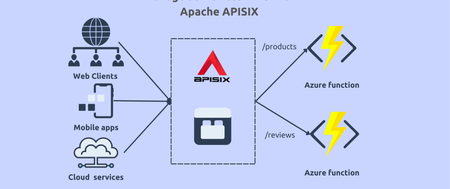

Serverless computing enables developers to build applications faster by eliminating the need for them to manage infrastructure. With serverless APIs in the cloud, the cloud service provider automatically provisions, scales, and manages the infrastructure required to run the code. This article shows a simple example of how to manage Java-based serverless APIs built with https://azure.microsoft.com/en-in/products/functions/. It uses https://apisix.apache.org/docs/apisix/plugins/azure-functions/ plugin to integrate https://apisix.apache.org/ with Azure Serverless Function that invokes the HTTP trigger functions and returns the response from https://azure.microsoft.com/en-us. Apache APISIX offers https://apisix.apache.org/docs/apisix/plugins/serverless/ that can be used with other serverless solutions like https://aws.amazon.com/lambda/. Learning objectives You will learn the following throughout the article: What serverless APIs? The role of API Gateway in managing complex serverless API traffic. How to set up Apache APISIX Gateway. How to build serverless APIs with Azure Functions. How to expose serverless APIs as upstream services. How to secure serverless APIs with APISIX authentication plugins. How to apply rate-limiting policies. Before we get started with the practical side of the tutorial, let's go through some concepts. What serverless APIs? https://www.koombea.com/blog/serverless-apis/ are the same as traditional APIs, except they utilize a serverless backend. For businesses and developers, serverless computing means they no longer have to worry about server maintenance or scaling server resources to meet user demands. Also, serverless APIs avoid the issue of scaling because they create server resources every time a request is made. Serverless APIs reduce latency because they are hosted on an origin server. Last but not least serverless computing is far more cost-efficient than the traditional alternative such as building entire https://www.ideamotive.co/blog/serverless-vs-microservices-architecture#:~:text=Serverless%20vs%20Microservices%20%E2%80%93%20Main%20Differences,can%20host%20microservices%20on%20serverless.. Serverless APIs using Azure function An https://learn.microsoft.com/en-us/azure/azure-functions/functions-overview is a simple way of running small pieces of code in the cloud. You don’t have to worry about the infrastructure required to host that code. You can write the Function in C#, Java, JavaScript, PowerShell, Python, or any of the languages that are listed in the https://learn.microsoft.com/en-us/azure/azure-functions/supported-languages. With Azure Functions, you can rapidly build HTTP APIs for your web apps without the headache of web frameworks. Azure Functions is serverless, so you're only charged when an HTTP endpoint is called. When the endpoints aren't being used, you aren't being charged. These two things combined make serverless platforms like Azure Functions an ideal choice for APIs where you experience unexpected spikes in traffic. API Gateway for Serverless APIs traffic management An https://apisix.apache.org/docs/apisix/terminology/api-gateway/ is the fundamental part of serverless API because it is responsible for the connection between a defined API and the function handling requests to that API. There are many benefits of API Gateway in the serverless-based APIs architecture. In addition to API Gateway’s Primary edge functionalities such as authentication, rate throttling, observability, caching, and so on, it is capable of invoking serverless APIs, subscribing to events, then processing them using callbacks and forward authentication requests to external authorization services with completely custom serverless function logic. Manage serverless APIs with Apache APISIX demo With enough theoretical knowledge in mind, now we can jump into a practical session. We use an example project repo https://github.com/Boburmirzo/apisix-manage-serverless-apis hosted on GitHub. You can find the source code and sample curl commands we use in this tutorial. For our mini-project, we’ll work with two simple Azure functions written in Java that simulates our serverless APIs for https://github.com/Boburmirzo/apisix-manage-serverless-apis/tree/main/upstream/src/main/java/com/function/products and https://github.com/Boburmirzo/apisix-manage-serverless-apis/tree/main/upstream/src/main/java/com/function/reviews services. Prerequisites Must be familiar with fundamental API concepts Must have a working knowledge of Azure Functions, for example https://learn.microsoft.com/en-us/training/modules/build-api-azure-functions/1-introduction shows how to build an HTTP API using the Azure Functions extension for Visual Studio Code. https://www.docker.com/products/docker-desktop/ https://azure.microsoft.com/en-us/free/ https://docs.microsoft.com/cli/azure/install-azure-cli https://aka.ms/azure-jdks, at least version 8 https://maven.apache.org/ https://www.npmjs.com/package/azure-functions-core-tools https://code.visualstudio.com/download https://dev.to/apisix/manage-serverless-apis-with-apache-apisix-55a8 https://marketplace.visualstudio.com/items?itemName=ms-azuretools.vscode-azurefunctions Set up the project This first thing you clone the project repo from GitHub: git clone https://github.com/Boburmirzo/apisix-manage-serverless-apis.git Open the project folder in your favorite code editor. The tutorial leverages https://code.visualstudio.com/. Run Apache APISIX To run Apache APISIX and Azure functions locally, you can follow these steps: Open a new terminal window and run docker compose up command from the root folder of the project: docker compose up -d Above command will run Apache APISIX and etcd together with Docker. For example, if Docker desktop is installed on your machine, you can see running containers there: We installed APISIX on our local environment in this demo but you can also deploy it to Azure and run it on https://learn.microsoft.com/en-us/azure/container-instances/. See the https://dev.to/apisix/run-apache-apisix-on-microsoft-azure-container-instance-1gdk. Run Azure functions Then, navigate to /upstream folder: mvn clean installmvn azure-functions:run The two functions will start in a terminal window. You can request both serverless APIs in your browser: For example: Deploy Azure functions Next, we deploy functions code to Azure Function App by running below cmd: mvn azure-functions:deploy Or you can simply follow this tutorial on https://learn.microsoft.com/en-us/azure/azure-functions/create-first-function-cli-java?tabs=bash%2Cazure-cli%2Cbrowser#deploy-the-function-project-to-azure Note that the function app name is randomly generated based on your artifactId, appended with a randomly generated number. In the tutorial cmds, the function app name serverless-apis is mentioned. Just to make sure our function works, we can test an invocation call directly requesting it URL in the browser: https://serverless-apis.azurewebsites.net/api/products https://serverless-apis.azurewebsites.net/api/reviews Exposing serverless APIs in APISIX Once the setup is complete, now we will expose serverless Azure function APIs as upstream services in APISIX. To do so, we need to create a new https://apisix.apache.org/docs/apisix/terminology/route/ with azure-function plugin enabled for both products and review serverless backend APIs. If azure-function plugin is enabled on a route, APISIX listens for requests on that route’s path, and then it invokes the remote Azure Function code with the parameters from that request. Create a Route for Products To create a route for Products function, run the following command: curl http://127.0.0.1:9180/apisix/admin/routes/1 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d ' { "name": "Create a route with Azure function plugin", "plugins": { "azure-functions": { "function_uri": "https://serverless-apis.azurewebsites.net/api/products", "ssl_verify": false } }, "uri": "/products" }' Note that we set ssl_verify attribute of azure-functions plugin to false to disable SSL verification for only the demo purpose. You can also enable it to perform more secure requests from APISIX to Azure Functions. Learn other https://apisix.apache.org/docs/apisix/plugins/azure-functions/#attributes. Test With a Curl Request We can use curl to send a request, seeing if APISIX listens on the path correctly and forwards the request to the upstream service successfully: curl -i -XGET http://127.0.0.1:9080/products HTTP/1.1 200 OK [ { "id": 1, "name": "Product1", "description": "Description1" }, { "id": 2, "name": "Product2", "description": "Description2" } ] Great! We got a response from the actual serverless API on Azure Function. Next, we will make a similar configuration for the reviews function. Create a Route for Reviews and test Create the second route with Azure function plugin enabled: curl http://127.0.0.1:9180/apisix/admin/routes/2 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d ' { "plugins": { "azure-functions": { "function_uri": "https://serverless-apis.azurewebsites.net/api/reviews", "ssl_verify": false } }, "uri": "/reviews" }' Test serverless API response: curl -i -XGET http://127.0.0.1:9080/reviews In this section, we introduced the new route and added azure-functions plugin to our serverless APIs so that APISIX can invoke remote Azure functions and manage the traffic. In the following sections, we will learn how to authenticate API consumers and apply runtime policies like rate-limiting. Secure serverless APIs with APISIX authentication plugins Up to now, our serverless APIs are public and accessible by unauthorized users. In this section, we will enable the authentication feature to disallow unauthorized requests to serverless APIs. Apache APISIX can verify the identity associated with API requests through credential and token validation. Also, it is capable of determining which traffic is authorized to pass through the API to backend services. You can check all available https://apisix.apache.org/docs/apisix/plugins/key-auth/. Let's create a new consumer for our serverless APIs and add https://apisix.apache.org/docs/apisix/plugins/basic-auth/ plugin for the existing route so that only allowed users can access them. Create a new consumer for serverless APIs The below command will create our new consumer with its credentials such as username and password: curl http://127.0.0.1:9180/apisix/admin/consumers -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d ' { "username": "consumer1", "plugins": { "basic-auth": { "username": "username1", "password": "password1" } } } Add a basic auth plugin to the existing Products and Services routes. Now we configure the basic-auth plugin for routes to let APISIX check the request header with the API consumer credentials each time APIs are called: curl http://127.0.0.1:9180/apisix/admin/routes/1 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d ' { "name": "Create a route with Azure function plugin", "plugins": { "azure-functions": { "function_uri": "https://serverless-apis.azurewebsites.net/api/products", "ssl_verify": false }, "basic-auth": {} }, "uri": "/products" }' curl http://127.0.0.1:9180/apisix/admin/routes/2 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d ' { "plugins": { "azure-functions": { "function_uri": "https://serverless-apis.azurewebsites.net/api/reviews", "ssl_verify": false }, "basic-auth": {} }, "uri": "/reviews" }' Test basic auth plugin Now if we request the serverless APIs without user credentials in the header, we will get an unauthorized error: curl -i http://127.0.0.1:9080/products HTTP/1.1 401 Unauthorized {"message":"Missing authorization in request"} The result is as we expected. But if we provide the correct user credentials in the request and access the same endpoint, it should work well: curl -i -u username1:password1 http://127.0.0.1:9080/products HTTP/1.1 200 OK We have validated the client’s identity attempting to request serverless APIs by using basic authentication plugin with the help of Apache APISIX. Apply rate limiting policies for serverless APIs In this section, we will protect serverless APIs from abuse by applying a throttling policy. In Apache APISIX Gateway we can apply rate limiting to restrict the number of incoming calls. Apply and test the rate-limit policy With the existing route configurations for Products and Reviews functions selected, we can apply a rate-limit policy with https://apisix.apache.org/docs/apisix/plugins/limit-count/ plugin to protect our API from abnormal usage. We will limit the number of API calls to 2 per 60s per API consumer. To enable the limit-count plugin for the existing Products route, we need to add the plugin to the plugins attribute in our Json route configuration: curl http://127.0.0.1:9180/apisix/admin/routes/1 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d ' { "name": "Create a route with Azure function plugin", "plugins": { "azure-functions": { "function_uri": "https://serverless-apis.azurewebsites.net/api/products", "ssl_verify": false }, "basic-auth": {}, "limit-count": { "count": 2, "time_window": 60, "rejected_code": 403, "rejected_msg": "Requests are too frequent, please try again later." } }, "uri": "/products" }' Apache APISIX will handle the first two requests as usual. However, a third request in the same period will return a 403 HTTP Forbidden code with our custom error message: HTTP/1.1 403 Forbidden {"error_msg":"Requests are too frequent, please try again later."} Next steps In this article, we learned step by step how to create Java-based serverless APIs with Azure Functions and Apache APISIX Gateway to manage your APIs throughout their full lifecycle from the exposing serverless APIs as upstream services in APISIX to properly secure and apply rate-limiting to limit the number of requests. This opens the doors to other use-cases of API Gateway and serverless APIs integration. You can explore other capabilities of APISIX Gateway by chaining of various https://apisix.apache.org/plugins/ to transform requests, https://dev.to/apisix/apis-observability-with-apache-apisix-plugins-1bnm, performance, and usage of our serverless APIs, https://apisix.apache.org/blog/2022/12/14/web-caching-server/ and further evolve them by https://blog.frankel.ch/evolve-apis/#:~:text=Joe%0AHello%20Joe-,Version%20the%20API,-Evolving%20an%20API that helps you to reduce development time, increase scalability, and cost savings. Apache APISIX is fully open-source API Gateway solution. If you require to have more advanced API management features for serverless APIs, you can use https://api7.ai/apisix-vs-api7 or https://api7.ai/cloud which are powered by APISIX. Related resources https://azure.microsoft.com/en-in/products/functions/. https://learn.microsoft.com/en-us/training/modules/build-api-azure-functions/. https://learn.microsoft.com/en-us/azure/azure-functions/create-first-function-vs-code-java. https://dev.to/apisix/run-apache-apisix-on-microsoft-azure-container-instance-1gdk. Recommended content https://iambobur.com/2022/11/22/how-to-choose-the-right-api-gateway/. https://api7.ai/blog/why-is-apache-apisix-the-best-api-gateway https://api7.ai/blog/api-gateway-policies. Community:right_arrow_curving_down: 🙋 https://apisix.apache.org/docs/general/join/ :bird: https://twitter.com/ApacheAPISIX :memo: https://join.slack.com/t/the-asf/shared_invite/zt-vlfbf7ch-HkbNHiU_uDlcH_RvaHv9gQ
