Forum Discussion

John Cogan's avatar
John Cogan
Copper Contributor
May 17, 2018

Problem with adprep before in place upgrade of domain controller

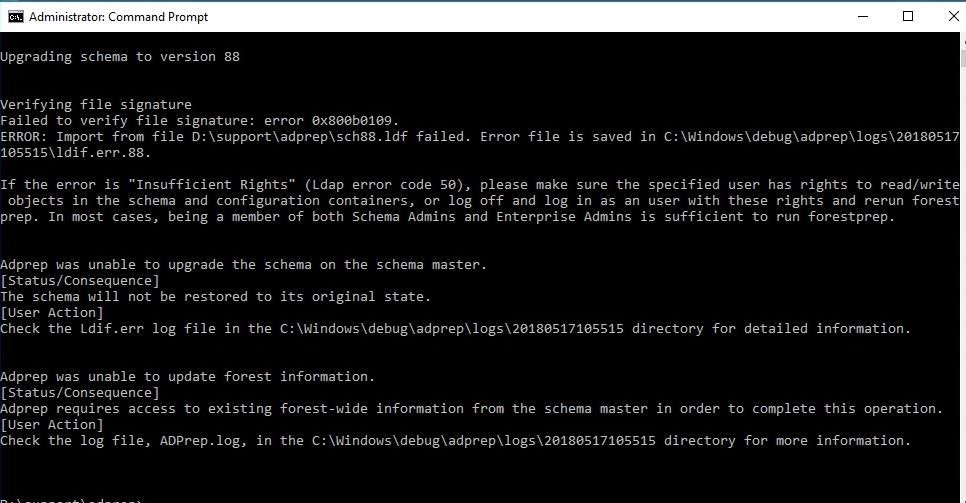

I am trying to test an in place upgrade of a Server 2016 domain controller in my lab but I first need to update the AD schema,  When I try to run adprep /forestprep from any on the last 3 builds I am getting a failed to verify file signature error on the sch88.ldf file.  This is a ceean server 2016 install that only has ADDS and DNS server roles installed.

Anyone else having the same problem?

  • I was able to solve this by adding the root certificate to trusted root authorities. Right click schupgrade.cat (in the support\adprep folder) and click properties then go to the Digital Signatures tab. Click on the only signature listed and hit Details. Then hit View Certificate. Go to the Certification Path tab and hit the top certificate, it should have a red x on it and the status should say something about it not being trusted. Then View Certificate on this top cert, and click Install Certificate. Install to Local Machine, and specify to install into the Trusted Root Certificate Authorities store.



    After that the cert should be trusted and adprep should work. If you close all the properties windows and reopen the red x should be gone and the signature valid.

  • Dillon Newell's avatar
    Dillon Newell
    Copper Contributor

    I was able to solve this by adding the root certificate to trusted root authorities. Right click schupgrade.cat (in the support\adprep folder) and click properties then go to the Digital Signatures tab. Click on the only signature listed and hit Details. Then hit View Certificate. Go to the Certification Path tab and hit the top certificate, it should have a red x on it and the status should say something about it not being trusted. Then View Certificate on this top cert, and click Install Certificate. Install to Local Machine, and specify to install into the Trusted Root Certificate Authorities store.



    After that the cert should be trusted and adprep should work. If you close all the properties windows and reopen the red x should be gone and the signature valid.

    • John Cogan's avatar
      John Cogan
      Copper Contributor

      Thanks Dillon, that worked exactly as you described.

  • Eoin Colson's avatar
    Eoin Colson
    Copper Contributor

    Same issue with adprep /forestprep while preparing for inplace upgrade from 2012 r2 standard. Went the certificate trusted route... says import was successful ...but red "x" remains , even after a restart.

    • John Cogan's avatar
      John Cogan
      Copper Contributor

      When you are importing the certificate, you will see there are more than one in the hierarchy.  Make sure you inport the top (root) one since it is required for the cert chain dependencies

      • Eoin Colson's avatar
        Eoin Colson
        Copper Contributor

        Thanks John! I had tried several times, but was likely missing the same step each time. This time I had your earlier post open in a window next my explorer window as I proceeded. Voila!



        Lesson learned: If another "insider" has taken the time to document the required steps, I should pay MUCH more attentions to the details.

        Again, thanks so much for helping out a newbie (but old person) :)

  • ajaidka's avatar
    ajaidka
    Copper Contributor
    Hello, I am in a similar type of situation. I am trying to upgrade the schema version from 87 to 88 and then I will be upgrading the servers from 2016 to 2022.
    Here is the adprep command I ran:
    PS D:\support\adprep> .\adprep.exe /forestprep

    ADPREP WARNING:

    Before running adprep, all Windows Active Directory Domain Controllers in the forest must run Windows Server 2003 or later.

    You are about to upgrade the schema for the Active Directory forest named 'amii.ca', using the Active Directory domain controller (schema master) 'AVMVPRDMFT
    ADS01.amii.ca'.
    This operation cannot be reversed after it completes.

    [User Action]
    If all domain controllers in the forest run Windows Server 2003 or later and you want to upgrade the schema, confirm by typing 'C' and then press ENTER to co
    ntinue. Otherwise, type any other key and press ENTER to quit.


    C

    Current Schema Version is 87


    Upgrading schema to version 88


    Verifying file signature
    Connecting to "AVMVPRDMFTADS01.amii.ca"
    Logging in as current user using SSPI
    Importing directory from file "D:\support\adprep\sch88.ldf"
    Loading entries...
    Add error on entry starting on line 26: Insufficient Rights
    The server side error is: 0x2098 Insufficient access rights to perform the operation.
    The extended server error is:
    00002098: SecErr: DSID-031514A0, problem 4003 (INSUFF_ACCESS_RIGHTS), data 0

    2 entries modified successfully.
    An error has occurred in the program
    ERROR: Import from file D:\support\adprep\sch88.ldf failed. Error file is saved in C:\Windows\debug\adprep\logs\20240416200415\ldif.err.88.

    If the error is "Insufficient Rights" (Ldap error code 50), please make sure the specified user has rights to read/write objects in the schema and configurat
    ion containers, or log off and log in as an user with these rights and rerun forestprep. In most cases, being a member of both Schema Admins and Enterprise A
    dmins is sufficient to run forestprep.


    Adprep was unable to upgrade the schema on the schema master.
    [Status/Consequence]
    The schema will not be restored to its original state.
    [User Action]
    Check the Ldif.err log file in the C:\Windows\debug\adprep\logs\20240416200415 directory for detailed information.


    Adprep was unable to update forest information.
    [Status/Consequence]
    Adprep requires access to existing forest-wide information from the schema master in order to complete this operation.
    [User Action]
    Check the log file, ADPrep.log, in the C:\Windows\debug\adprep\logs\20240416200415 directory for more information.
