ISSUE - FIXED - Hyper-V VM In-Place Upgrade (IPU) WS 2022 to WS 2025 b26063 fails

Host: WS b26052 VM: WS 2022 20348.2227  Target OS: WS 2025 26063.1000 IPU, dynamic update enabled Flightsigining: on Error: Rollback after upgrade online phase on first reboot.  SetupDi...
General
Hyper-V
  • MSBernstein's avatar
    MSBernstein
    Mar 20, 2024
    Update on this investigation:

    The Windows Boot team looked over logs from my repro and noticed that the upgrade sequence depends on creating a large (500MB) RAM disk and that ramdisk creation is failing due to not enough memory. Since the documented recommendation for Windows Server with Desktop Experience is 2GB, I turned off Dynamic Memory and set the RAM to 2048 GB.

    This resolved the issue for me - in-place upgrade now succeeds.

    Karl, can you please see if that same mitigation works for you?

    If so, I can follow up with the MSLab owners to see if they can change the memory configuration.

    Thanks,
    Michael
Karl-WE's avatar
Karl-WE
MVP
Mar 04, 2024

installed a fresh VM and will try to reproduce it.

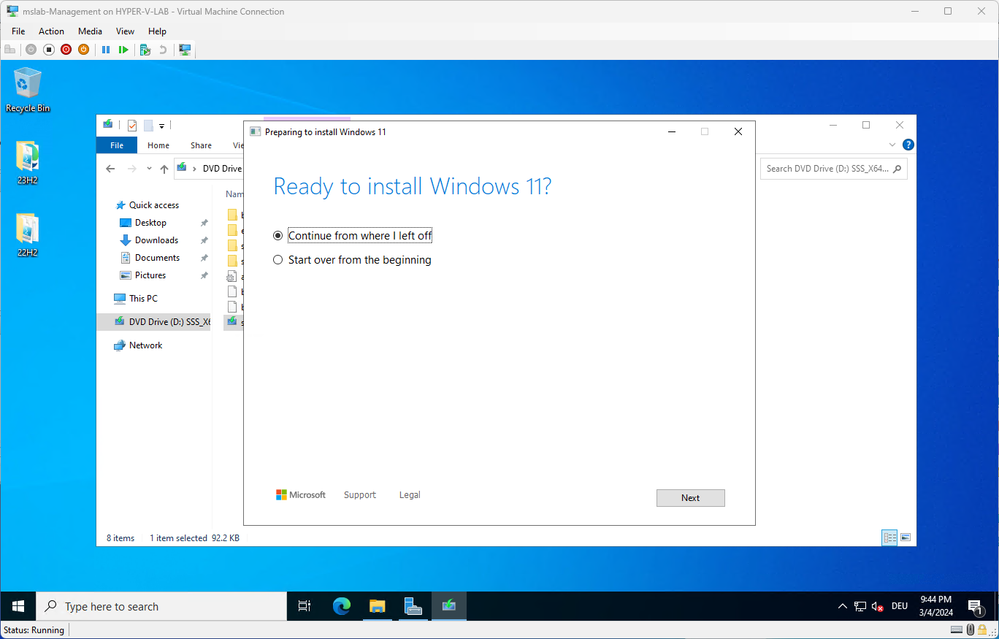

So far when continuing the setup after enable flighting. setup comes up with the "Ready to Install Windows 11"







  • Joachim_Otahal's avatar
    Joachim_Otahal
    Iron Contributor
    Mar 04, 2024
    This is creepy - this is way too much "client creep into server OS"...
    • MSBernstein's avatar
      MSBernstein
      Icon for Microsoft rankMicrosoft
      Mar 11, 2024
      Hi, Karl,

      This is quite odd - we do Server 2022 -> Server 2025 upgrades often in our automation. So, I'd like to figure out what is different.

      A few clarifying questions:
      1. What generation is the VM?
      2. How many GB of RAM? (Doubtful it matters, just checking)
      3. Where are you getting the WS2022 image?
      4. And from where are you getting the WS2025 image to upgrade to?

      I'd like to avoid coming back and saying, "well, I couldn't reproduce it."
      • MSBernstein's avatar
        MSBernstein
        Icon for Microsoft rankMicrosoft
        Mar 11, 2024

        Oh, please also include which edition of Server you are using.



        I tried the most basic Server 2022 -> Server 2025 upgrade scenario on Hyper-V.  I used a Gen 2 VM with 4GB of RAM.  I started with a vanilla image of Datacenter with Desktop Experience, Windows Server 2022, with February patches, and then attached an ISO of WS 2025 26063 and ran Setup.exe.  It worked fine.





        So, let's figure out what's different in your setup.



  • Karl-WE's avatar
    Karl-WE
    MVP
    Mar 04, 2024

    Same result. Does WS 2025 require (v)TPM? From techcommunity answer I understood that's only on later HW but not for VMs.





    • Karl-WE's avatar
      Karl-WE
      MVP
      Mar 04, 2024

      So I have now:

      • enabled vTPM and VBS / Core Isolation on the VM. This didn't change a thing.
      • The procedure is a as follows:
        • online phase of the setup runs well until VM restart
        • Then there's a short shutdown (about 3 seconds) -
        • NO applying phase during shutdown and no applying phase during startup
        • The old OS get's immediately booted on first reboot. You do not even see the "rollback" to the old version
        • bcdedit will have a leftover entry from setup


      This behaviour is very strange, I am open for further diags if you like. Thanks for your time!

      This one seems to be very reproducible.
      The host OS is now WS b26063 but no change from b26053 when I first posted it.
