DMZ (Workgroup) not registering to any Public DNS

Hi,



Specs:

Server OS : Windows Server 2012 R2 standard

Domain: Not joined - Workgroup - DMZ server for LYNC EDGE

Hardware: Virtual Machine

Anti-Virus: TRENDDS deep security - Agentless

Patch status: current



Background:

Our ISP has changed the DNS servers and they have asked us to update all the servers. As part of this exercise we have updated all the DMZ servers except one server in the LYNC EDGE POOL.

One server registered instantly on the new DNS IP provided by the ISP. However, the second server does not register.

Troubleshooting performed:

Disabled Windows Firewall

Added Firewall exception

Tried Public IP from Google and OPEN DNS

Restarted DNS client.

IPCONFIG /flushdns & all other IPCONFIG steps

Server restarted multiple times.

Disabled Anti-Virus

Removed the vNIC and added another vNIC

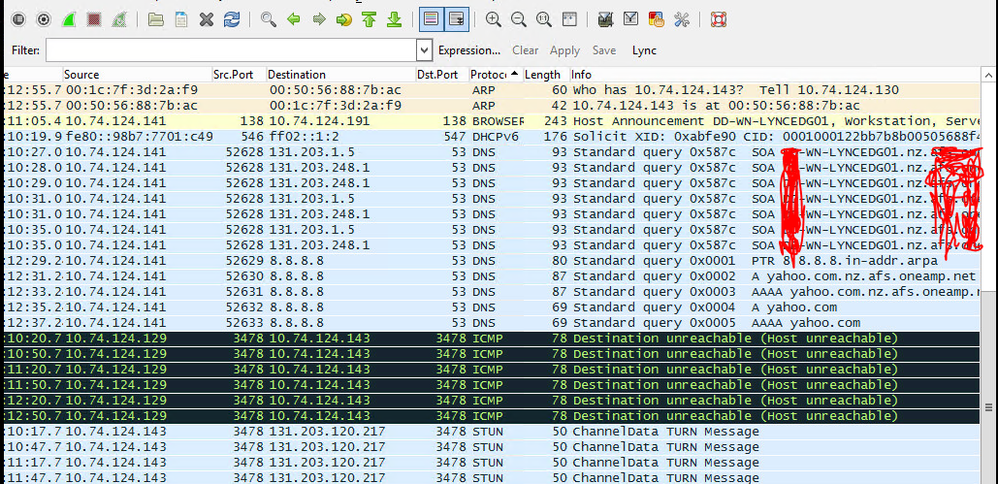

Wireshark shows

DNS query is made but no response.

Firewall log shows that it is also sending the request out but no response is being received.



[Expert@sXXX-0001-fwp01a:0]# tcpdump -nni bond0.202 host 10.74.124.141 and host 131.203.1.5
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on bond0.202, link-type EN10MB (Ethernet), capture size 96 bytes
11:43:35.188174 IP 10.74.124.141.52851 > 131.203.1.5.53: 26095+ A? wpad.XX.XXX.XXXXXXX.net. (40)
11:43:38.203177 IP 10.74.124.141.52851 > 131.203.1.5.53: 26095+ A? wpad.XX.XXX.XXXXXXX.net. (40)
11:43:42.203423 IP 10.74.124.141.52851 > 131.203.1.5.53: 26095+ A? wpad.XX.XXX.XXXXXXX.net. (40)
11:46:56.785882 IP 10.74.124.141.53157 > 131.203.1.5.53: 58665+ SOA? XX-WN-LYNCEDG01.XX.XXX.XXXXXXX.net. (51)
11:47:00.813962 IP 10.74.124.141.53157 > 131.203.1.5.53: 58665+ SOA? XX-WN-LYNCEDG01.XX.XXX.XXXXXXX.net. (51)
11:47:04.814037 IP 10.74.124.141.53157 > 131.203.1.5.53: 58665+ SOA? XX-WN-LYNCEDG01.XX.XXX.XXXXXXX.net.



Event log shows 8015 error.

I have compared every service, config, header from working server to the problematic machine and so far there is nothing that appears out of the ordinary.



DNS
management
security
Windows Server
    • Dave Patrick's avatar
      Dave Patrick
      MVP
      Jun 25, 2018

      Whos public name registration service are you using? I'd probably ask their tech support about your issues.





      • guruprasad tantry's avatar
        guruprasad tantry
        Copper Contributor
        Jun 25, 2018

        Hi Dave,



        Thank you.

        We are using the DNS provided by ISP. We have checked with them and they don't see any issue at their end. Also, the 2nd server is already registered which shows that DNS is responding. Not sure why only this server is not registering.

        I have done NSLOOKUP as below

        nslookup yahoo.com 8.8.8.8

        even this fails.
