Trying to MSIX package LOB application that needs TWAIN access
So I think this isn't possible but I just wanted to ask.
I've a LOB application that needs to access TWAIN scanning devices.
How this works in a normal environment is that the TWAINDSM.dll (TWAIN Data source manager) is loaded from c:\windows\system32
This then scans the C:\Windows\twain_32 or C:\Windows\twain_64 depending on if the app is x86 or x64
The scanning manufacturers will have their TWAIN drivers installed to c:\windows\twain_32 (or 64) as subfolders and the TWAIN Data source manager scans these subfolders for available TWAIN devices that can be connected to.
All this breaks down in an MSIX environment because the container doesn't have access to C:\windows\twain_32\ManfactureDriverN folder
It can see the folders and when the TWAINDSM tries to initialize the driver it fails, most likely due to sandbox limitations.
Does anyone know of a solution to this, or apps like this will always need to stick to MSI packaging because of this limiation.
Thanks.
7 Replies

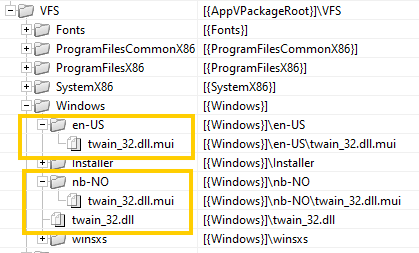

We have some applications packaged with App-V where scanning stopped working after September 2025. Win11 24H2. It turned out that the September Win11 update was the culprit. Newer updates have the same error. Further troubleshooting with ProcessMonitor showed that if we added twain files from Win10 to the App-V packages, scanning worked again with our App-V packages.
I have previously not gotten scanning to work when I have packaged these applications as MSIX packages.

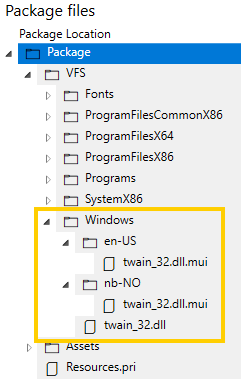

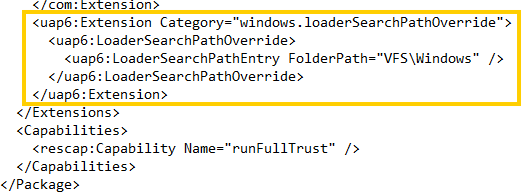

After I got scanning to work with the App-V package, I tried sequencing these again with the MSIX Packaging Tool. In the same way as with the App-V packages, I added the twain files from a Win10 computer and changed the AppXManifest.xml file.Added section to AppXMainifest.xml
Success!
Now scanning works in our applications packaged as MSIX on Win10 and Win11 24H2 with the latest Microsoft update.Thank you for posting this information.
I will give it a go and see how it works out.
From memory, I was able to load the twain_32.dll library OK from an MSIX container, and it was able to scan the C:\windows\twain_32\ folder for scanner drivers, but when it loaded the scanner *.ds drivers from their subfolders, they were not able to initialize because when it tried to load their own dll dependencies, it could not locate them because the C:\windows\twain_32\MyScannerDriver\ folder wasn't part of the search path.
So ProcMon would show it looking for its dependencies in the VFS\windows\twain_32\MyScannerDriver\ location instead of C:\Windows\twain_32\MyScannerDriver\
I had written a comprehensive reply to this but it looks like the system deleted it after I posted it because I mentioned the name of a very popular imaging tool that has the same issue? 😡
To Summarise, my MSIX package only contains my application, a simple .NET application that interacts with the TWAIN Data Source manager found in c:\windows\system32\twaindsm.dll
It doesn't install any drivers or folders to system32, or install any scanning device drivers. All these are installed natively on the Windows OS outside of my MSIX Package
When the 64-bit version of TWAIN data source manager is loaded, it scans the C:\Windows\twain_64\ folder for scanner drivers installed.
Each sub folder generally has its own scanner driver within it. There can be any number of sub-folders here depending on how many different scanning devices you have installed.
The TWAINDSM loads the *.ds file contained in this sub-folder that is the scanner driver, with a LoadLibrary call
This call works fine outside of an MSIX container, but if it tries to do the same thing within an MSIX container, it fails to load the DS file
I'm not sure what other debugging steps I can take to diagnose why it cannot load the files.
The Source code is available on github for the TWAINDSM dll and the logs above point to where it fails @ apps.cpp 1557
Hopefully this post is not deleted like the last.
The named program that it's blocking me from posting that has the same issue is a
"popular image viewer that starts with an i and ends in view" that has a red icon. It's in the Windows AppStore as an MSIX install
When you do a File -> Select Scan/TWAIN Source... it has the exact same problem as my application. and the TWAINDSM logs show it cannot load the datasource library either.
If you run the same application as a standalone application outside of the AppStore distribution, it works fine.
So it seems there's some quirk here with trying to load Datasource drivers via the TWAIN Data Source Manager in an MSIX container.
Hi Timothy,
Thanks for responding. Yes I believe you are right, the container does have access to the folder. I probably phrased it wrong or I misunderstand some of the limitations when running in an MSIX container.
I'm not installing any TWAIN drivers here as part of the package. They are already installed on the machine outside of the package by the driver install tools provided by the associated manufacturer for a scanner device, Fujitsu, Canon, Brother, etc.
It is the TWAINDSM.dll loaded from C:\windows\system32 that accesses this system folder in C:\windows\twain_64\ but it attempts to perform LoadLibrary calls for the installed TWAIN drivers. Does an MSIX container allow LoadLibrary calls from this folder and its subfolders or are they restricted to C:\windows\system32\ only and some other limited paths?
There can be any number of sub folders in this c:\windows\twain_64\ location, each one provided by a different scanning device.
The TWAINDSM.dll allows for debug logging to be enabled.
When I run the application outside of an MSIX container it is able to scan the folder fine and load the drivers
[091023184 dsm.cpp 410 0 0000000000000A04] TWAIN Working Group [091023184 dsm.cpp 411 0 0000000000000A04] TWAIN 64 Source Manager (Image Acquisition Interface) [091023184 dsm.cpp 412 0 0000000000000A04] version: 2, 5, 0, 0 [091023185 dsm.cpp 2382 0 0000000000000A04] Acme Twain -> DSM [091023185 dsm.cpp 2391 0 0000000000000A04] DG_CONTROL/DAT_PARENT/MSG_OPENDSM [091023185 apps.cpp 383 0 0000000000000A04] Application: "Acme Ltd." [091023185 apps.cpp 384 0 0000000000000A04] "Acme Twain" [091023185 apps.cpp 385 0 0000000000000A04] "Acme Twain" version: 1.0 [091023185 apps.cpp 386 0 0000000000000A04] TWAIN 2.3 [091023240 apps.cpp 1648 203 0000000000000A04] Loaded library: C:\WINDOWS\twain_64\sample2\TWAINDS_Sample64.ds (TWAINDSM_USEAPPID:1) [091023244 dsm.cpp 2446 123 0000000000000A04] TWRC_SUCCESSWhen running the application inside an MSIX container, it will fail to load the driver for the scanner
[171018814 dsm.cpp 410 0 000000000000969C] TWAIN Working Group [171018814 dsm.cpp 411 0 000000000000969C] TWAIN 64 Source Manager (Image Acquisition Interface) [171018814 dsm.cpp 412 0 000000000000969C] version: 2, 5, 0, 0 [171018814 dsm.cpp 2382 0 000000000000969C] Acme Twain -> DSM [171018814 dsm.cpp 2391 0 000000000000969C] DG_CONTROL/DAT_PARENT/MSG_OPENDSM [171018814 apps.cpp 383 0 000000000000969C] Application: "Acme Ltd." [171018814 apps.cpp 384 0 000000000000969C] "Acme Twain" [171018814 apps.cpp 385 0 000000000000969C] "Acme Twain" version: 1.0 [171018814 apps.cpp 386 0 000000000000969C] TWAIN 2.3 [171018818 apps.cpp 1557 126 000000000000969C] Could not load library: C:\WINDOWS\twain_64\sample2\TWAINDS_Sample64.ds [171018818 apps.cpp 680 126 000000000000969C] Condition Code: DS or DSM reported error, application shouldn't display an error [171018819 dsm.cpp 2446 123 000000000000969C] TWRC_SUCCESSYes, LoadLibrary works just fine in the package, and usually as expected.
Starting with the simple case of dlls directly in the native System32 folder, and/or the virtual VFS\SystemX64 folder. The LoadLibrary call will check the folders using the standard search sequence you normally would get, except that the package VFS will be a layer over the native. This means that it sees both sets of files that have different names, but if the same filename is in both, then it sees the package one.
There are situations where the list of where to look might be different in an MSIX package. And that occurs if the installer either alters the PATH variable or adds an "App Paths" registration into the registry. In either case, we can modify the AppXManifest file to add an extension called "LoaderSearchOrder" to add additional folders. A maximum of 5 can be added.
So if your installer created a "C:\Windows\System32\foobar" folder and dropped dlls into it, and then either changed the PATH variable or added an App Paths registration, you would add a LoaderSearchOrder for "VFS\SystemX64\foobar". (Assuming an x64 OS in all of this).
All this breaks down in an MSIX environment because the container doesn't have access to C:\windows\twain_32\ManfactureDriverN folder
Well, as written that isn't true. The app running in the MSIX container would have access to that folder, whether or not it is inside the package or on the native system.
More likely, you are attempting to install the twain driver as part of the package. The kernel cannot see your driver as MSIX does not support drivers of any kind being inside the package. If you treat the driver as an independent dependency, the driver may be installed natively and the application inside the MSIX container may then use it.
Make sense?
