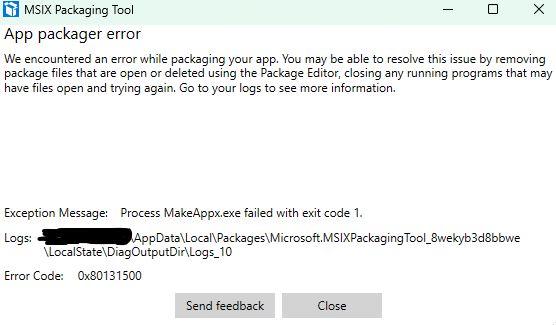

Encountered 0x80131500 code while using MSIX Packaging Tool

Hi Guys,

Recently, when I tried to use MSIX Packaging Tool to convert the exe file to MSIX, I got the 0x80131500 error. Checking the log, I got the following part

[2025-07-31 7:14:04 PM] [Debug] MakeAppx : error: Failure at (packageWriter3->AddPayloadFiles( addedFiles, preparedFiles, performanceOptions.memoryLimit)) - 0x8007007b - The filename, directory name, or volume label syntax is incorrect.
[2025-07-31 7:14:04 PM] [Debug] Cleaning up output file "\\?\%UserProfile%\OneDrive\Desktop\My-Package_1.0.0.0_x64__tn3vmbmc1d5kj_1.msix".
[2025-07-31 7:14:04 PM] [Debug] MakeAppx : error: Failure at (CreatePackage( overwrite, hashAlgorithm, fileList, outputPath, manifestStream.Get(), forceCompressionNone, performanceOptions, encryptPackage, encryptionOptions, cgmPath, mainPackagePathForResourceExemption, makepriExeFullPath)) - 0x8007007b - The filename, directory name, or volume label syntax is incorrect.
[2025-07-31 7:14:04 PM] [Debug] MakeAppx : error: Package creation failed.
[2025-07-31 7:14:04 PM] [Debug] MakeAppx : error: 0x8007007b - The filename, directory name, or volume label syntax is incorrect.
[2025-07-31 7:14:04 PM] [Error] MakeAppx.exe failed, exit code = 1
[2025-07-31 7:14:04 PM] [Debug] Finalizing the conversion state
[2025-07-31 7:14:04 PM] [Debug] Getting environment object from %UserProfile%\AppData\Local\Packages\Microsoft.MSIXPackagingTool_8wekyb3d8bbwe\LocalState\MsixGenerator.ConversionState.xml
[2025-07-31 7:14:04 PM] [Warning] Error Occurred: Microsoft.Msix.Utils.ProcessRunner.ProcessRunnerException: Process MakeAppx.exe failed with exit code 1.
   at Microsoft.Msix.Utils.ProcessRunner.ProcessRunnerBase.ValidateExitCode(Int32[] validCodes)
   at Microsoft.ApplicationVirtualization.Packaging.Packager.FinalizePackageViaMakeAppx(IPackageFiles packageFiles, String manifestPath, String appvManifestPath, String registryHivePath, Boolean useExistingRegisterHive, String userRegistryHivePath, String userClassesRegistryHivePath, String packagePath, String msixMappingPath, CompressionOption compression, MsixPackageInputProperties msixPackageInputProperties, CancellationTokenSource cancellationTokenSource)
   at MsixGenerator.MsixPackageEditor.FinalizePackage(CancellationTokenSource cancellationTokenSource, Boolean modifyExistingPackage)
   at MsixPackagingTool.ViewModel.PackageEditorWorkflow.MasterPackageEditorViewModel.SavePackageEditorChanges_BackgroundWorker(Object sender, DoWorkEventArgs doWorkEventArgs)
   at System.ComponentModel.BackgroundWorker.OnDoWork(DoWorkEventArgs e)
   at System.ComponentModel.BackgroundWorker.WorkerThreadStart(Object argument)

So far, it seems that \\?\%UserProfile% is causing the issue. But I am not sure how to solve it.

The following is the manifest file I used.

<?xml version="1.0" encoding="utf-8"?>
<Package xmlns="http://schemas.microsoft.com/appx/manifest/foundation/windows10" xmlns:uap="http://schemas.microsoft.com/appx/manifest/uap/windows10" xmlns:uap10="http://schemas.microsoft.com/appx/manifest/uap/windows10/10" xmlns:desktop7="http://schemas.microsoft.com/appx/manifest/desktop/windows10/7" xmlns:rescap="http://schemas.microsoft.com/appx/manifest/foundation/windows10/restrictedcapabilities" IgnorableNamespaces="uap uap10 desktop7 rescap">
  <!--Package created by MSIX Packaging Tool version: 1.2024.405.0-->
  <Identity Name="My-Package" Publisher="CN=Dummy Publisher" Version="1.0.0.0" ProcessorArchitecture="x64" />
  <Properties>
    <DisplayName>My-Package</DisplayName>
    <PublisherDisplayName>Dummy Publisher</PublisherDisplayName>
    <Description>Dummy description.</Description>
    <Logo>Assets\StoreLogo.png</Logo>
    <uap10:PackageIntegrity>
      <uap10:Content Enforcement="on" />
    </uap10:PackageIntegrity>
  </Properties>
  <Resources>
    <Resource Language="en-us" />
  </Resources>
  <Dependencies>
    <TargetDeviceFamily Name="Windows.Desktop" MinVersion="10.0.17763.0" MaxVersionTested="10.0.22000.1" />
  </Dependencies>
  <Applications>
    <Application Id="MyApplication" Executable="VFS\AppVPackageDrive\MyApplication\MyApplication.exe" EntryPoint="Windows.FullTrustApplication">
      <uap:VisualElements BackgroundColor="transparent" DisplayName="MyApplication" Square150x150Logo="Assets\MYAPPLICATION-Square150x150Logo.png" Square44x44Logo="Assets\MYAPPLICATION-Square44x44Logo.png" Description="MyApplicatiion">
        <uap:DefaultTile Wide310x150Logo="Assets\MYAPPLICATION-Wide310x150Logo.png" Square310x310Logo="Assets\MYAPPLICATION-Square310x310Logo.png" Square71x71Logo="Assets\MYAPPLICATION-Square71x71Logo.png" />
      </uap:VisualElements>
    </Application>
  </Applications>
  <Capabilities>
    <rescap:Capability Name="runFullTrust" />
  </Capabilities>
</Package>

Could someone help me solve this issue? Thanks!





1 Reply

  • Well one thing I notice is the Identity Name value in the AppXManifest.  The minus character is not allowed in that field.  The GUI of the tool would not have allowed it, so my guess is that you manually changed it in the AppXManifest.  To me the strange thing is that I expect the tool to generate a specific error for that.  Certainly the EventLog Microsoft\Windows\AppXOperational should have an error that points to the exact line and field of such an issue.
