Parse CEF logging and a map field within message

Hi all,

I have successfully configured the oms-agent and the Microsoft CEF python log forward script on a Ubuntu 20.04 x64 VM to forward Fortinet Analyzer logging to Sentinel. I receive the CEF logging in Sentinel. Most fields are mapped correctly. However, not all fields within the <message> are mapped, such as "ad.srccountry". This field is now in the AdditionalExtensions variable along with other data.

I want to have this variable in a separate field for log alerting purposes.

Problem:

Within CEF -> message -> AdditionalExtensions there is the ad.srccountry variable. I want the "ad.srccountry" variable mapped to 'cs1' (

DeviceCustomString1) in Sentinel. I got this idea from a list of all supported CEF message mapping field.

However, I cannot figure out how to configure this additional parse within the message field.

My configuration:

vi /etc/opt/microsoft/omsagent/<tenantID>/conf/omsagent.d/security_events.conf

<source>
  type syslog
  port 25226
  bind 127.0.0.1
  protocol_type tcp
  tag oms.security
  format /(?<time>(?:\w+ +){2,3}(?:\d+:){2}\d+|\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}.[\w\-\:\+]{3,12}):?\s*(?:(?<host>[^: ]+) ?:?)?\s*(?<ident>.*CEF.+?(?=0\|)|%ASA[0-9\-]{8,10})\s*:?(?<message>0\|.*|.*)/
  <parse>
     message_format auto
  </parse>
</source>

<filter oms.security.**>
  type filter_syslog_security
</filter>

Works (raw message and primary CEF filter): https://regex101.com/r/rdf4iP/1

vi /etc/opt/microsoft/omsagent/<tenantID>/conf/omsagent.d/syslog.conf

<source>
  @type syslog
  port 25224
  bind 127.0.0.1
  protocol_type tcp
  tag oms.syslog
</source>

<filter oms.syslog.**>
  @type parser
  key_name message
  format /.*ad.srccountry=(?<cs1>.*?)\s.*$/
</filter>

Raw message and secondary ad.srccountry filter: https://regex101.com/r/v6iZHs/1

systemctl restart omsagent-<TenantID>.service && systemctl restart syslog

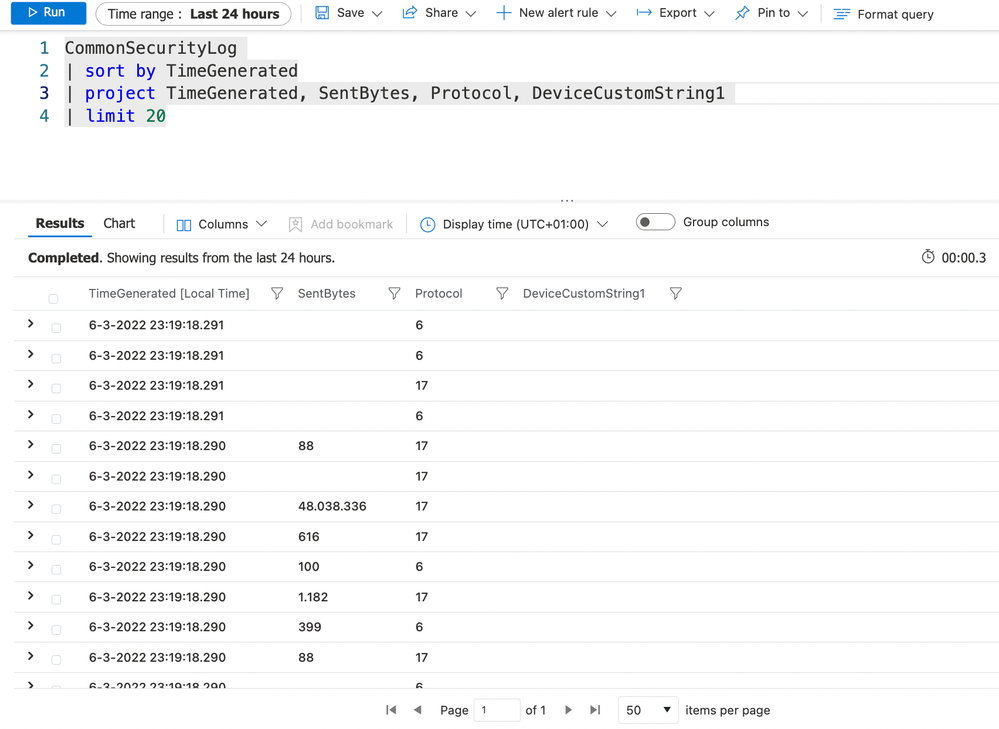

But the DeviceCustomString1 (cs1) field in the CommonSecurityLog table from Sentinel stays empty:

Any tips or tricks how I can get this to work?

Thanks!
