Analytic Rule does not display incident while In hunting there is events.
Hello, There is a problem with an analytic rule i have created to correlate between ThreatIntelligenceIndicator & DeviceNetworkEvents, when i run the KQL query of the analytic in Log Hunting ther...
- IIRC, the "time set in query" will be overruled by the analytics rule time settings. To do something similar to alert on potential C2C comms (compare NetworkIPs from ThreatIntelligenceIndicator to FW logs) I had to use a join.
ThreatIntelligenceIndicator | where NetworkIP != "" | join (FW_DATA_Table_or_Function | where TimeGenerated >= now()-1d | project-rename NetworkIP = Dst_IP) on NetworkIP
| project TimeGenerated1, Name, Src_IP, NetworkIP, Dst_Port, Protocol | sort by TimeGenerated1 desc
How did you setup the Query Scheduling and Alert threshold?
Also, is this a regular analytics rule, or is it an NRT rule?
Also, is this a regular analytics rule, or is it an NRT rule?
Hi,
It's regular analytics rule
It's regular analytics rule
- IIRC, the "time set in query" will be overruled by the analytics rule time settings. To do something similar to alert on potential C2C comms (compare NetworkIPs from ThreatIntelligenceIndicator to FW logs) I had to use a join.
ThreatIntelligenceIndicator | where NetworkIP != "" | join (FW_DATA_Table_or_Function | where TimeGenerated >= now()-1d | project-rename NetworkIP = Dst_IP) on NetworkIP
| project TimeGenerated1, Name, Src_IP, NetworkIP, Dst_Port, Protocol | sort by TimeGenerated1 desc- This is another example i'm trying to do.
ThreatIntelligenceIndicator
| where TimeGenerated > ago(360d)
| where isnotempty(Url)
| join (EmailUrlInfo
| where TimeGenerated >= now()-1d) on Url
| join (EmailEvents | where TimeGenerated >= now()-1d) on NetworkMessageId
| project TimeGenerated , NetworkMessageId, SenderFromAddress, RecipientEmailAddress, Url , DeliveryAction, DeliveryLocation
The analytic rule is for checking IOC URLs in EmailsEvents that have URLs.
Analytic rule settings are :
Run Query every : 5 minutes
Lookup data from the last: 1 Day

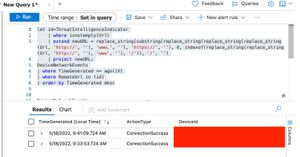

When i tested the KQL Query in Log hunting, there is an event in the result, but when trying to test it in Analytic , Simulating result has no result, and no incident generated.
Thank you.- Swap the join around? I'm thinking the analytic rule test may be limiting things. So put your EmailEvents first with 1d, and then do a join to ThreatIntelligenceIndicator with ago(360) and it may work.
- Thanks for your replay, but the time in analytic rule setting is same as i set in the query, both are 1h.
- Could also have a look at these, as an example.
https://github.com/Azure/Azure-Sentinel/blob/master/Detections/ThreatIntelligenceIndicator/IPEntity_AzureFirewall.yaml
